Crimp J46, engine harness, Trionic: Notes

Location:  Approx. 130 mm from connector H24-2

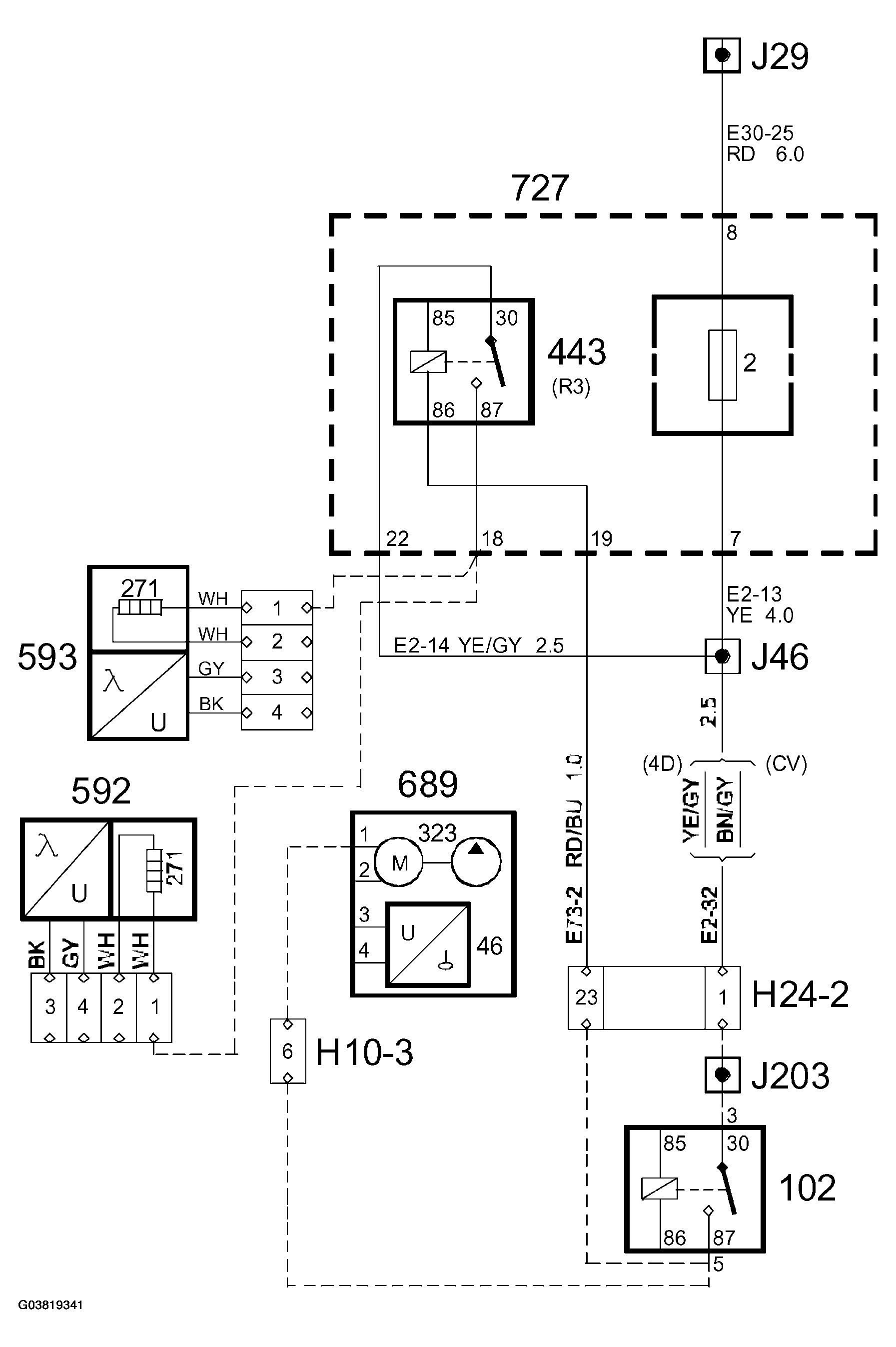

Fig 1: Circuit Diagram Crimp J46, Engine Harness, Trionic
G03819341Courtesy of SAAB-SCANIA OF AMERICA, INC.
