To remove

Carry out actions before removing control module.

1. Ignition key in LOCK position.
2. Remove the upper engine cover.
3. Carefully press down the catches and carefully unplug the connectors from the control module one at a time so that the connection pins, etc. are not damaged.

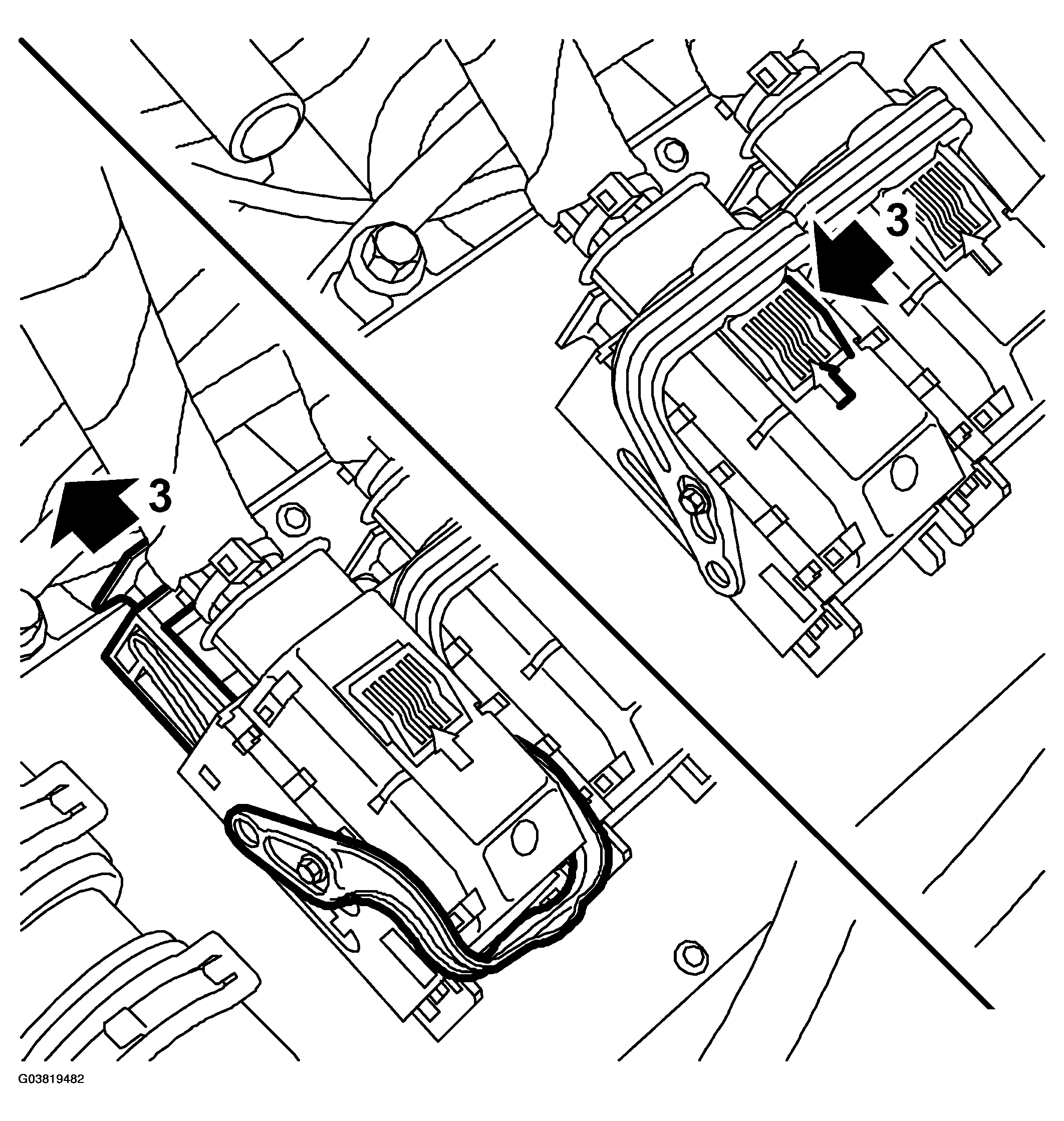

   Fig 1: Pressing Down Catches

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Remove the control module.

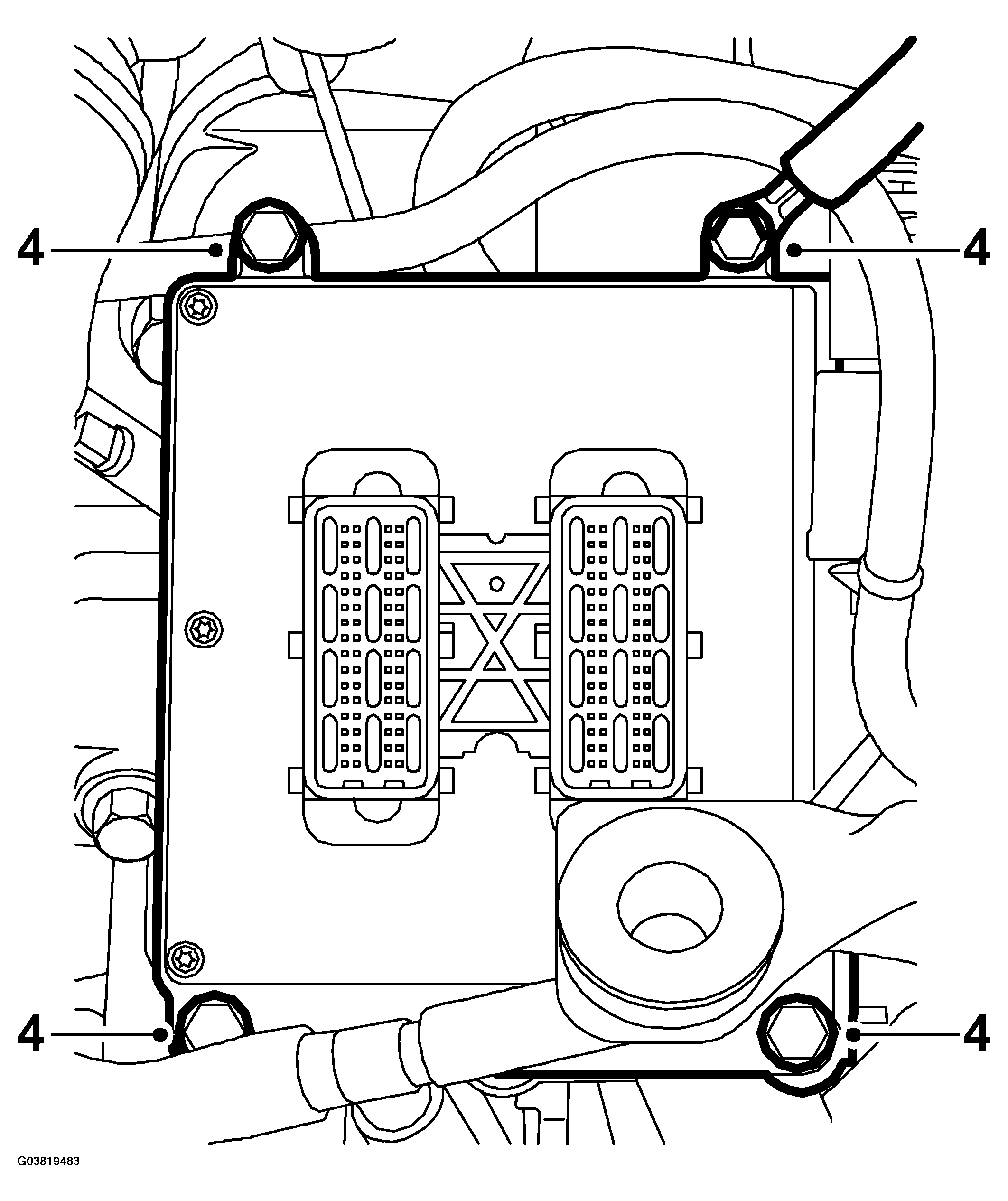

   Fig 2: Removing Control Module Bolt

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
