Crimp J26, engine harness, Trionic: Notes

Location:  Approx. 170 mm from branching connector H24-2 towards the engine control module

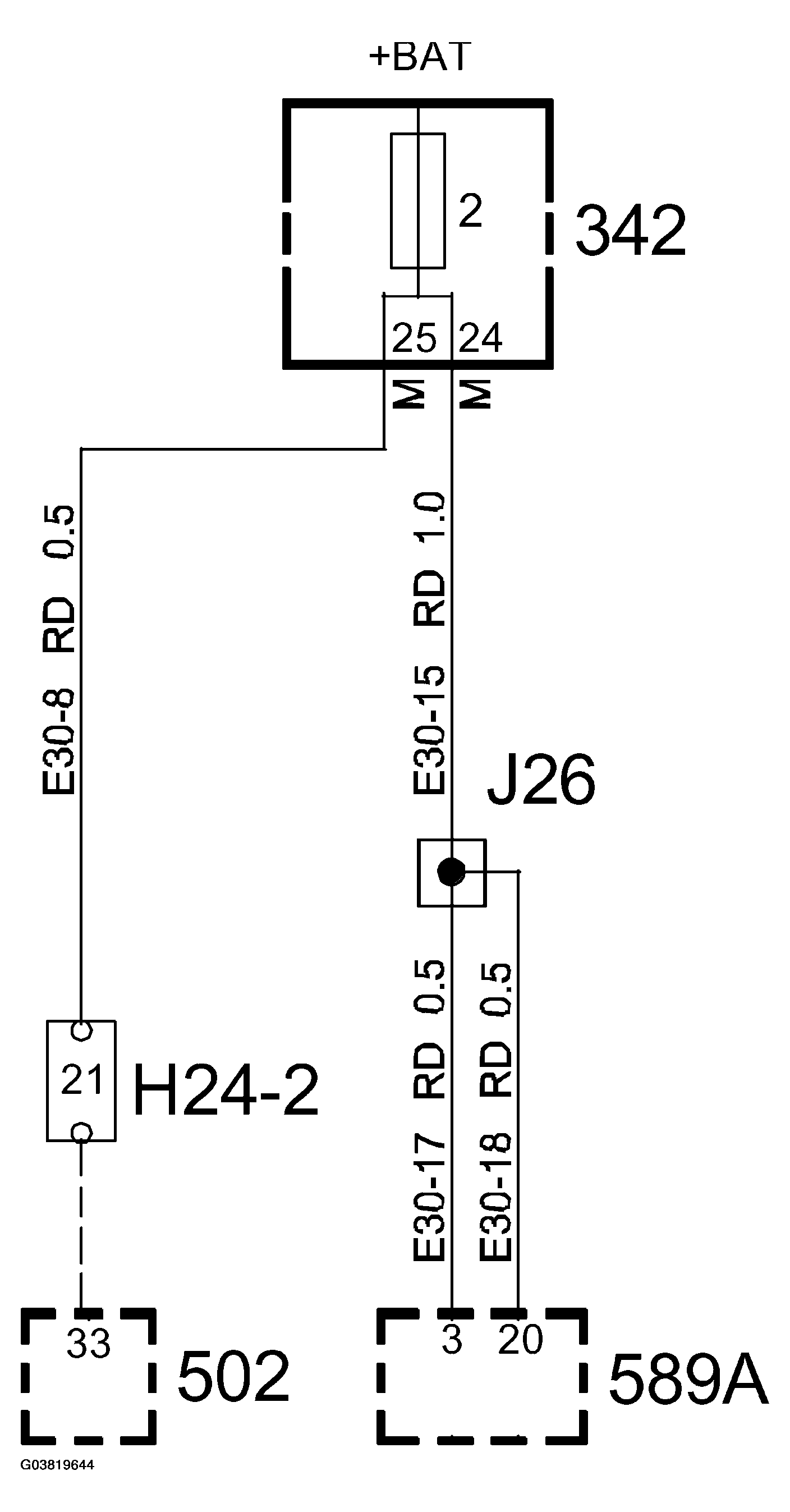

Fig 1: Identifying Engine Harness Trionic - Crimp J26
G03819644Courtesy of SAAB-SCANIA OF AMERICA, INC.
