Crimp J35, engine harness, Trionic: Notes

Location:  Approx. 40 mm from branching of engine control module switch A towards the ignition coils

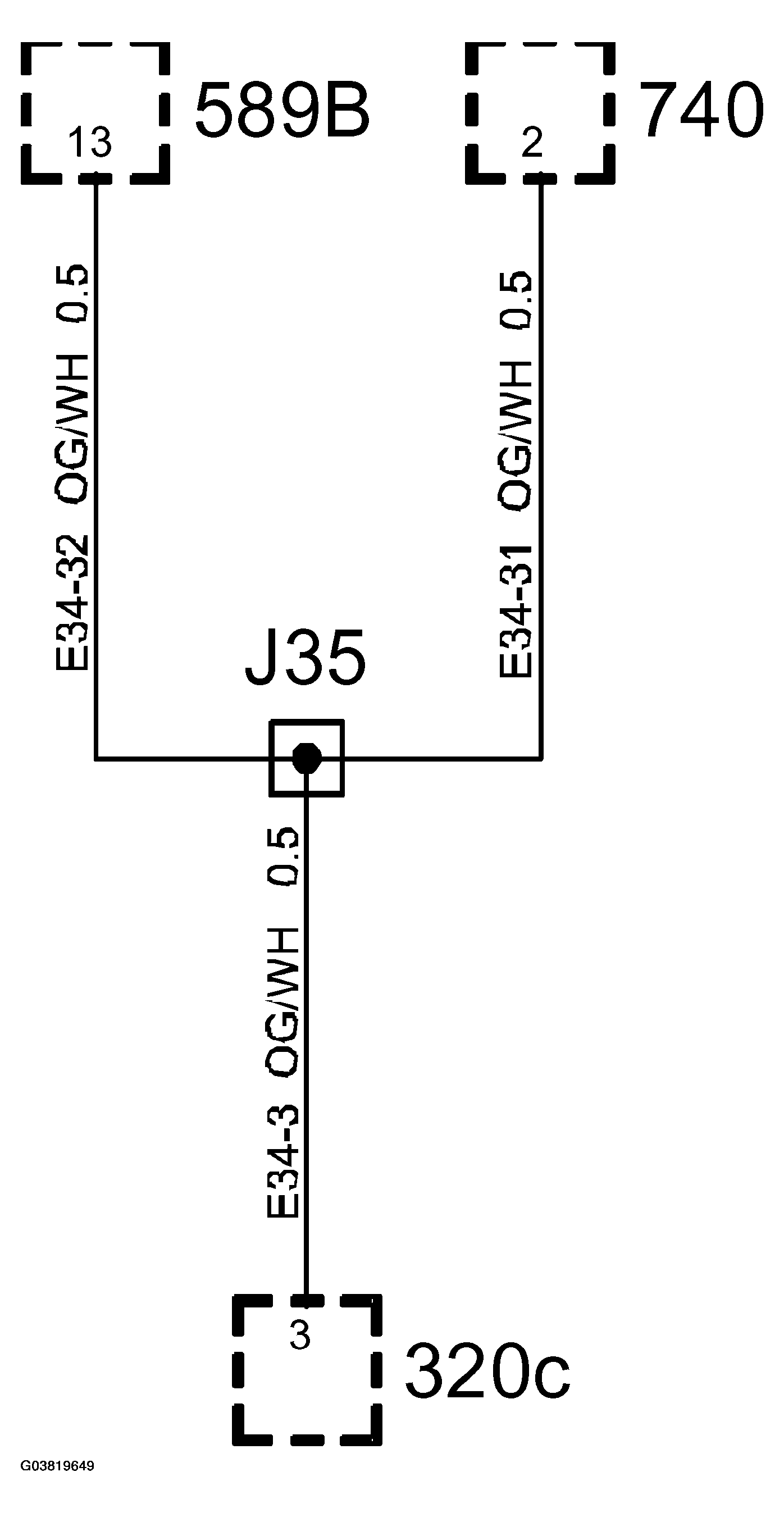

Fig 1: Identifying Engine Harness Trionic - Crimp J35
G03819649Courtesy of SAAB-SCANIA OF AMERICA, INC.
