Crimp J44, engine harness, Trionic

Location:  Approx. 80 mm from the branching point to the ignition coil with integrated amplifier, cyl. 4, towards the combustion sensor

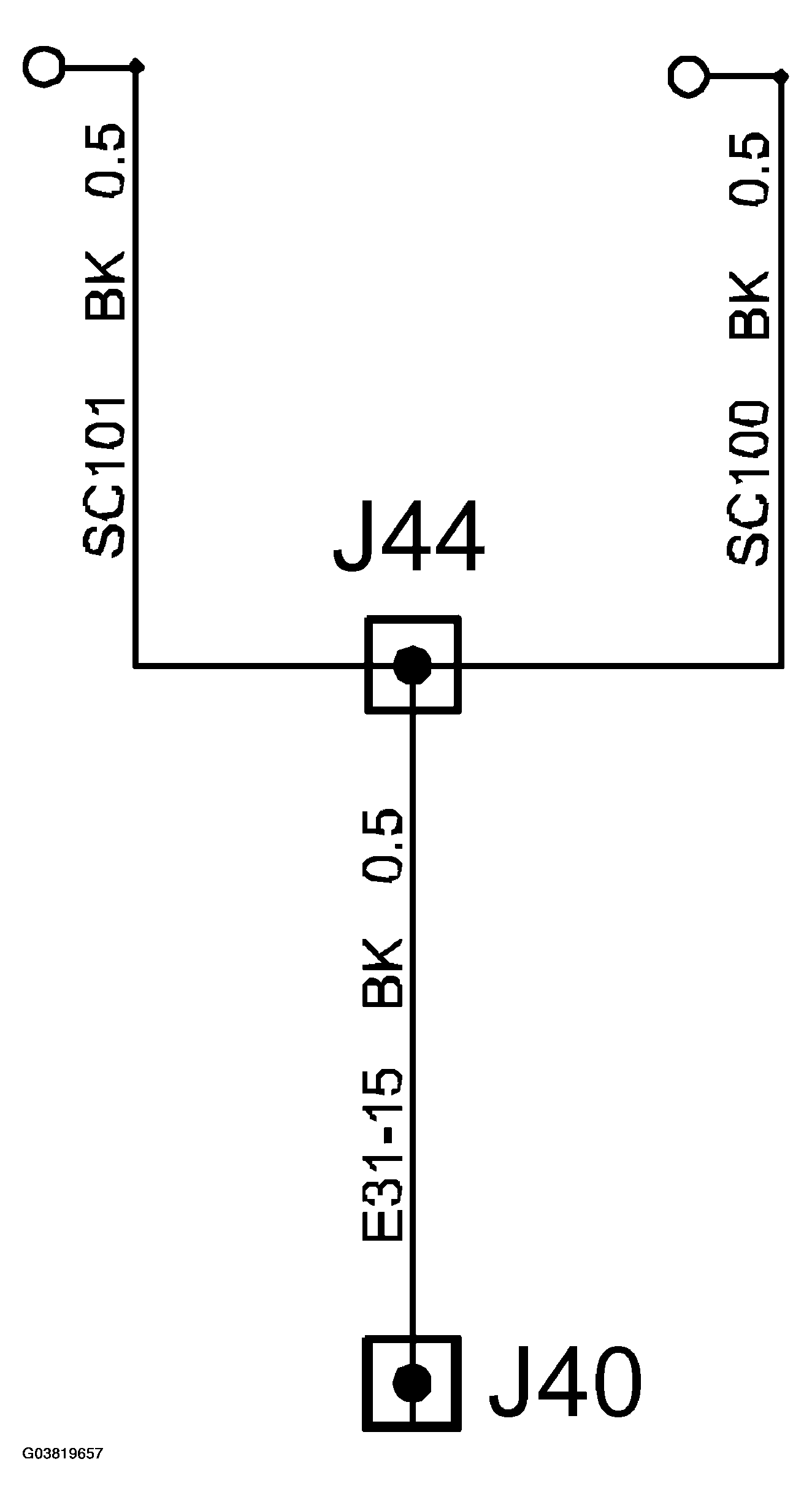

Fig 1: Identifying Engine Harness Trionic - Crimp J44
G03819657Courtesy of SAAB-SCANIA OF AMERICA, INC.

CRIMP J40, PETROL ENGINE WIRING HARNESS
