Crimp J48, engine harness, Trionic: Notes

Location:  Approx. 80 mm from branching point ignition coil with integrated power amplifier for cylinder 4 towards the engine control module

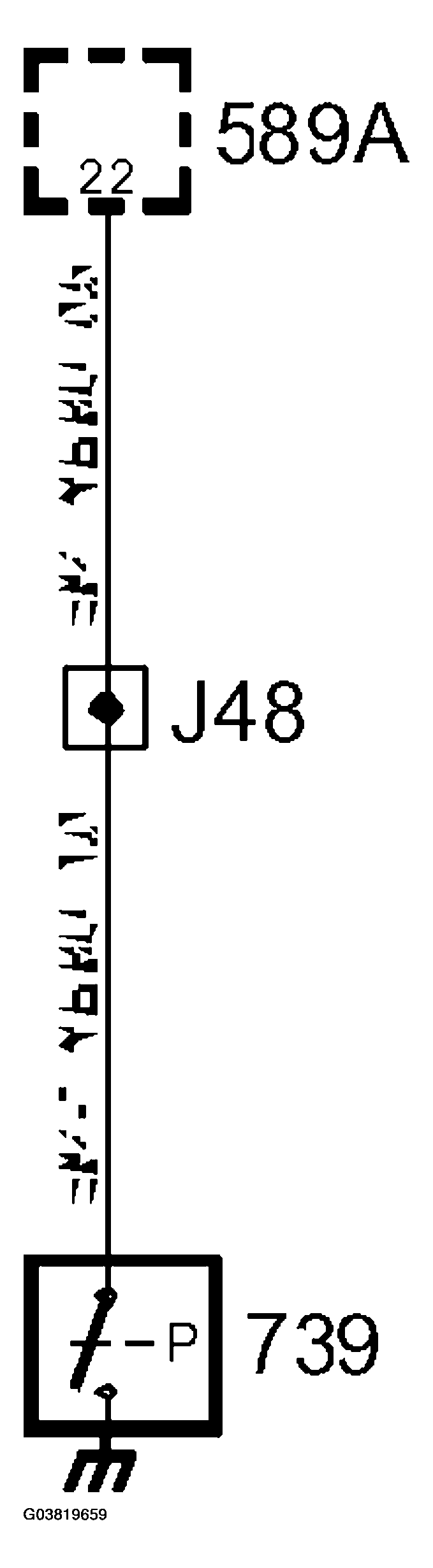

Fig 1: Identifying Engine Harness Trionic - Crimp J48
G03819659Courtesy of SAAB-SCANIA OF AMERICA, INC.
