Ionization Detection Module (740)

Location:  on the engine's short left side by the vacuum pump

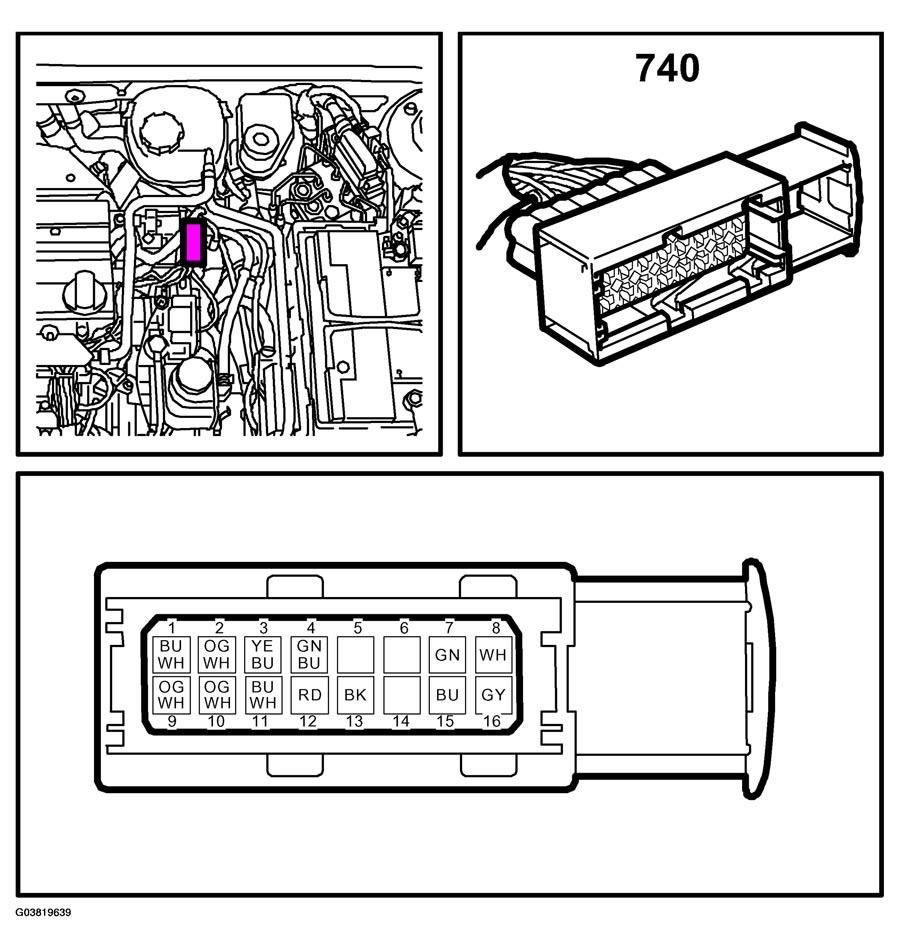

Fig 1: Identifying Ionization Detection Module
G03819639Courtesy of SAAB-SCANIA OF AMERICA, INC.
