9-3 Linear, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
TRIONIC T8 Fuel Control System
>>
Fault diagnosis, symptoms
>>
Check Engine lamp, faulty function
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Check Engine lamp, faulty function: Notes

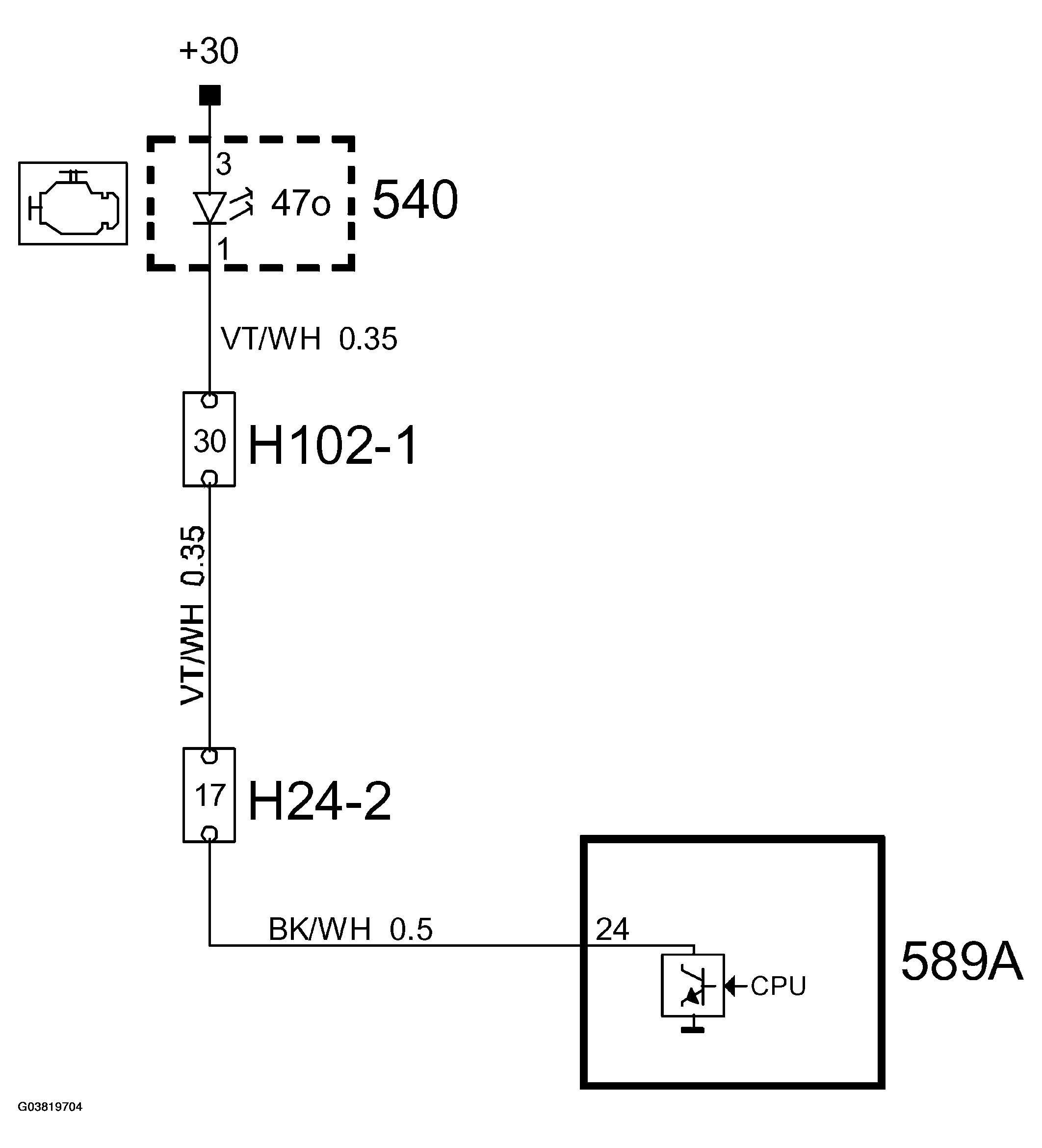

Fig 1: Identifying Circuit Diagram - Engine Lamp
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
