Intake air sensor (688), T8: Notes

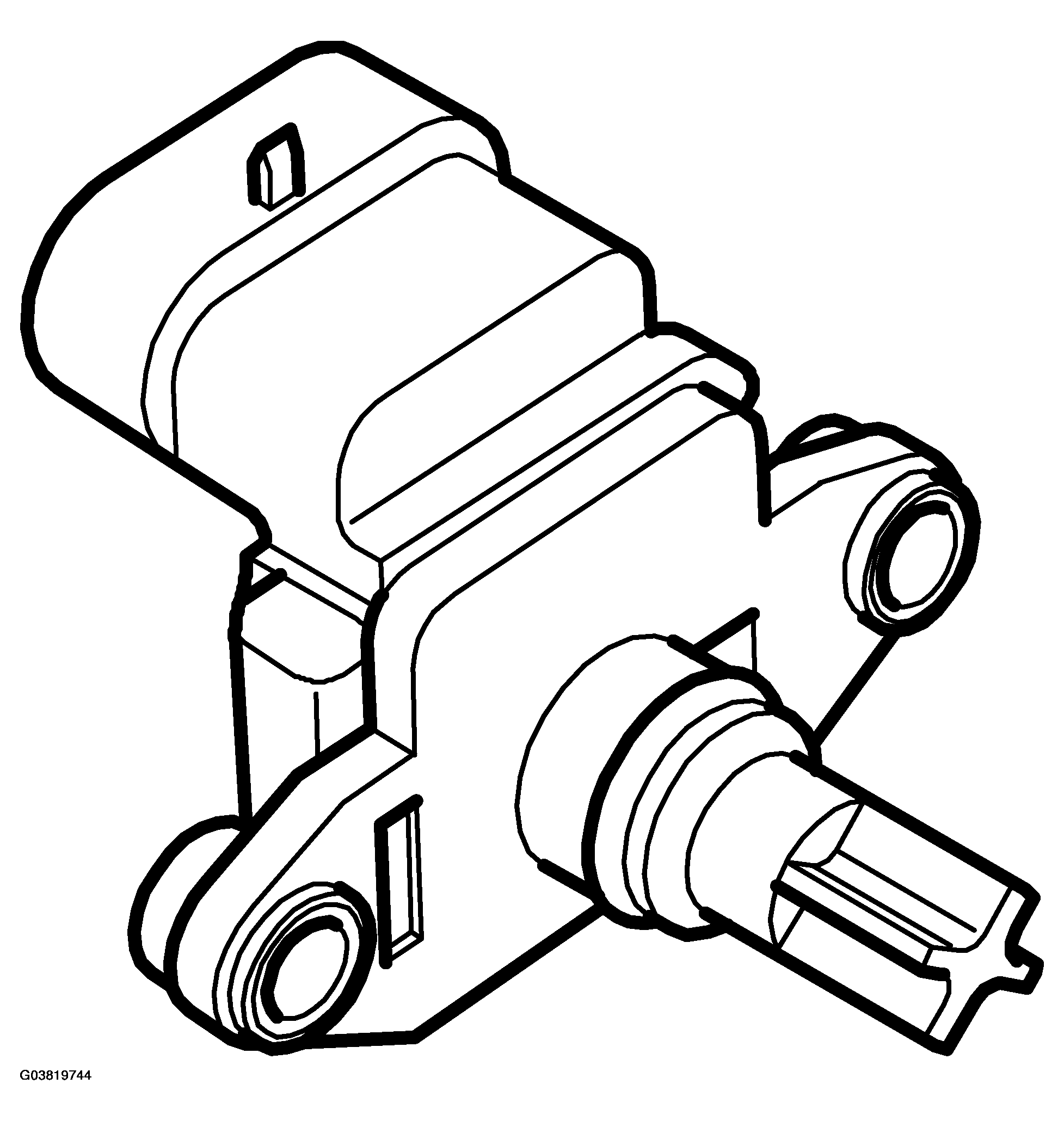

Fig 1: Identifying Intake Air Sensor
G03819744Courtesy of SAAB-SCANIA OF AMERICA, INC.

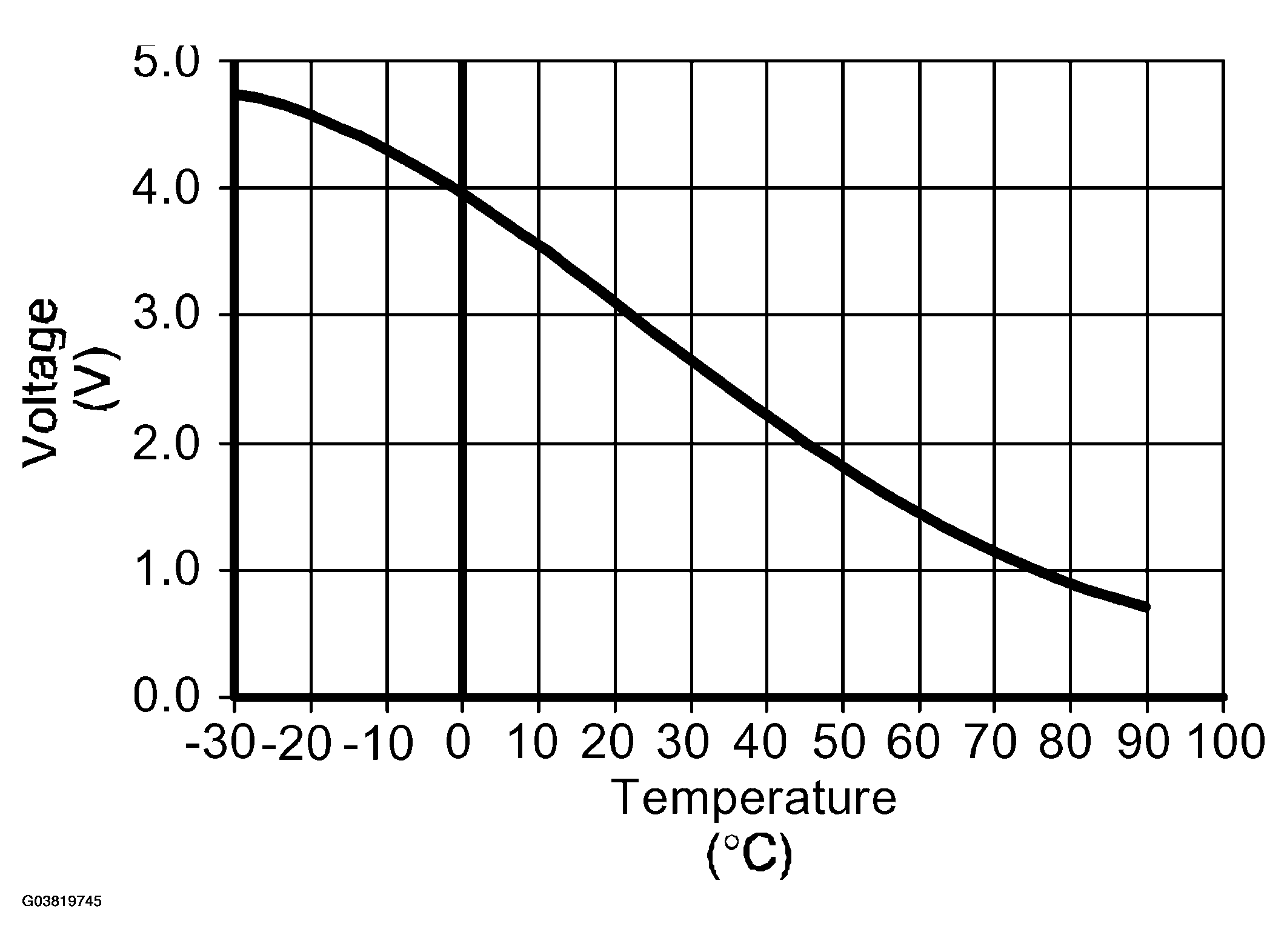

Fig 2: Intake Air Sensor Graph
G03819745Courtesy of SAAB-SCANIA OF AMERICA, INC.

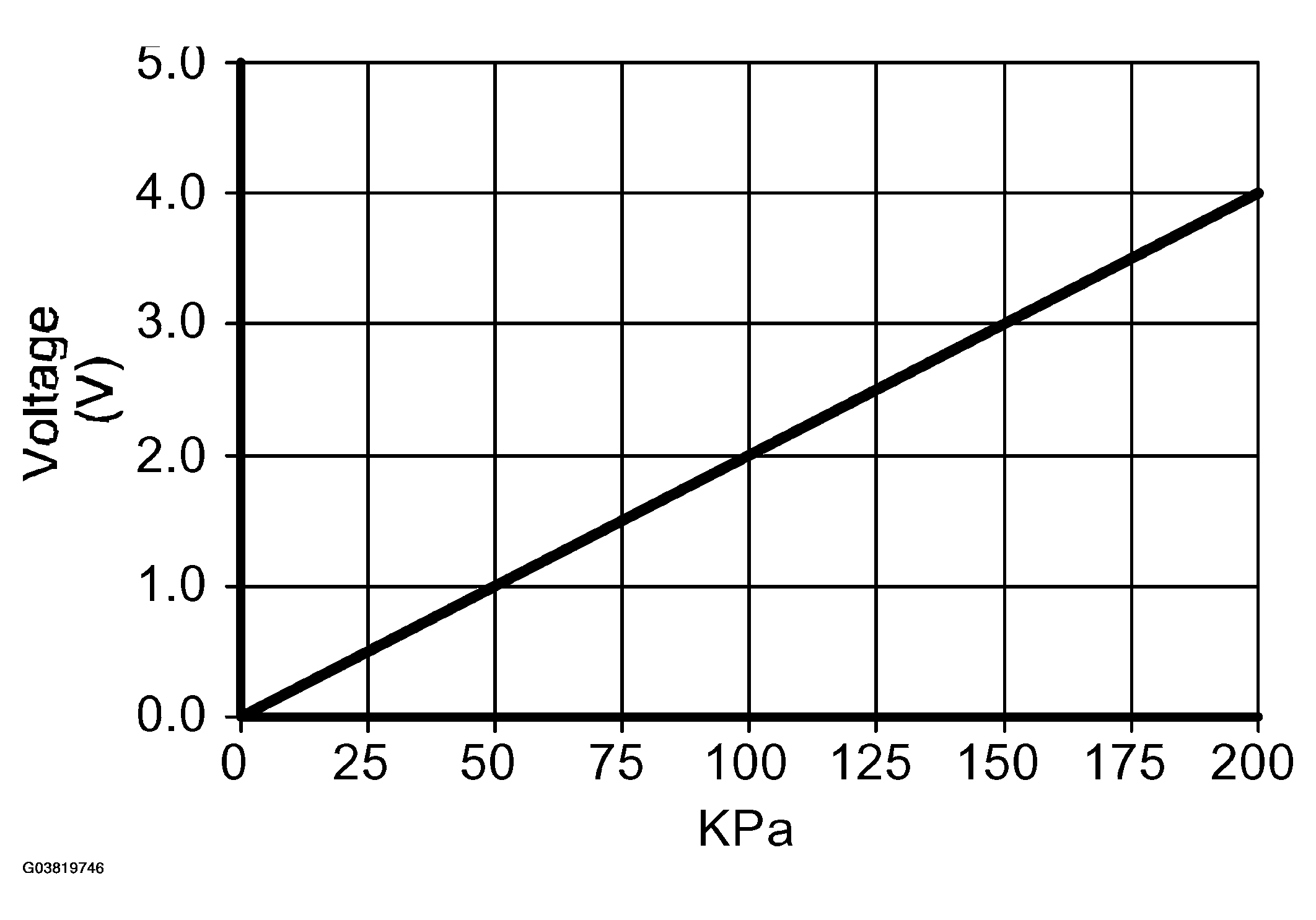

Fig 3: Intake Air Sensor Graph
G03819746Courtesy of SAAB-SCANIA OF AMERICA, INC.
