Relay, A/C compressor (156)

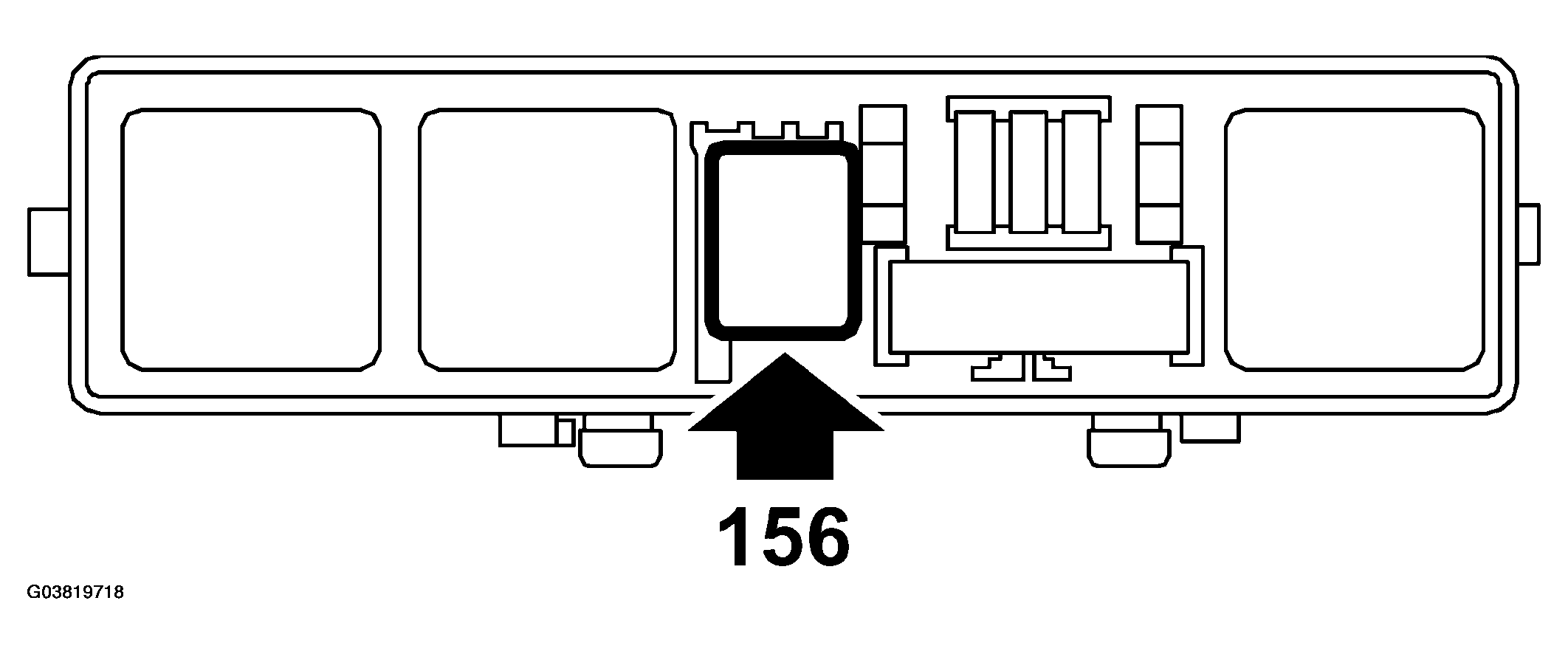

Fig 1: Identifying Relay, A/C Compressor
G03819718Courtesy of SAAB-SCANIA OF AMERICA, INC.
COMPRESSOR SPECIFICATION

Resistance, winding at 20°C (68° F) 85+/-5 Ohm
Nominal control voltage 12 V
Nominal current 30 A
