Fuel level sensor (46), T8: Connection

PIN DESCRIPTION

Pin No. Signal type Description
2 Signal The pin is supplied with 5 V via 487 Ohm internally in the ECM. Connected to ECM pin 10(A).
3 Ground Sensor's ground. Connected to ECM pin 31(A).

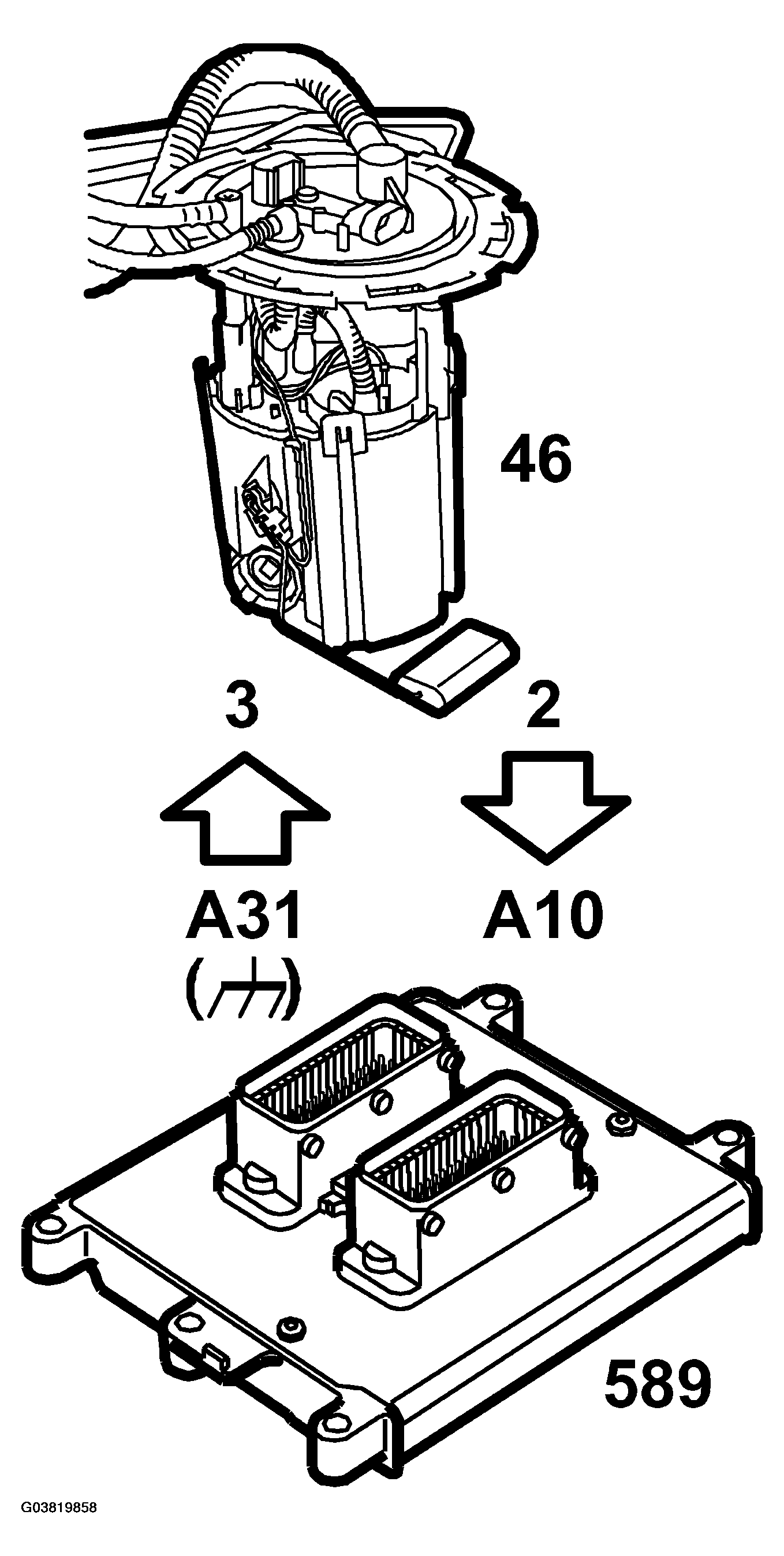

Fig 1: Identifying Connector
G03819858Courtesy of SAAB-SCANIA OF AMERICA, INC.

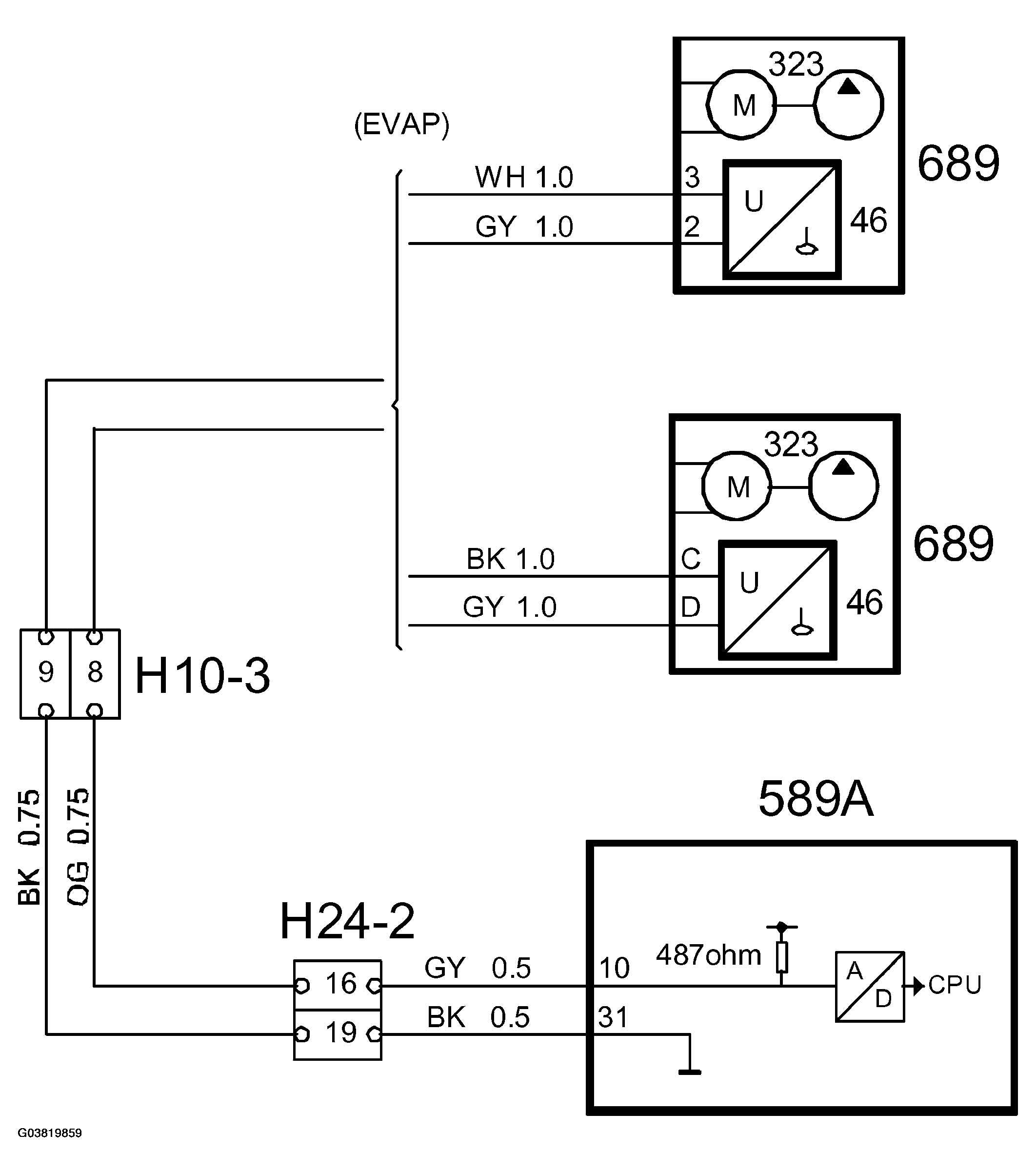

Fig 2: Identifying Wiring Diagram
G03819859Courtesy of SAAB-SCANIA OF AMERICA, INC.
