Grounding point G34S: Notes

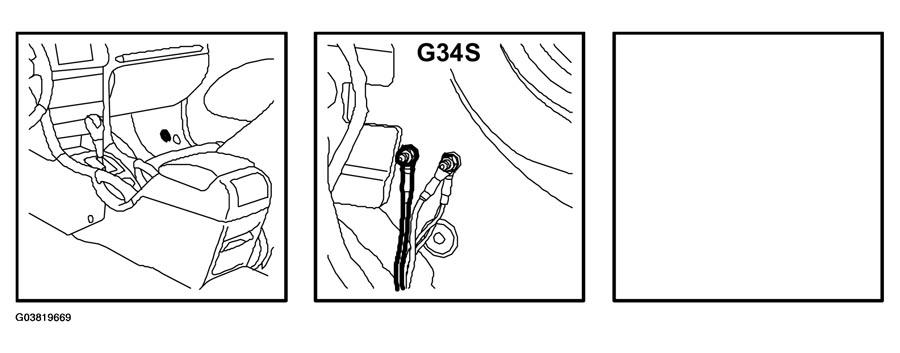

Fig 1: Identifying Grounding Point G34S

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the floor below the right-hand A-pillar (BK/GN cable)

The grounding point is connected to the G43 grounding point via crimp connectors J108 and J80.
