Accelerator position sensor (379)

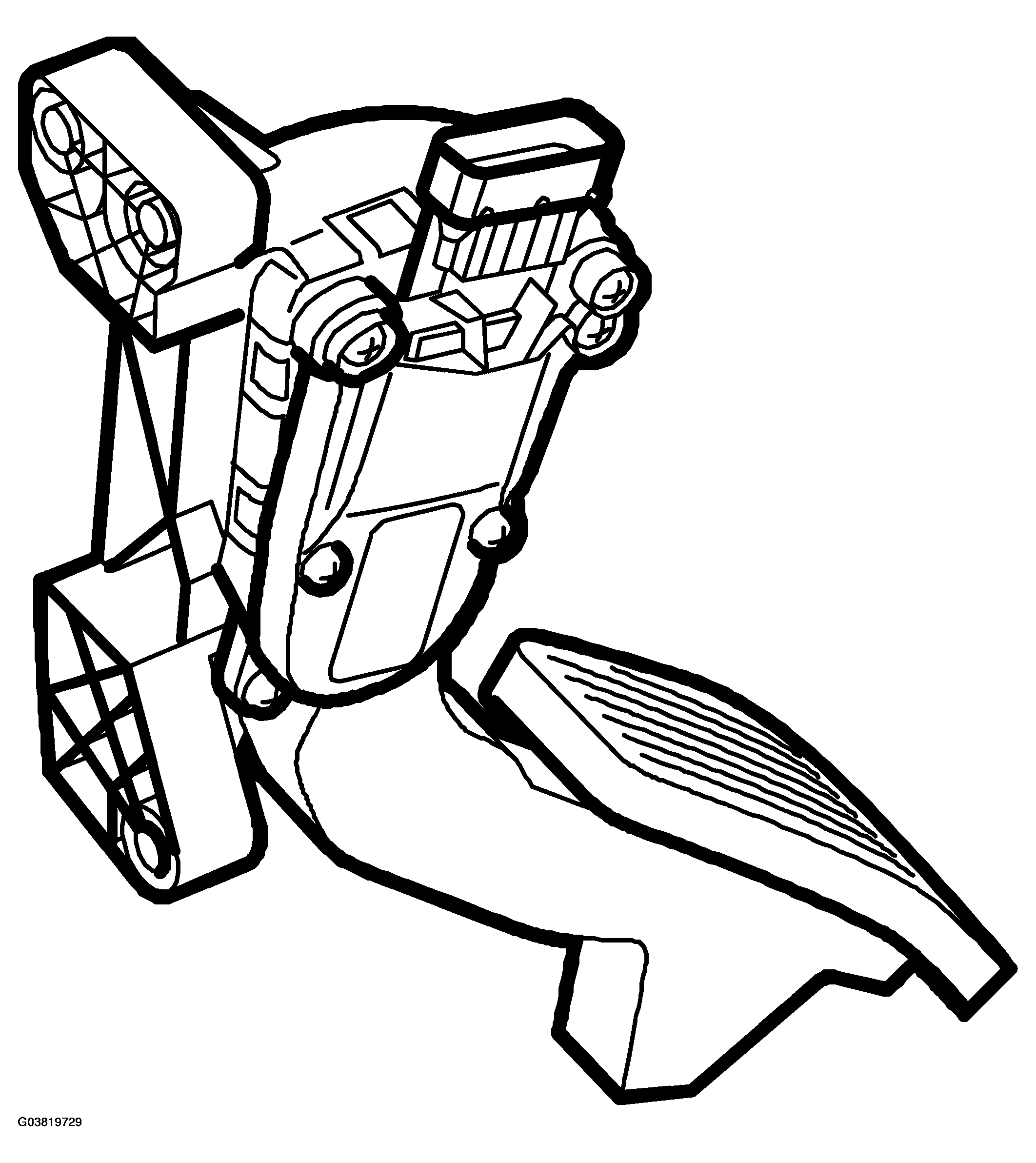

Fig 1: Identifying Accelerator Position Sensor
G03819729Courtesy of SAAB-SCANIA OF AMERICA, INC.
ACCELERATOR POSITION SENSOR SPECIFICATION

Sensor resistance kohm P1: 1.2 +/-0.4
P2: 1.7 +/-0.8
Power supply
(P1 pin 2, P2 pin 1)		 V 5,0
Signal voltage
(P1 pin 3, P2 pin 6)		 V P1: 0-5.0
P2: 0-2.5
Ground
(P1 pin 4, P2 pin 5)
