Atmospheric pressure sensor (539)

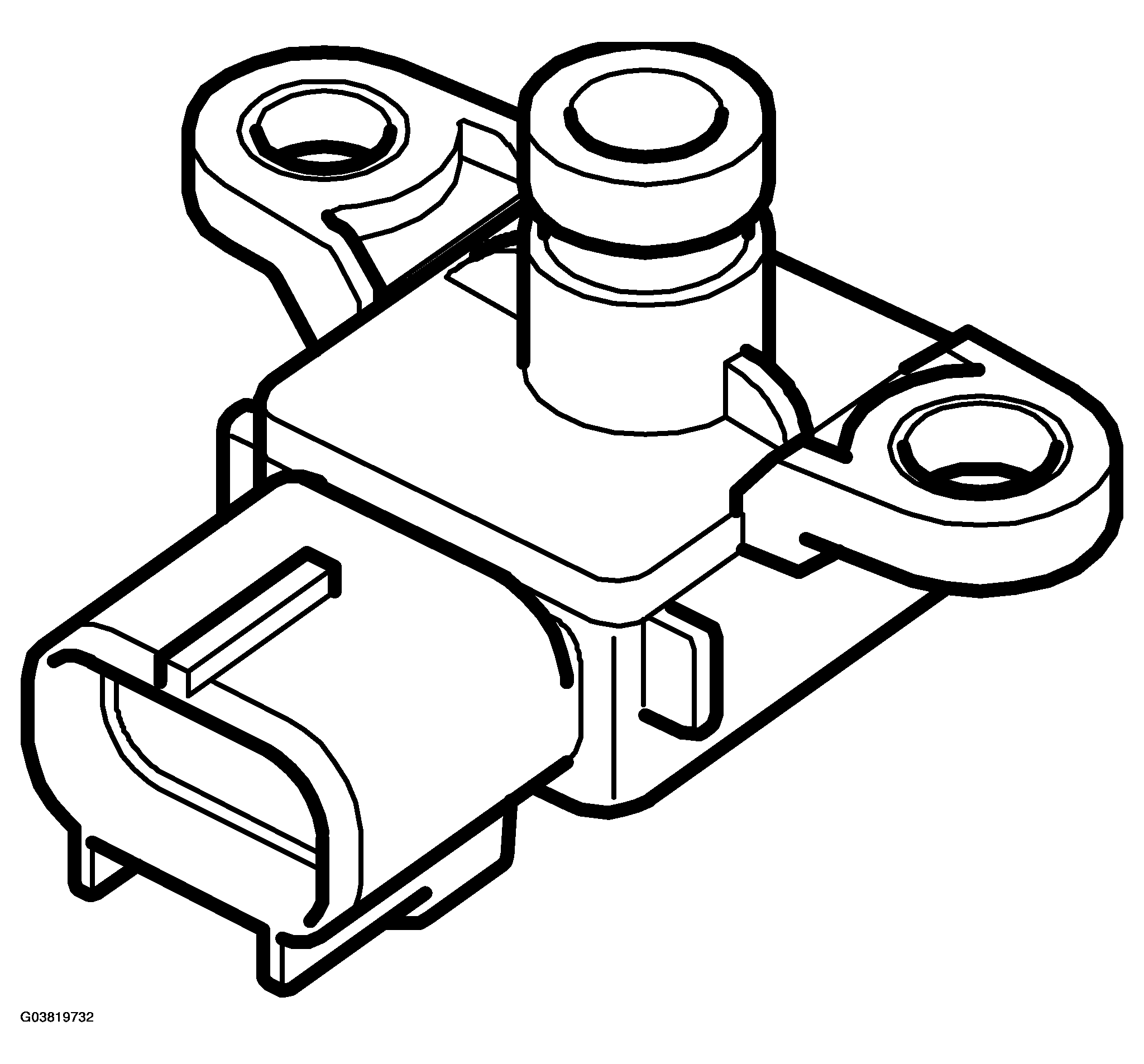

Fig 1: Identifying Atmospheric Pressure Sensor
Courtesy of SAAB-SCANIA OF AMERICA, INC.

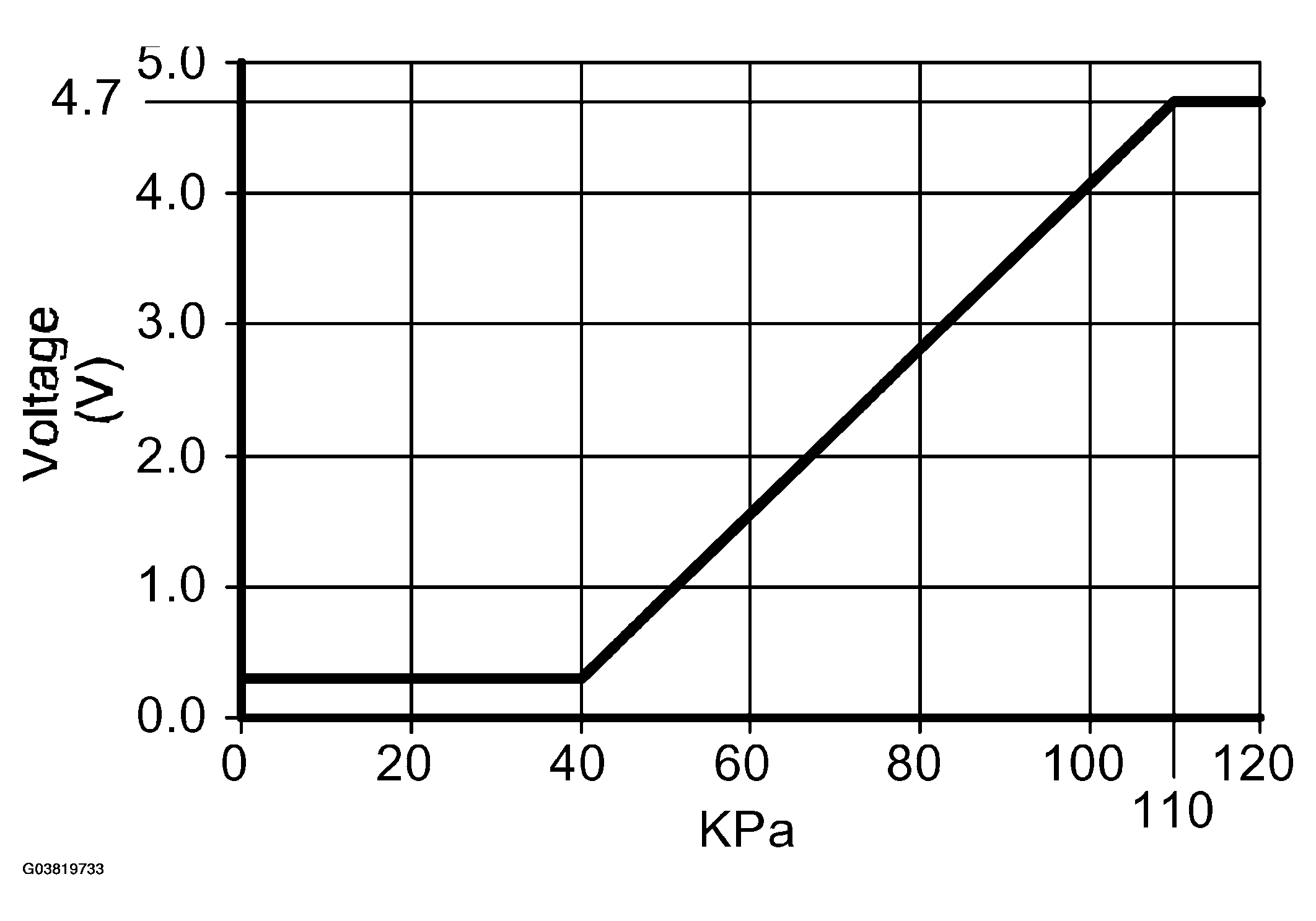

Fig 2: Identifying Atmospheric Pressure Sensor Graph
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
