Pressure sensor, A/C (620)

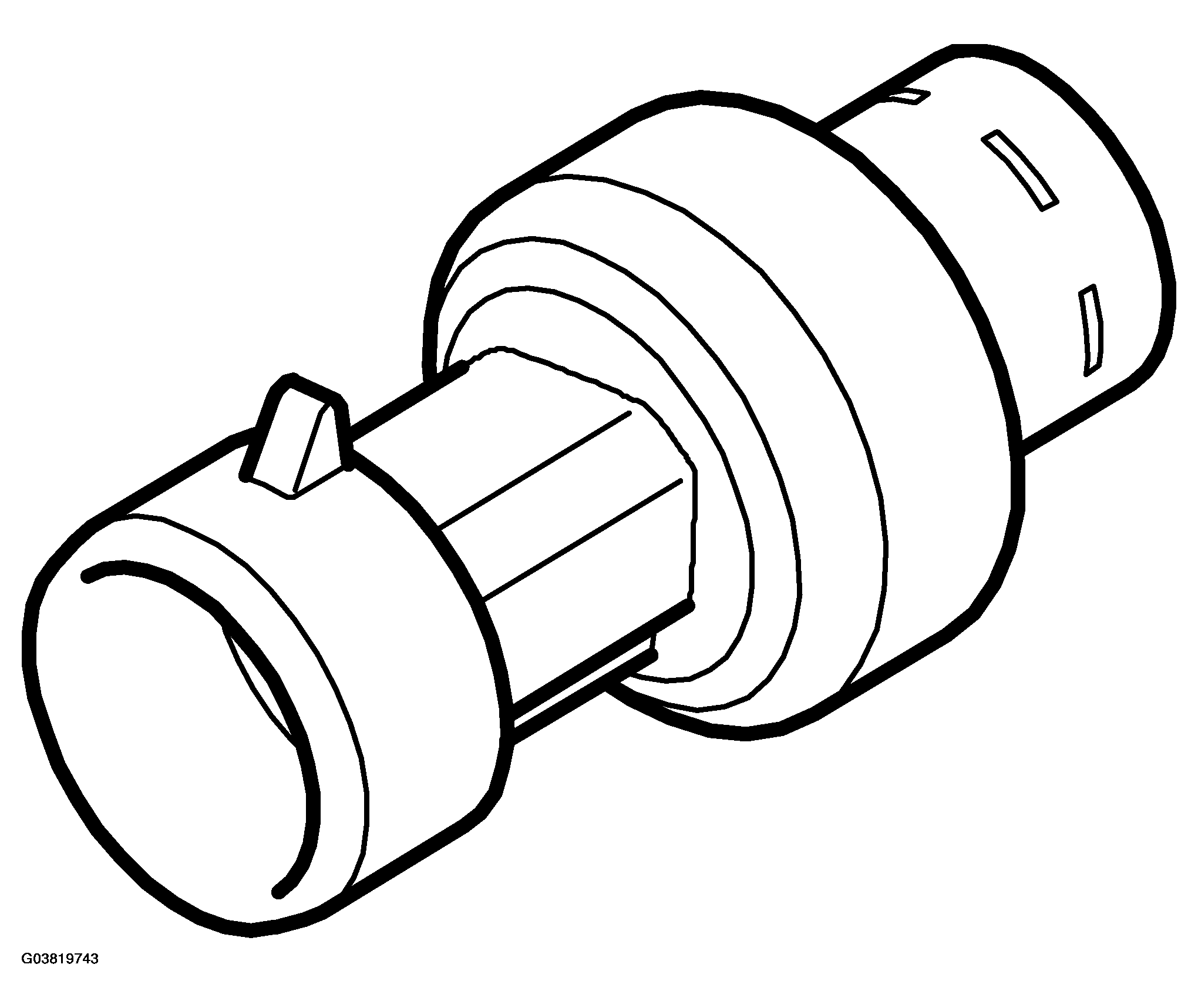

Fig 1: Identifying Pressure Sensor
G03819743Courtesy of SAAB-SCANIA OF AMERICA, INC.
PRESSURE SENSOR SPECIFICATION

Power supply, pin B V 5
Ground, pin A
Voltage on   Pin C
280 kPa (2.8 bar) V approx. 0.5
27000 kPa (270 bar) V approx. 3.8
