To remove

  1. Remove ESP UNIT WITH CONTROL MODULE .
  2. Remove the bracket on the hydraulic unit.

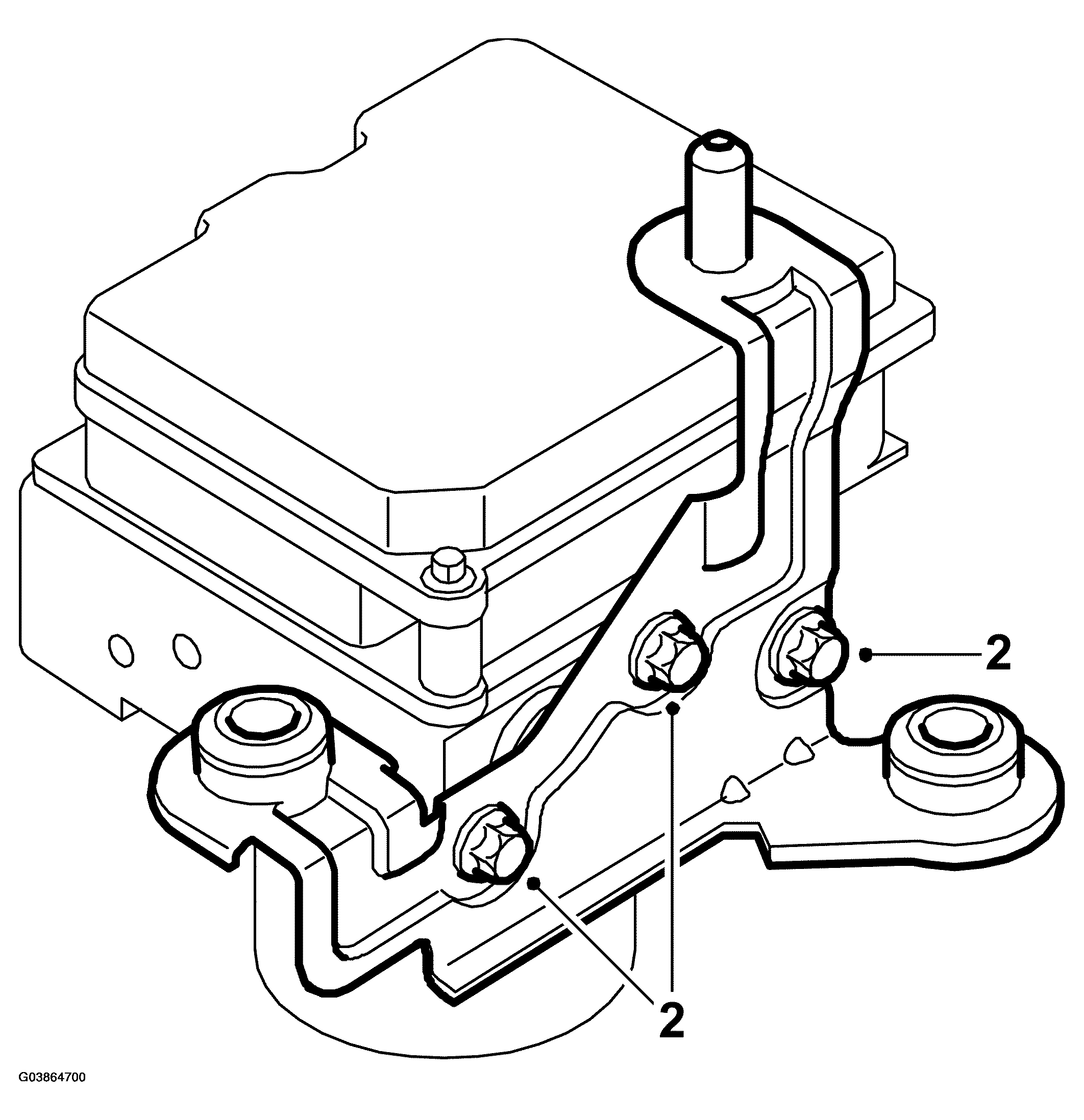

    Fig 1: Illustration For Step 2
    G03864700Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the four bolts holding the control module and lift it carefully straight up by hand.
    IMPORTANT: Grip the control module by its edges only when removing/fitting. The control module can be damaged by pressure on the top.

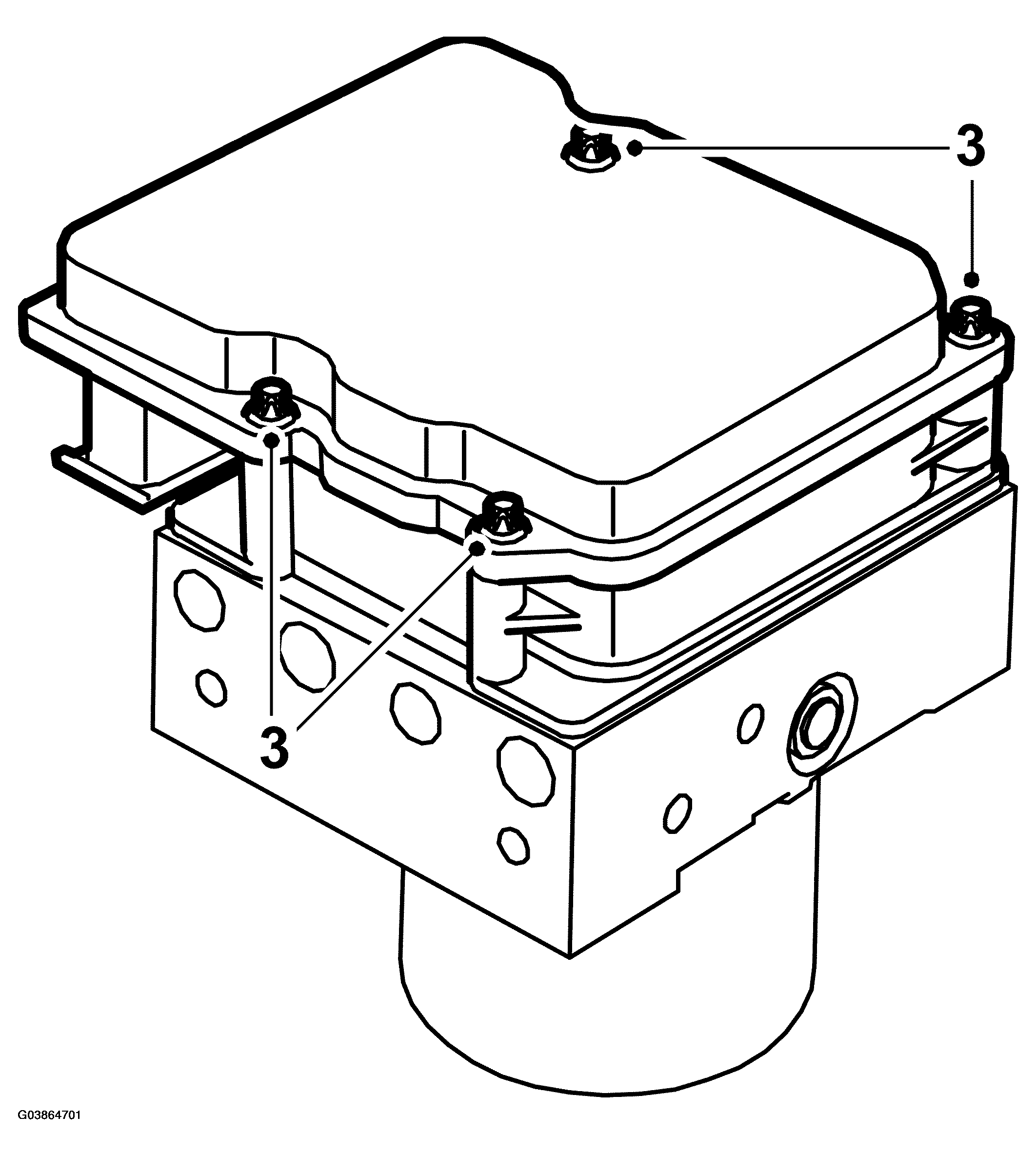

    Fig 2: Illustration For Step 3
    G03864701Courtesy of SAAB-SCANIA OF AMERICA, INC.
