To fit

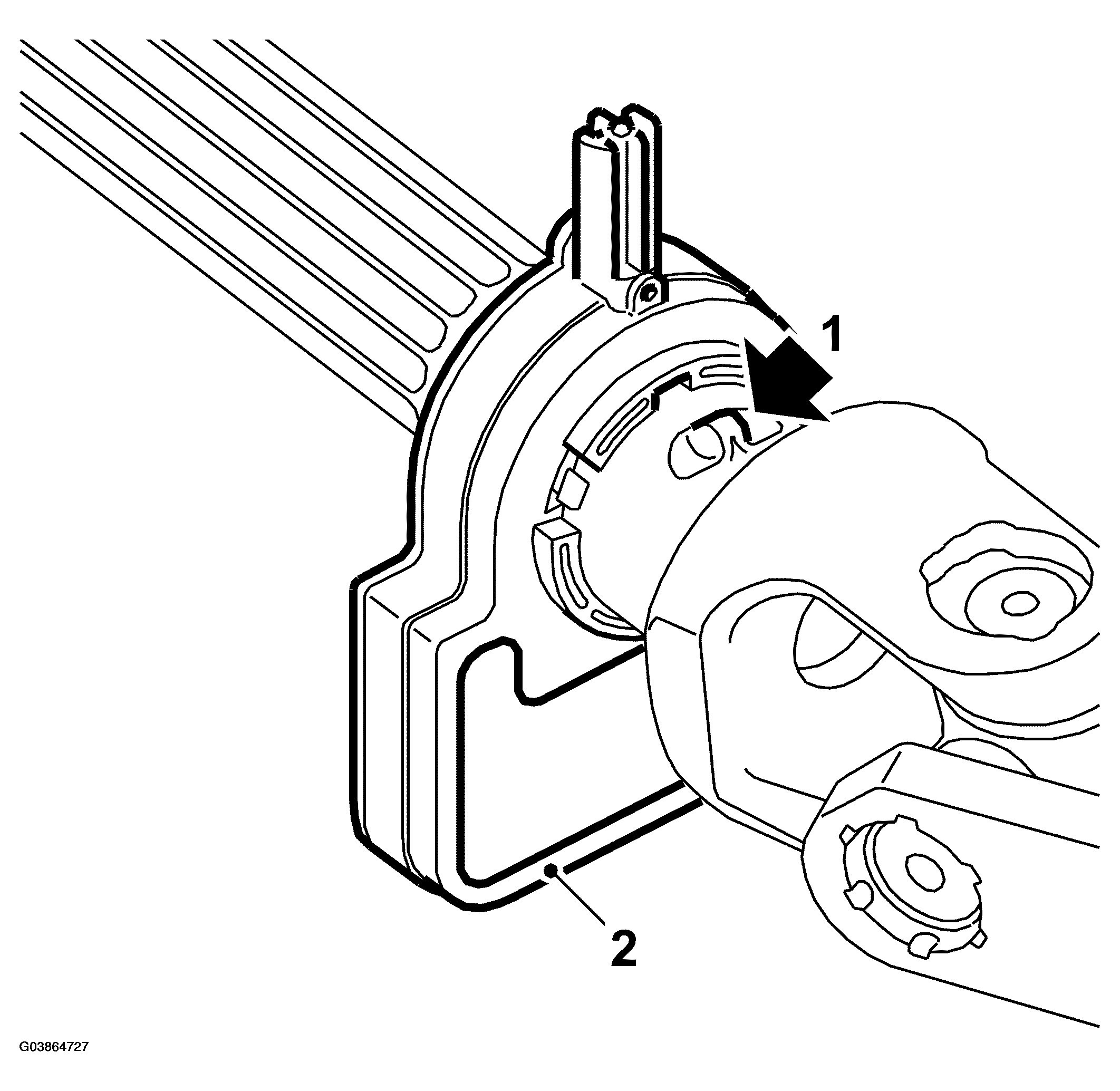

Fig 1: Illustration For Step 1 And 2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the steering wheel angle sensor to the shaft. Make sure the groove in the sensor and the heel on the shaft are aligned.
Affix and complete the label.
Fit the bearing carrier with bearing.

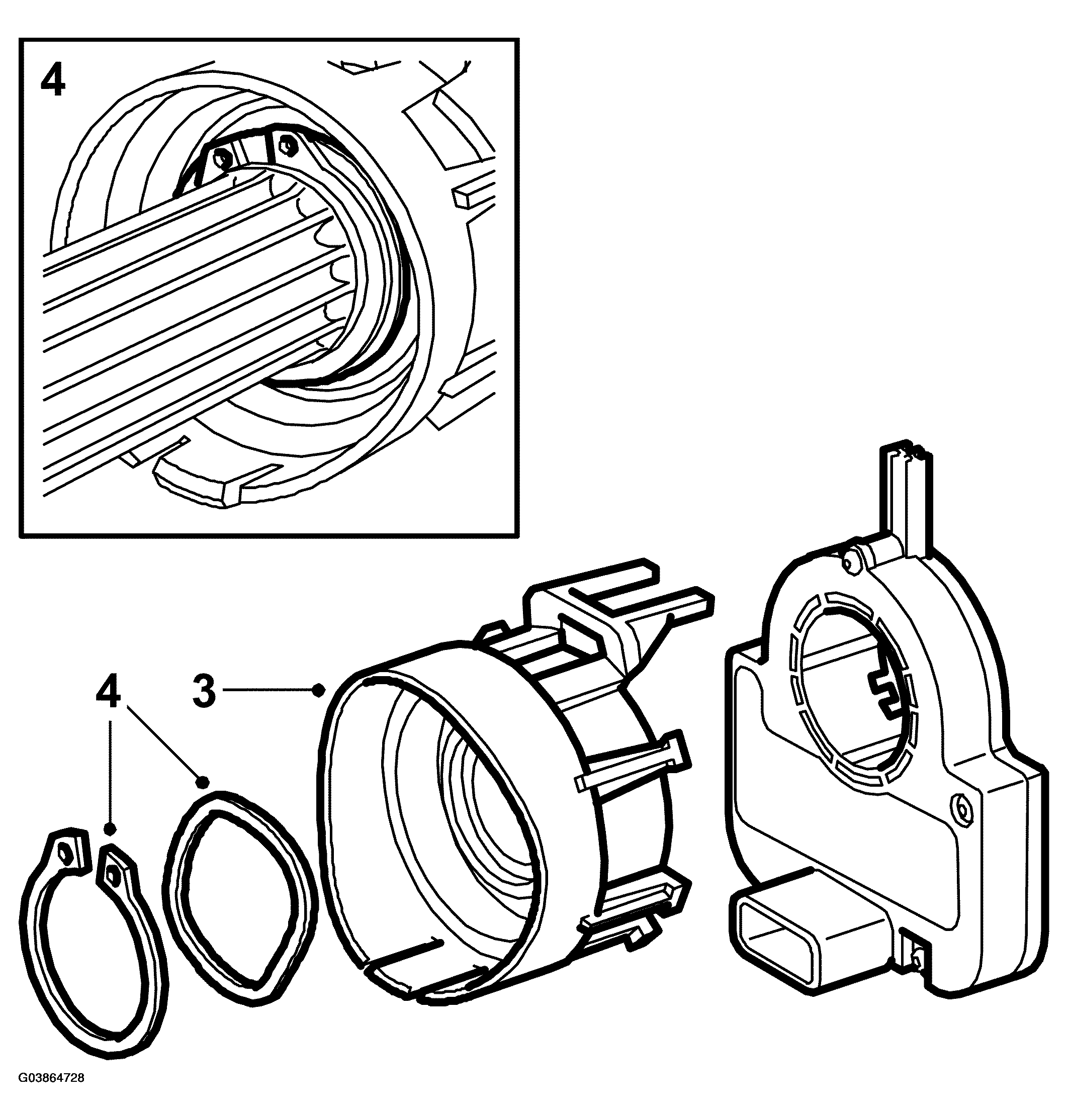

Fig 2: Illustration For Step 3 And 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the spring washer and circlip.
Fit the bracket.
NOTE: Make sure the catch engages properly.

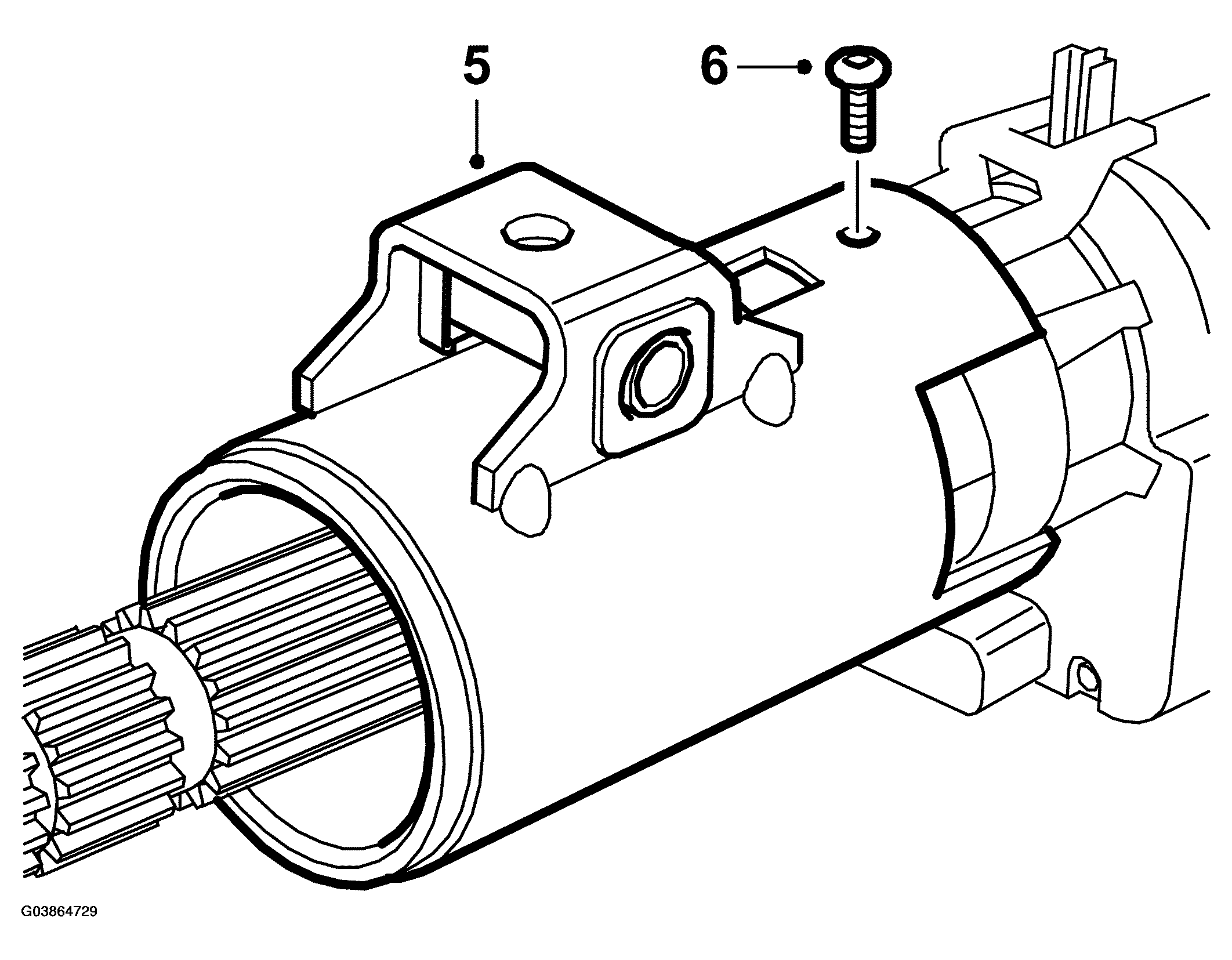

Fig 3: Illustration For Step 5 And 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the lock screw.

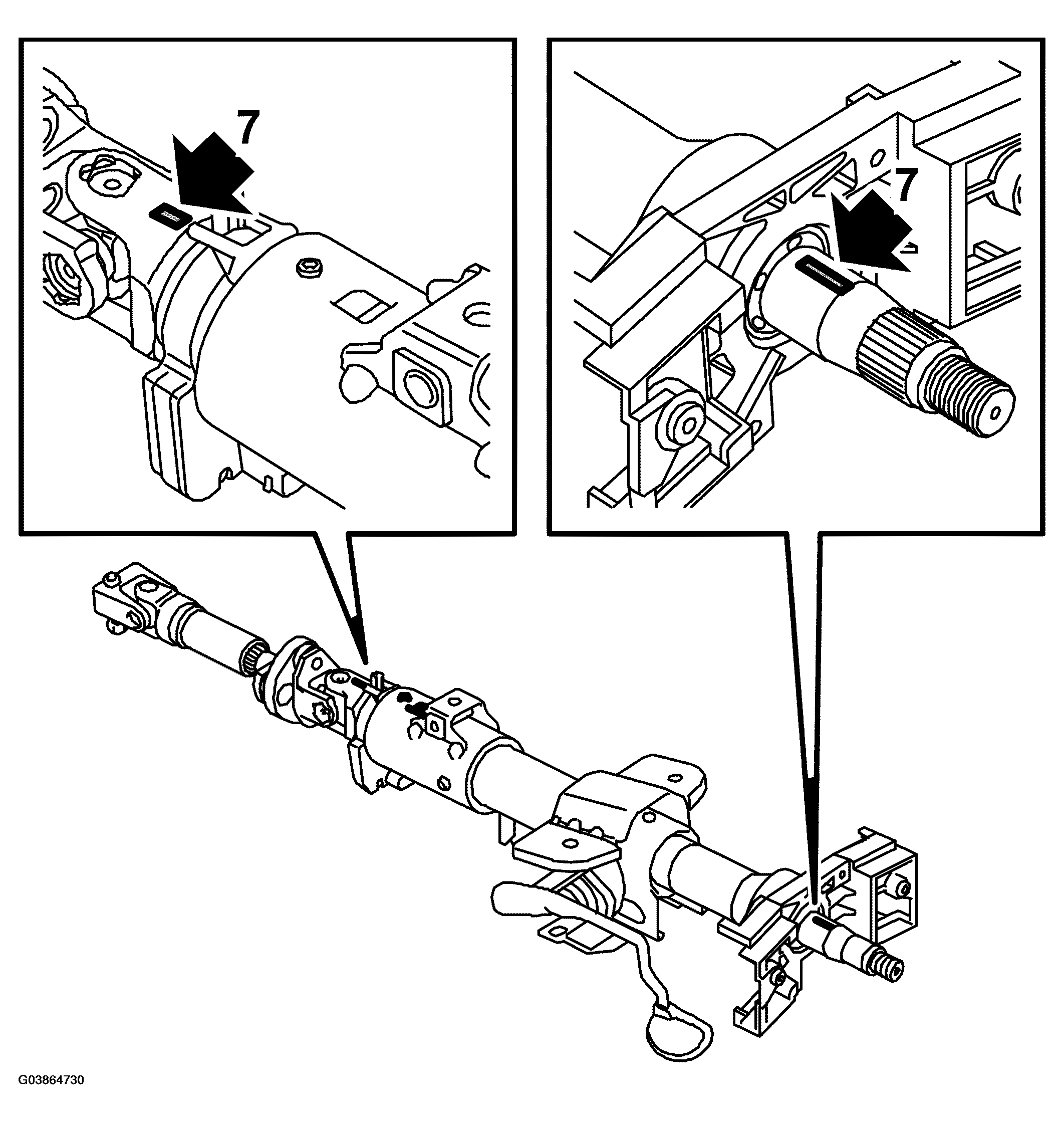

Fig 4: Illustration For Step 7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Align the marks on both parts of the shaft and carefully press together the steering column assembly.
It should be easy to press together the steering column assembly.
Fit the steering column assembly into the car.
Calibrate the steering wheel angle sensor.
