DTC C1371: Wheel Sensor Front Left Signal Incorrect: Notes

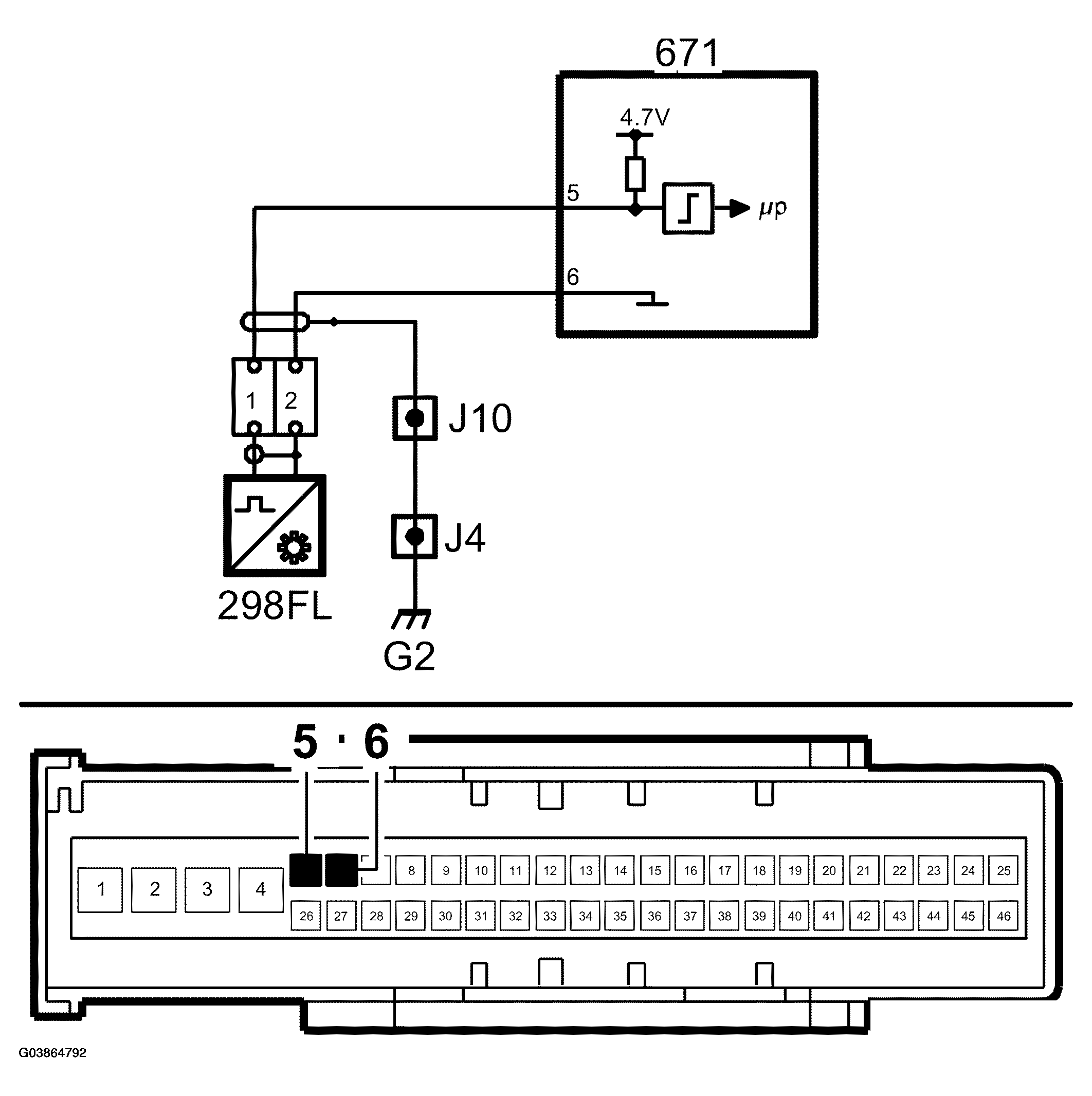

Fig 1: C1371 Wheel Sensor Front Left Signal Incorrect Circuit Diagram
G03864792Courtesy of SAAB-SCANIA OF AMERICA, INC.
