Control module outputs, bus

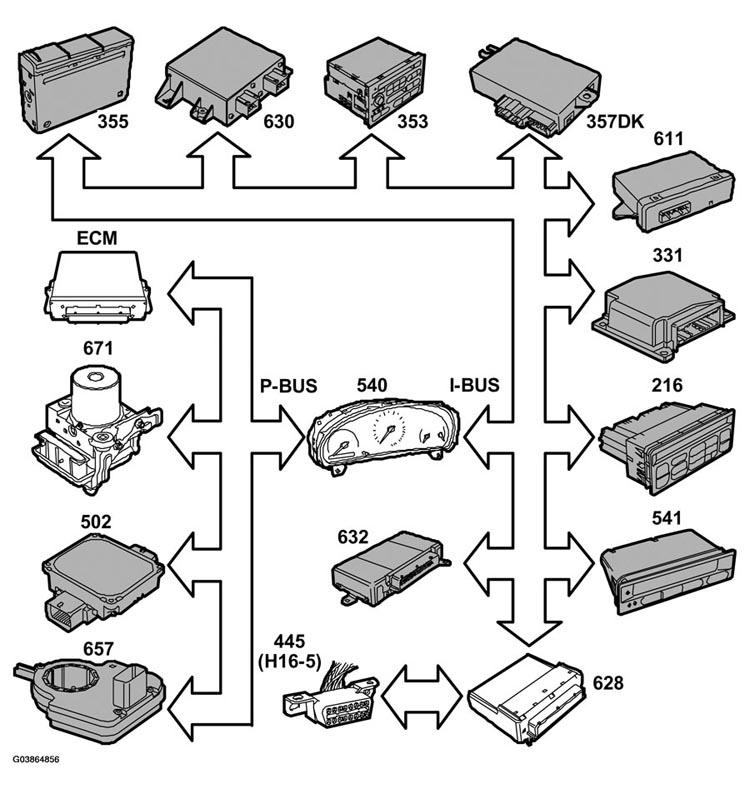

Fig 1: Identifying Control Module Outputs, Bus

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• ESP OFF INDICATOR LAMP
• ABS WARNING LAMP
• ESP INDICATOR LAMP
• Wheel speed out for all wheels
• REQUEST FOR ENGINE TORQUE

See also Bus and diagnostics communication, CONTROL MODULE CONNECTIONS .
