TCS modulation with braking: Components

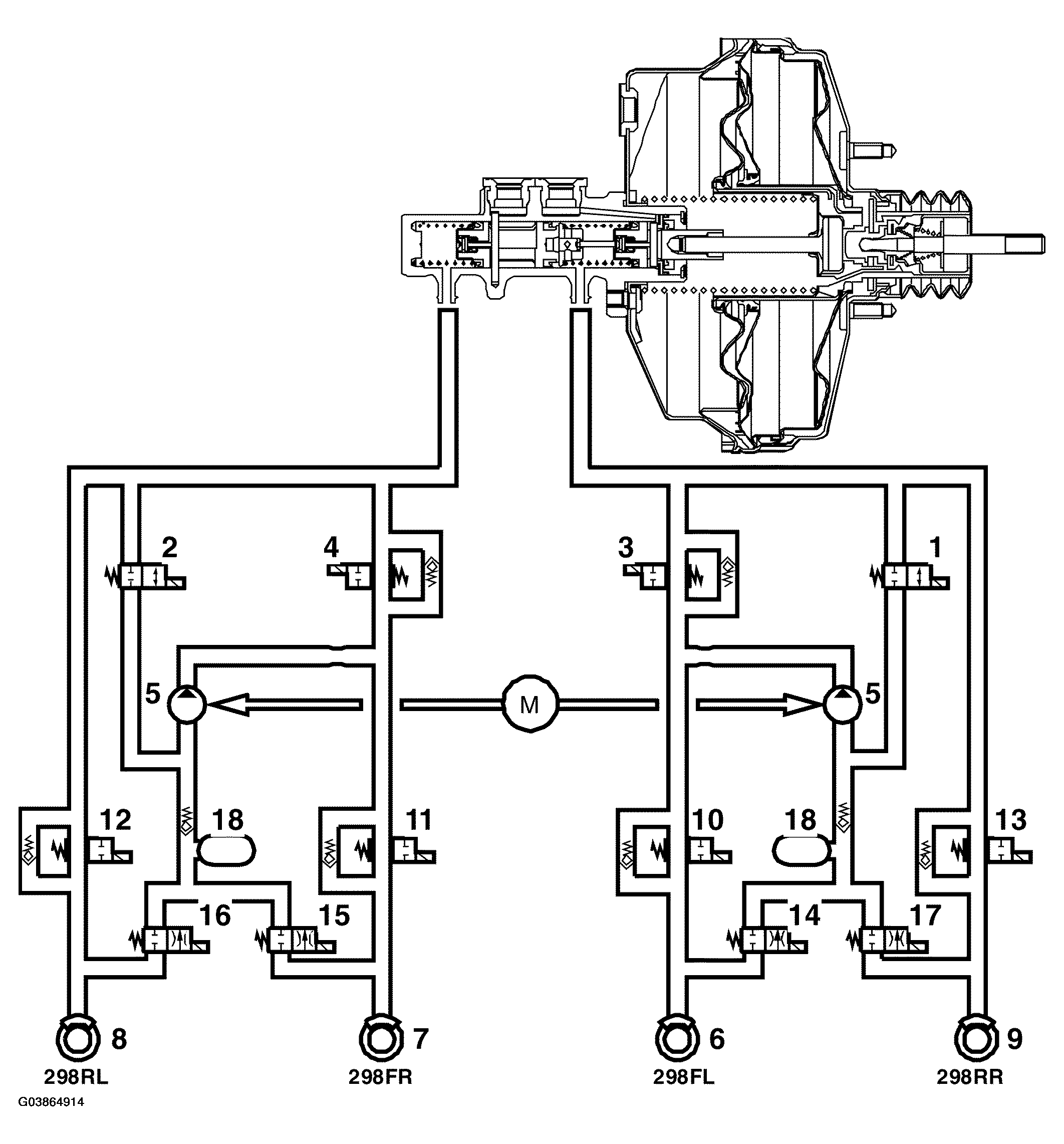

Fig 1: Flow Diagram - TCS Modulation With Braking
G03864914Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Pressure Increase Valve Front Left
  2. Pressure Increase Valve Front Right
  3. Pressure Relief Valve Front Left
  4. Pressure Relief Valve Front Right
  5. Return pump
  6. Wheel sensor, FL
  7. Wheel sensor, FR
  8. Wheel sensor, RL
  9. Wheel sensor, RR
  10. Front left inlet valve
  11. Front right inlet valve
  12. Rear left inlet valve
  13. Rear right inlet valve
  14. Front left outlet valve
  15. Front right outlet valve
  16. Rear left outlet valve
  17. Rear right outlet valve
  18. Accumulator chamber
