Changing Generator, 4-CYL Diesel: Refitting

Clean and coat the generator contact surfaces and electrical connections with Vaseline, non-acidic.
Put the upper generator retaining bolt in place in the generator. Put the generator in place and insert the upper generator retaining bolt.

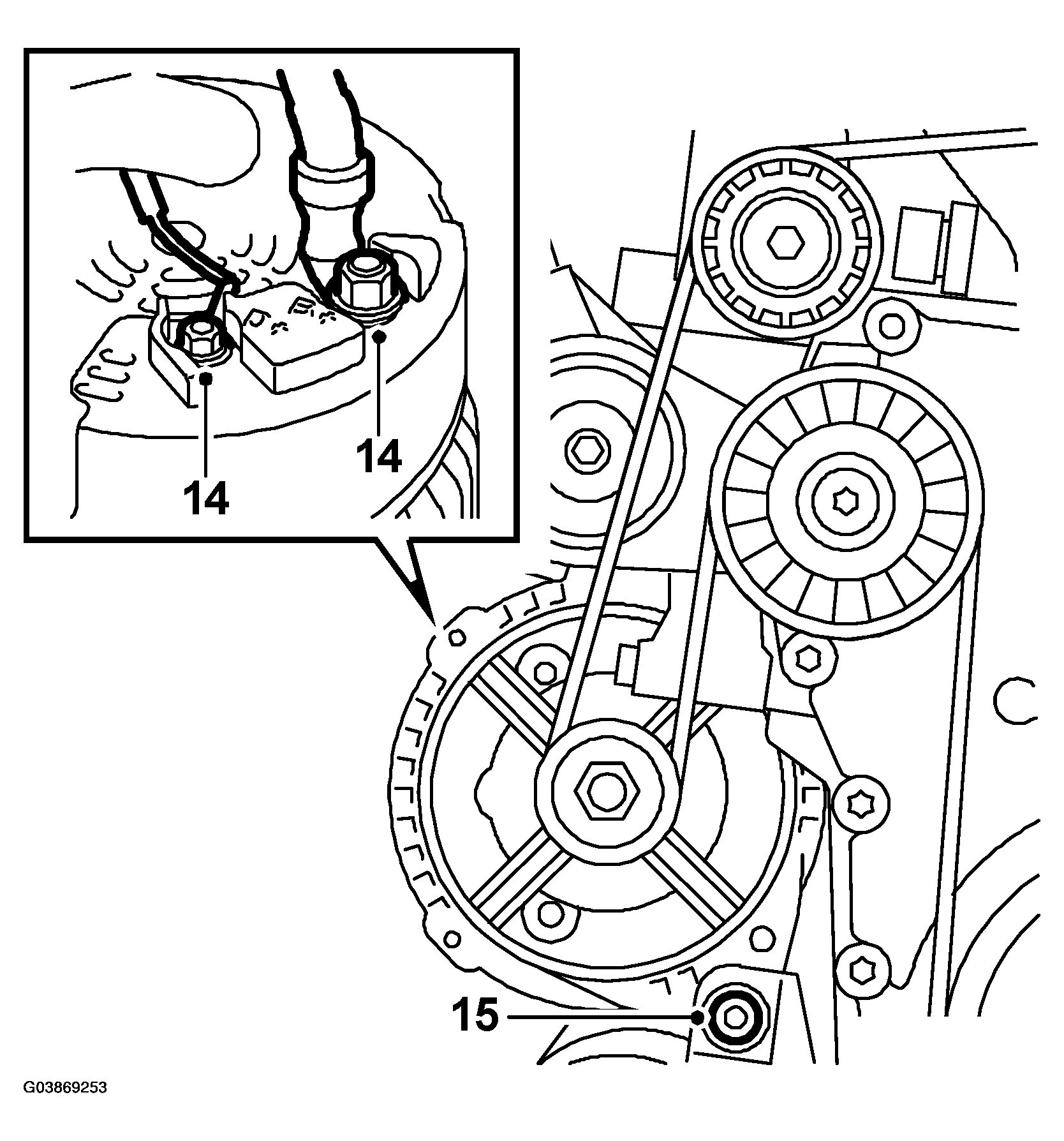

Fig 1: Illustration For Step 2, 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Raise the car.
Fit the lower generator retaining bolt.
Tightening torque: 47 Nm (35 lbf ft)
Fit the generator connectors.
IMPORTANT: Make a note of the belt's direction of rotation. The belt must be refitted for the same direction of rotation as previously.
Refit the multigroove V-belt.

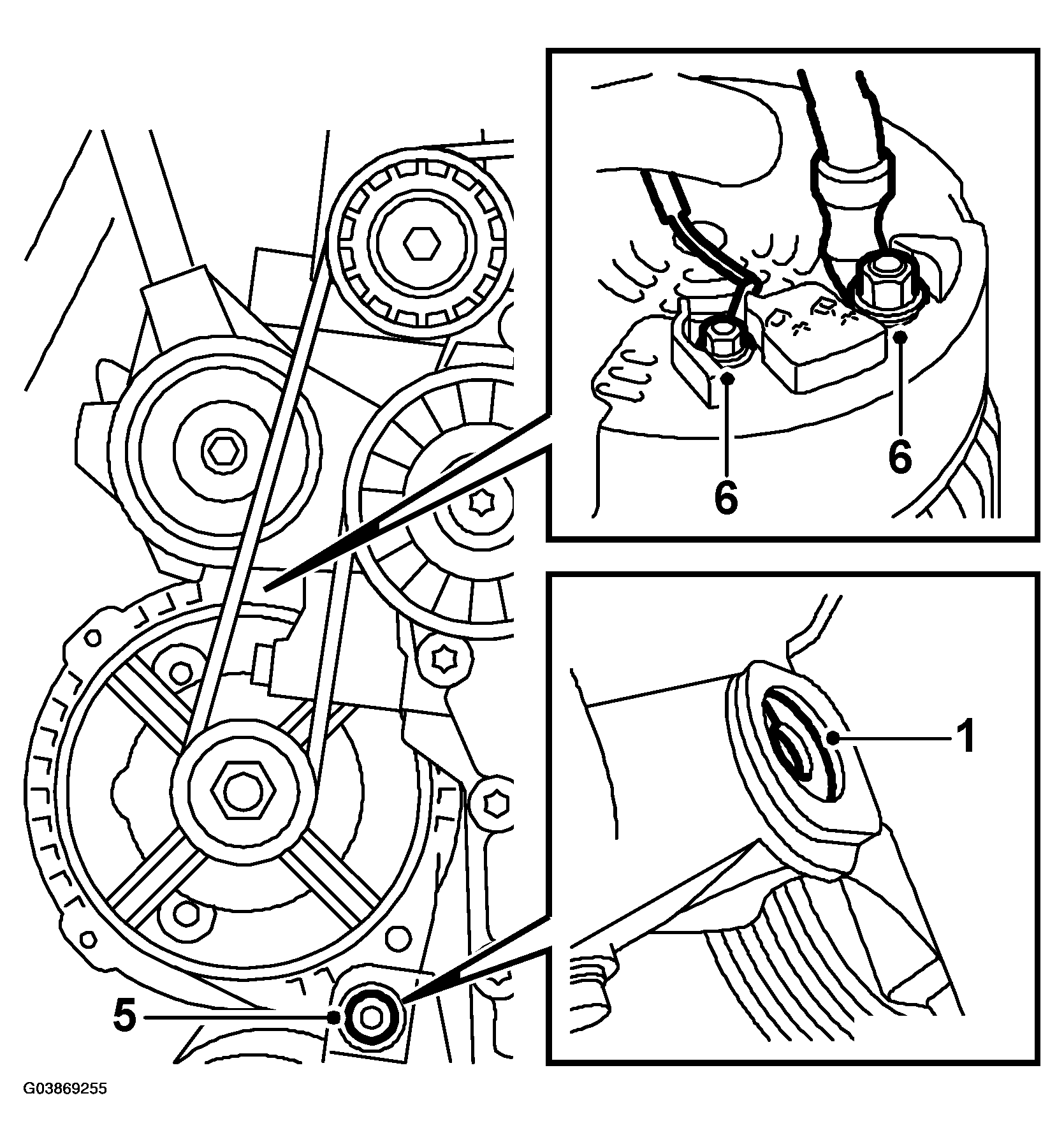

Fig 2: Illustration For Step 6
Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: Make sure that the belt is correctly positioned on all the pulleys.
Fit the drive belt cover.

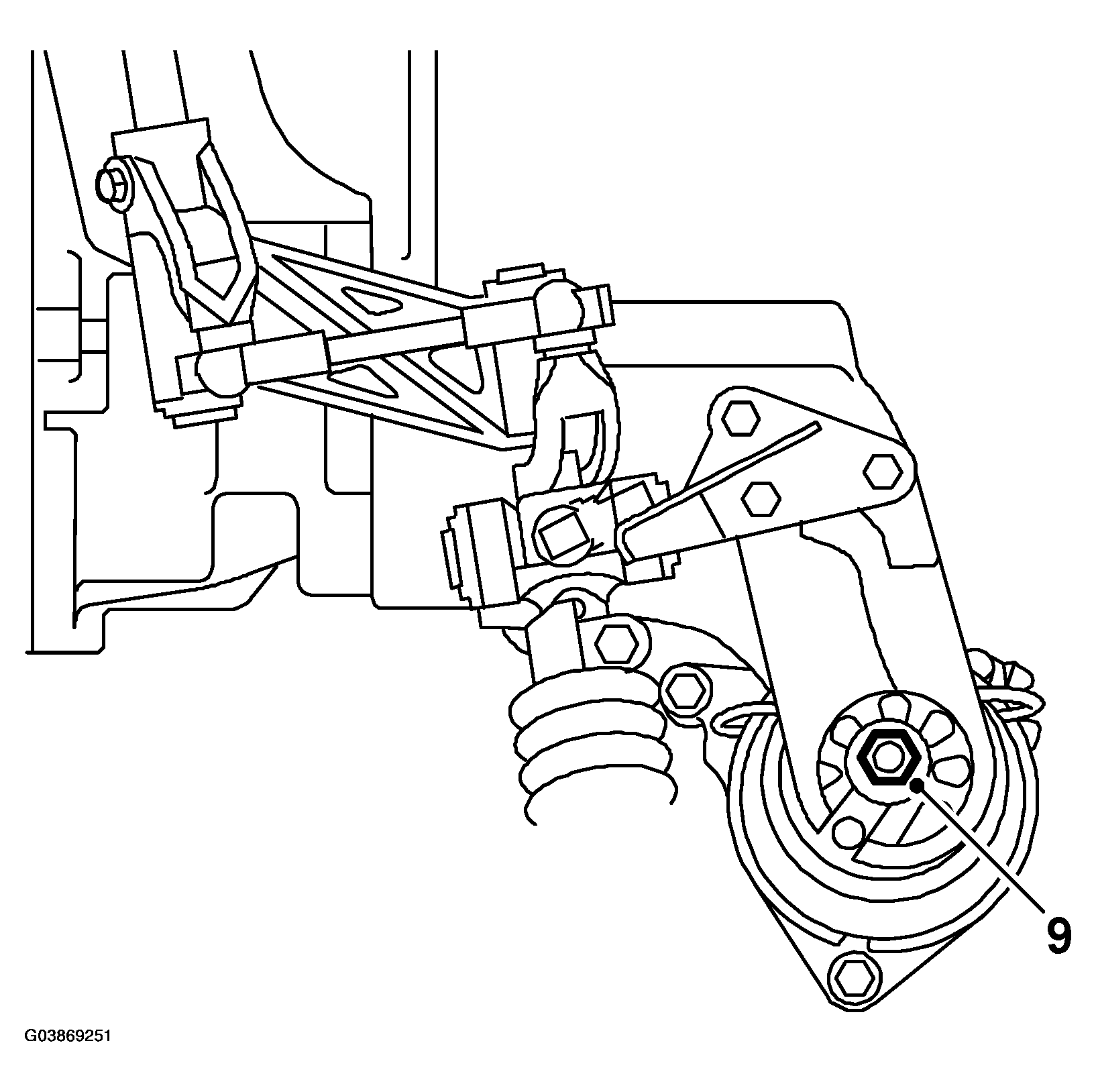

Fig 3: Illustration For Step 7-8
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the lower engine cover.
Lower the car.
Tighten the upper generator retaining bolt.
Tightening torque: 47 Nm (35 lbf ft)

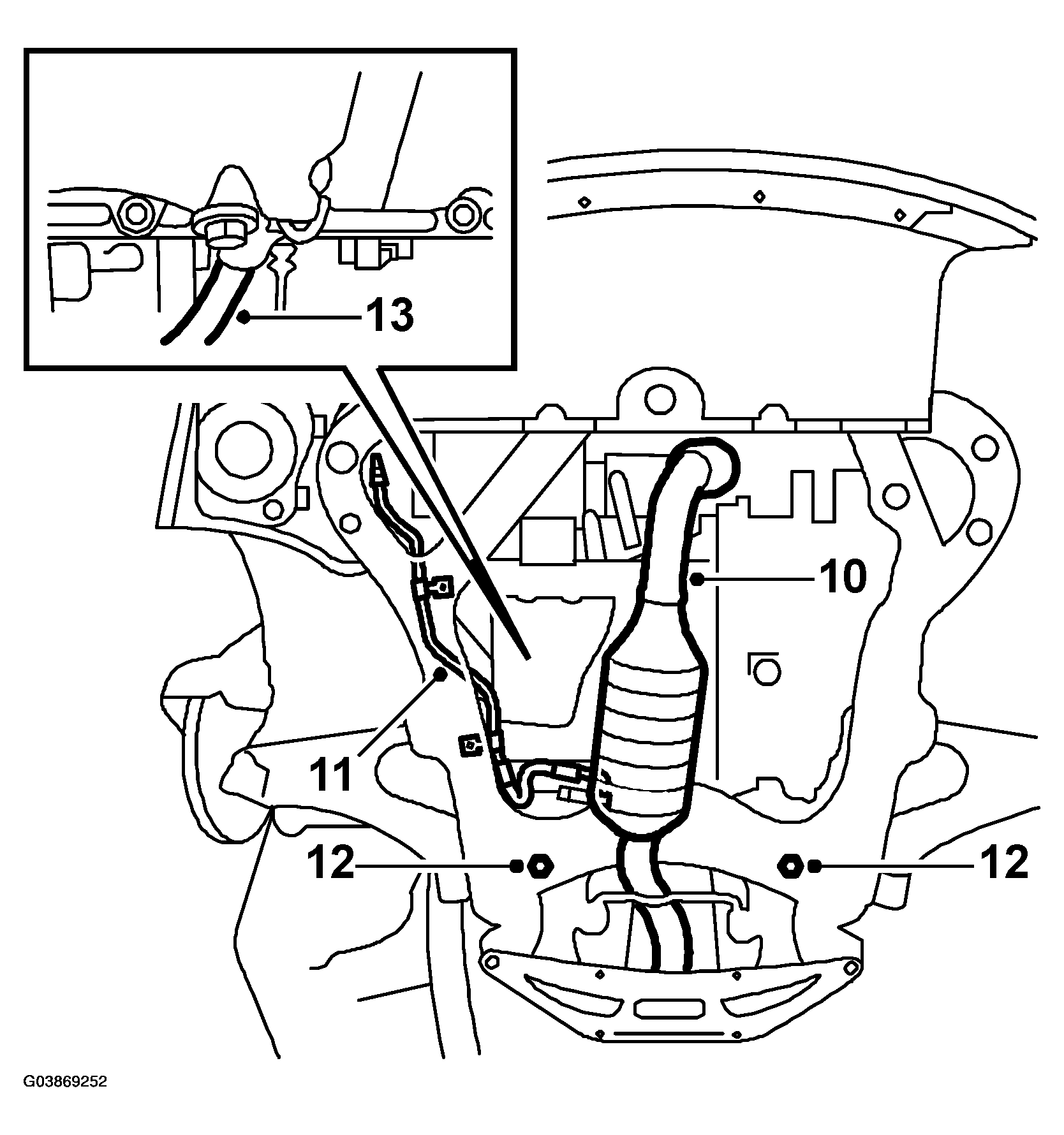

Fig 4: Illustration For Step 10
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the intake manifold with crankcase ventilation hose to the valve cover.

Fig 5: Illustration For Step 11-12
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the upper engine cover.
Connect the negative battery cable and fit the battery cover.
Set the clock and reprogram the radio code.
Carry out a function check.
