To remove

  1. Cover the wings and remove the top engine cover and the battery cover. Note the radio code, where applicable.

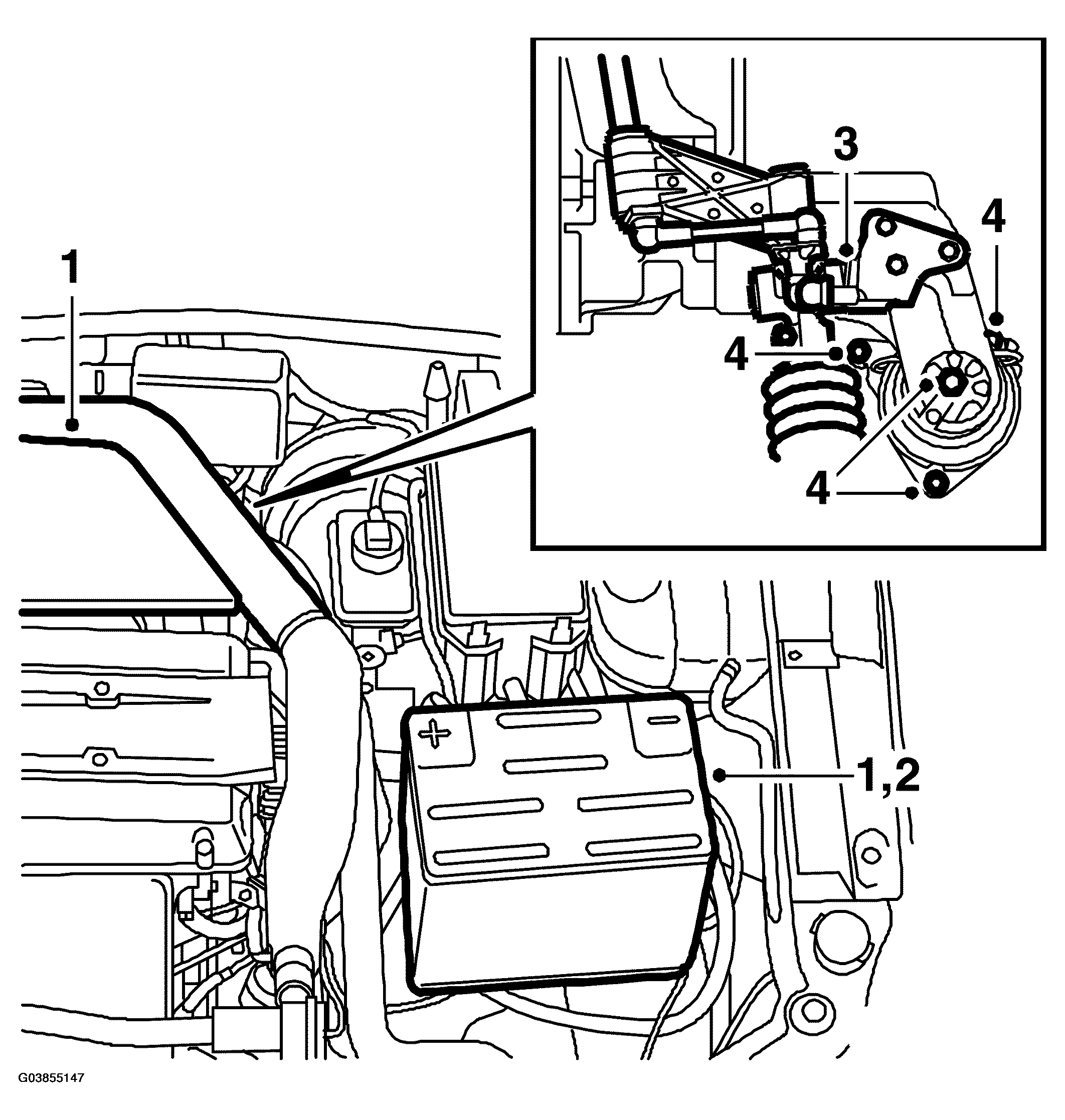

    Fig 1: Illustration For Steps 1-4
    G03855147Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Disconnect the negative battery cable.
  3. (man) Remove the stay for the gear-changing linkage from the rear engine mounting's bracket.
  4. Remove the engine mounting's upper retaining nut and the bolts securing it to the subframe.
  5. Remove the bypass pipe and valve.

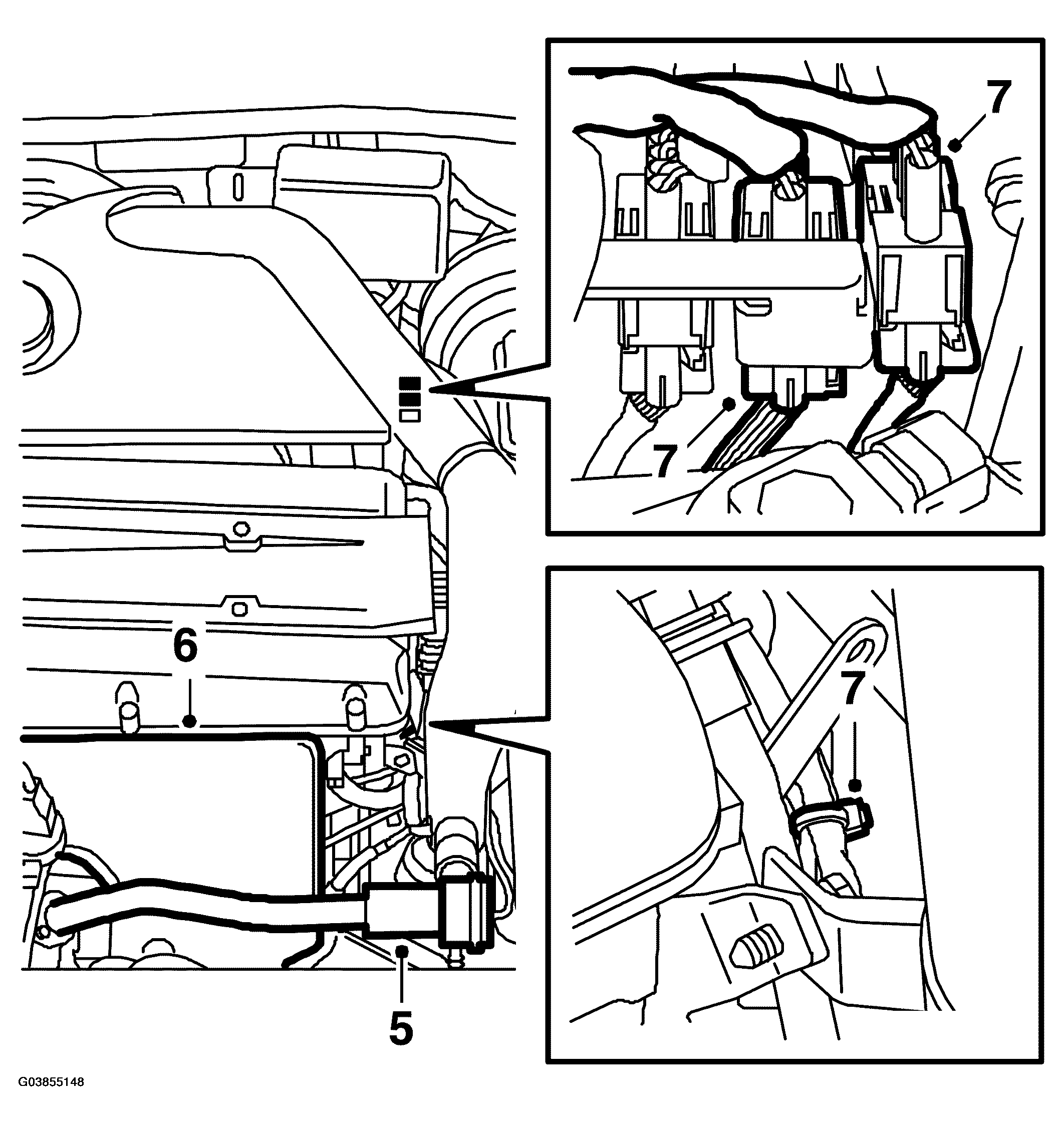

    Fig 2: Illustration For Steps 5-7
    G03855148Courtesy of SAAB-SCANIA OF AMERICA, INC.
    NOTE: There is an O-ring at the bypass pipe's attachment to the turbo intake pipe.
  6. Remove the exhaust manifold's heat shield.
  7. Unplug the oxygen sensor connectors. Cut the cable tie and pull out the cables.
  8. Fit 83 94 850 LIFTING BEAM  .

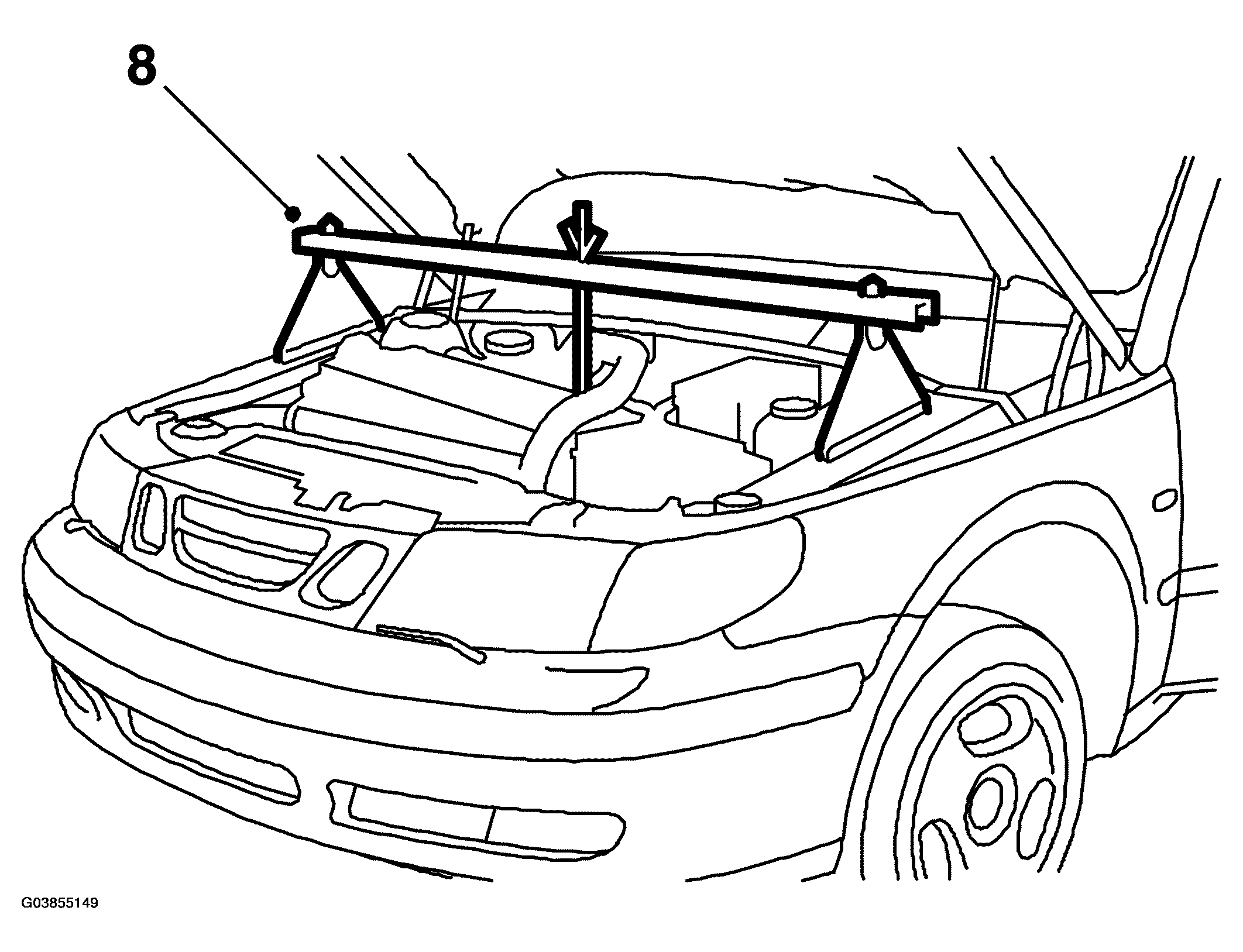

    Fig 3: Illustration For Step 8
    G03855149Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Loosen the two upper nuts at the connection between the turbo/front exhaust system.

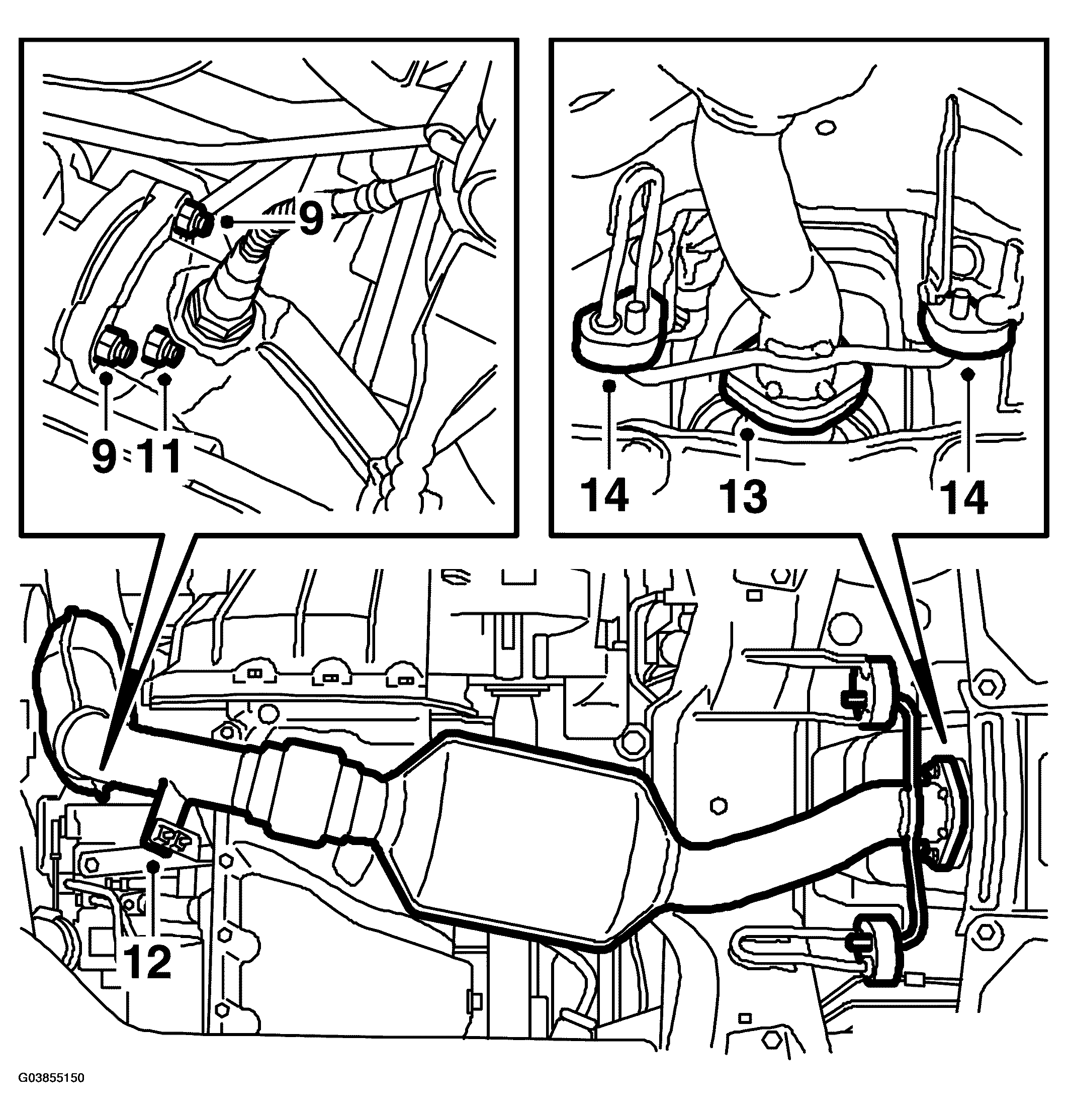

    Fig 4: Illustration For Steps 9, 11, 12, 13 & 14
    G03855150Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Raise the car.
  11. Loosen the third nut at the connection between the turbo/front exhaust system.
  12. Undo the upper bolt on the stay securing the catalytic converter to the engine.
  13. Separate the pipe joint between the front and rear exhaust systems.
  14. Remove the clips and carefully pull off the rubber mountings.
  15. Lower the front exhaust system.
    NOTE: The flexible section on the front of the exhaust system must not be bent more than 5° from its neutral line, i.e. if the front exhaust system is left suspended, it must not be bent to a greater degree than is caused by its own weight.
    Excessive strain on the pipe will cause permanent deformation of the components. This can result in noise and leaks, and eventually to breakage.

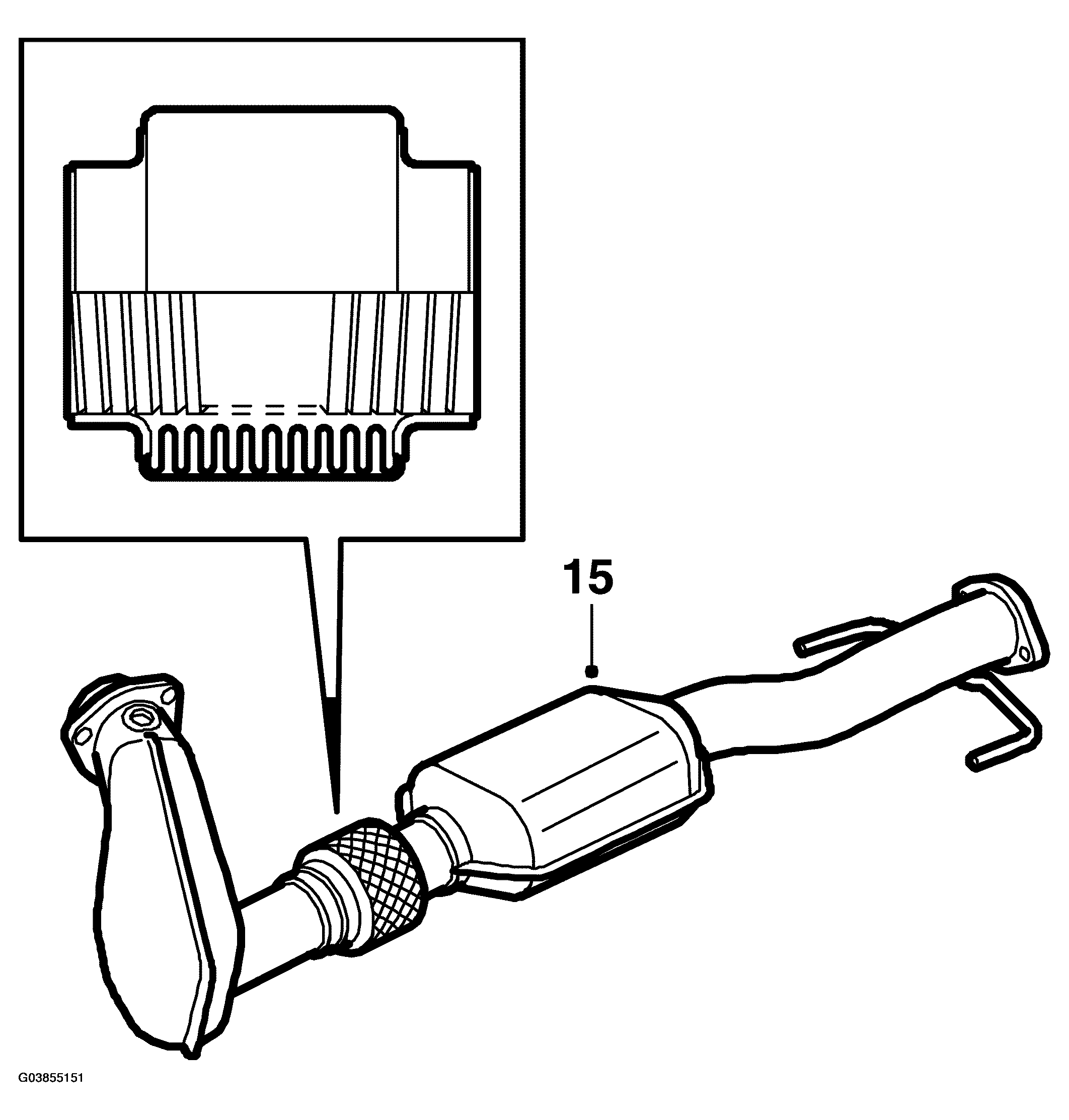

    Fig 5: Illustration For Step 15
    G03855151Courtesy of SAAB-SCANIA OF AMERICA, INC.
  16. Remove the engine mounting from the gearbox.

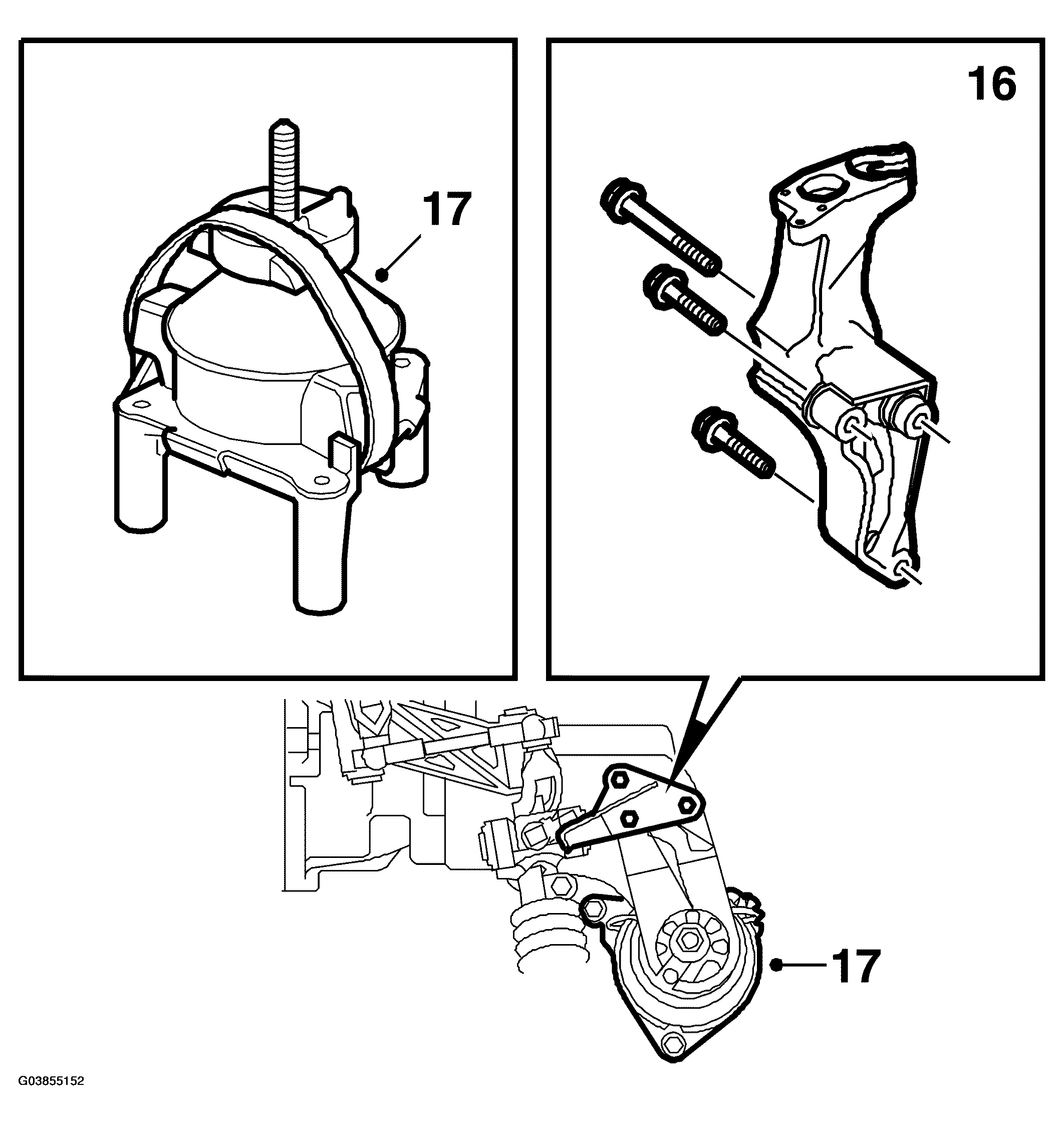

    Fig 6: Illustration For Steps 16-17
    G03855152Courtesy of SAAB-SCANIA OF AMERICA, INC.
  17. Remove the engine pad.
