To remove

  1. Cover the wings and remove the cover over the battery. Note the radio code where applicable. Remove the top engine cover.

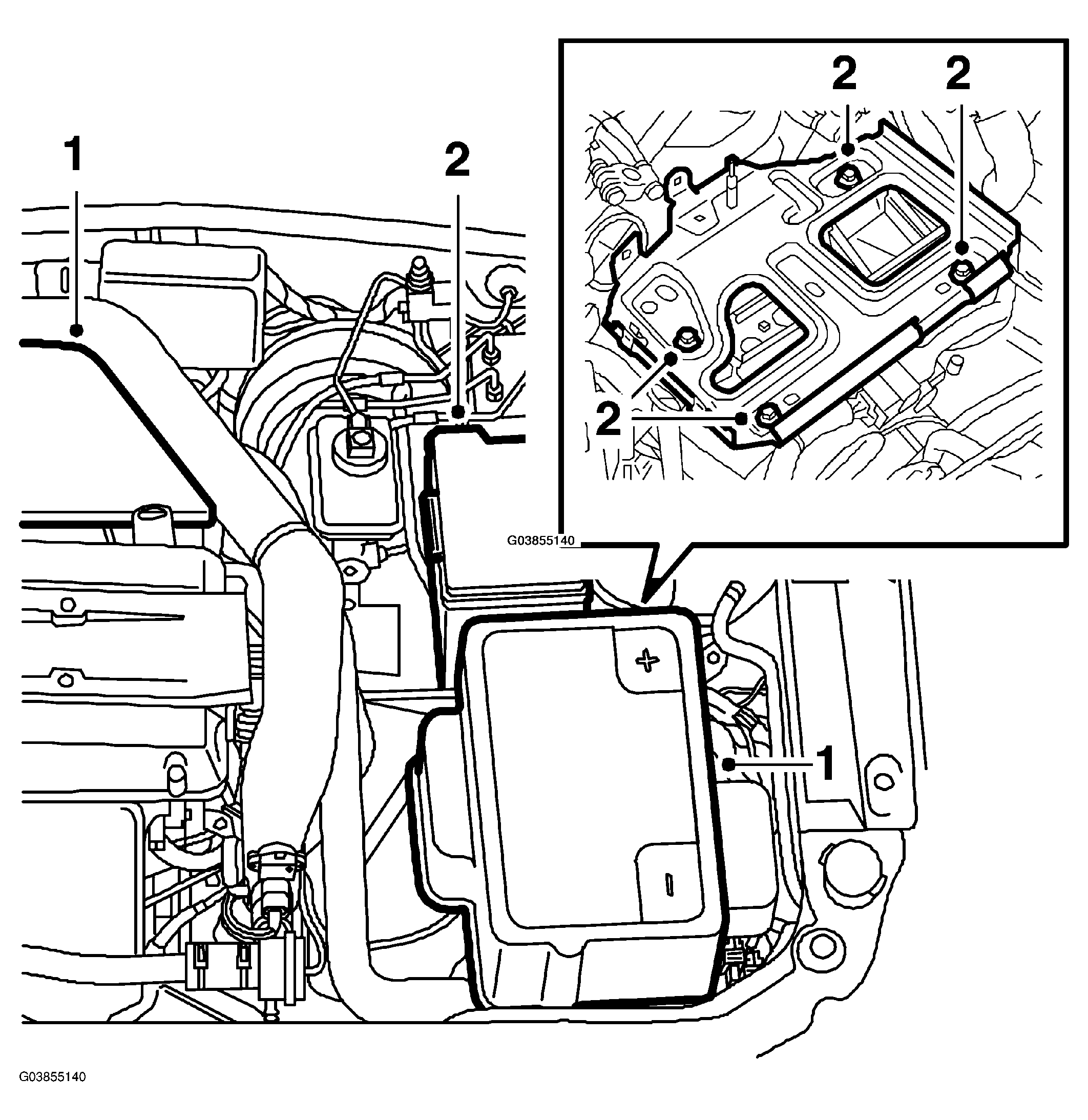

    Fig 1: Illustration For Steps 1-2
    G03855140Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the battery and battery tray. Loosen the fuse box and move it to the side.
  3. Relieve the weight on the engine with 83 94 850 LIFTING BEAM  .

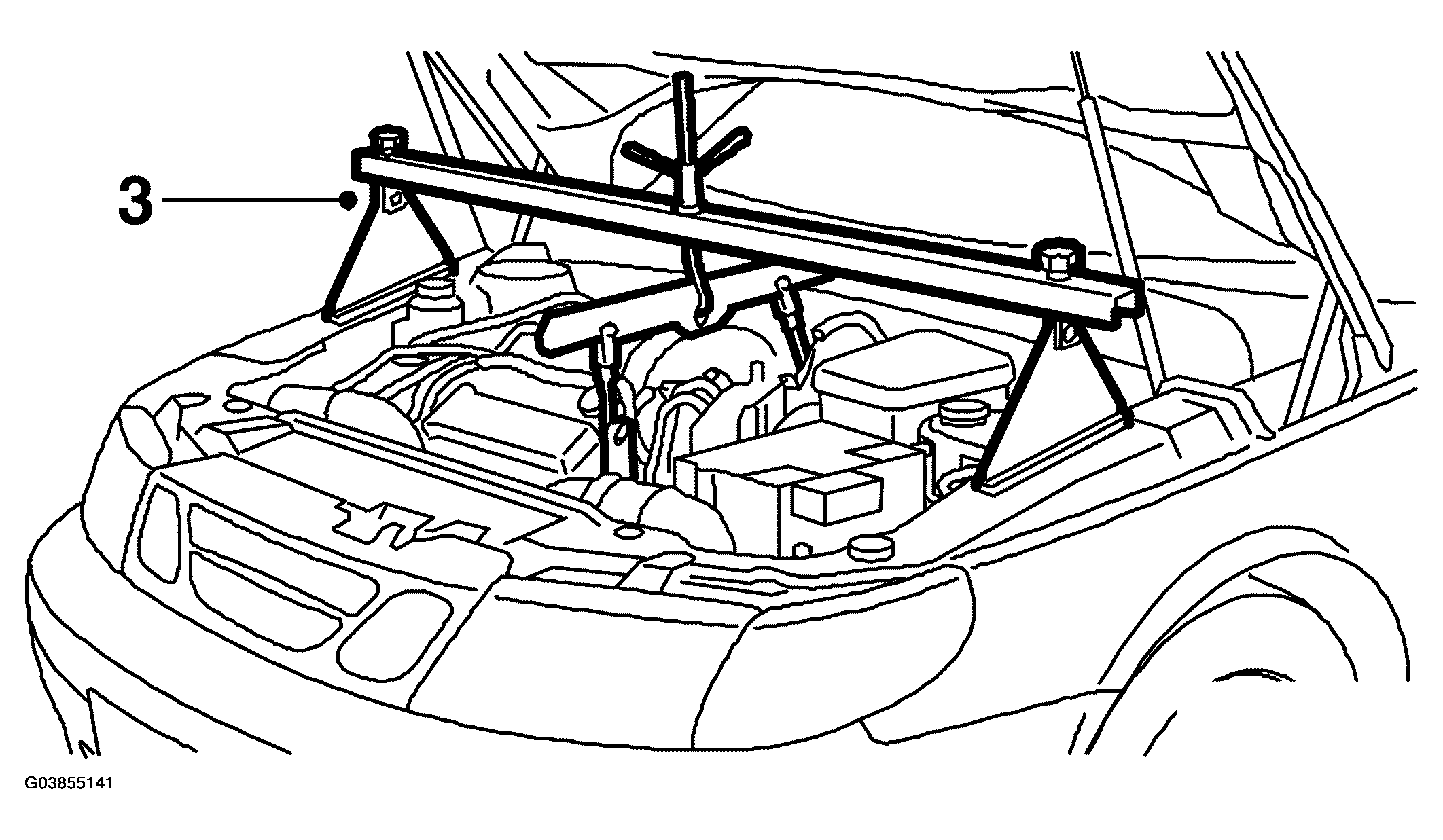

    Fig 2: Illustration For Step 3
    G03855141Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Undo the center nut and bolts on the engine pad.

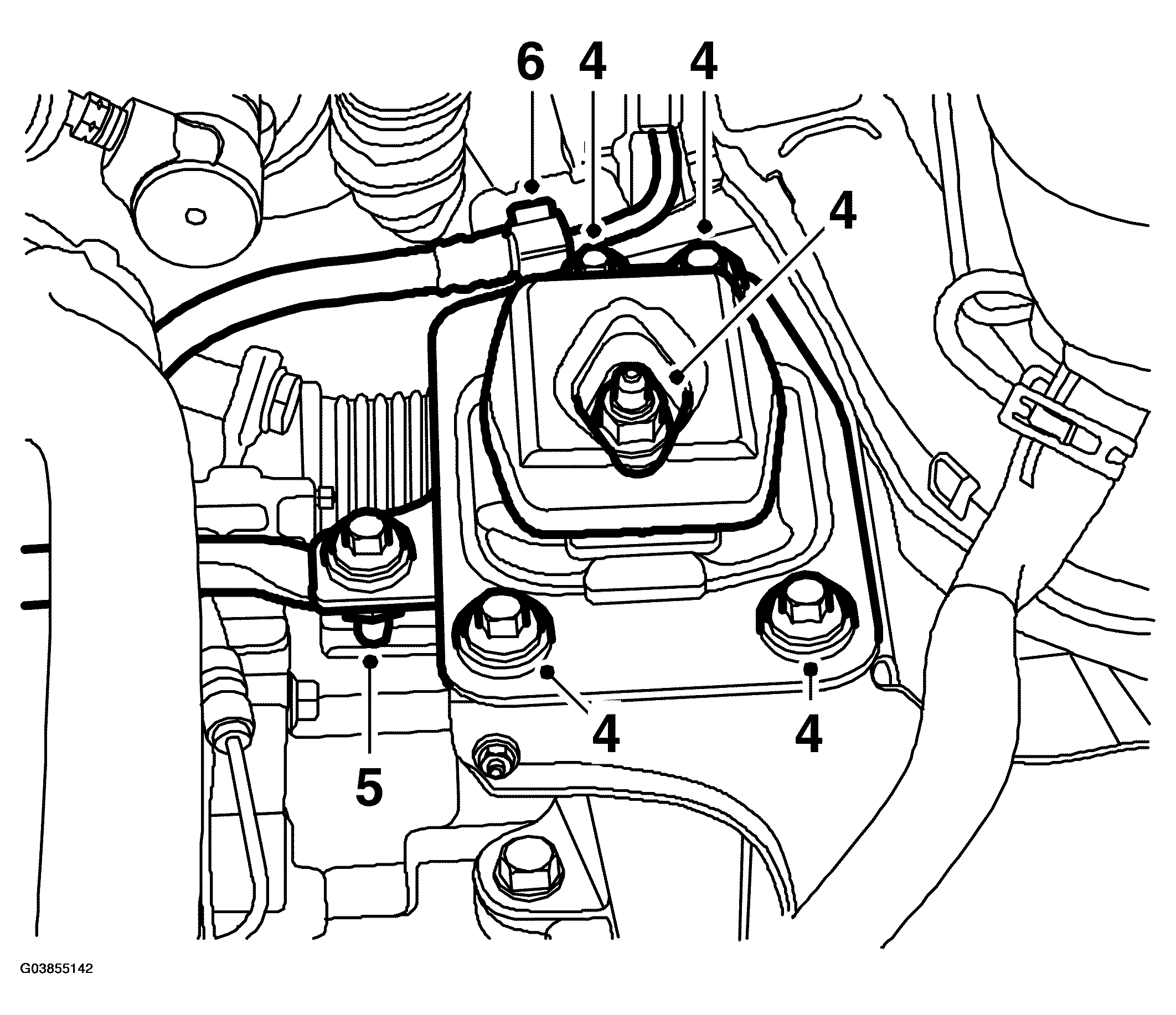

    Fig 3: Illustration For Steps 4-6
    G03855142Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the engine mounting (and the steady bar's screw, manual only).

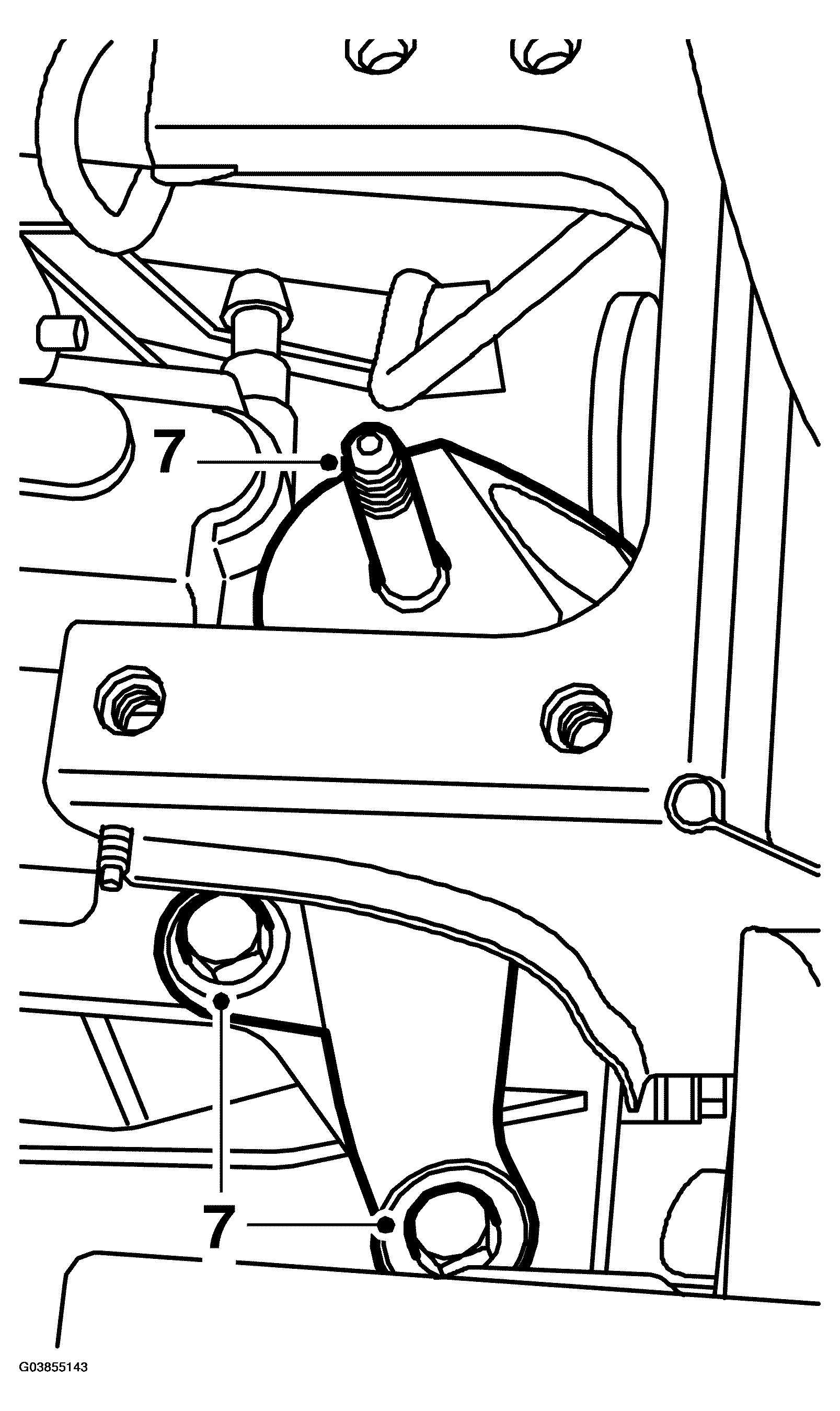

    Fig 4: Illustration For Step 7
    G03855143Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Detach the clutch hydraulic hose from its fastening.
  7. Remove the engine mounting.
