Valve Gear: Notes

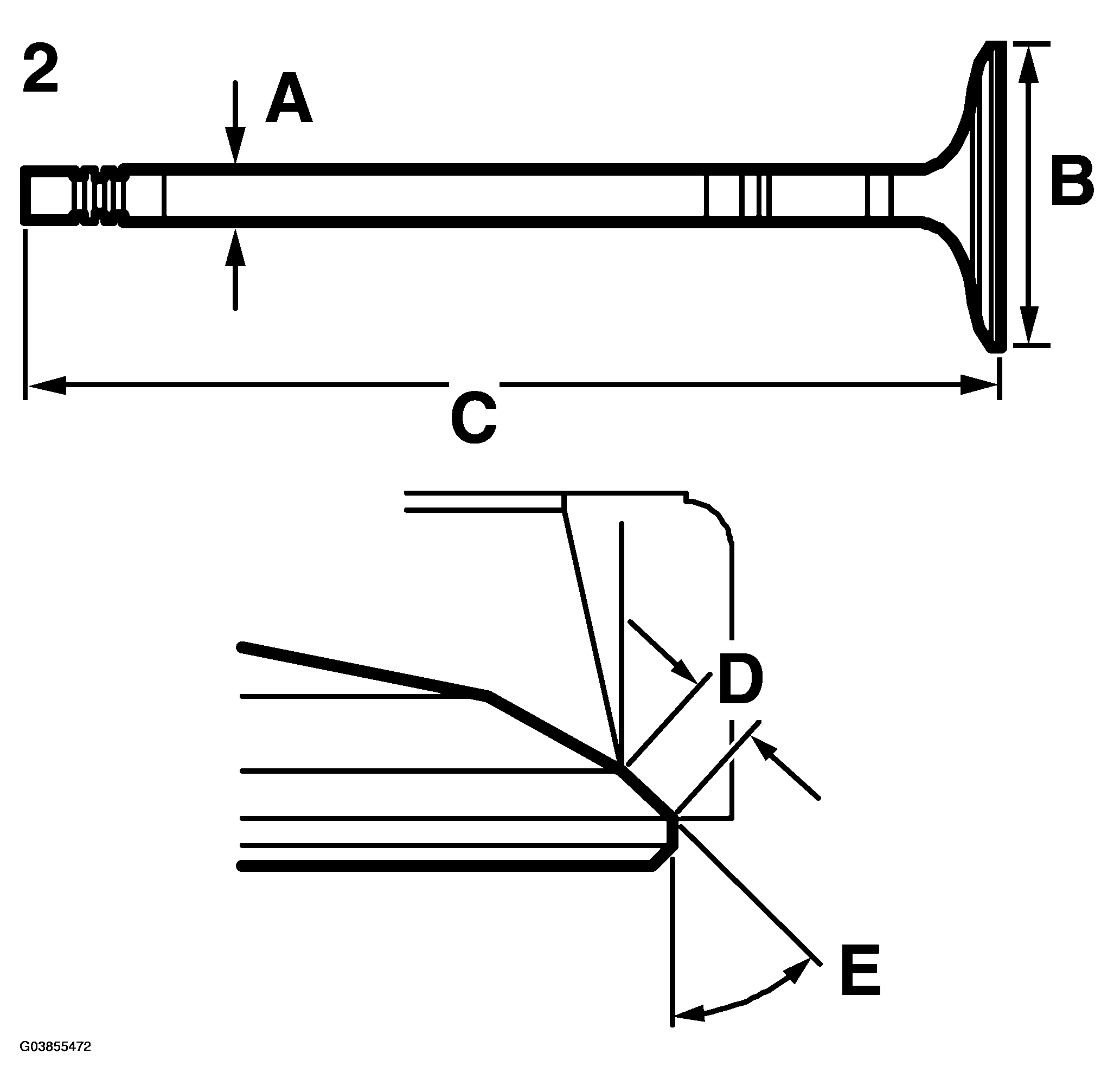

Fig 1: Identifying Valve Dimension
G03855472Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Exhaust valve
  2. Inlet valve
VALVE SPECFICATION

    Exhaust valve Inlet valve
A
A Nimonic 		 mm
mm		 4.9575 +/-0.0075
4.9725 +/-0.0075		 4.9775 +/- 0.0075
B  mm 29 +/- 0.1 33 +/- 0.1
C  mm 107.84 107.3
D  mm 1.5 - 2.0 1.0 - 1.5
E  ° 44.5 +/-0.167 45.25 +/- 0.25
