To Remove

  1. Open the data link connector cover.

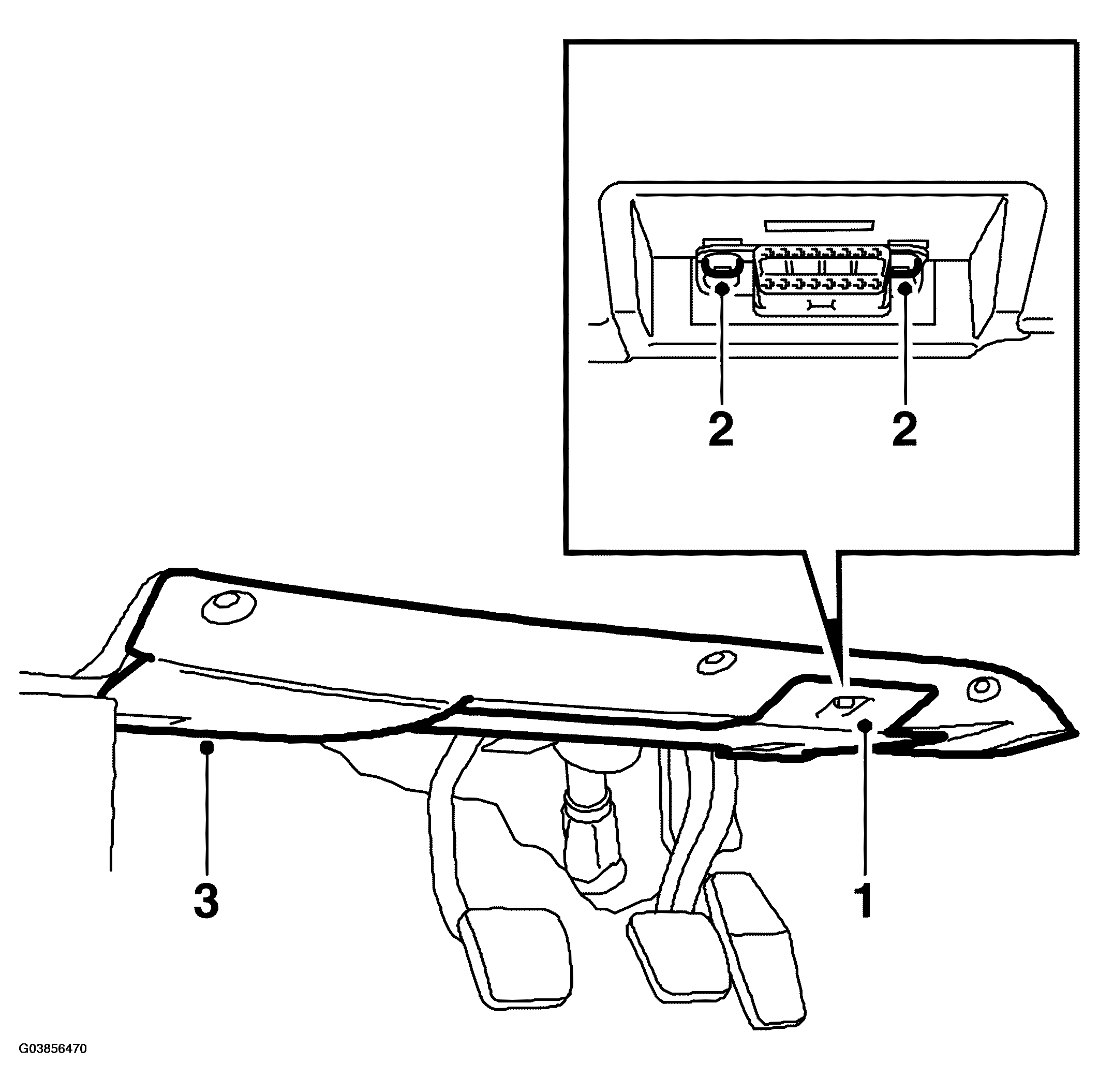

    Fig 1: Illustration For Steps 1-3
    G03856470Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screws in the data link connector.
  3. Remove the screws and clip securing the lower panel with air duct.
  4. Unplug the connector for the floor lighting.

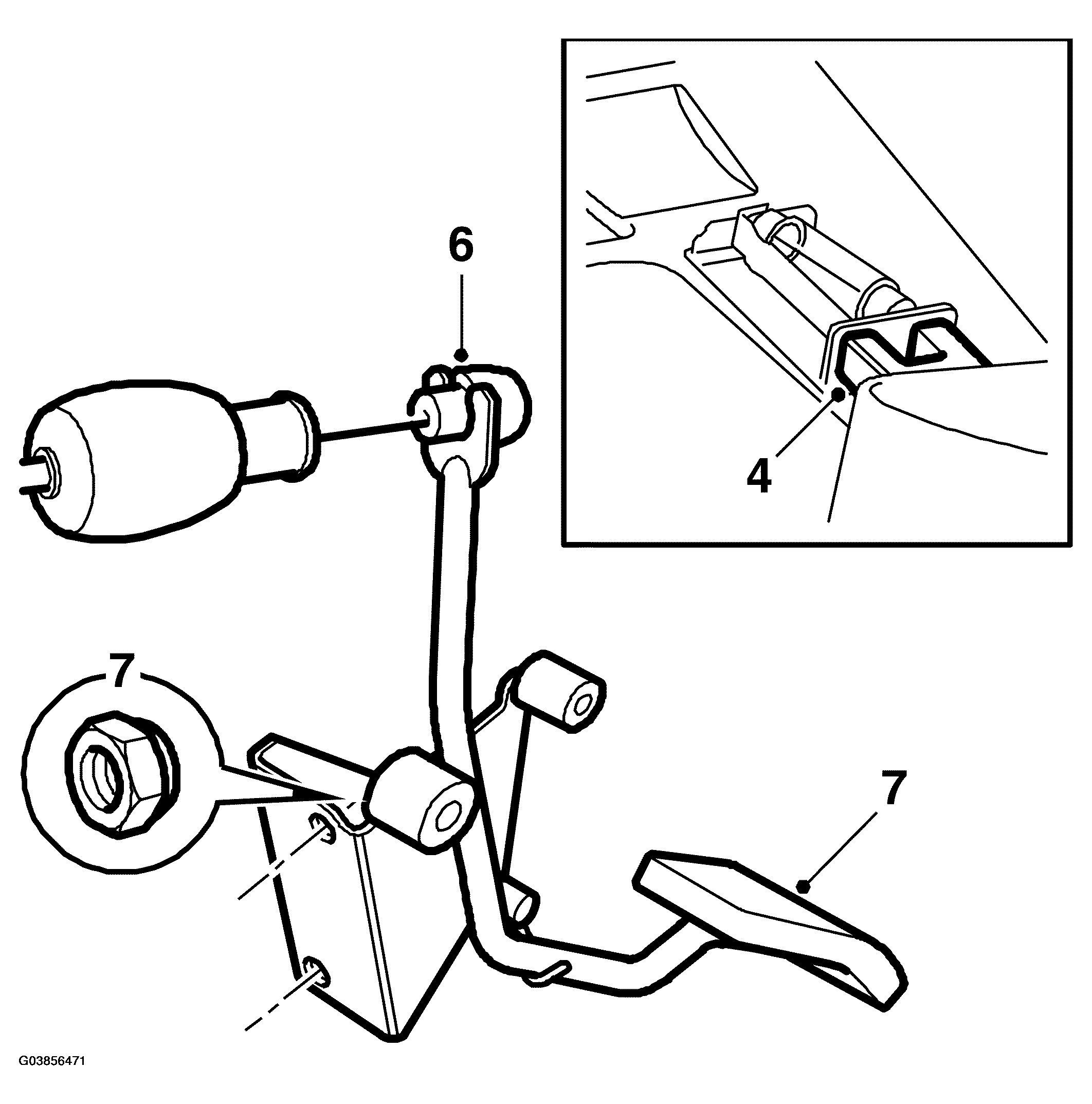

    Fig 2: Illustration For Steps 4, 6 And 7
    G03856471Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift out the lower panel.
  6. Disconnect the throttle cable from the throttle pedal by sliding back the bush and removing it and the cable.
  7. Remove the pedal.
