To fit

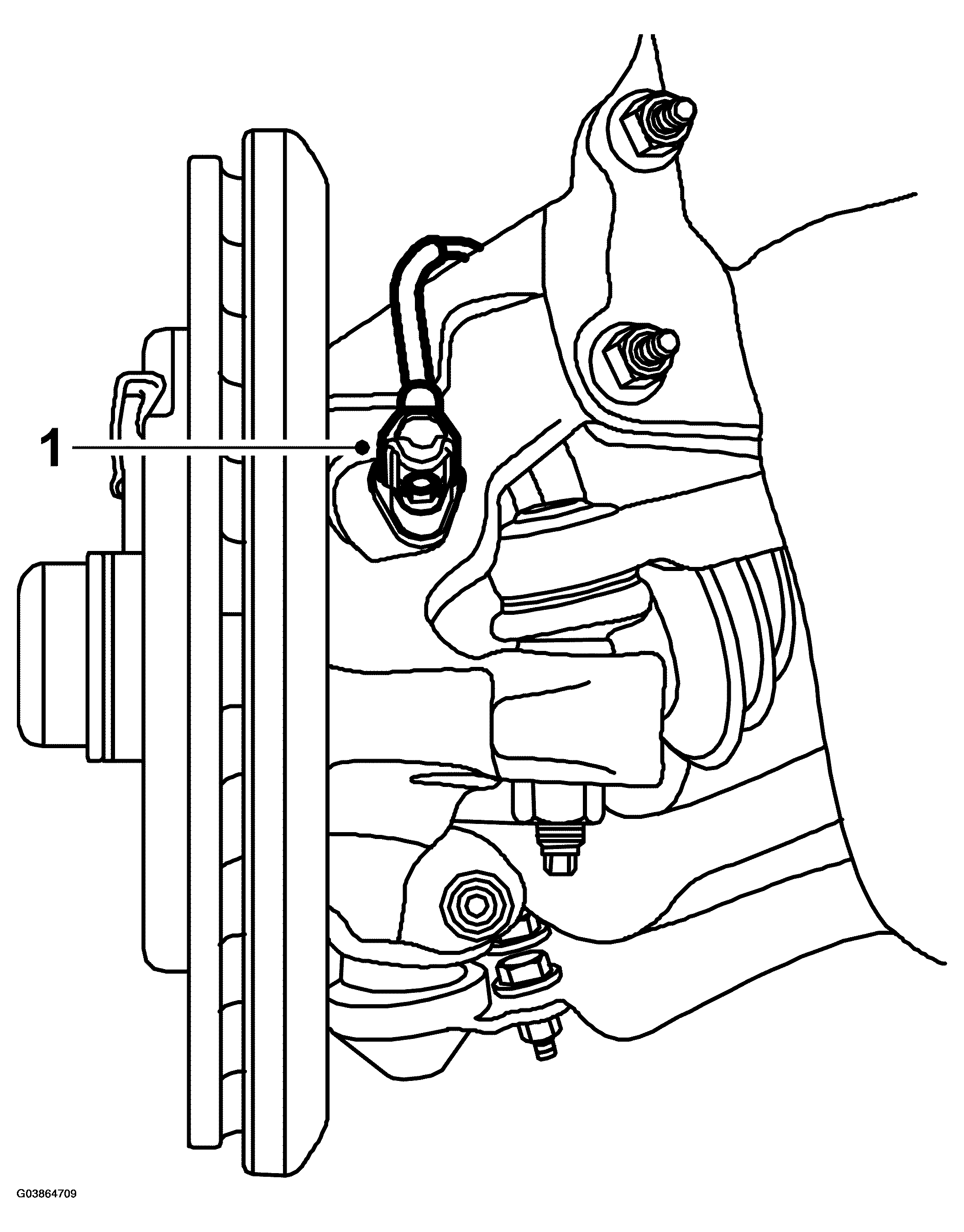

Fig 1: Illustration For Step 1
G03864709Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the wheel sensor into the holder.
  2. Insert the lead through the rubber grommet.
  3. Fit the rubber grommet.

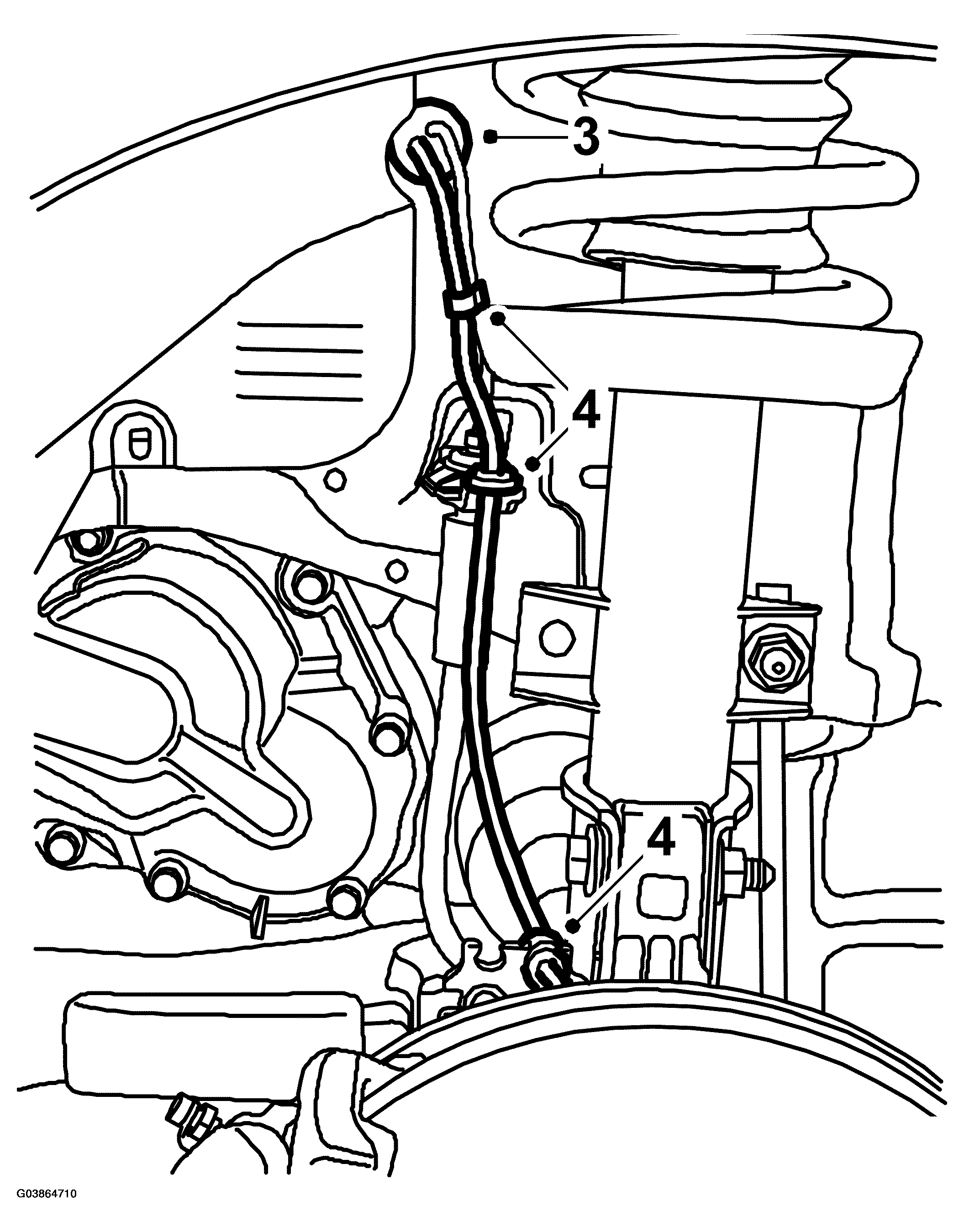

    Fig 2: Illustration For Step 3 And 4
    G03864710Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Press the lead into the clips.
  5. Fit the wheel and lower the car. The wheel must be suspended freely when tightening the wheel bolts. See WHEEL & TYRES - 9-5 .

    Tightening torques

    aluminum wheel 110 Nm (81 lbf ft)

    steel wheel 50 Nm +2x90°, max. 110 Nm (37 lbf ft +2x90°, max. 81 lbf ft)

  6. Fit the clip to the connector.

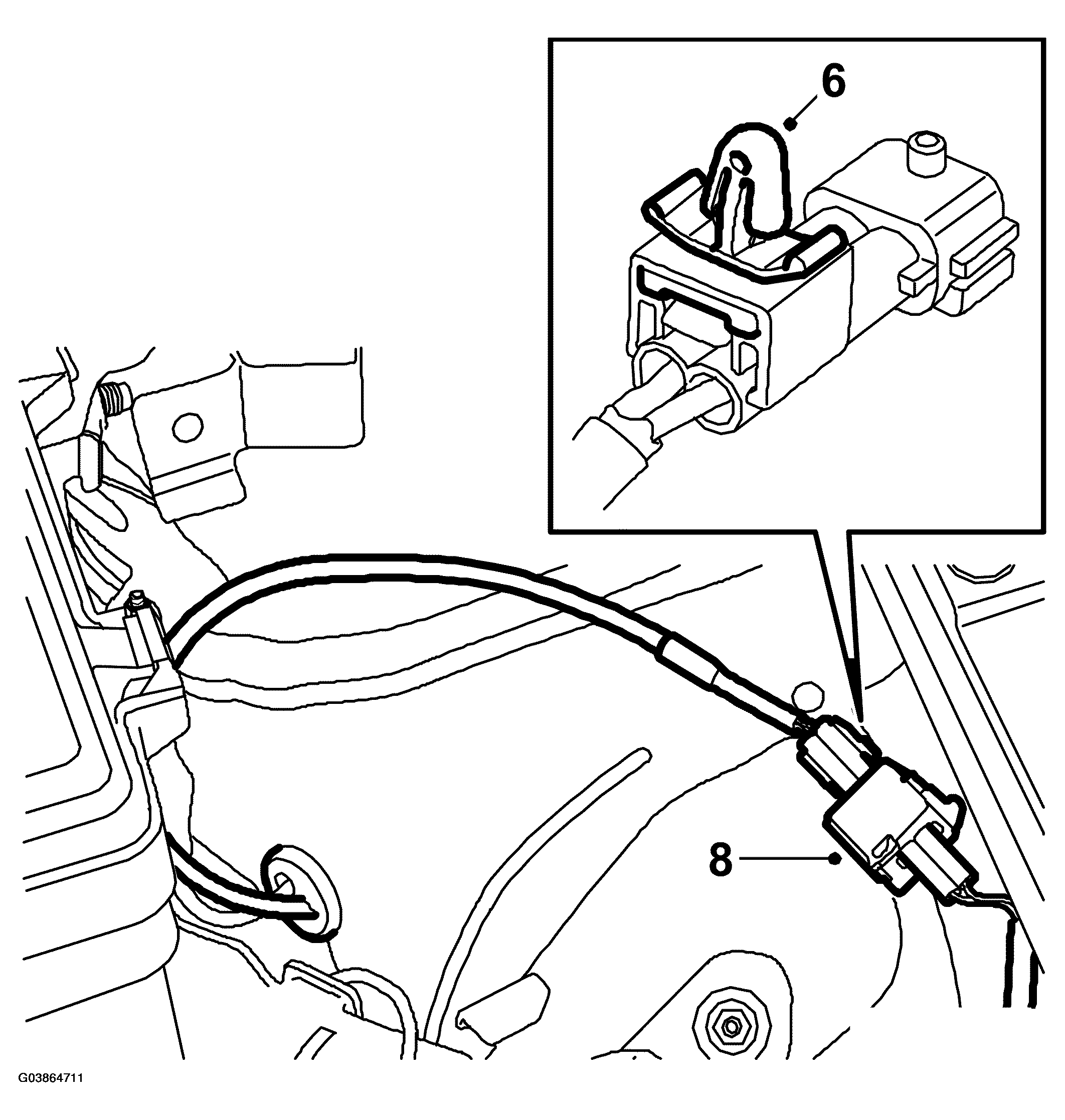

    Fig 3: Illustration For Step 6-8
    G03864711Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit the clip in the bracket.
  8. Plug in the connector.
  9. Fit the coolant reservoir.

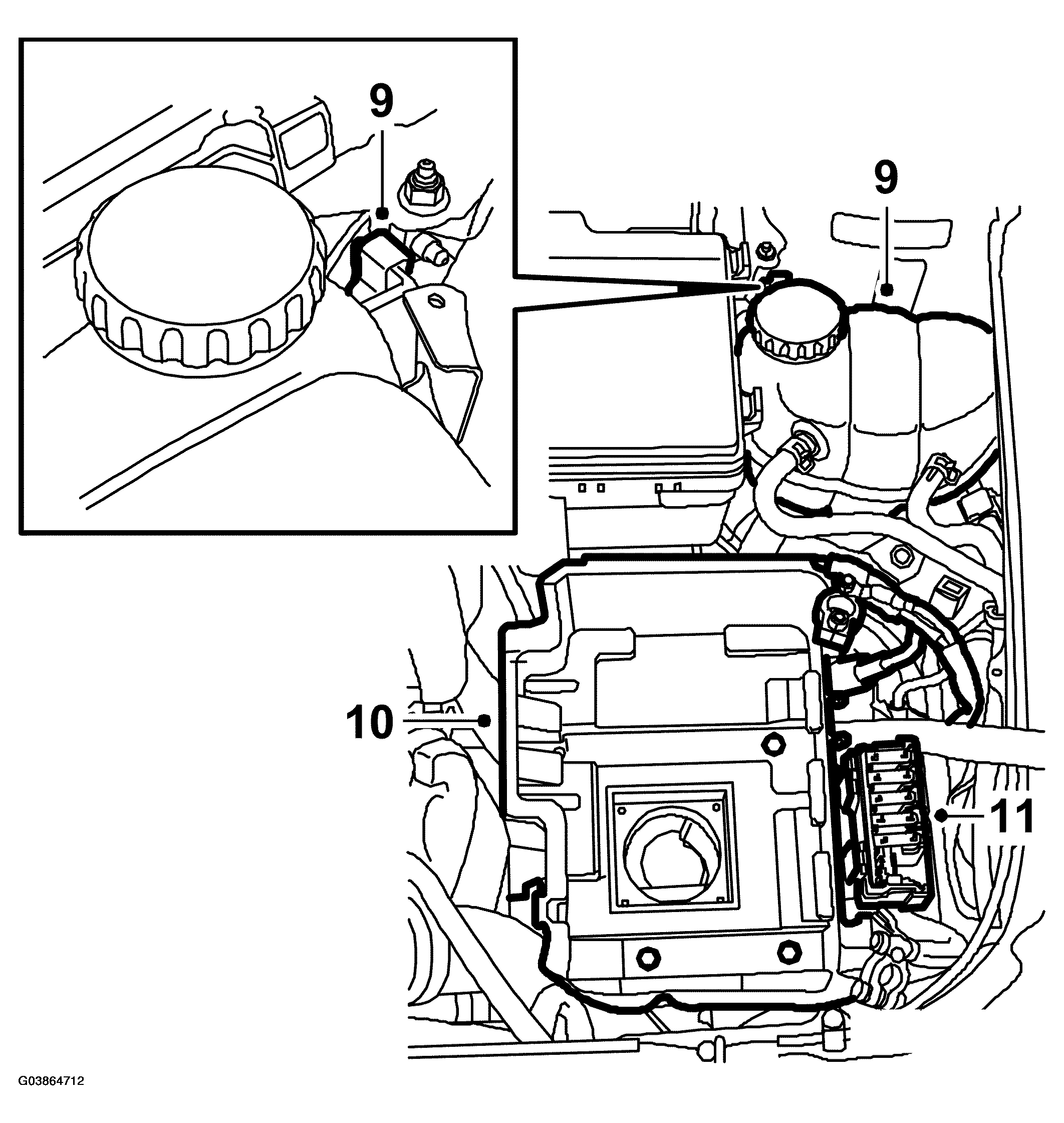

    Fig 4: Illustration For Step 9-11
    G03864712Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Fit the battery tray.
  11. Fit the maxi fuse holder.
  12. Fit the battery.
  13. Fit the battery cover.
