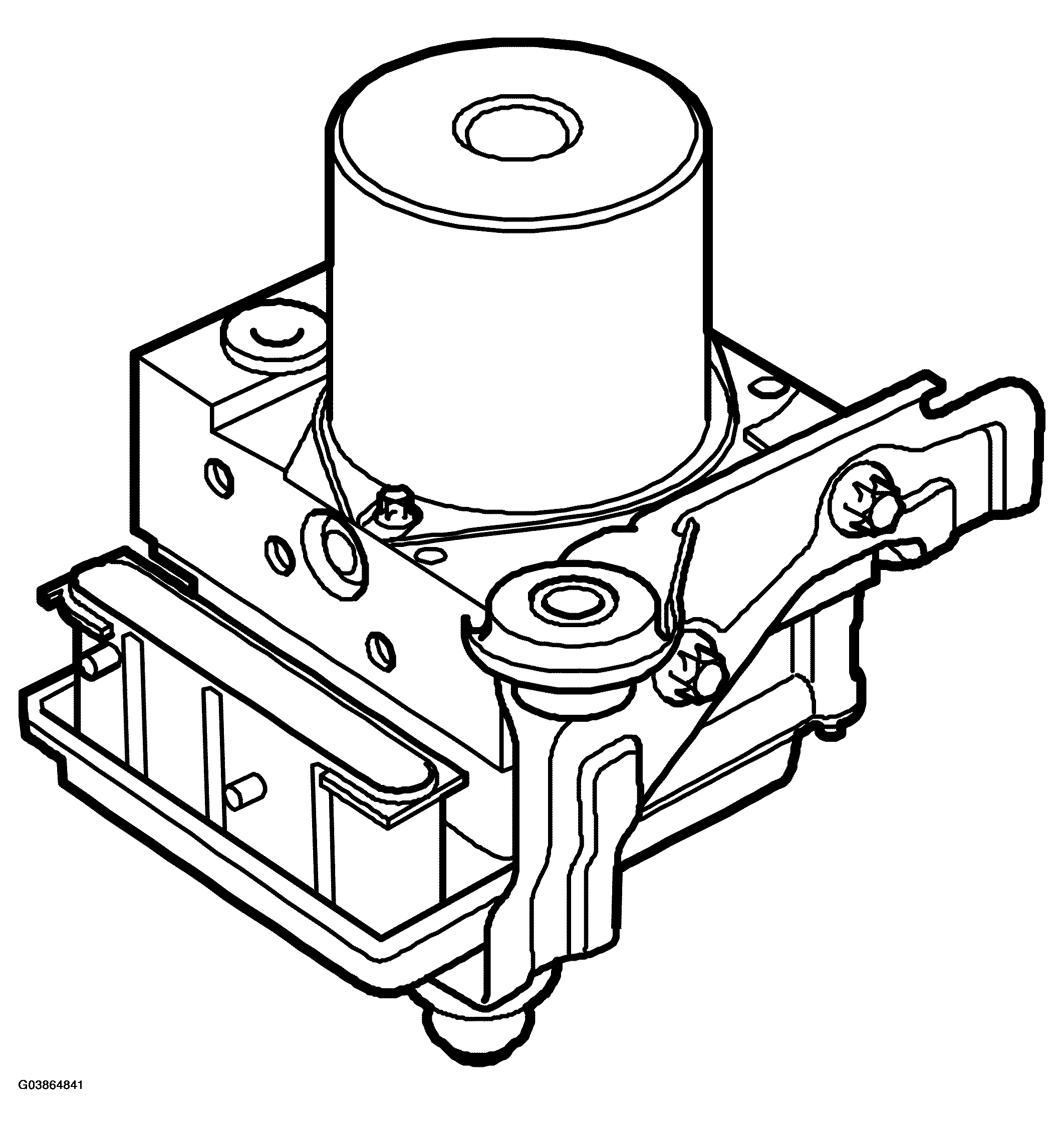

Control module
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - CONTROL MODULE
| Number of terminal pins |
46 pcs |
| Power supply +30 |
pin 2 and 3 |
| Power supply +15 |
pin 28 |
| Main ground (G2) |
pin 4 |
| Ground, pump motor |
pin 1 |
| Working voltage |
9-16 volts |
| Power consumption, rest position |
< 3 mA |
| The control module is integrated in the hydraulic unit. |
