ABS function: Notes

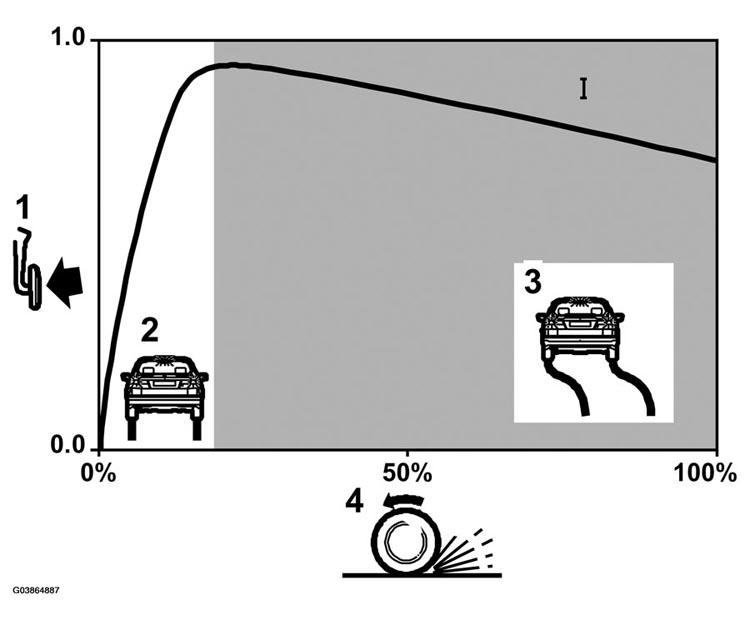

Fig 1: Brake force as function of wheel slip.

Y-axis = Brake force

X-axis = Wheel slip

1. Brake force
2. Stable
3. Unstable
4. Wheel slip

The anti-lock braking system provides optimum braking force while retaining the car's directional stability.

Fig 1: Identifying ABS Function (1 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

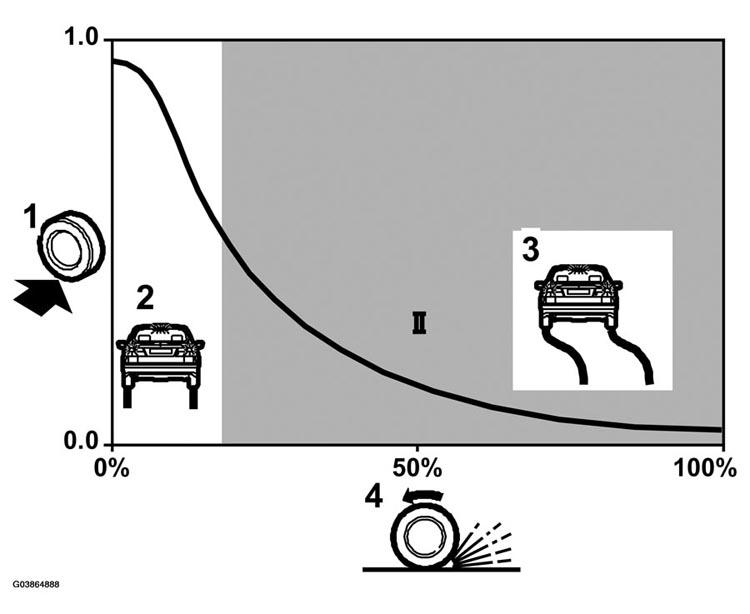

Fig 2: Identifying ABS Function (2 Of 2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
