Steering wheel angle sensor (657): Notes

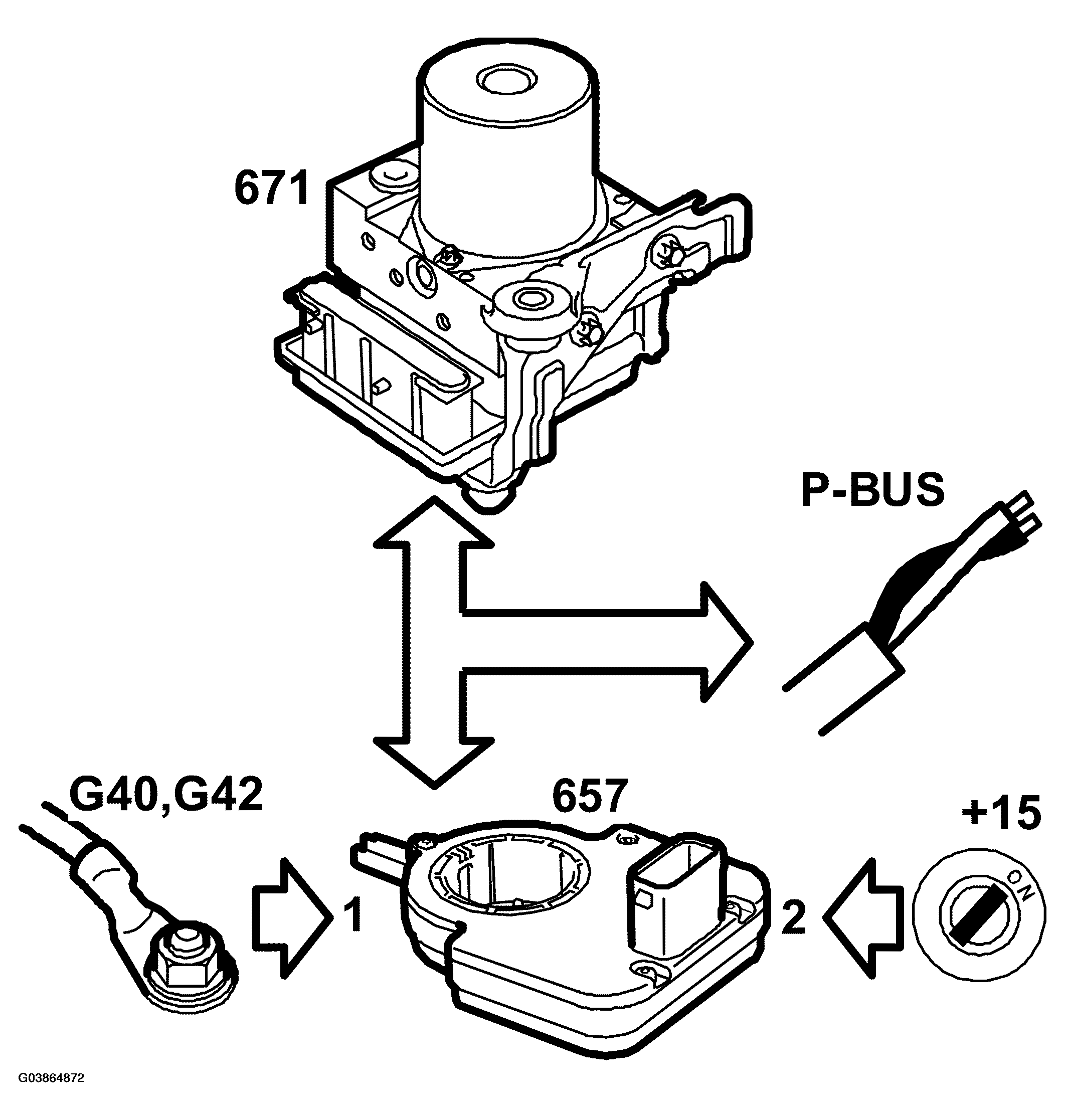

Fig 1: Identifying Steering Wheel Angle Sensor (657)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The steering wheel angle sensor is located on the steering column between the steering wheel and the intermediate shaft. The sensor senses the angle of the steering wheel and is connected to the Pbus. The sensor provides the ESP control module with information on steering wheel angle.
