Control Module, V6 Diesel, Contact A (655A)

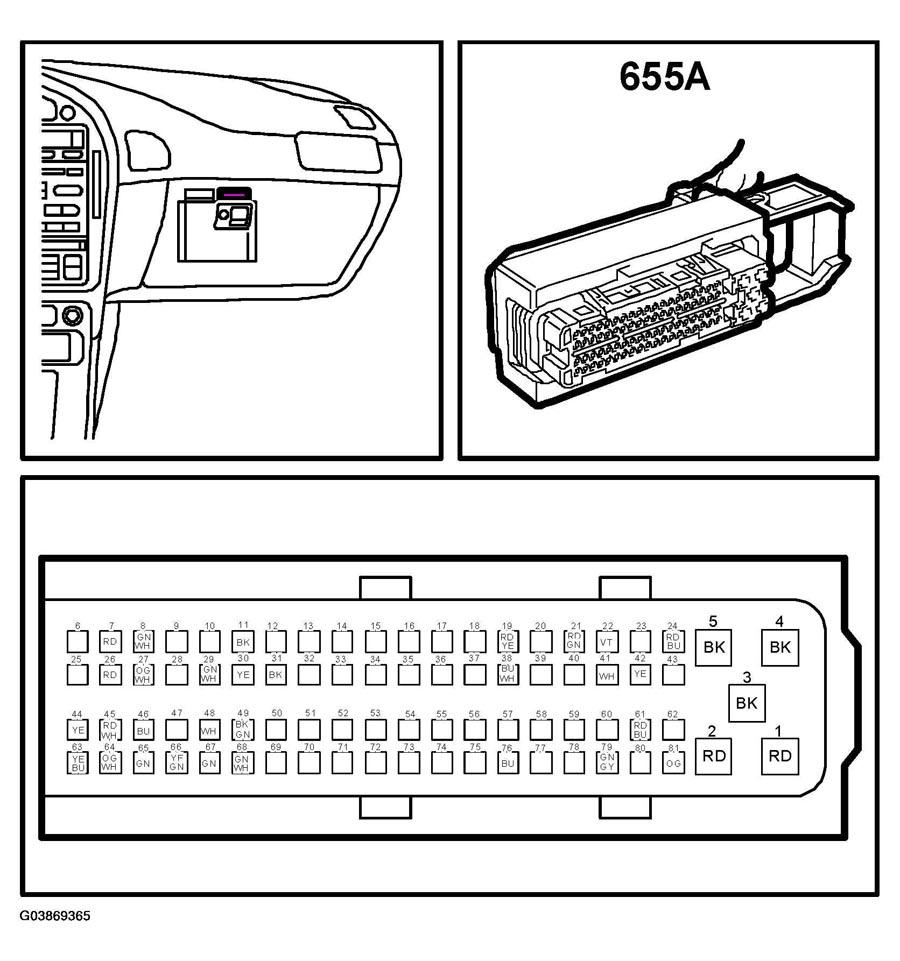

Fig 1: Identifying Control Module Connector And Location - V6 Diesel, Contact A (655A)
G03869365Courtesy of SAAB-SCANIA OF AMERICA, INC.
