Grounding Point G24: Notes

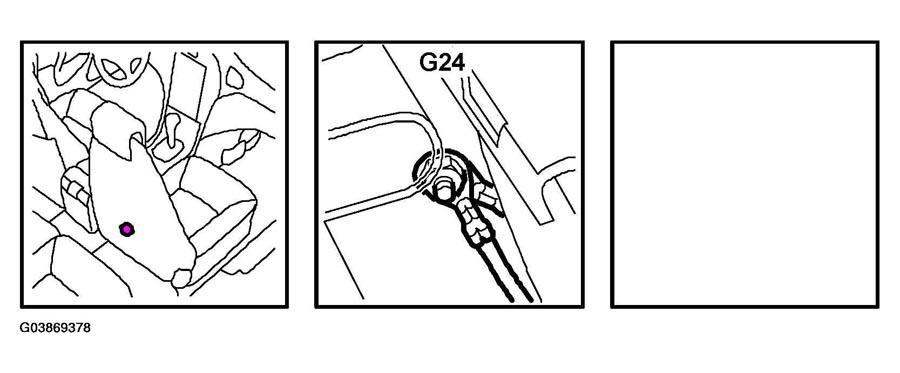

Fig 1: Identifying Grounding Point G24
G03869378Courtesy of SAAB-SCANIA OF AMERICA, INC.

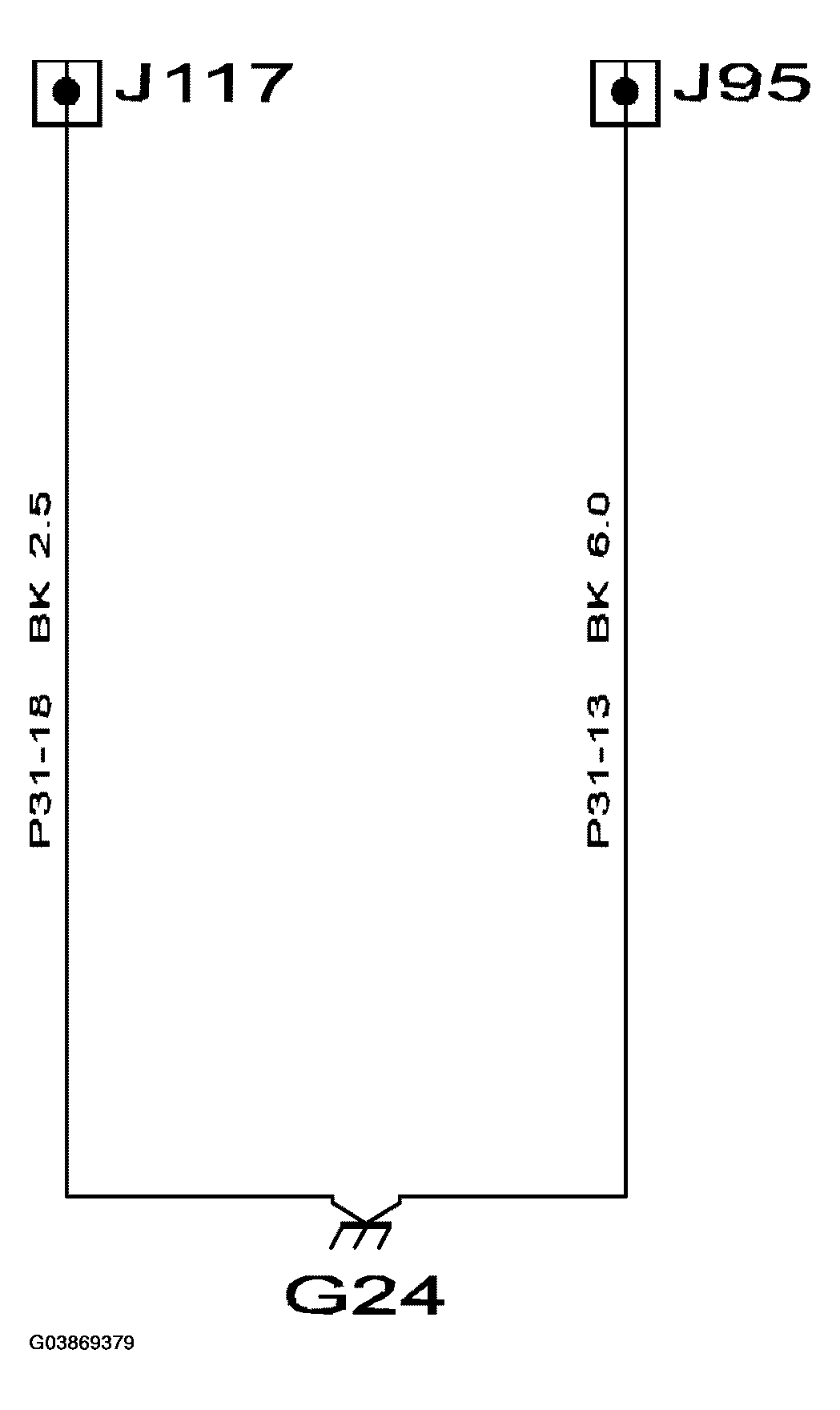

Fig 2: Grounding Point G24 Wiring Diagram
G03869379Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On seat member under RH seat.
