Connecting Rods

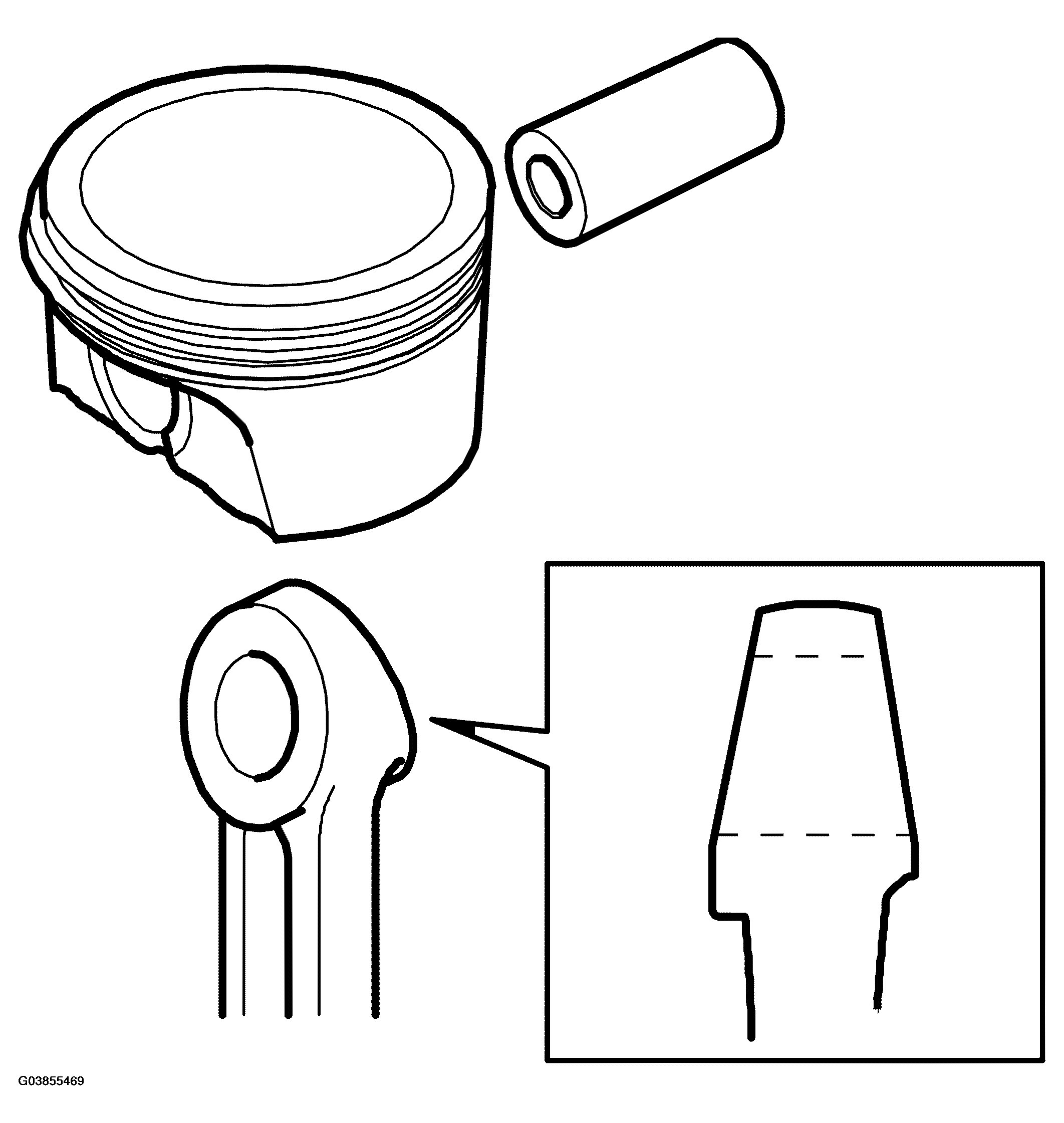

Fig 1: Identifying Piston And Connecting Rod
G03855469Courtesy of SAAB-SCANIA OF AMERICA, INC.
DIAMETER AT BIG-END SPECIFICATION

Diameter at big-end mm 56.000 - 56.019
Gudgeon pin bushing, inside diameter (fitted) mm 24.012 - 24.017
Maximum difference in weight between connecting rod big-ends in the same engine g (oz.) 6 (0.21)
Length B235 Centre - Centre mm 153
Length B205 Centre - Centre mm 159
