Installation Procedure

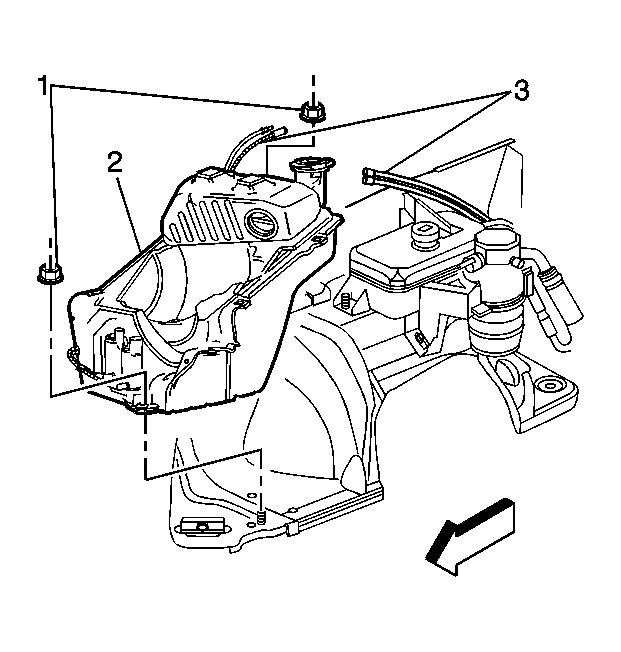

    Fig 1: View Of Air Filter Housing/Washer Solvent Tank Assembly & Washer Pump Hoses
    GM1361746Courtesy of GENERAL MOTORS CORP.
  1. Install the lower air filter housing/washer solvent tank assembly (2) onto the mounting studs.
  2. Connect the washer pump hoses (3) to the washer pumps.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 2 retaining nuts (1) to the mounting studs on the air cleaner housing/washer solvent tank assembly.

    Tighten:  Tighten the nuts to 15 N.m (11 lb ft).

    4. Fig 2: View Of Headlamp Washer Hose At Headlamp Washer Pump
    GM1362808Courtesy of GENERAL MOTORS CORP.
  4. If applicable, connect the washer hose to the headlamp washer pump located on the lower air cleaner housing/washer solvent tank.
    5. Fig 3: Locating Electrical Connectors
    GM907812Courtesy of GENERAL MOTORS CORP.
  5. Connect the following electrical connectors:
    • The windshield washer pump (1)
    • The headlamp washer pump (2)
    • The low solvent level sensor (4)
    • The lift gate washer pump (6)
  6. Install the wire harness for the washer solvent level sensor to the wire harness retaining clips (3,5).

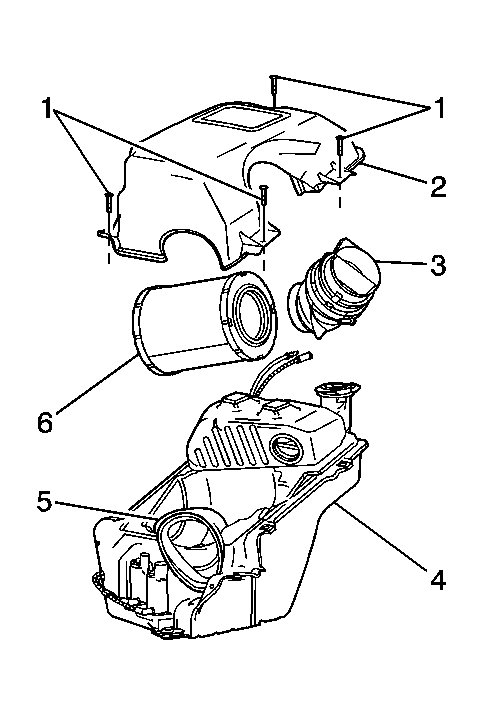

    7. Fig 4: Exploded View Of Air Cleaner Assembly
    GM1217755Courtesy of GENERAL MOTORS CORP.
  7. Install the following components to the lower air cleaner housing/washer solvent tank assembly (4). Refer to Air Cleaner Element Replacement .
    • The air cleaner cover (2)
    • The filter element (6)
    • The mass air flow (MAF)/intake air temperature (IAT) sensor (3)
    • The air inlet duct (5)
