Removal Procedure

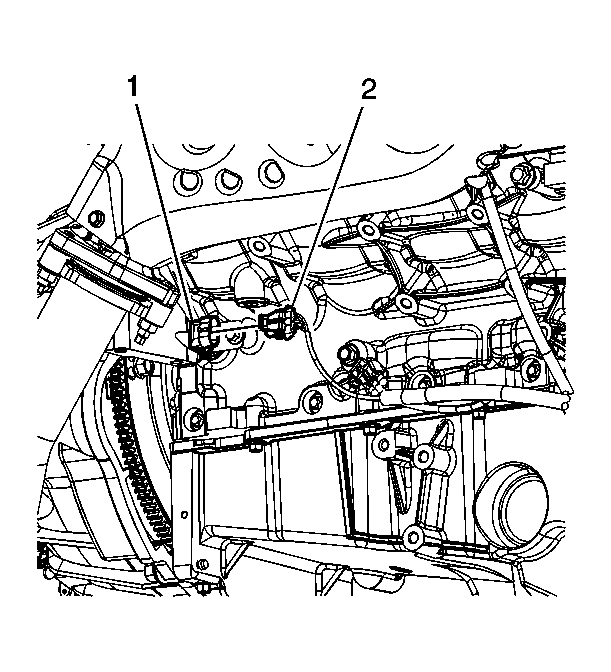

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1528399Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Perform CKP System Variation Learn Procedure  whenever the crankshaft position (CKP) sensor is removed or replaced.
  1. Remove the starter. Refer to Starter Motor Replacement (5.3L Engine) or Starter Motor Replacement (4.2L Engine) in Engine Electrical.
  2. Disconnect the electrical connector (2) from the CKP sensor (1).
    3. Fig 2: View Of CKP Sensor & Bolt
    GM55322Courtesy of GENERAL MOTORS CORP.
  3. Clean the area around the CKP sensor before removal in order to avoid debris from entering the engine.
  4. Remove the CKP sensor bolt.
  5. Remove the CKP sensor.
