Installation Procedure

IMPORTANT: Lightly coat the MAP sensor seal with clean engine oil before installing the sensor.

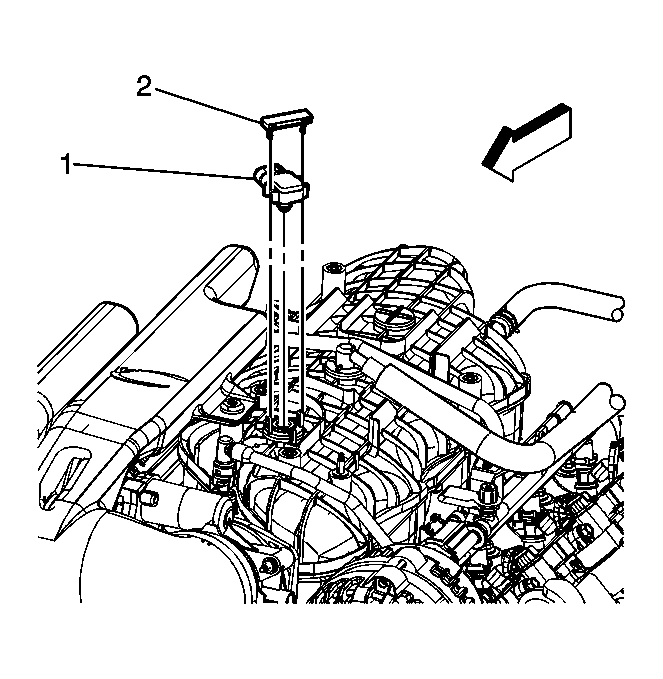

    Fig 1: Removing/Installing Manifold Absolute Pressure (MAP) Sensor
    GM1509706Courtesy of GENERAL MOTORS CORP.
  1. Install the MAP sensor (1). Push the MAP sensor into the intake manifold.
  2. Install the MAP sensor retainer (2) to the intake manifold.
    3. Fig 2: Top Of Engine Wiring Harness View
    GM898326Courtesy of GENERAL MOTORS CORP.
  3. Connect the MAP sensor electrical connector (3).
