Installation Procedure

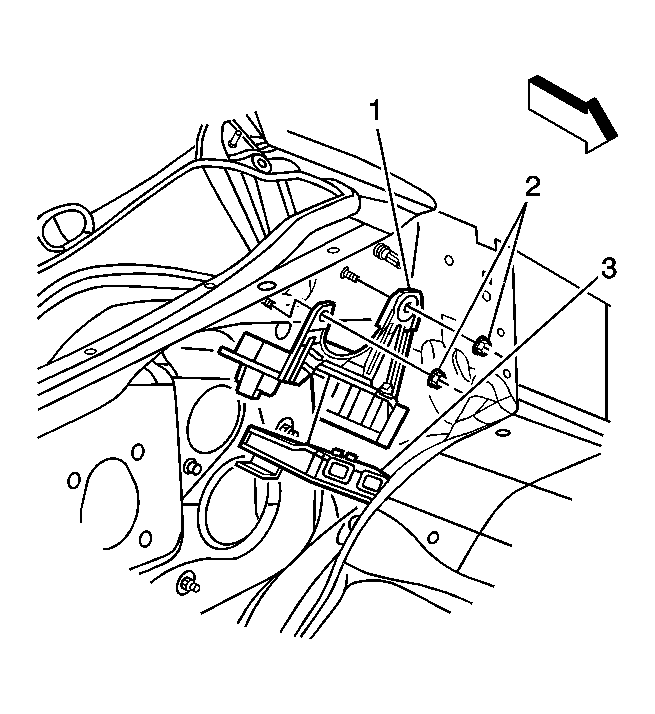

Fig 1: View Of TAC Module

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Handling ESD Sensitive Parts Notice in Cautions and Notices.

NOTE: Refer to Fastener Notice in Cautions and Notices.

If necessary, install the TAC module bracket (1) and nuts (2).
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Install the TAC module (3) to the retaining bracket (1).
Snap the TAC module (3) into retaining tab.

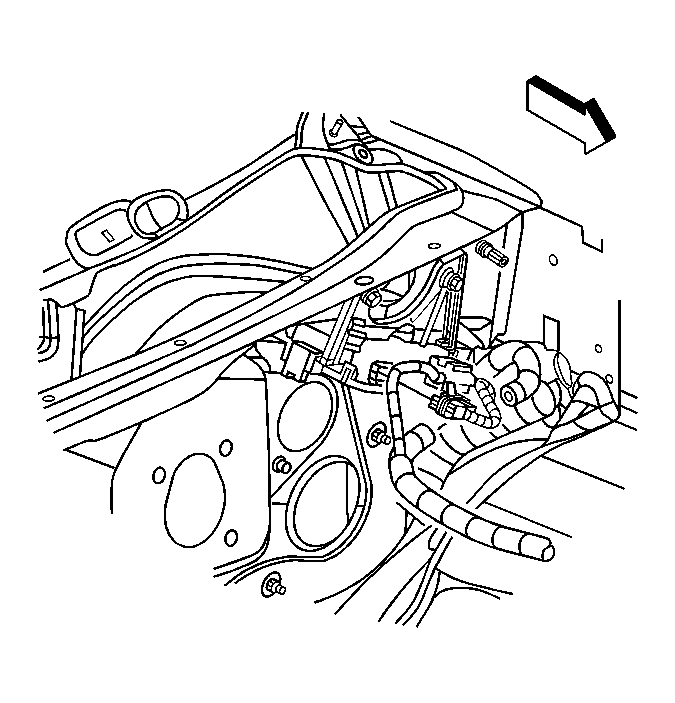

Fig 2: View Of Engine Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

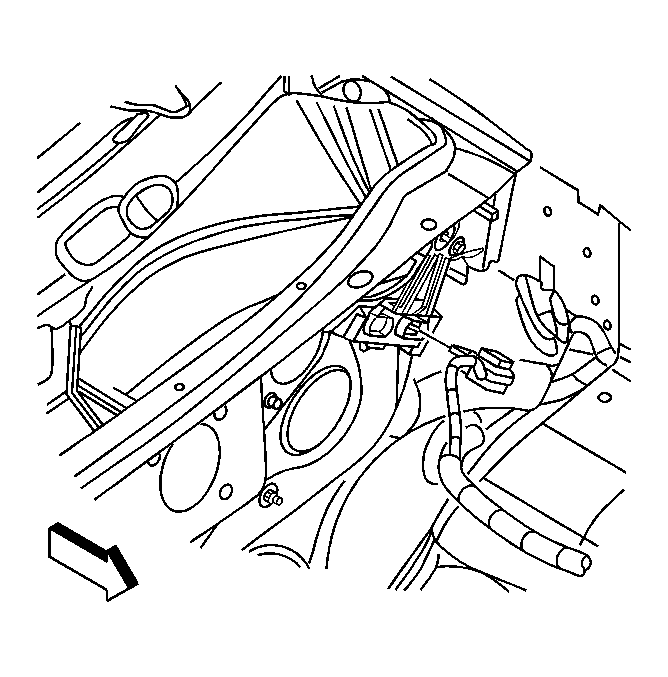

Fig 3: View Of I/P Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.
