Automatic Transmission Shift Lock Control Schematics

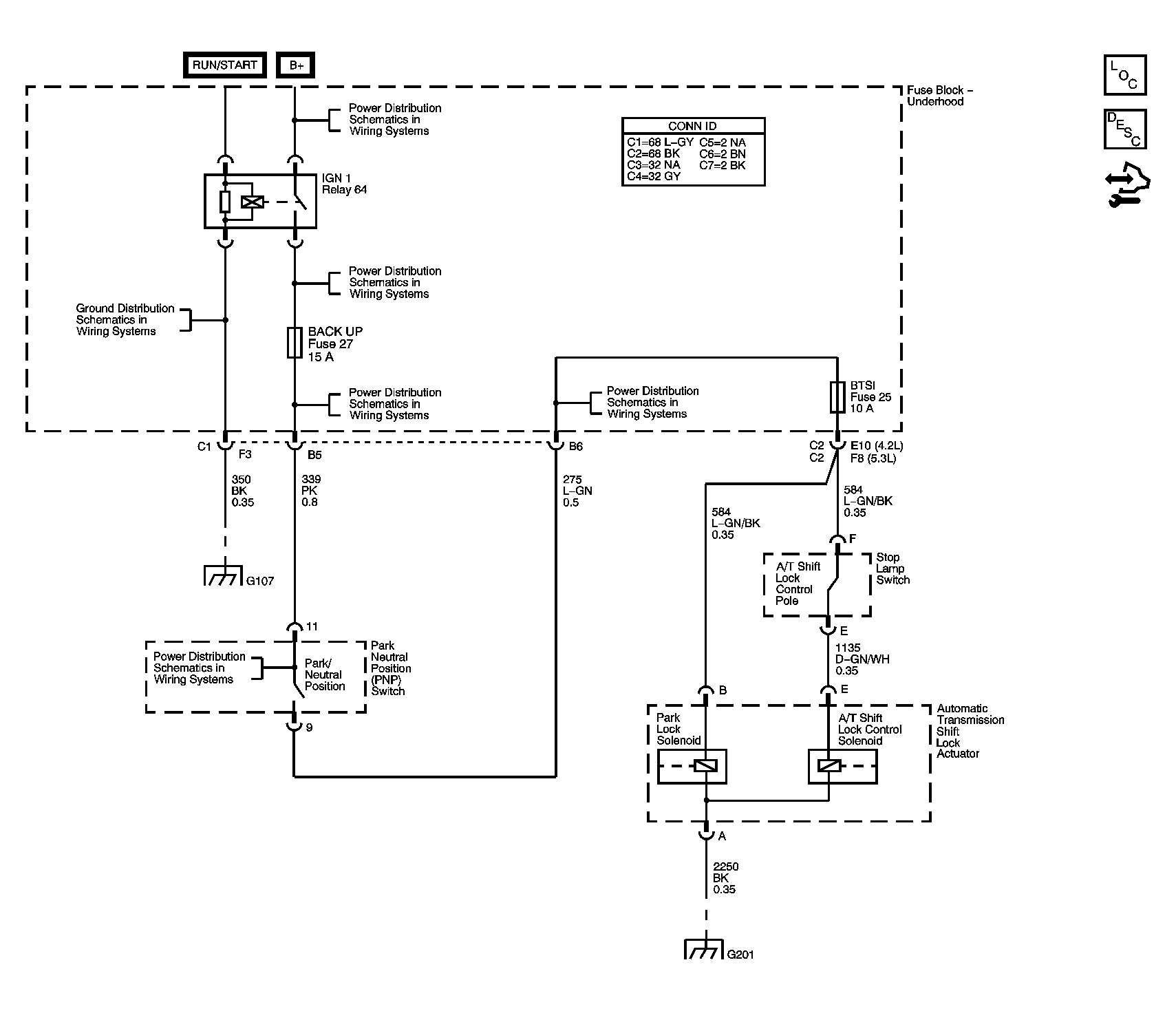

Fig 1: A/T Shift Lock Schematic

GM1533270

Courtesy of GENERAL MOTORS CORP.
