Oxygen Sensor



Component Connector End Views

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (5.3L)





Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (5.3L)





Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (5.3L)

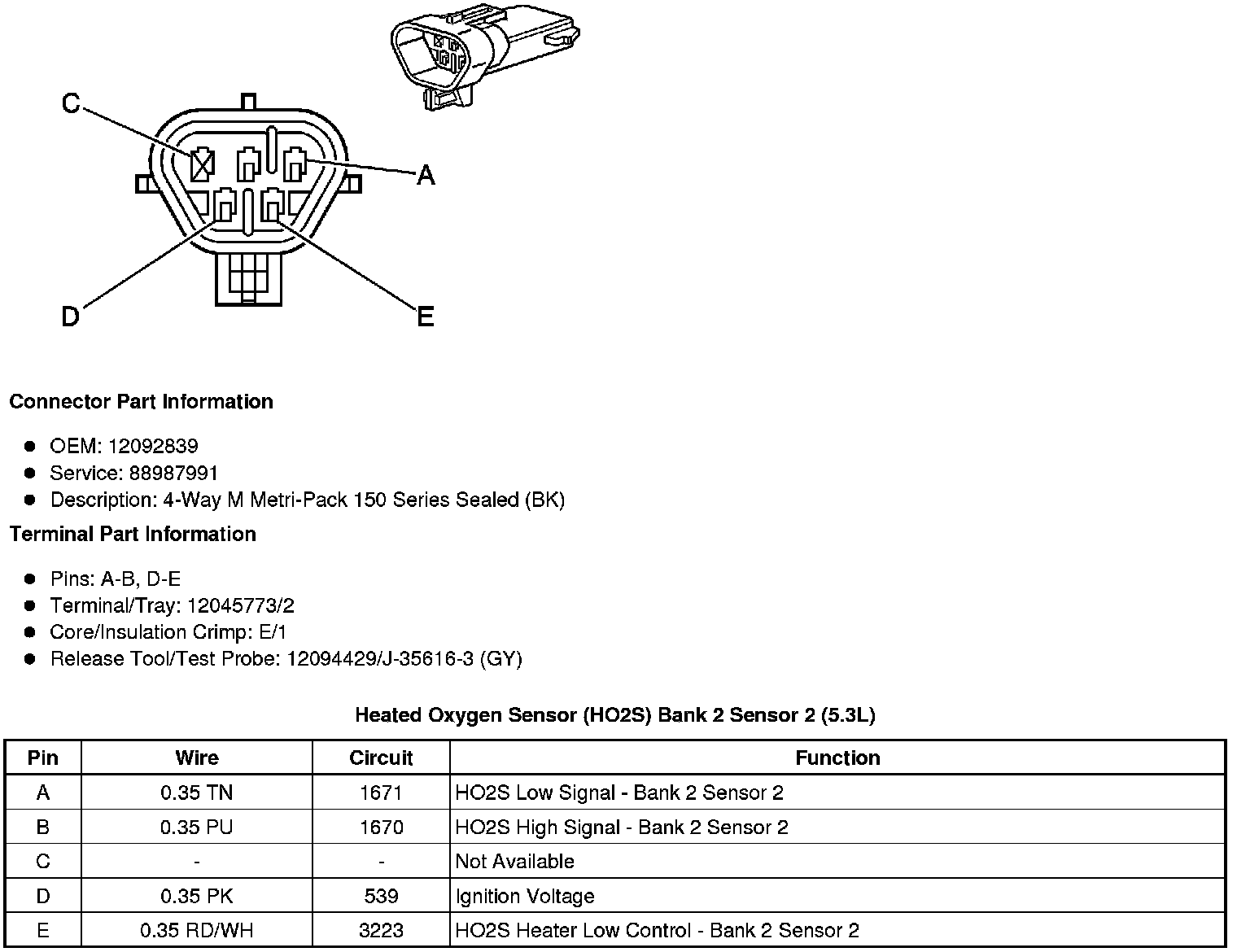

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (5.3L)

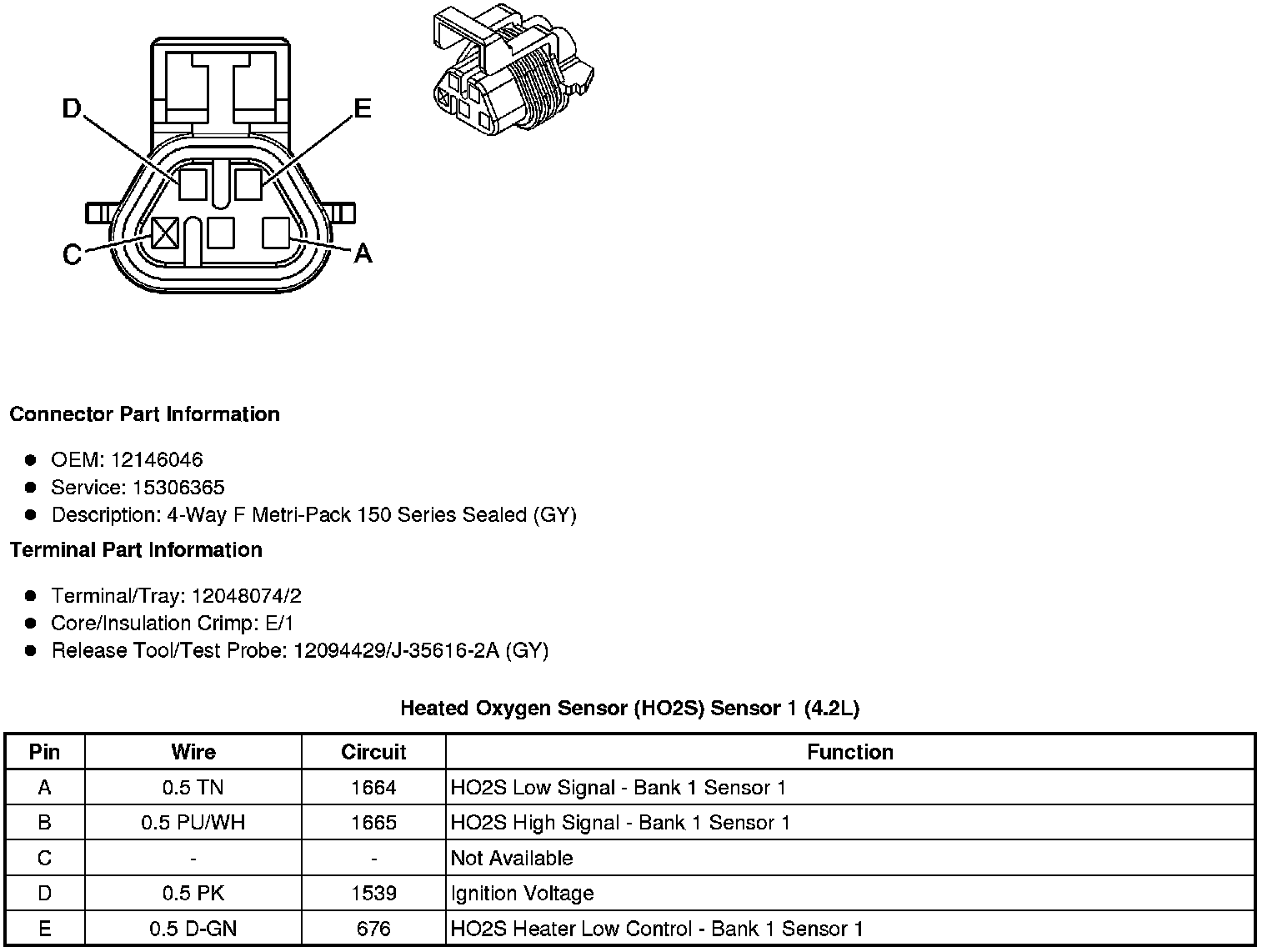

Heated Oxygen Sensor (HO2S) Sensor 1 (4.2L)

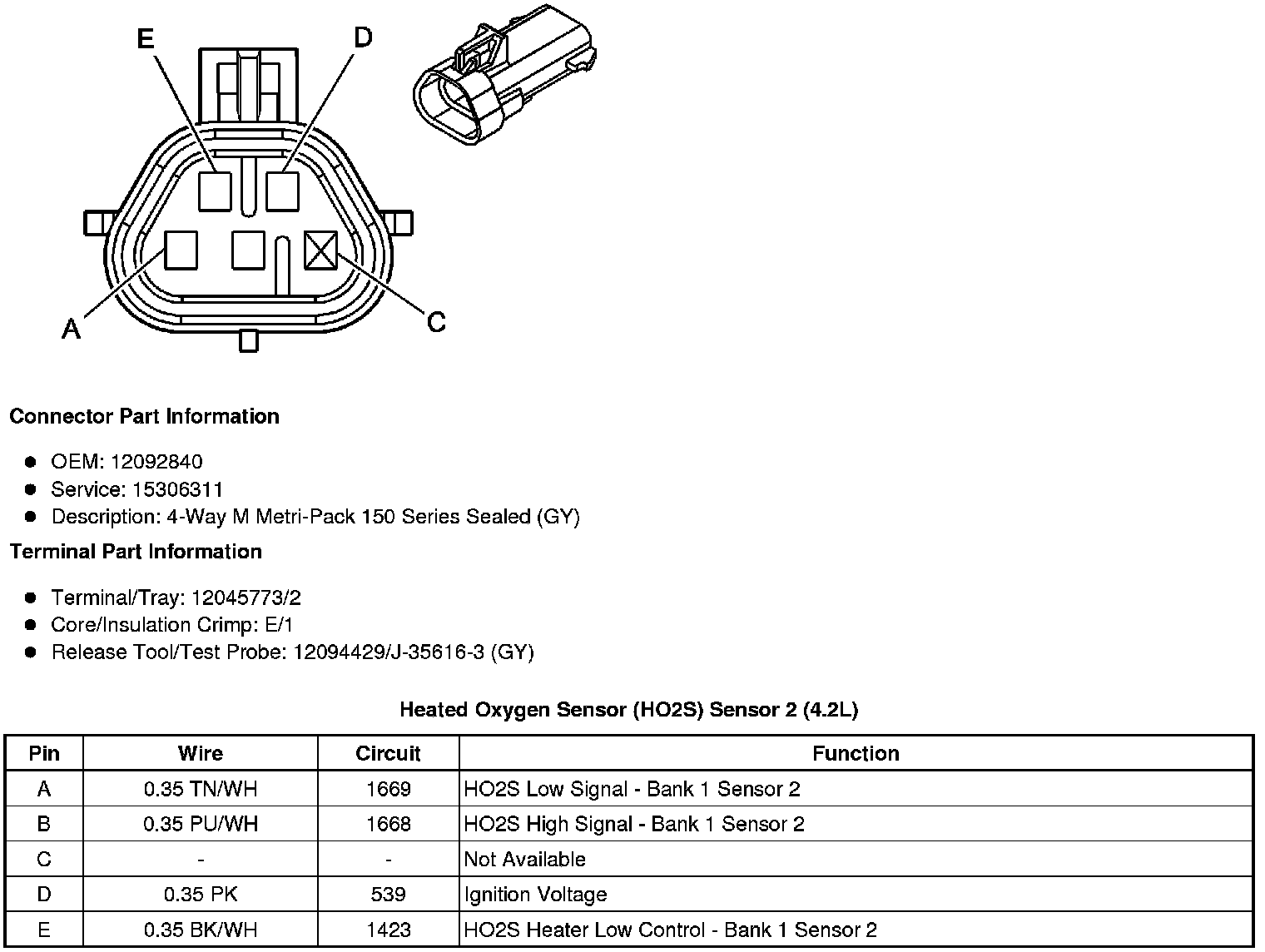

Heated Oxygen Sensor (HO2S) Sensor 2 (4.2L)
