System Diagram



Window Systems Connector End Views

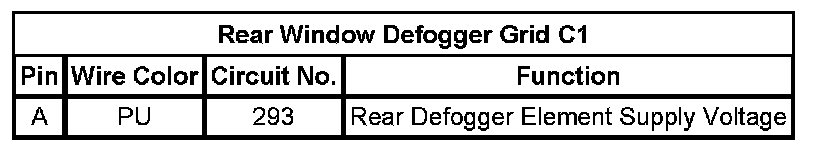

Rear Window Defogger Grid C1

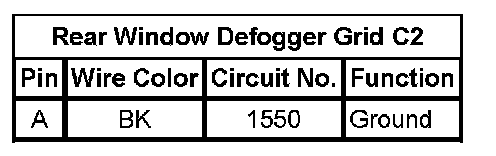

Rear Window Defogger Grid C2

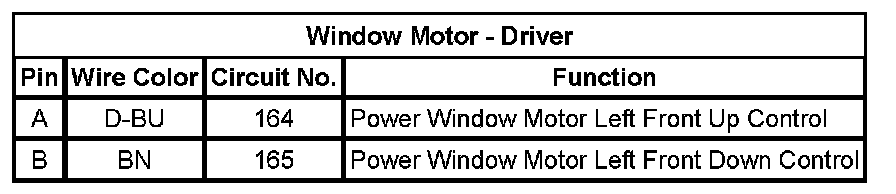

Window Motor - Driver

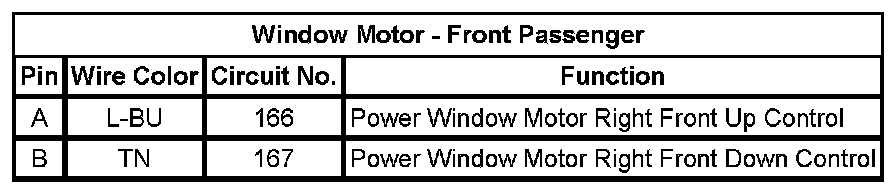

Window Motor - Front Passenger

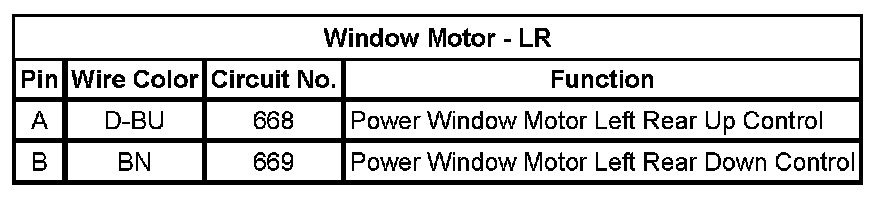

Window Motor - LR

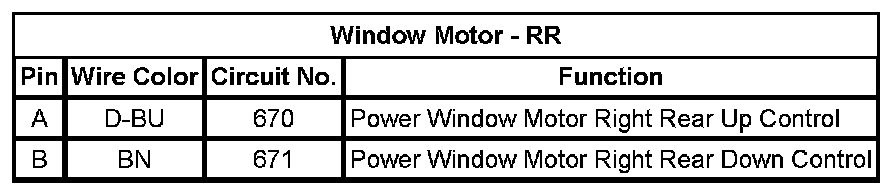

Window Motor - RR

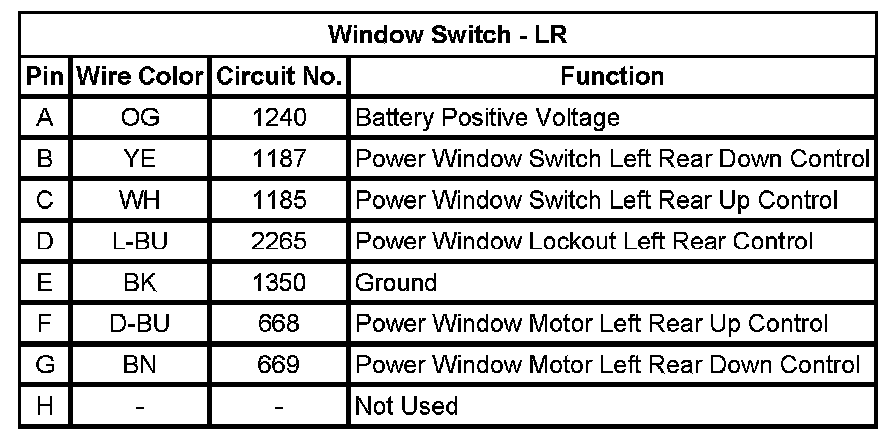

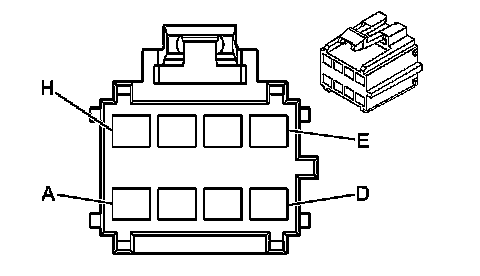

Window Switch - LR

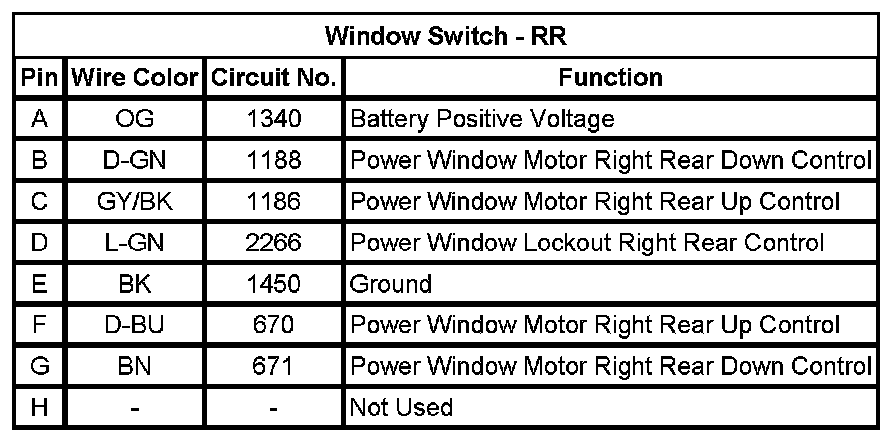

Window Switch - RR
