Front Toe Adjustment

Front Toe Adjustment

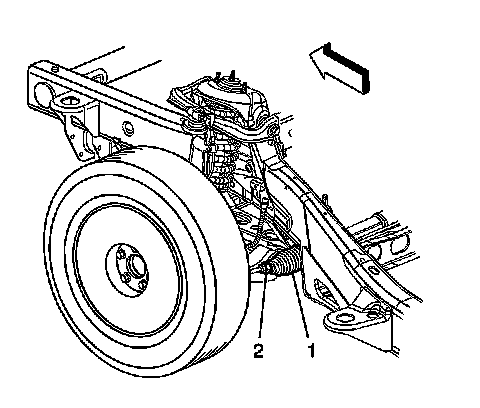

1. Loosen the jam nut on the outer tie rod (2).

Notice: Care must be taken that the boots are not twisted when rotating the inner tie rods, or damage to the boots may result.

2. Rotate the inner tie rod (1) to the required toe specification setting. Refer to Wheel Alignment Specifications (Wheel Alignment Specifications).

Notice: Refer to Fastener Notice.

3. Tighten the jam nut on the outer tie rod.

Tighten the outer tie rod jam nut to 75 Nm (55 ft. lbs.).

4. Check the toe setting after tightening.
5. Re-adjust the toe setting if necessary.
