Air Flow Meter/Sensor: Diagrams



Component Connector End Views

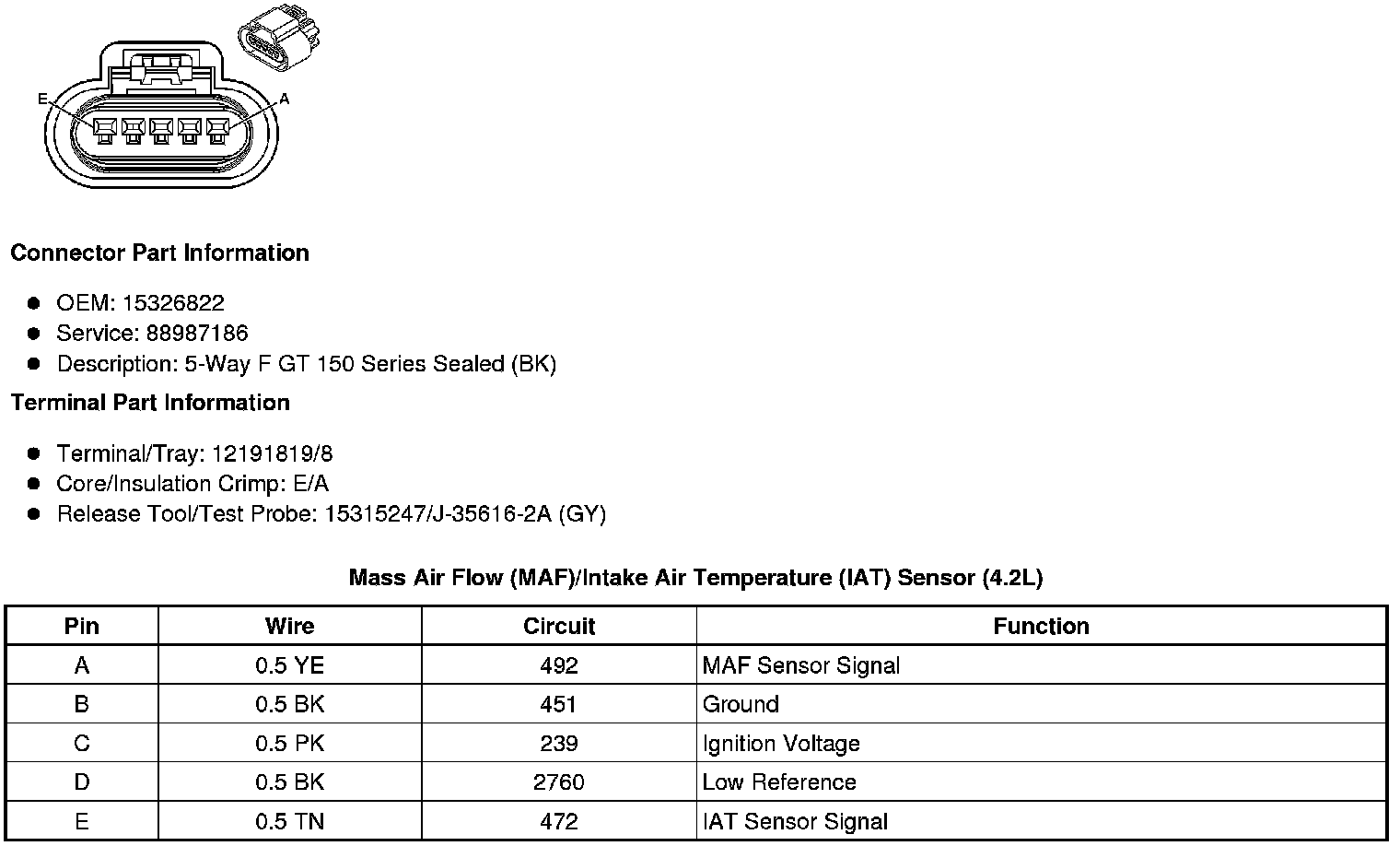

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (4.2L)

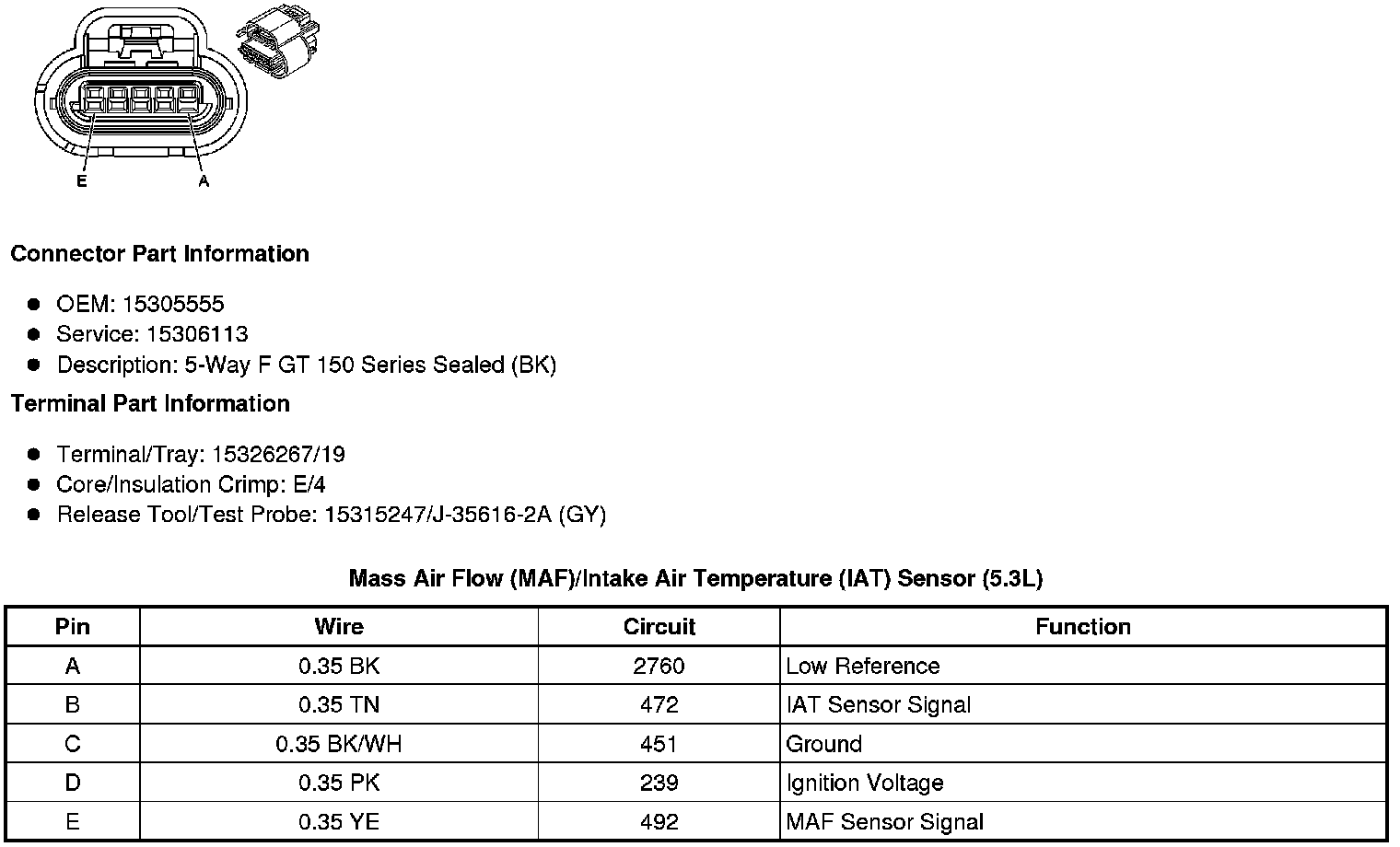

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (5.3L)
