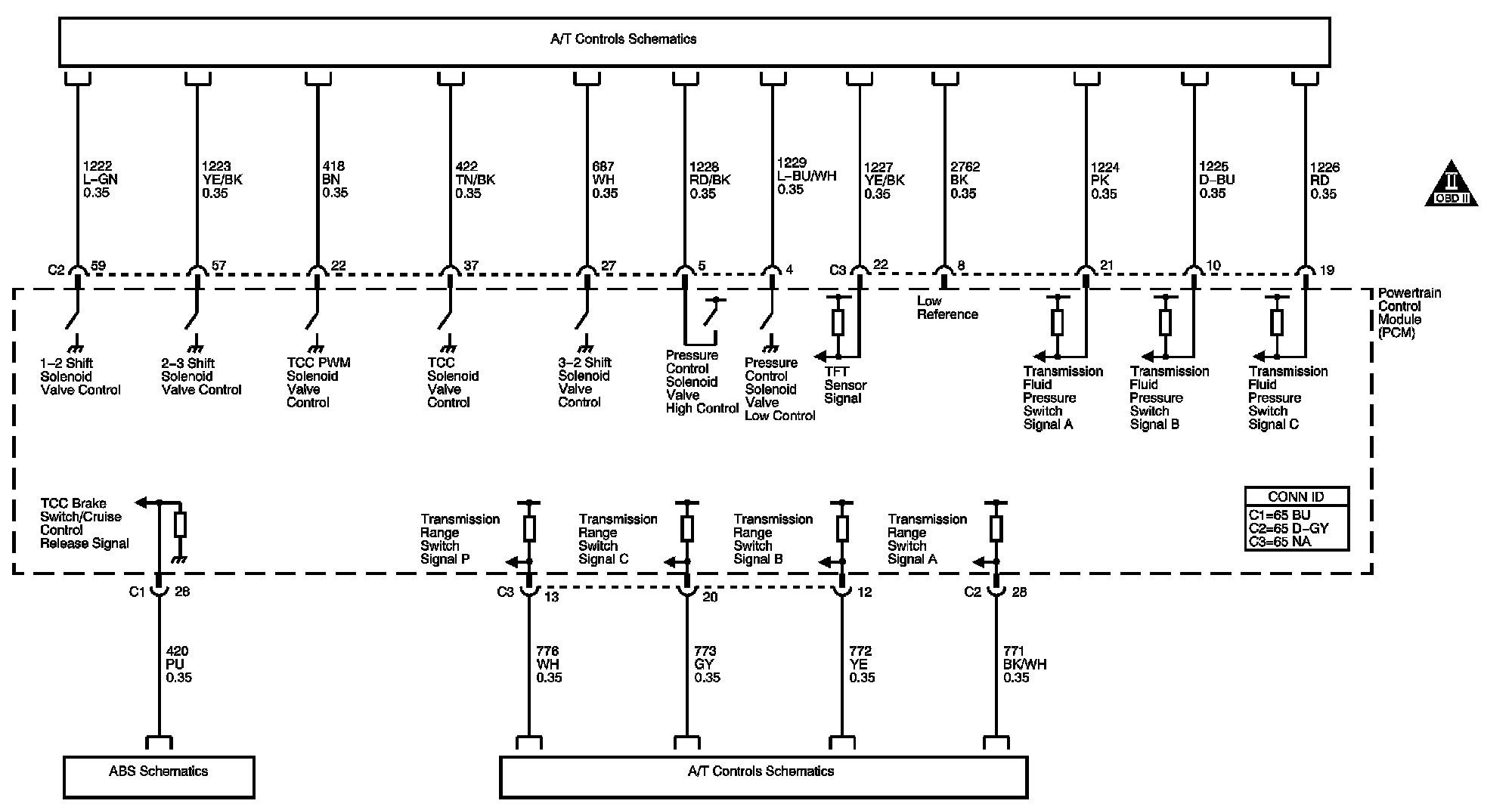

Engine Controls Schematics 13

Transmission Control References - A/T:







Previous Diagram Engine Controls Schematics 12

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
