Installation Procedure

  1. Install the battery tray.

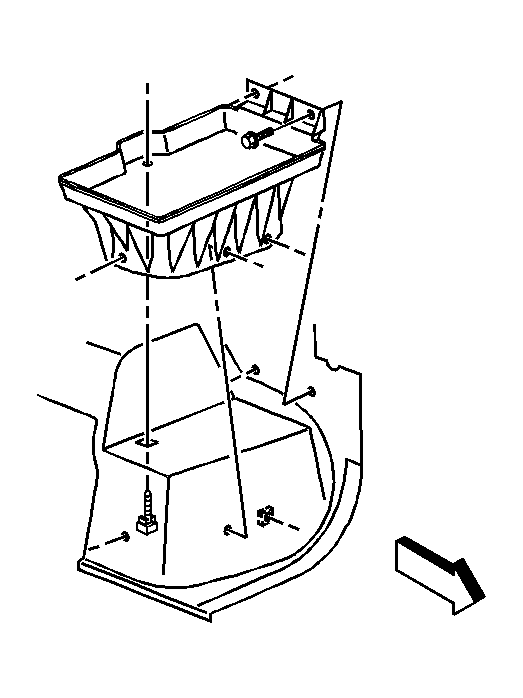

    2. Fig 1: View Of Battery Tray Bolts
    GM755438Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 5 bolts to the battery tray.

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the battery.
