Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Underhood Fuse Block

G00261845

Courtesy of SAAB-SCANIA OF AMERICA, INC.

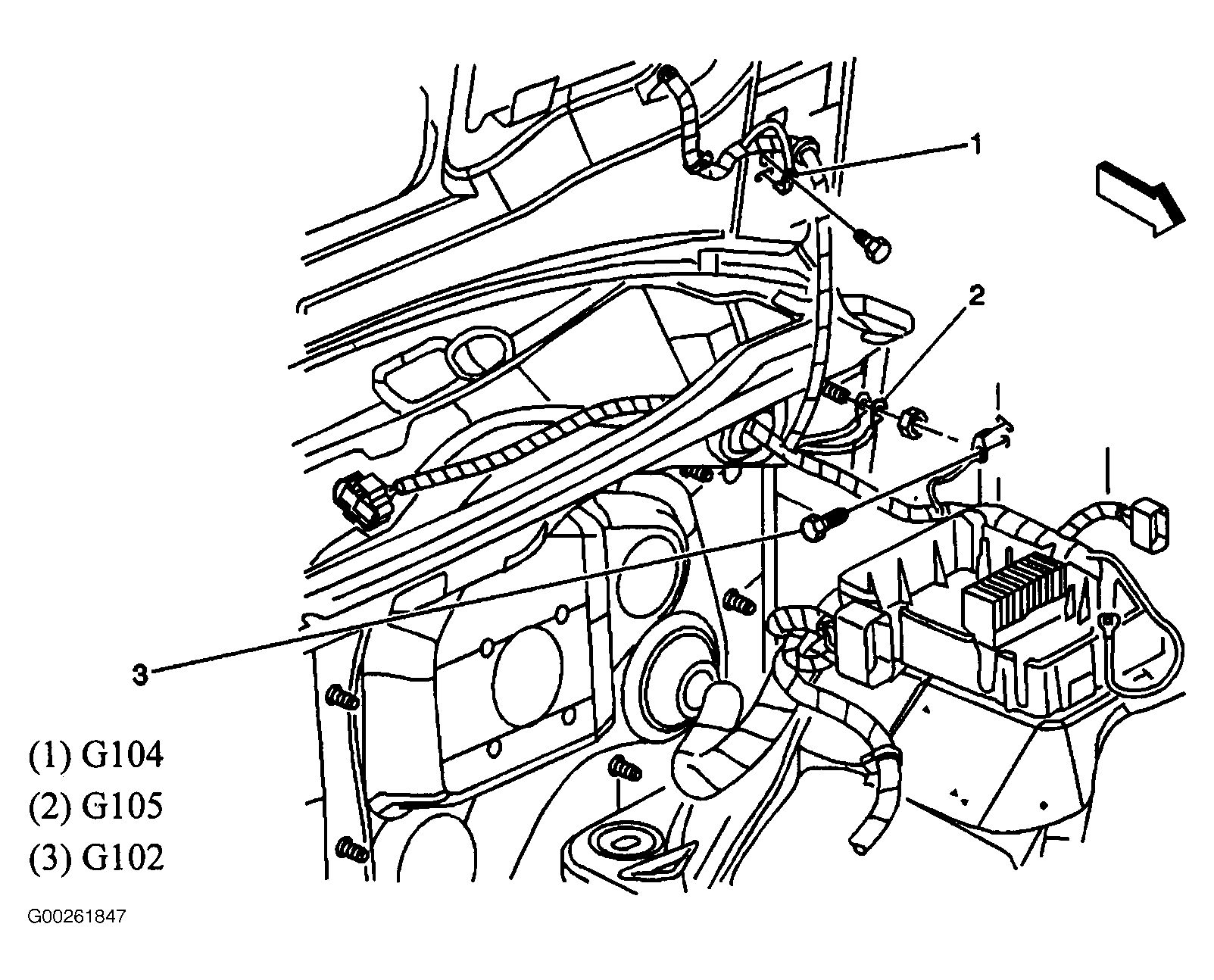

Fig 2: Left Rear Of Engine Compartment

G00261847

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 3: Left Side Of Engine (5.3L)

G00261851

Courtesy of SAAB-SCANIA OF AMERICA, INC.

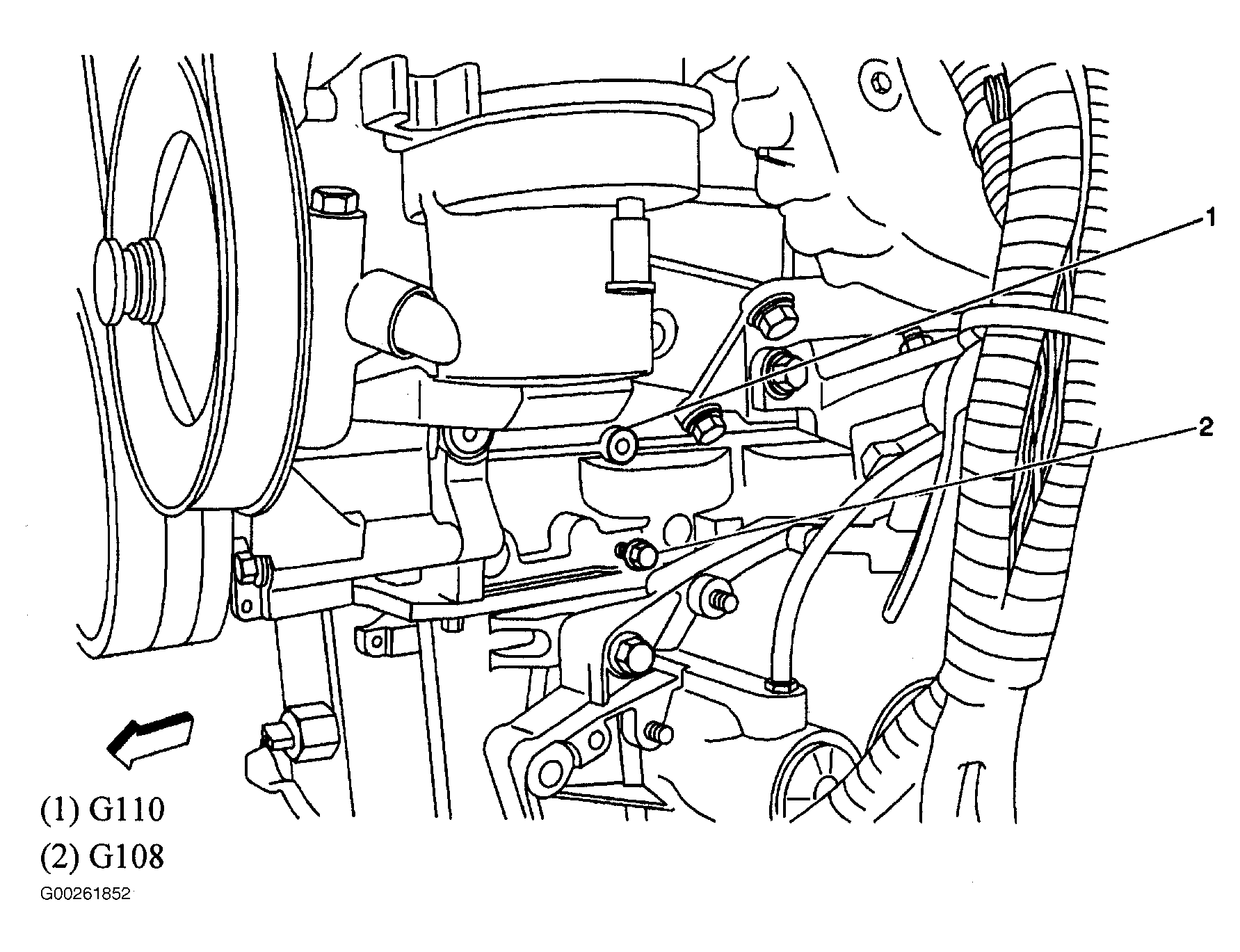

Fig 4: Left Front Of Engine (5.3L)

G00261852

Courtesy of SAAB-SCANIA OF AMERICA, INC.

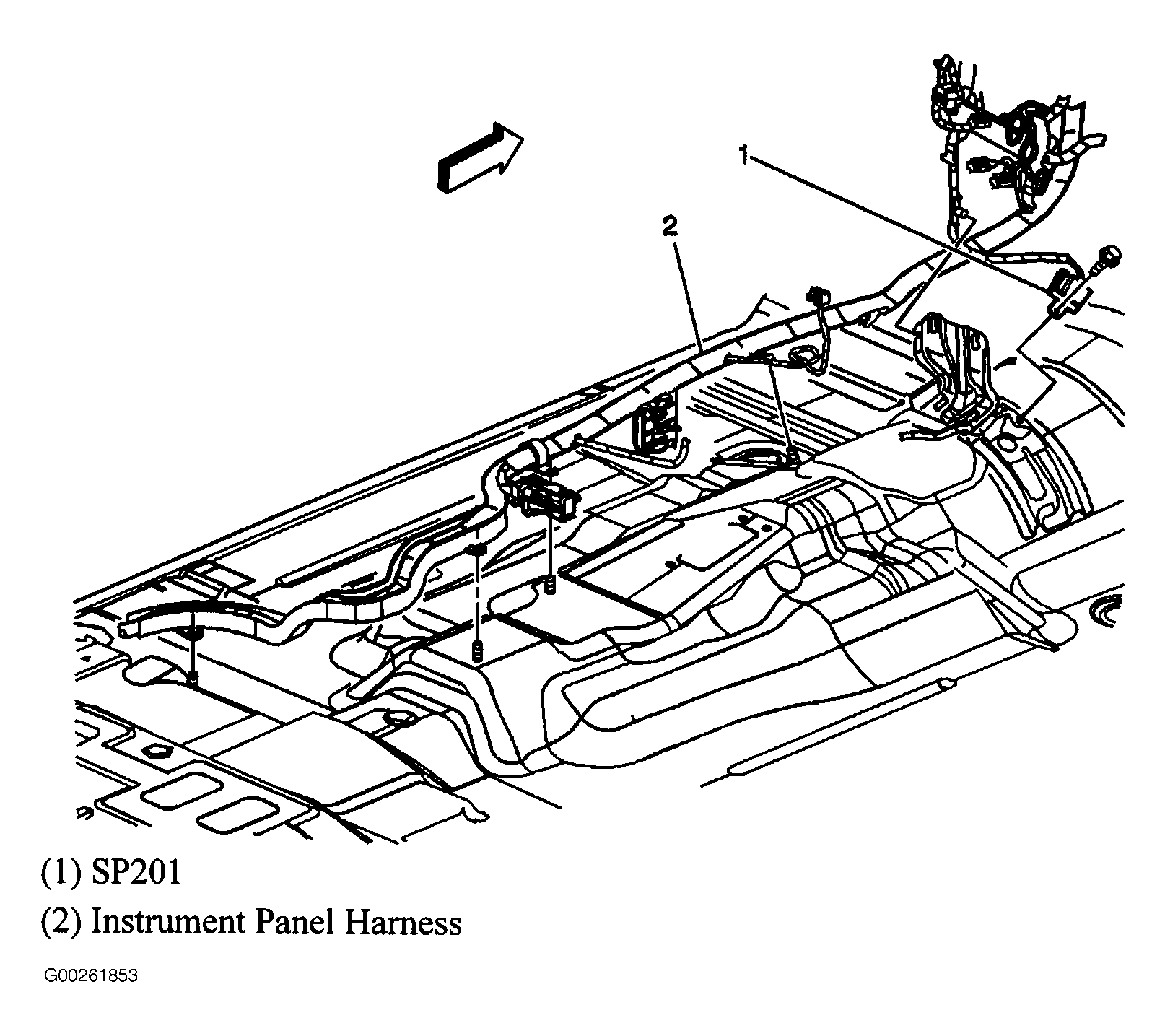

Fig 5: Vehicle Floor Pan

G00261853

Courtesy of SAAB-SCANIA OF AMERICA, INC.

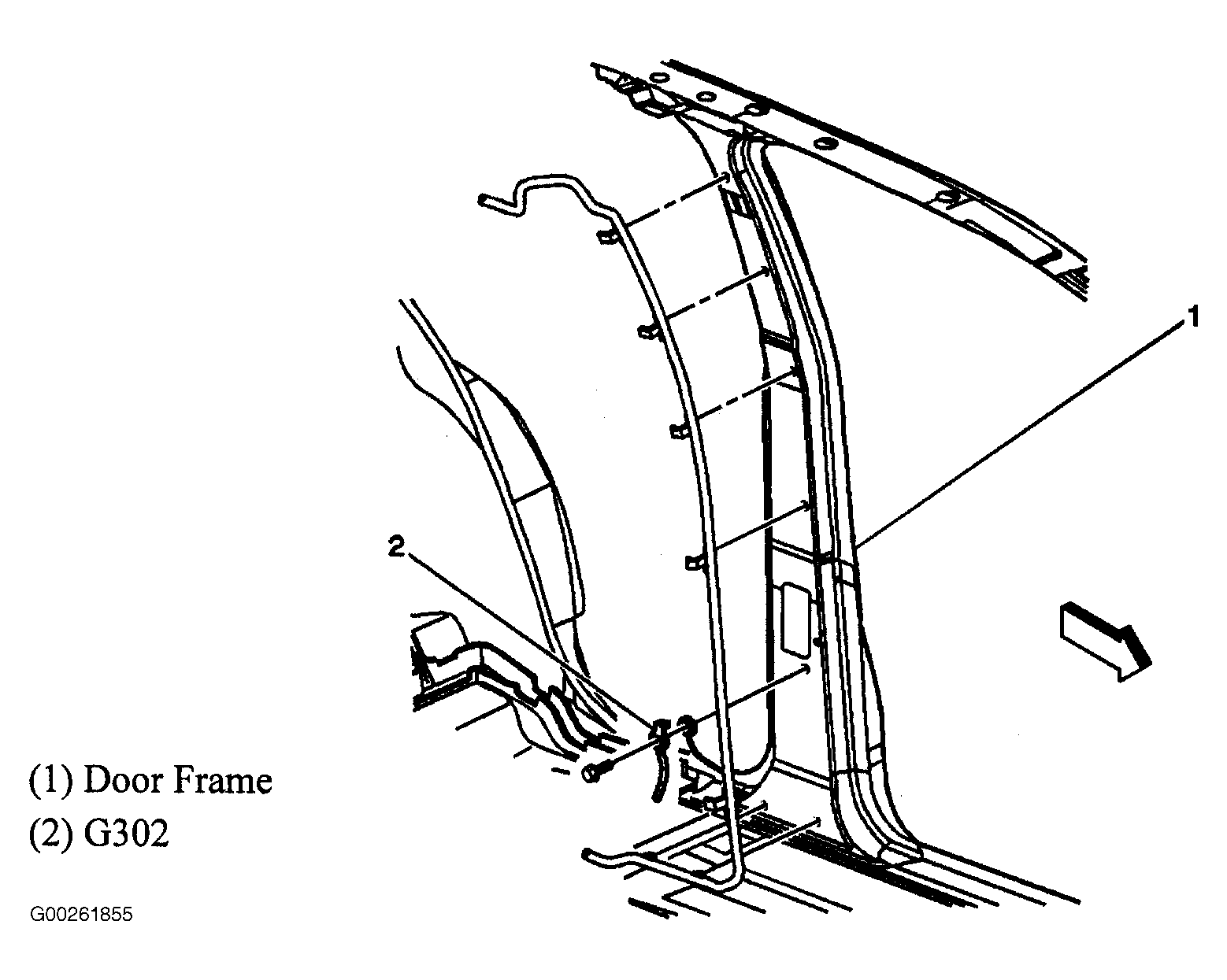

Fig 6: Left "B" Pillar

G00261855

Courtesy of SAAB-SCANIA OF AMERICA, INC.

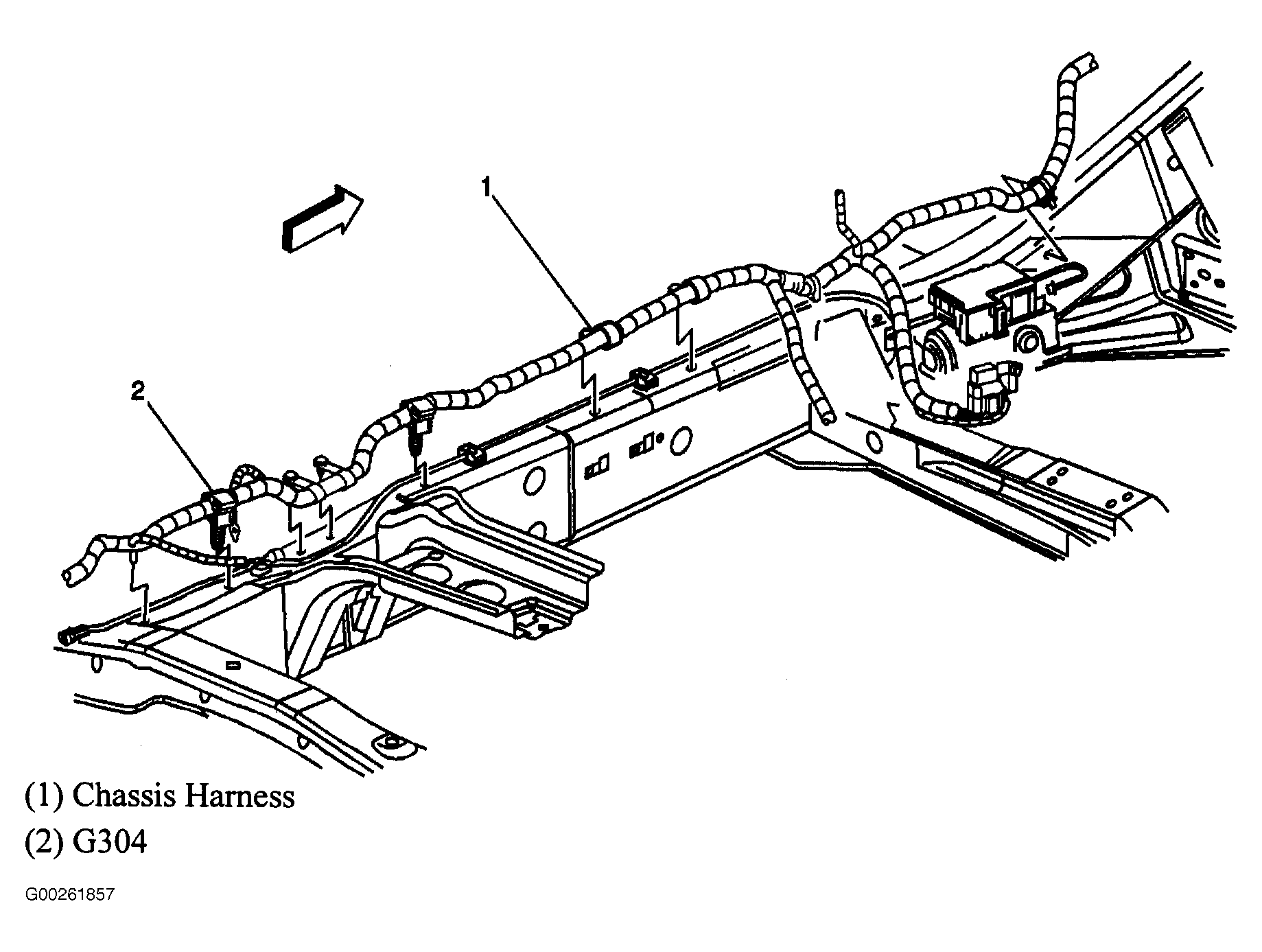

Fig 7: Left Frame Rail

G00261857

Courtesy of SAAB-SCANIA OF AMERICA, INC.

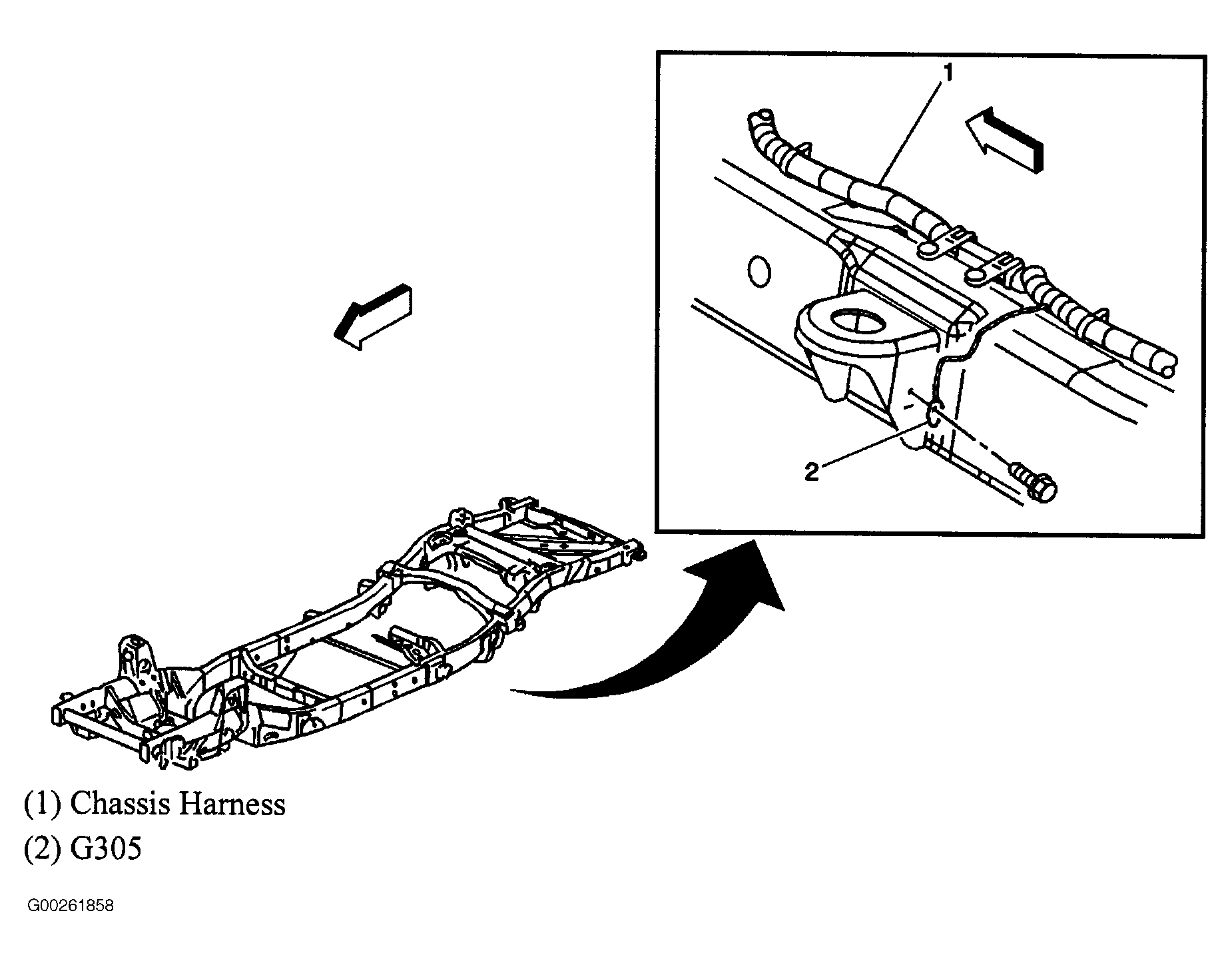

Fig 8: Vehicle Frame

G00261858

Courtesy of SAAB-SCANIA OF AMERICA, INC.

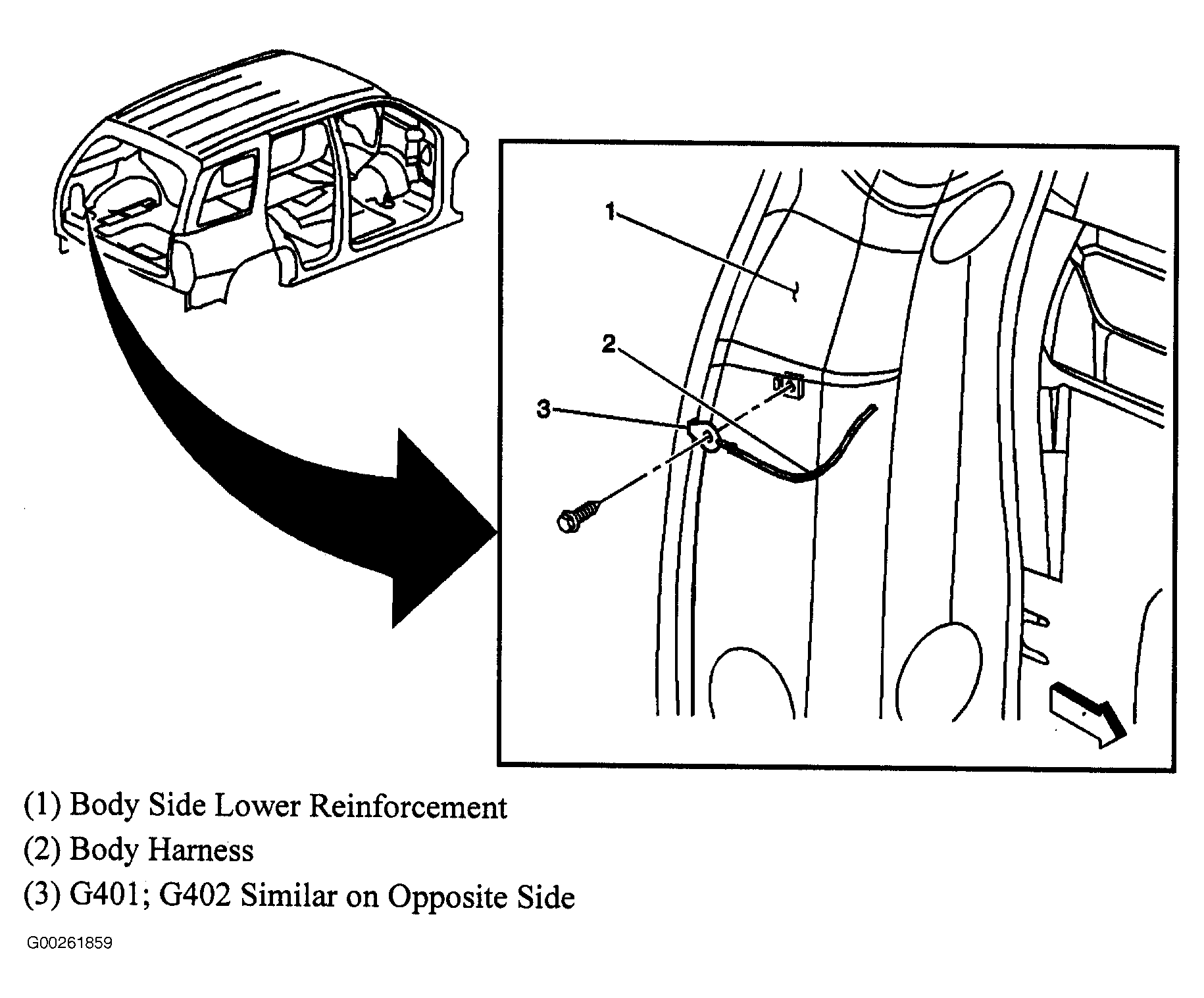

Fig 9: Left Rear Of Luggage Compartment

G00261859

Courtesy of SAAB-SCANIA OF AMERICA, INC.

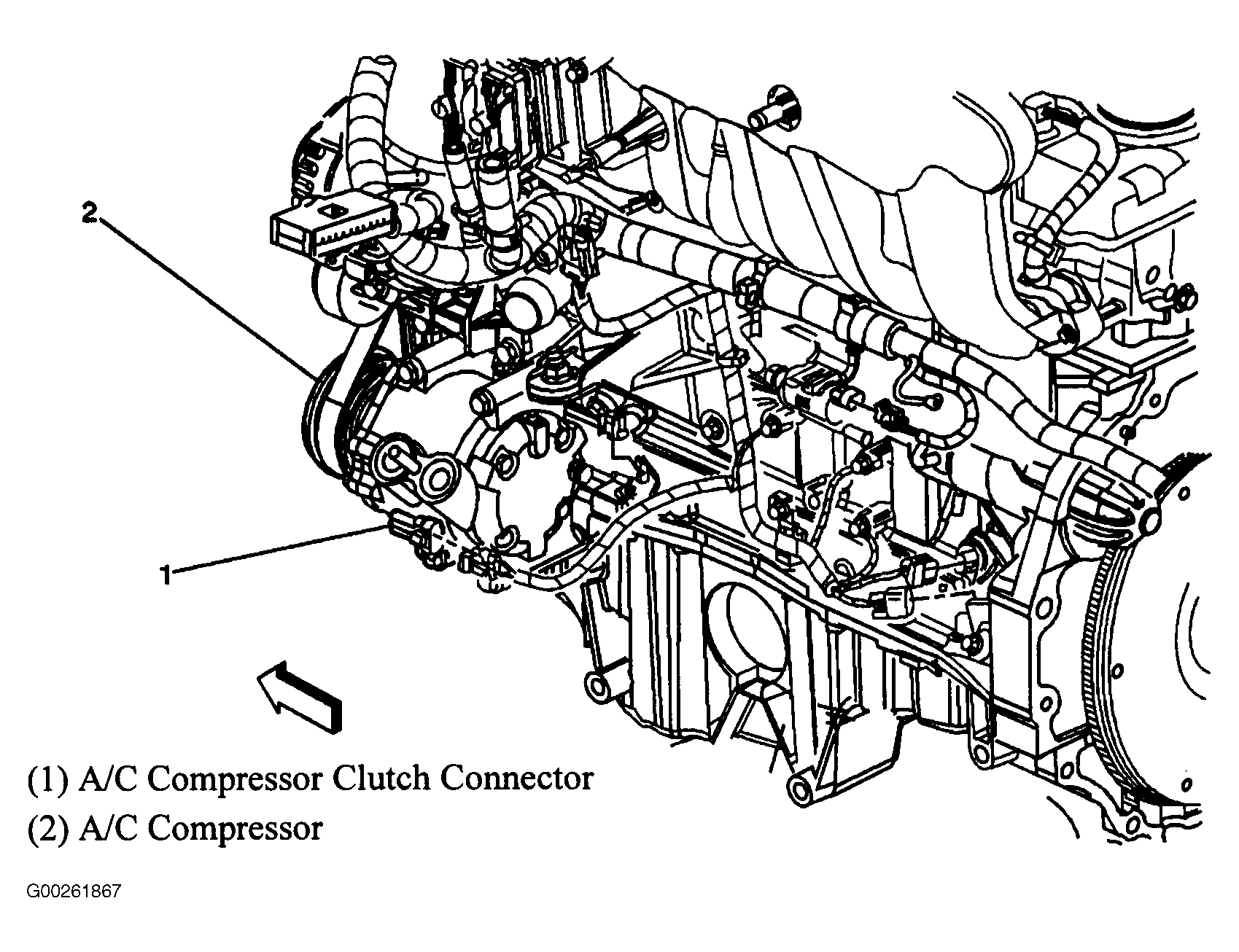

Fig 10: Left Side Of Engine (4.2L)

G00261867

Courtesy of SAAB-SCANIA OF AMERICA, INC.

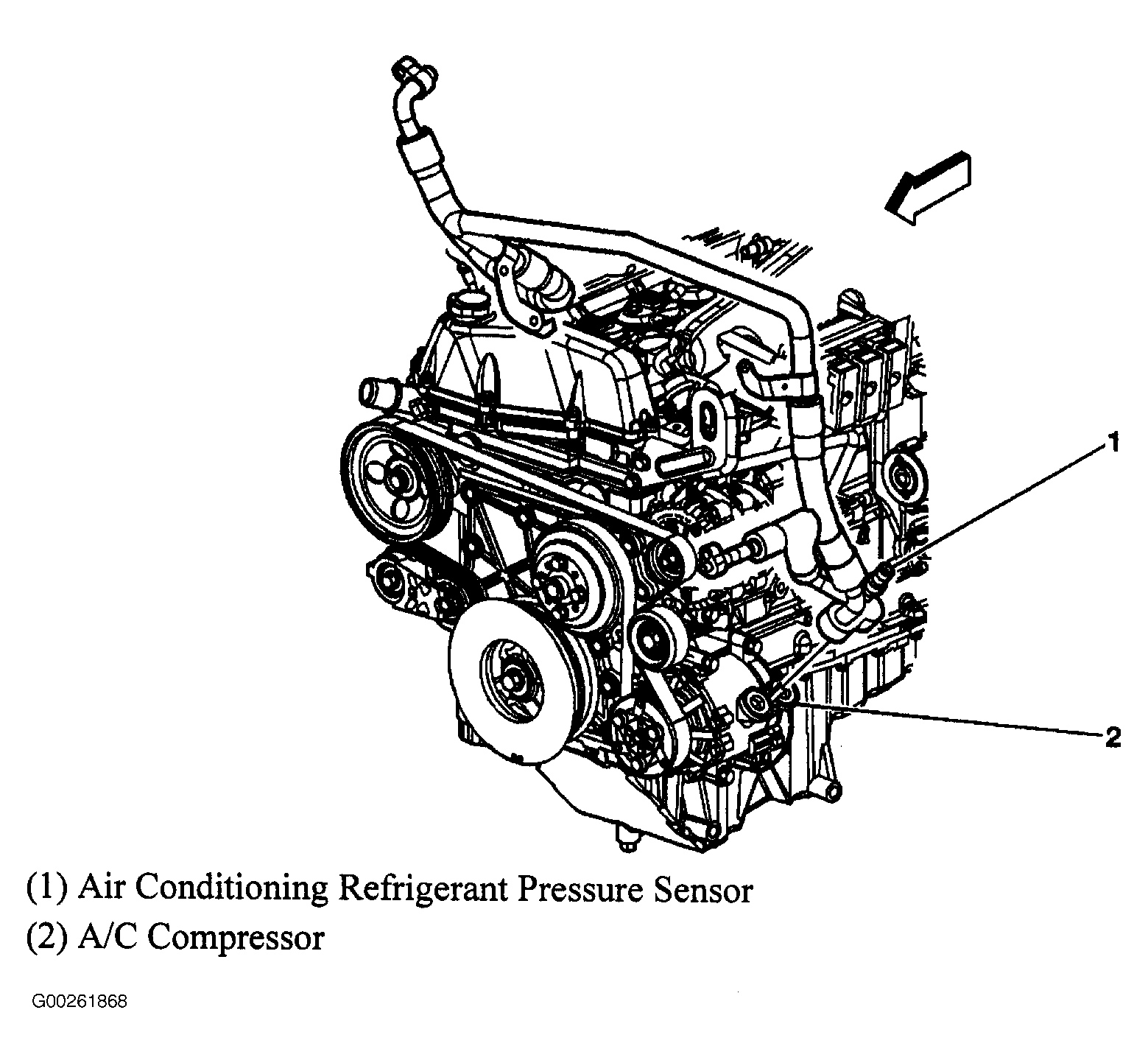

Fig 11: Front Of Engine (4.2L)

G00261868

Courtesy of SAAB-SCANIA OF AMERICA, INC.

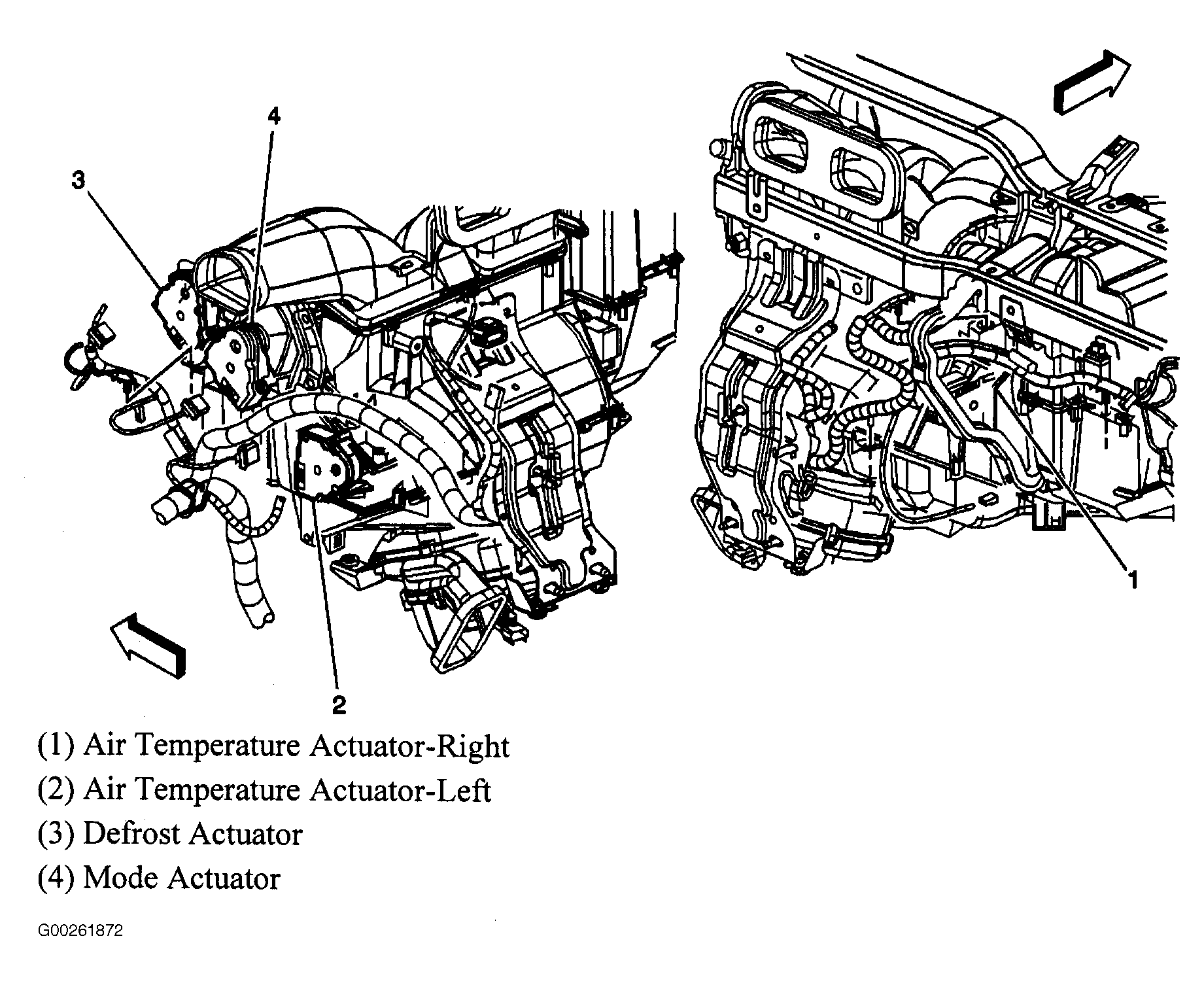

Fig 12: Left & Right Instrument Panel Carrier

G00261872

Courtesy of SAAB-SCANIA OF AMERICA, INC.

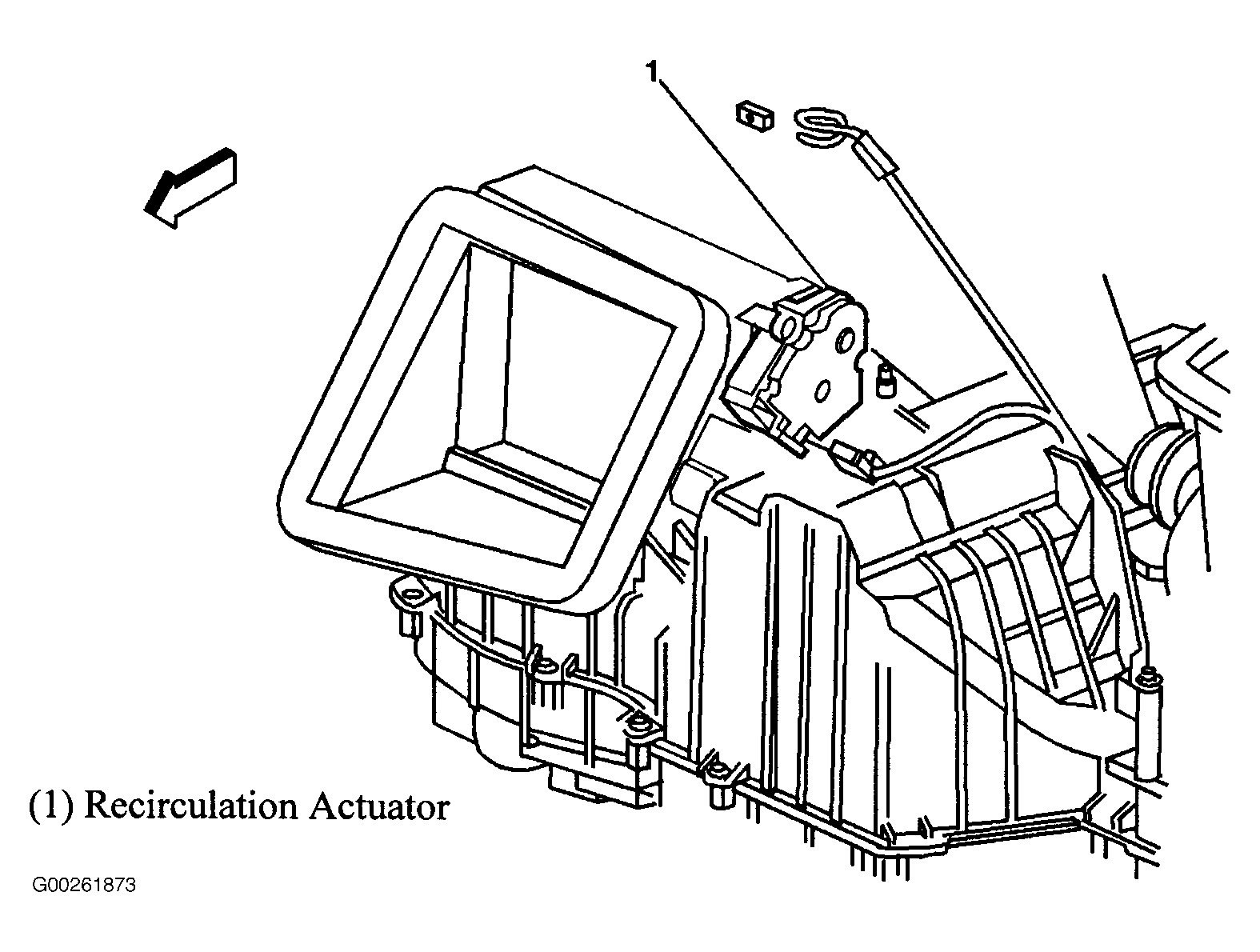

Fig 13: Dash Panel Carrier

G00261873

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 14: Lower Console

G00363675

Courtesy of SAAB-SCANIA OF AMERICA, INC.

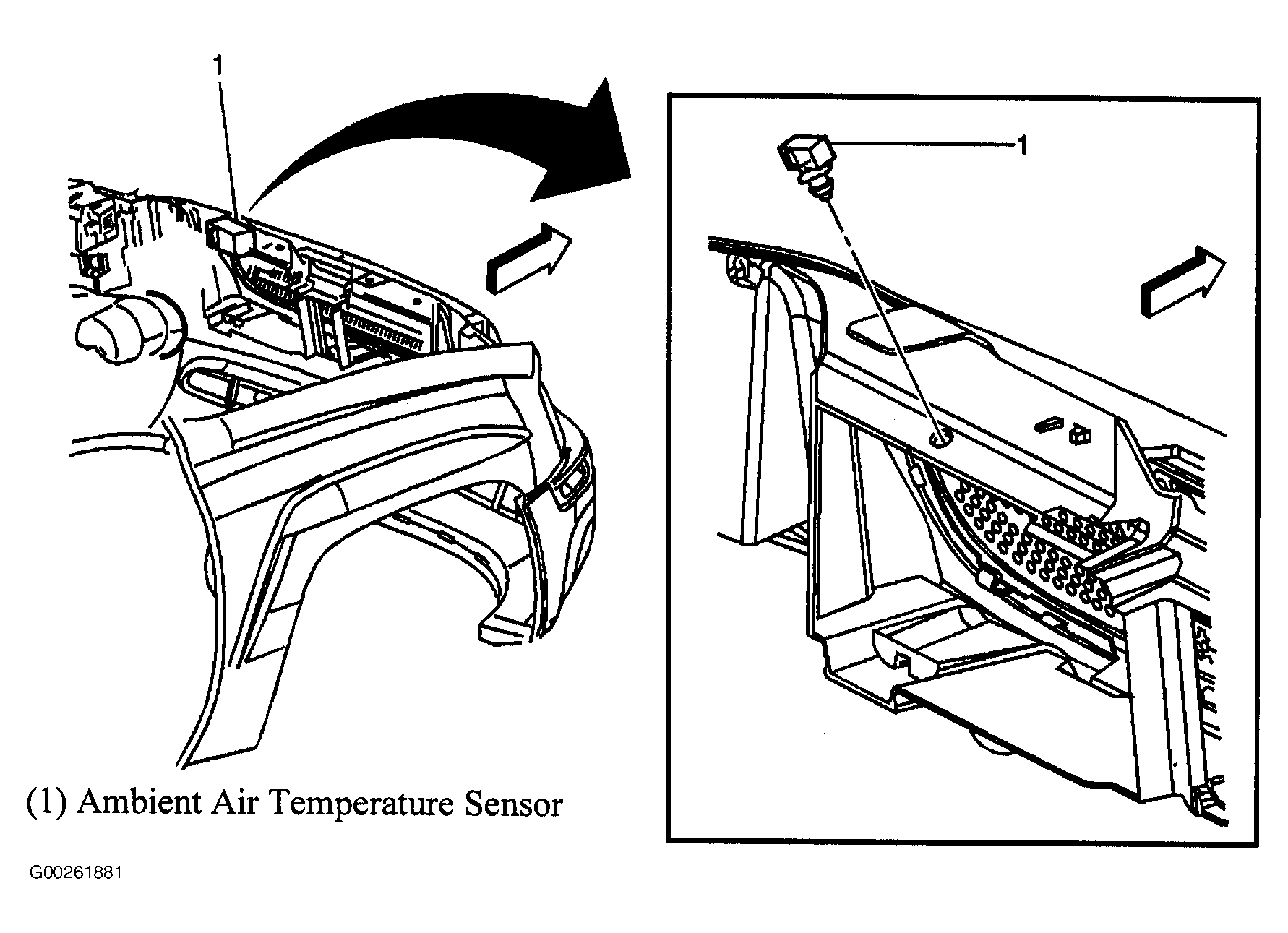

Fig 15: Right Front Of Vehicle

G00261881

Courtesy of SAAB-SCANIA OF AMERICA, INC.

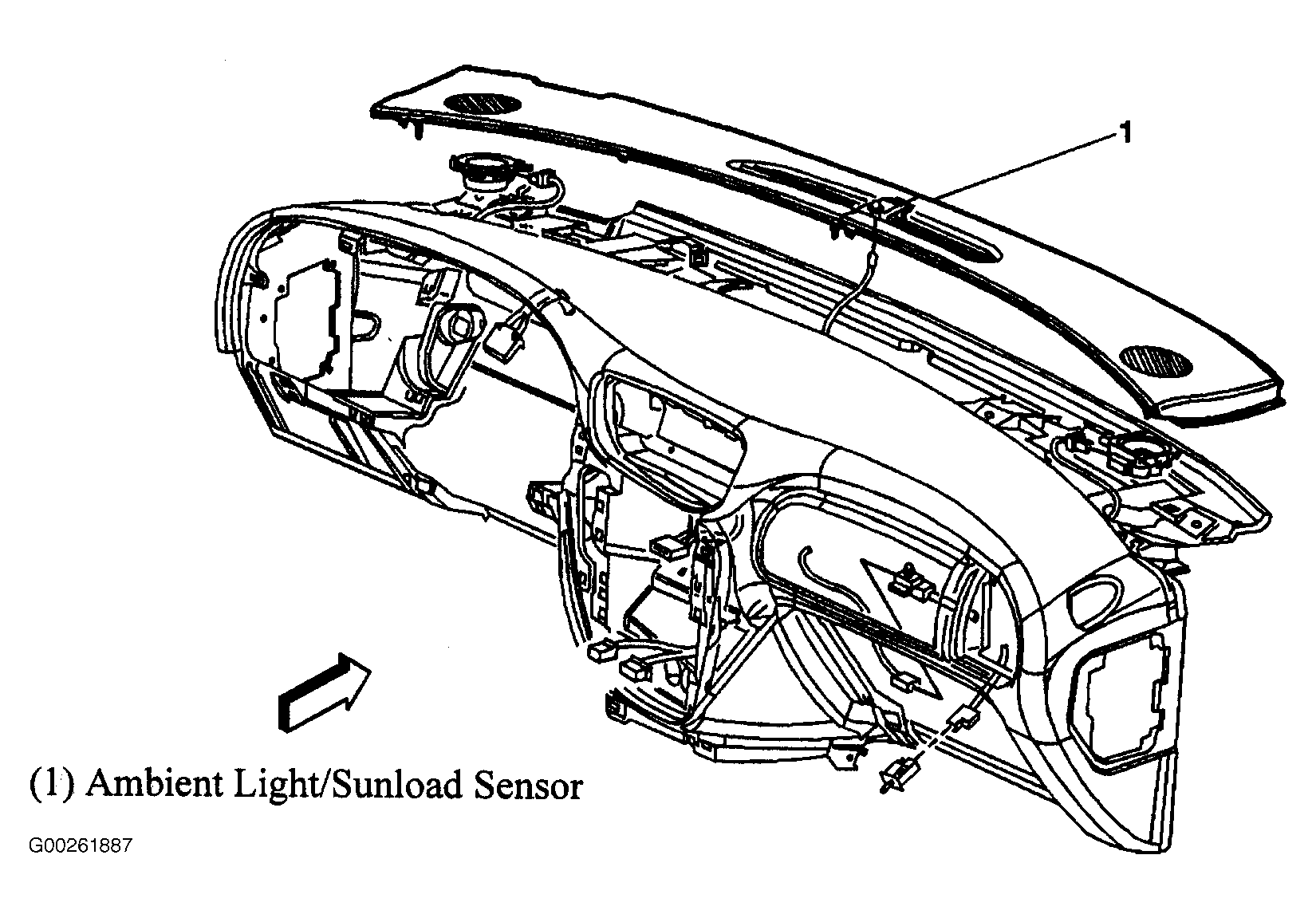

Fig 16: Dash

G00261887

Courtesy of SAAB-SCANIA OF AMERICA, INC.

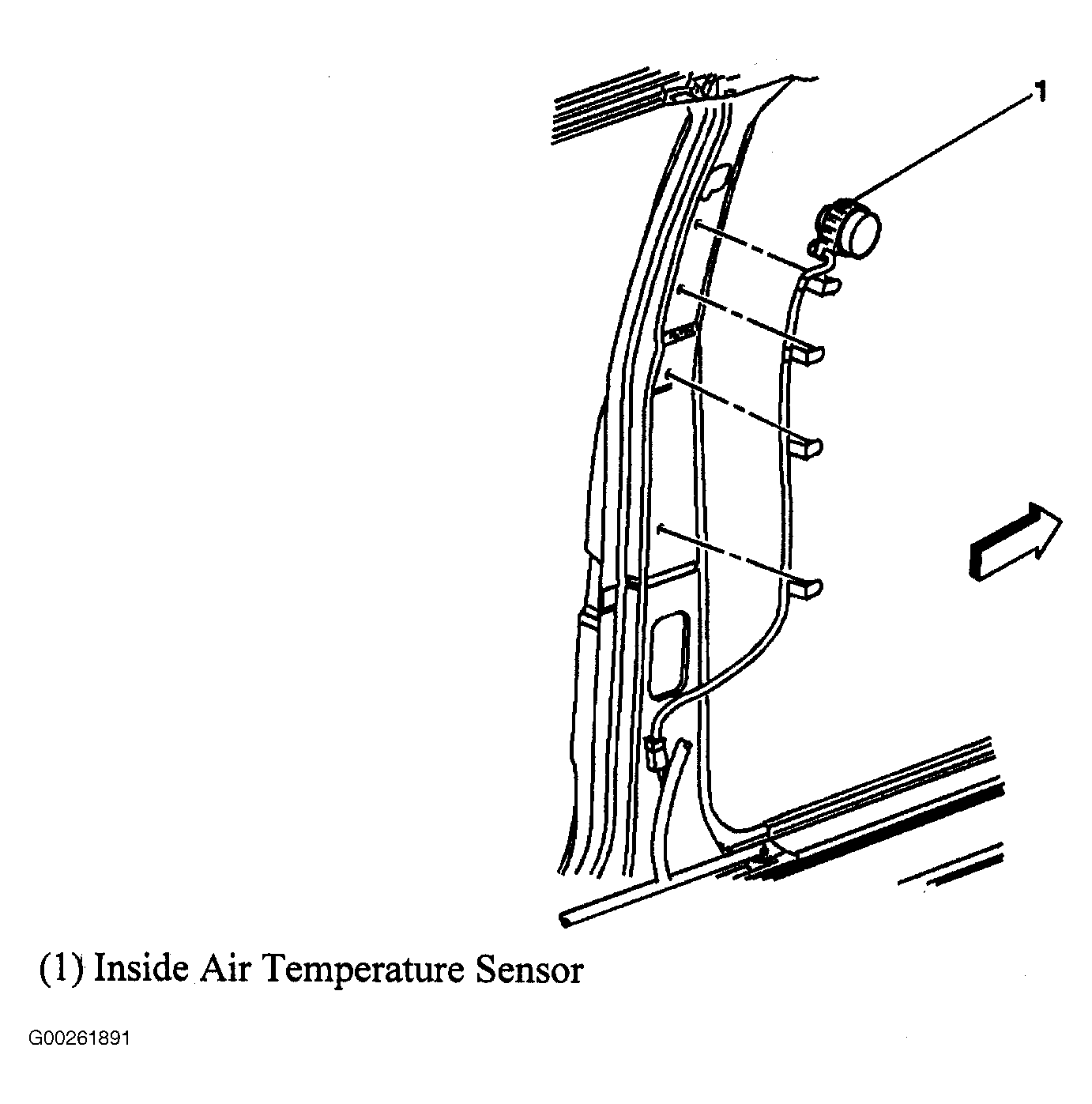

Fig 17: Left "B" Pillar

G00261891

Courtesy of SAAB-SCANIA OF AMERICA, INC.

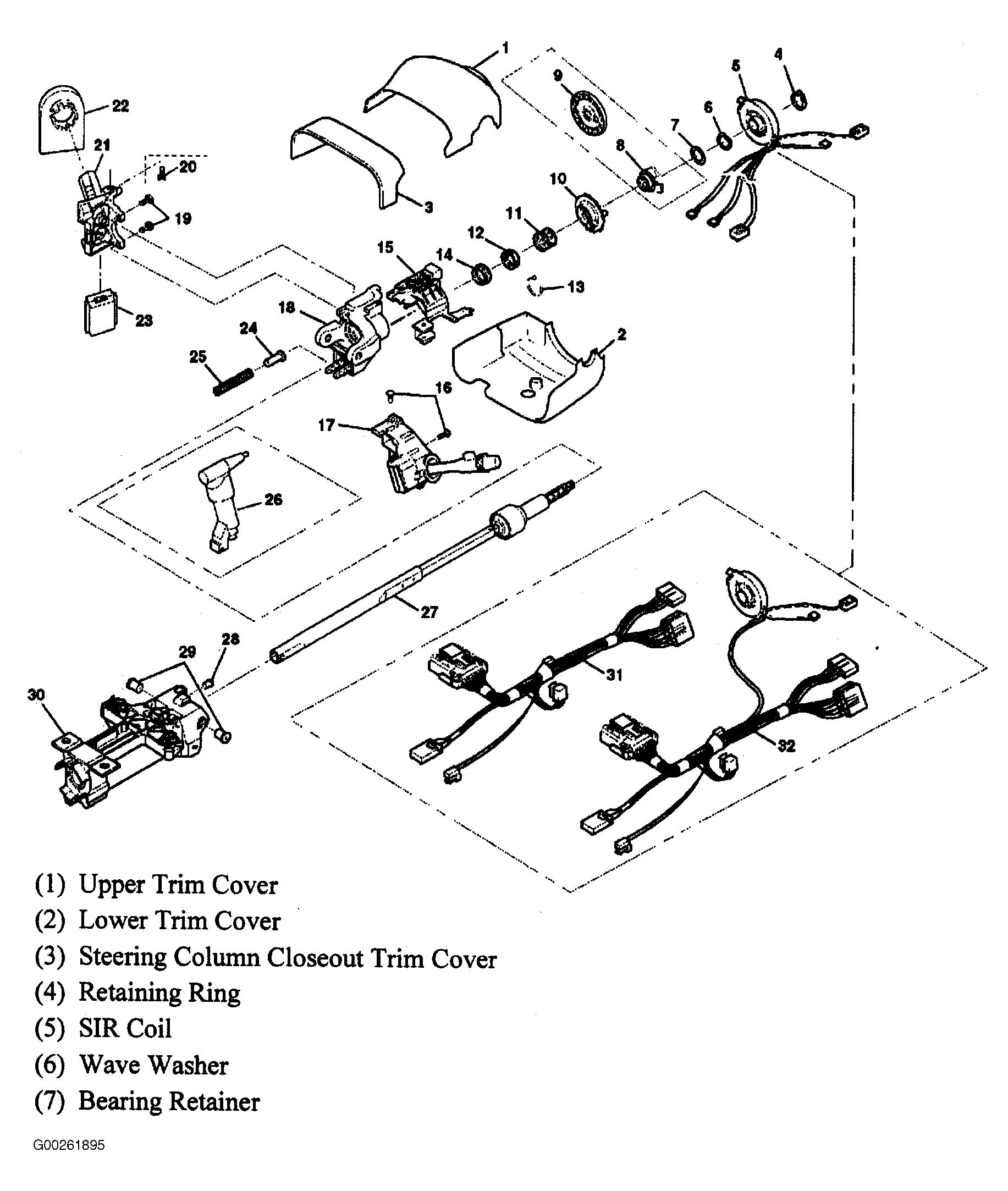

Fig 18: Steering Column Components

G00261895

Courtesy of SAAB-SCANIA OF AMERICA, INC.

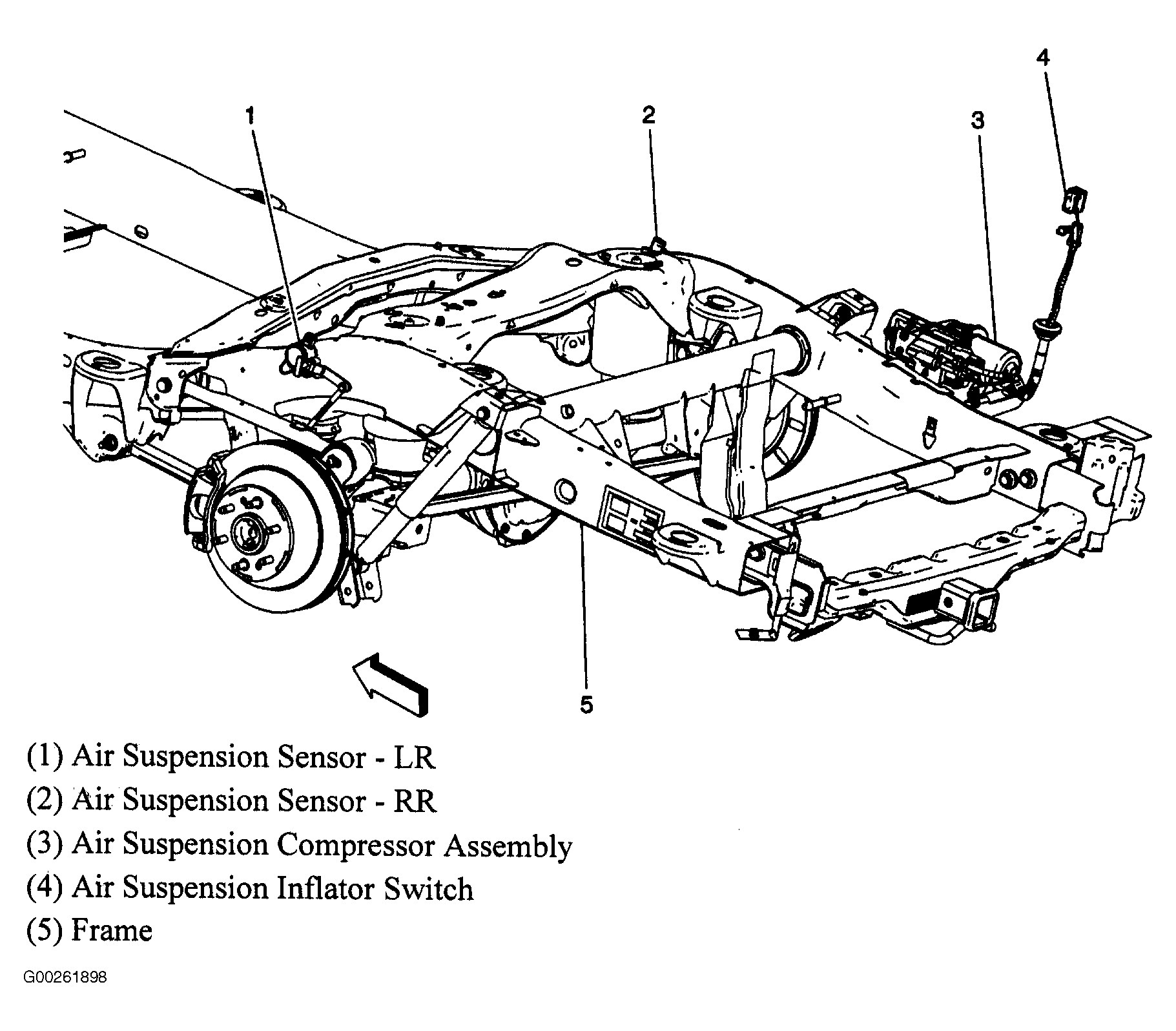

Fig 19: Rear Frame & Underbody

G00261898

Courtesy of SAAB-SCANIA OF AMERICA, INC.

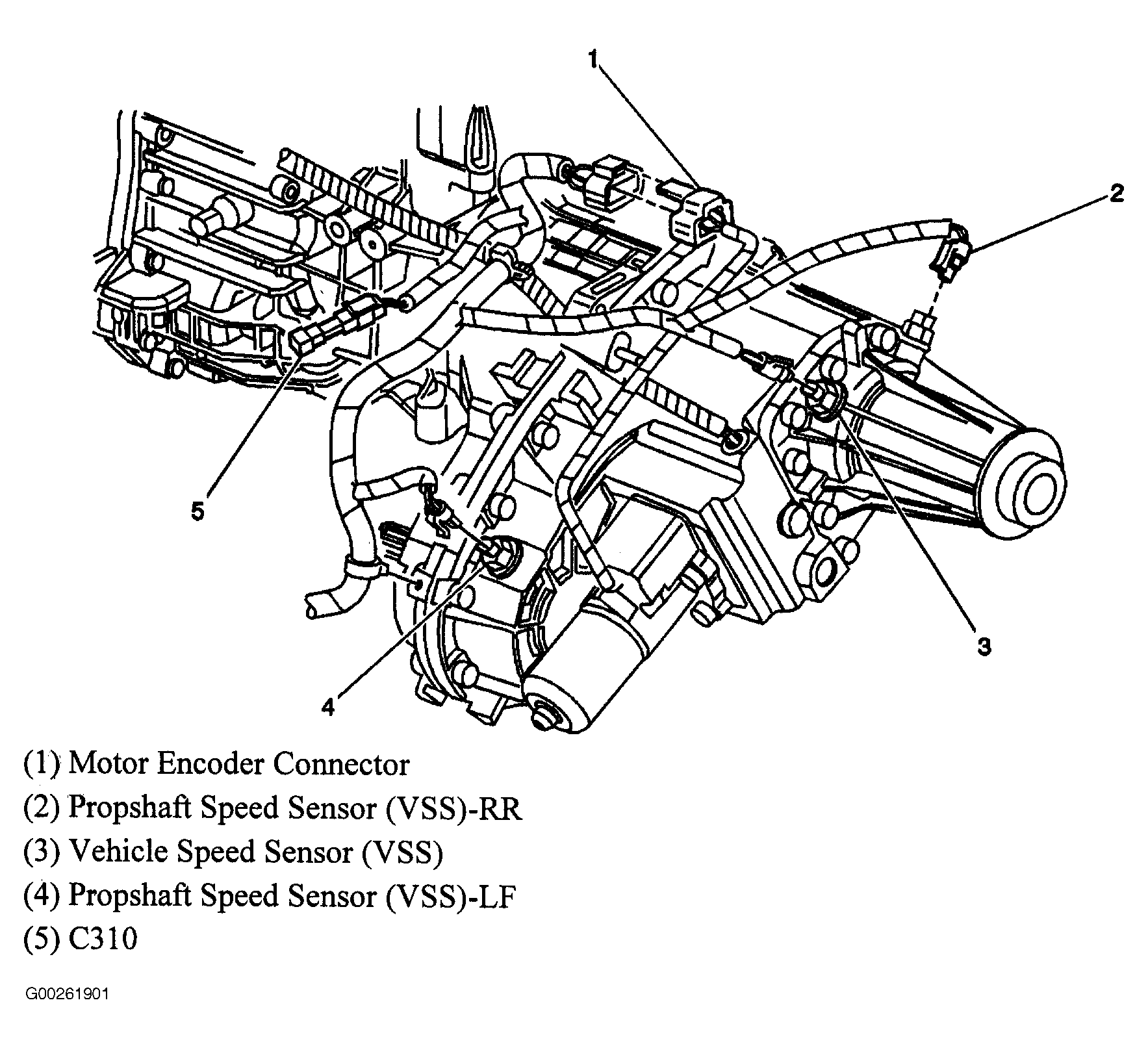

Fig 20: Transfer Case

G00261901

Courtesy of SAAB-SCANIA OF AMERICA, INC.

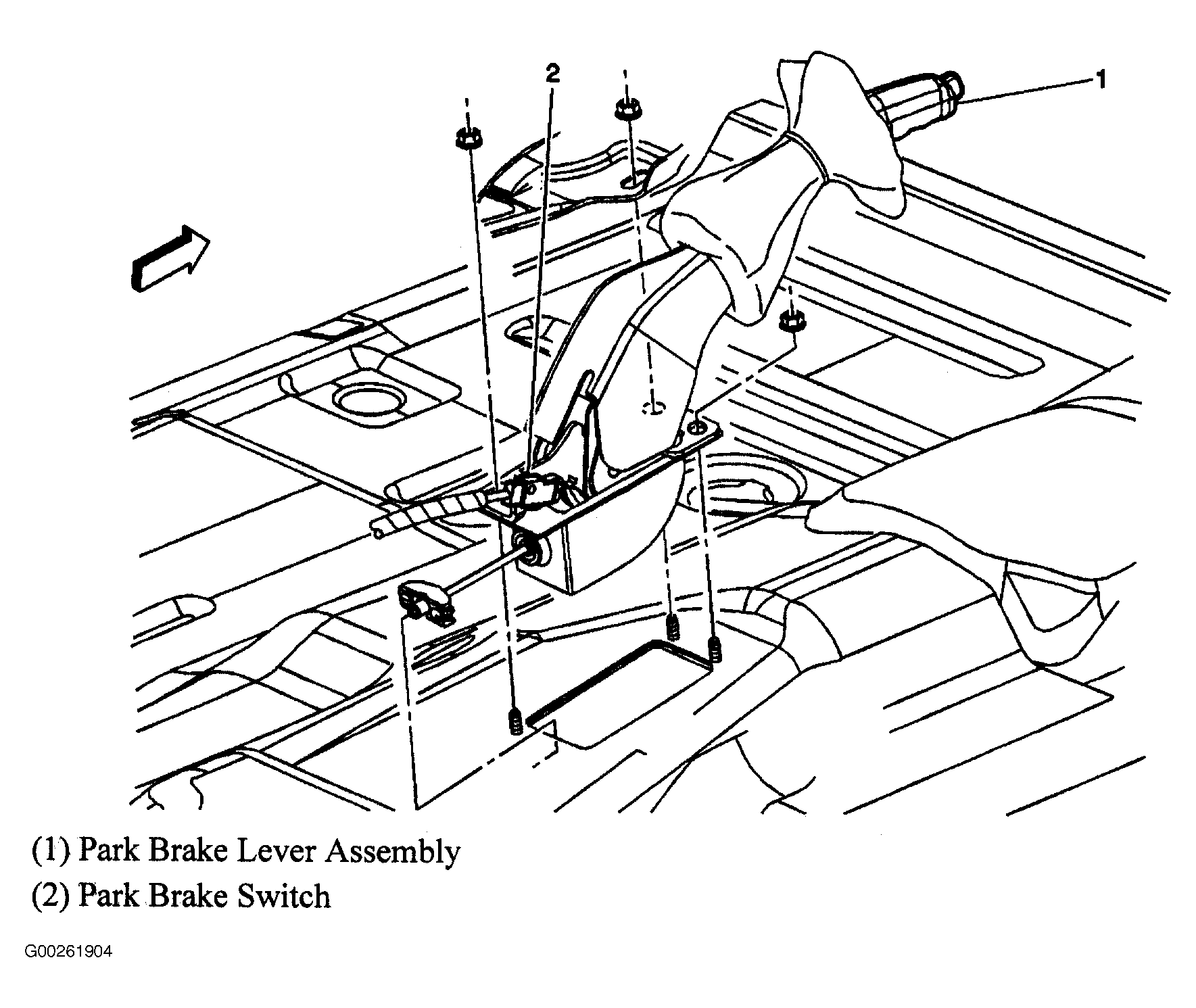

Fig 21: Center Floor Pan

G00261904

Courtesy of SAAB-SCANIA OF AMERICA, INC.

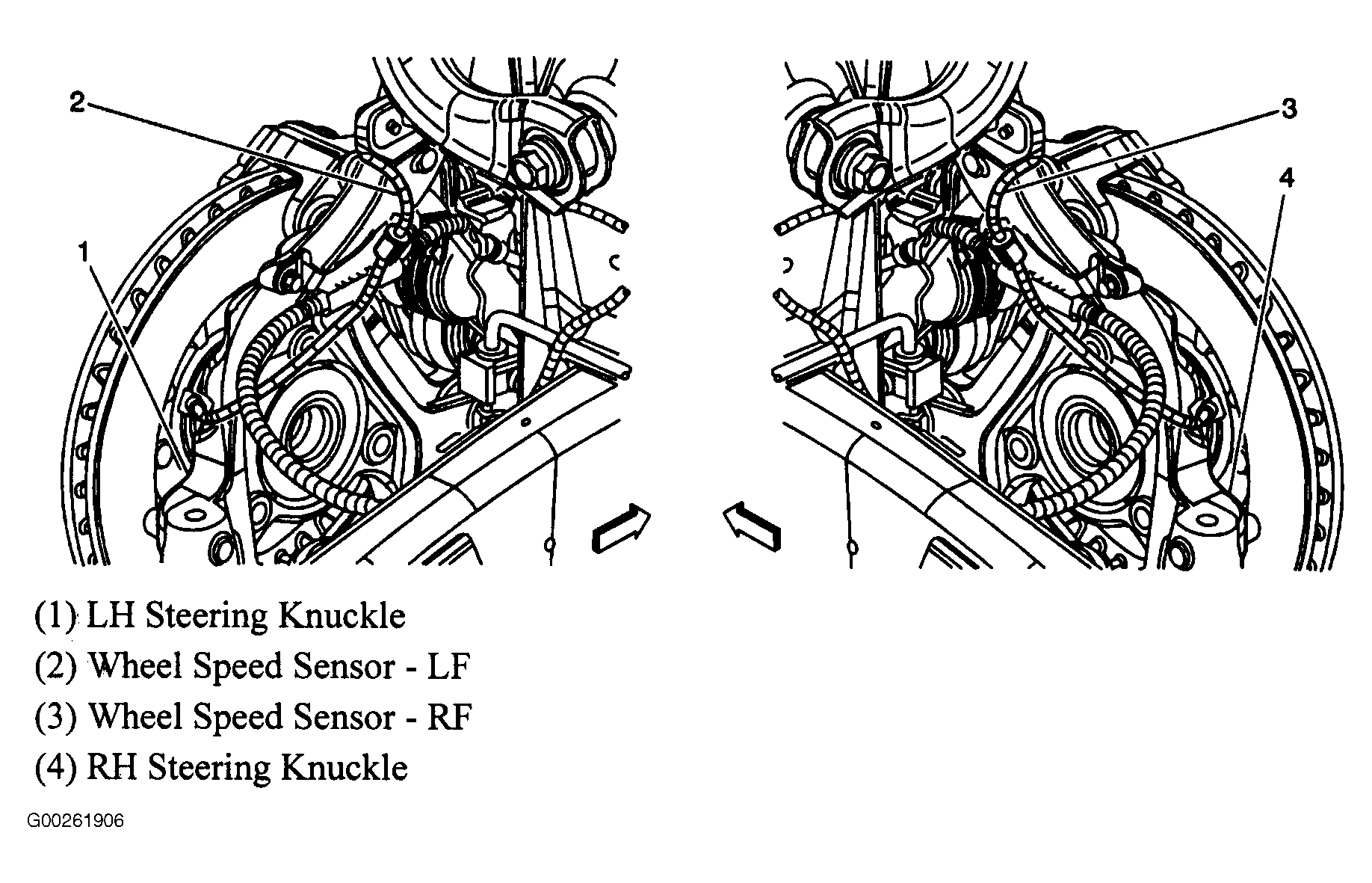

Fig 22: Front Hubs & Rotors

G00261906

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 23: Inner Left Frame Rail

G00261907

Courtesy of SAAB-SCANIA OF AMERICA, INC.

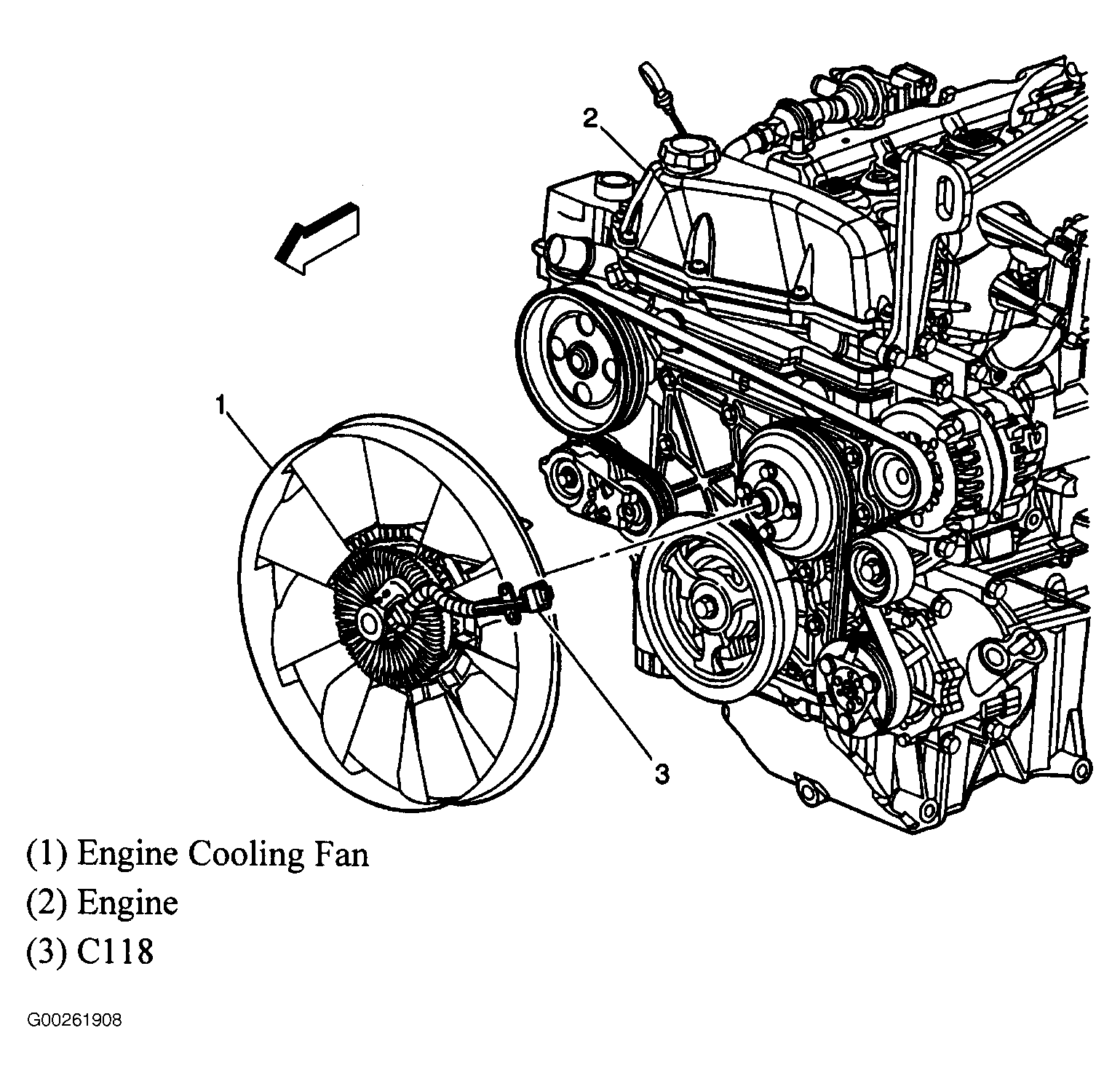

Fig 24: Front Of Engine (4.2L)

G00261908

Courtesy of SAAB-SCANIA OF AMERICA, INC.

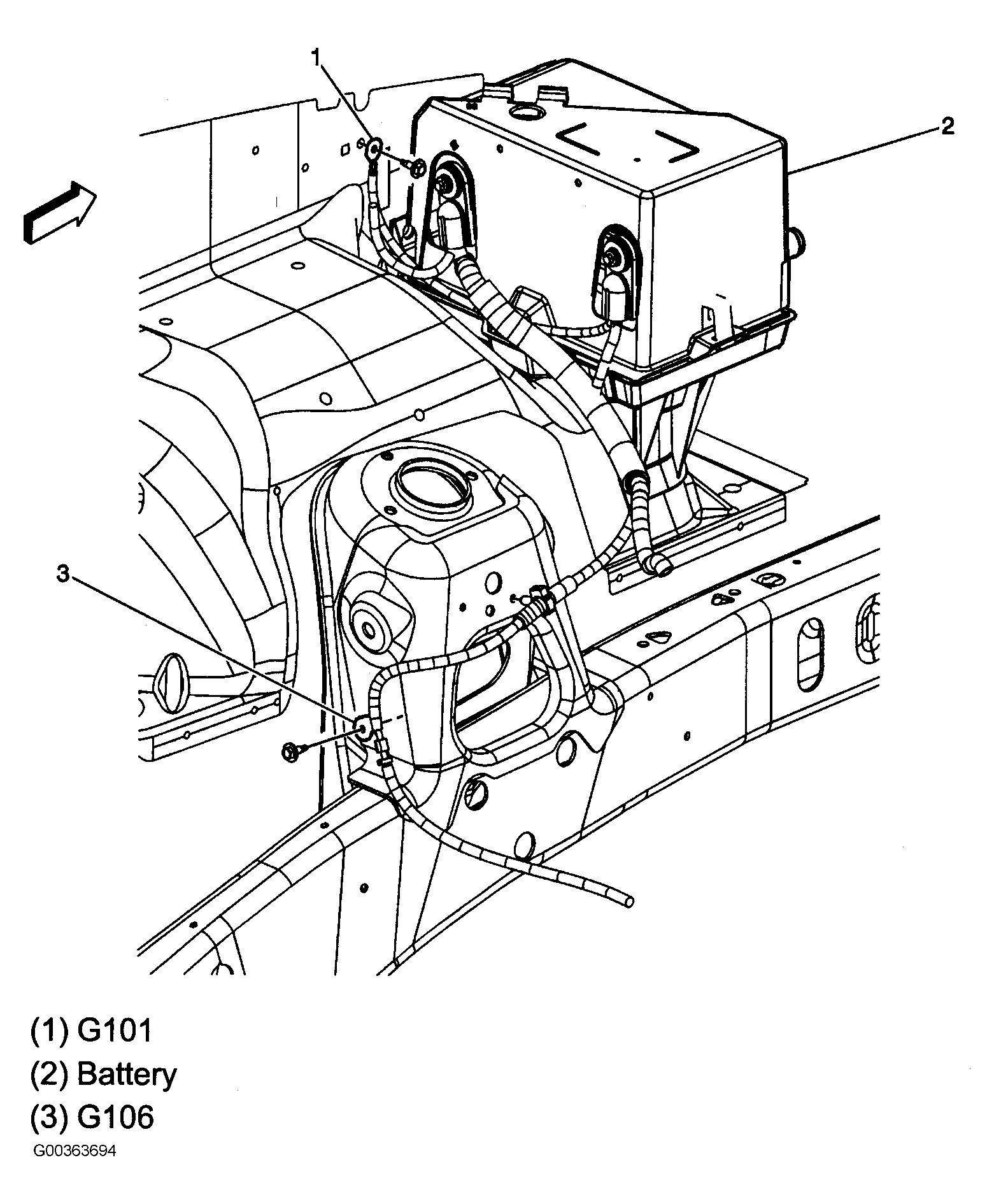

Fig 25: Left Front Of Engine Compartment

G00363694

Courtesy of SAAB-SCANIA OF AMERICA, INC.

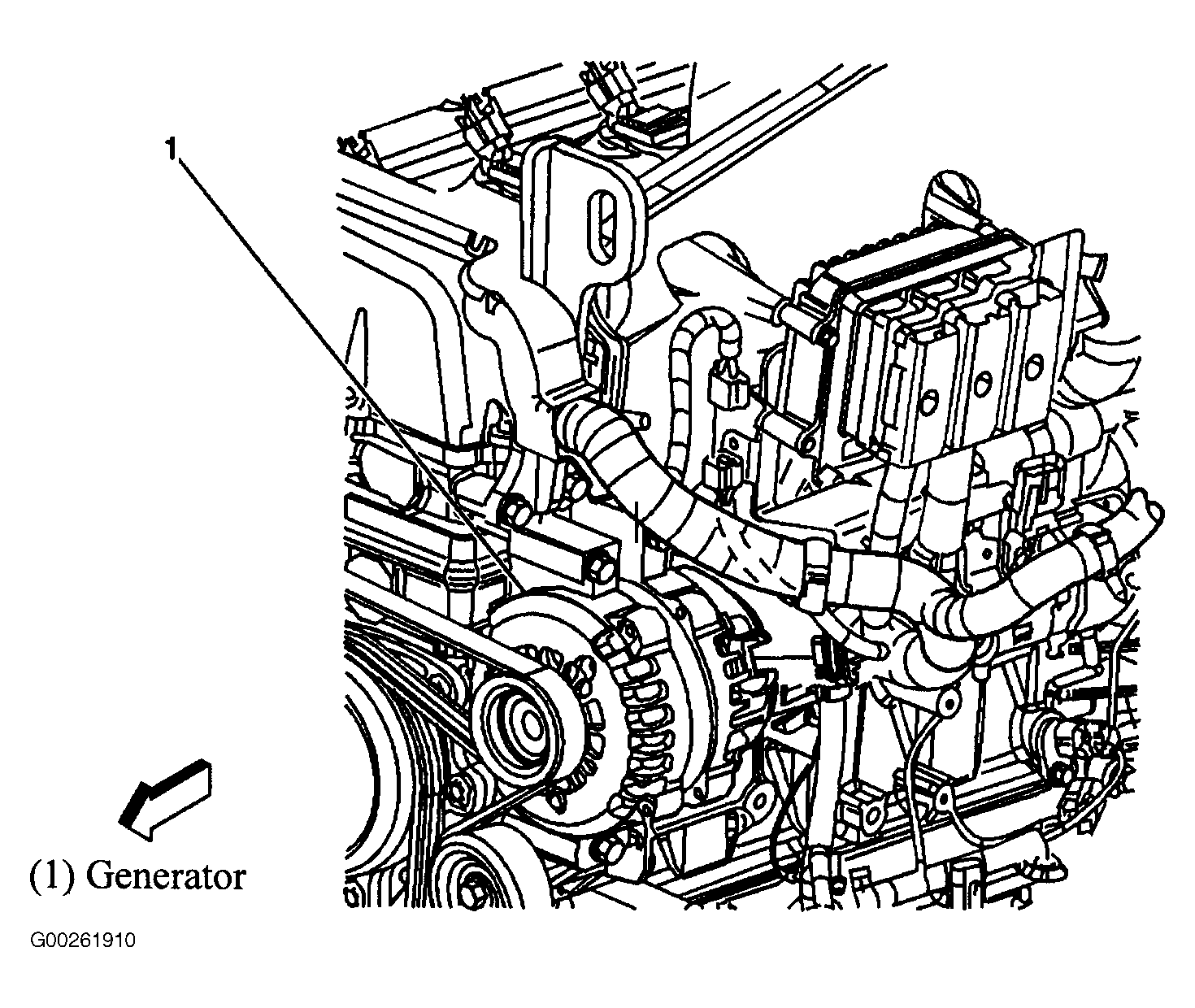

Fig 26: Left Front Of Engine (4.2L)

G00261910

Courtesy of SAAB-SCANIA OF AMERICA, INC.

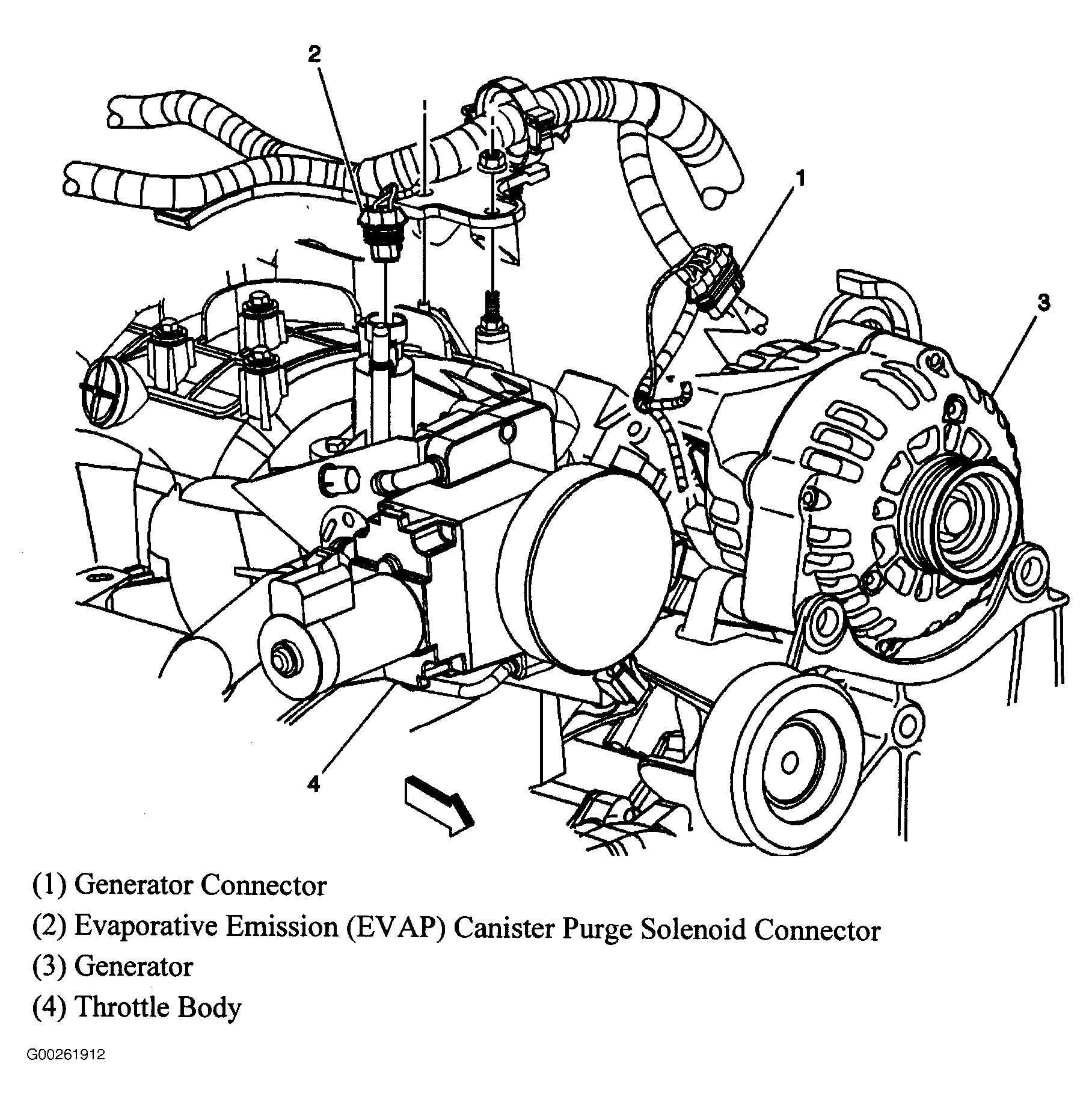

Fig 27: Top Front Of Engine (5.3L)

G00261912

Courtesy of SAAB-SCANIA OF AMERICA, INC.

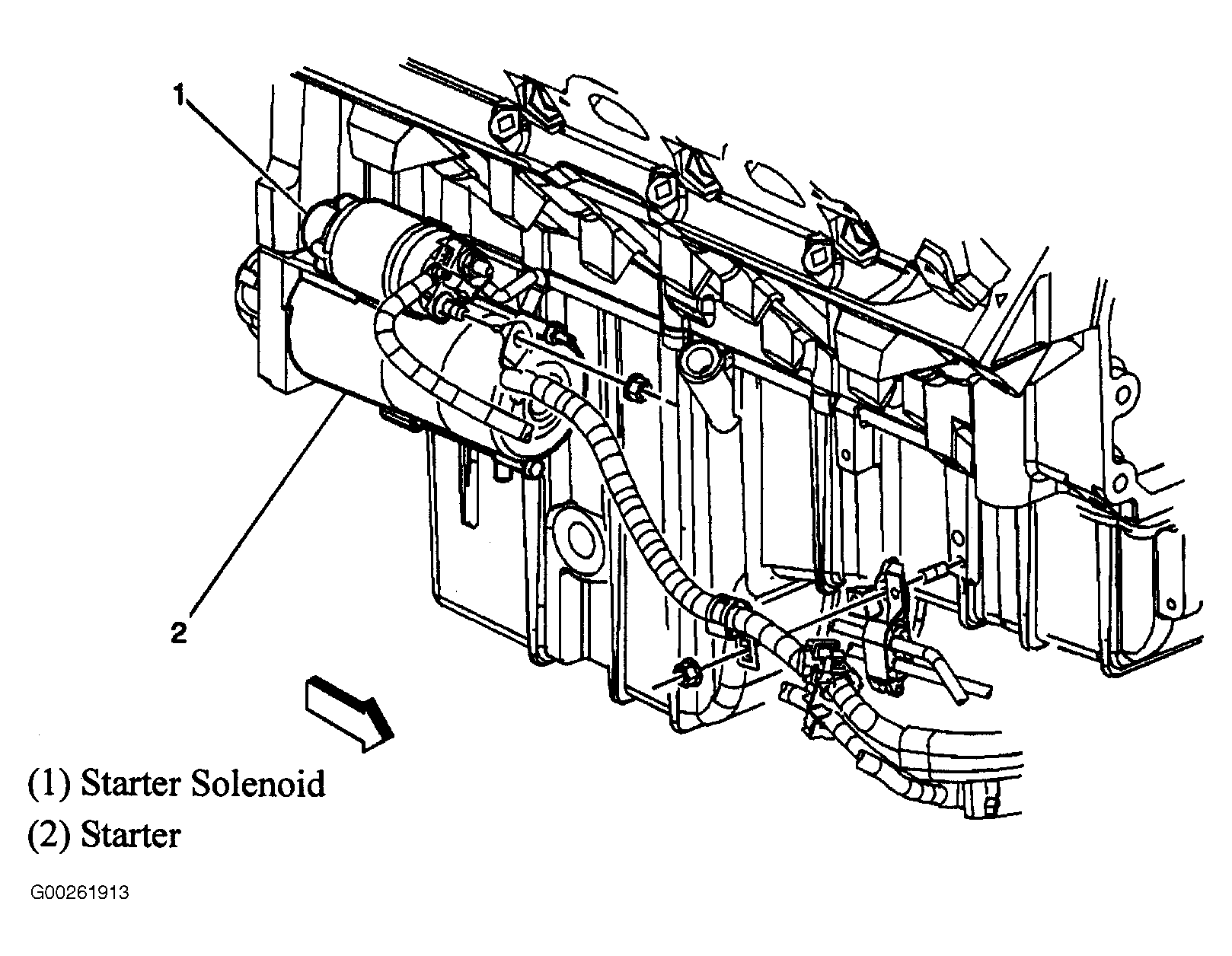

Fig 28: Right Side Of Engine (5.3L)

G00261913

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 29: Center Of Floor Pan

G00261914

Courtesy of SAAB-SCANIA OF AMERICA, INC.

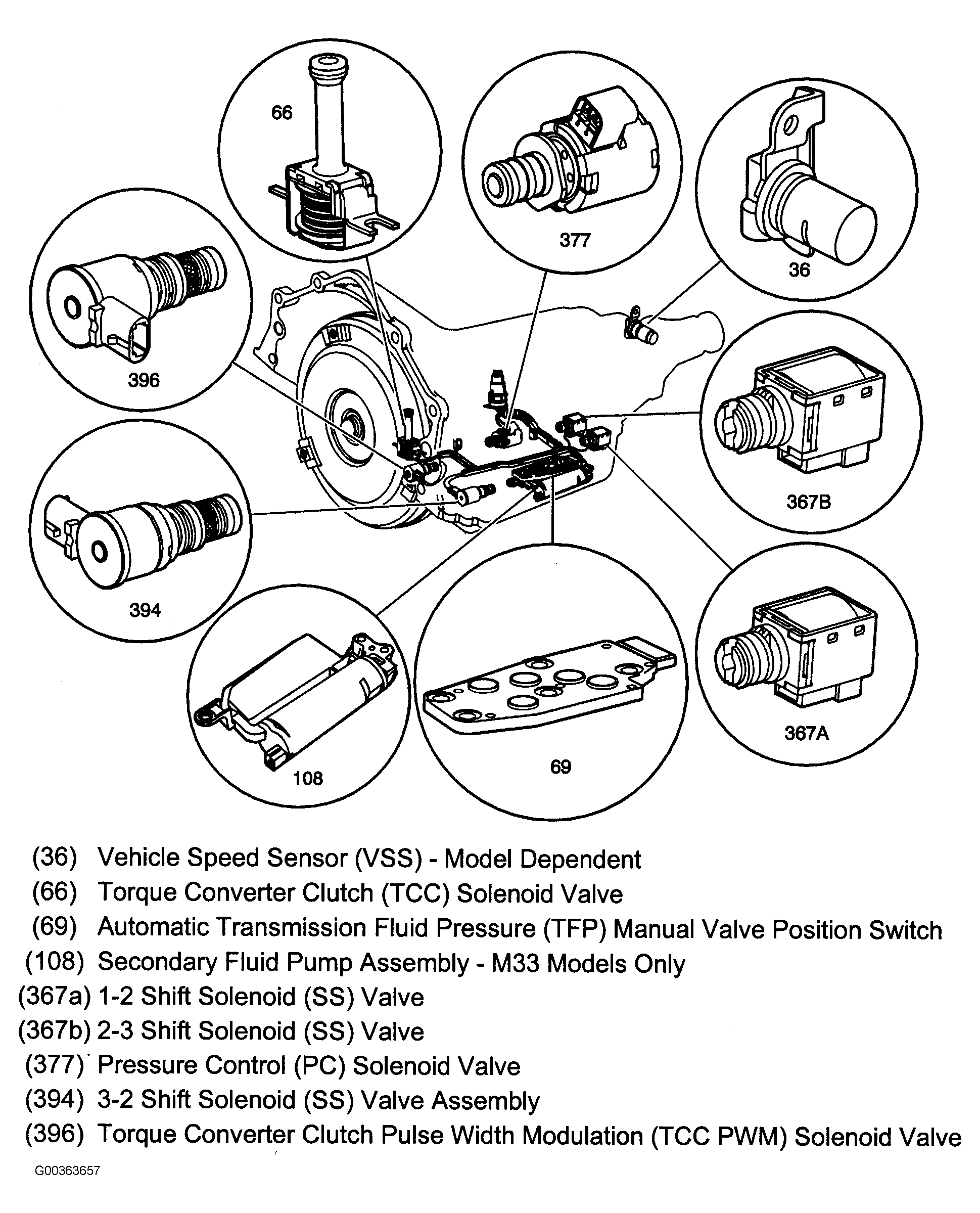

Fig 30: Automatic Transmission Components

G00363657

Courtesy of SAAB-SCANIA OF AMERICA, INC.

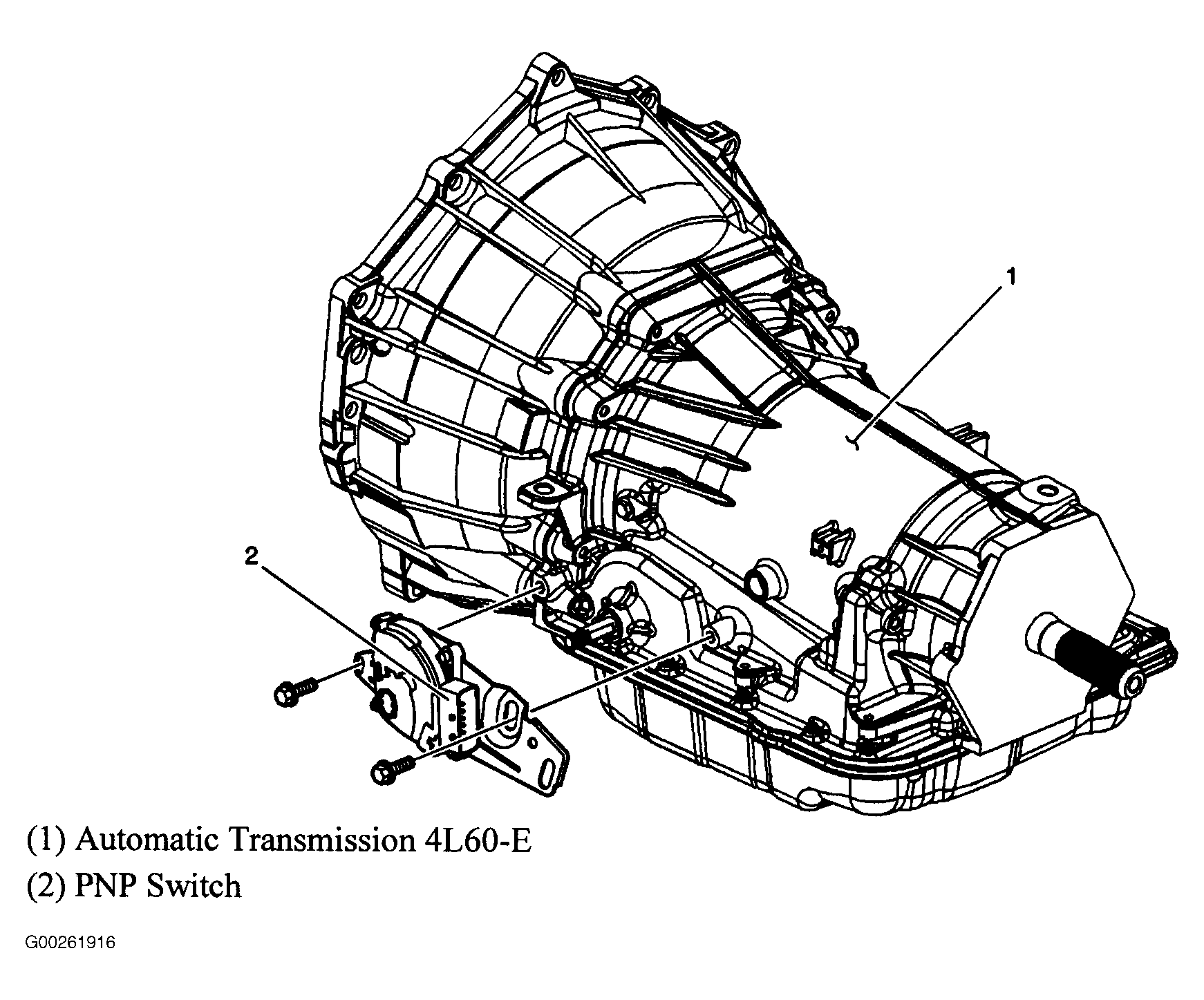

Fig 31: Automatic Transmission

G00261916

Courtesy of SAAB-SCANIA OF AMERICA, INC.

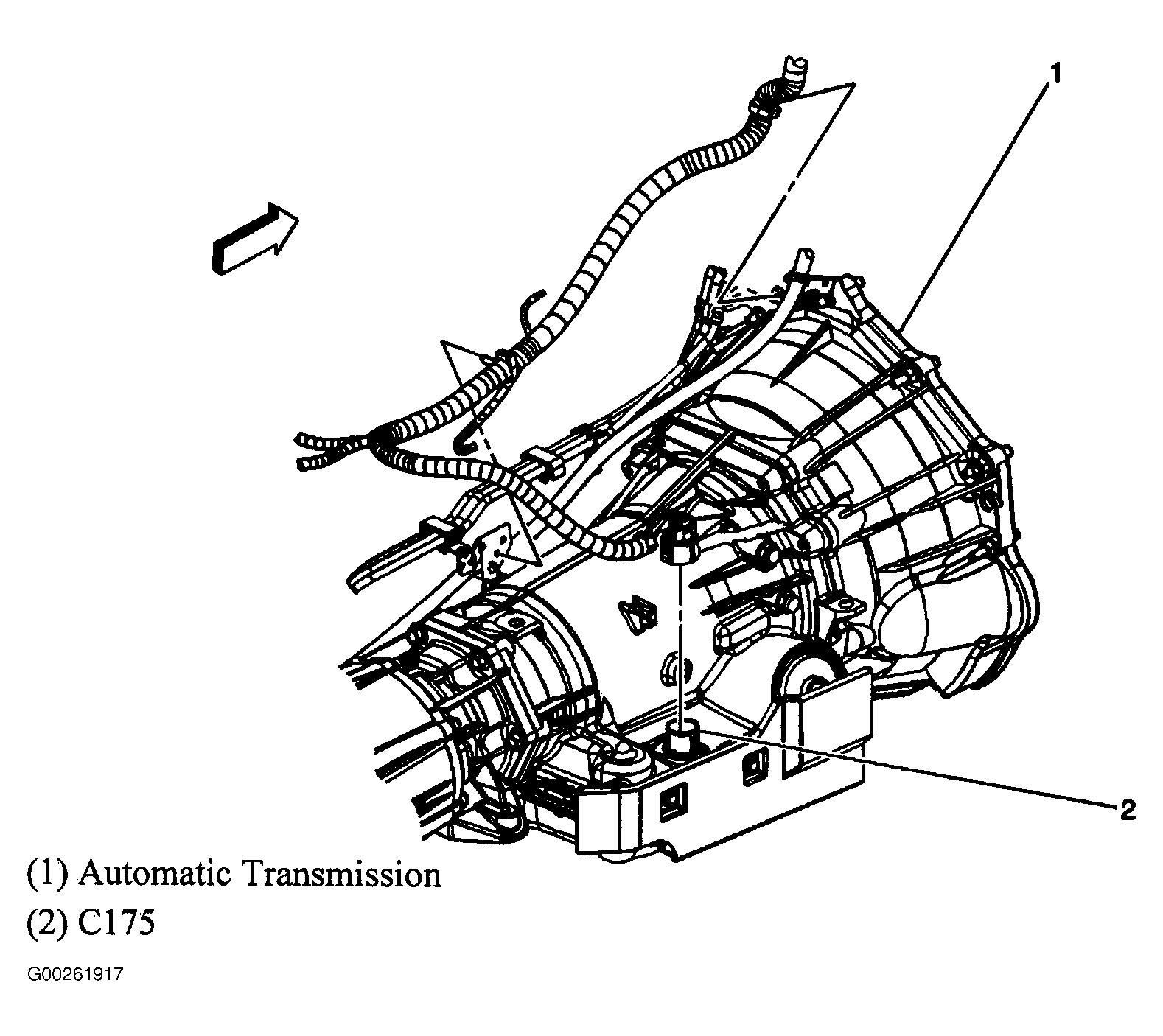

Fig 32: Automatic Transmission

G00261917

Courtesy of SAAB-SCANIA OF AMERICA, INC.

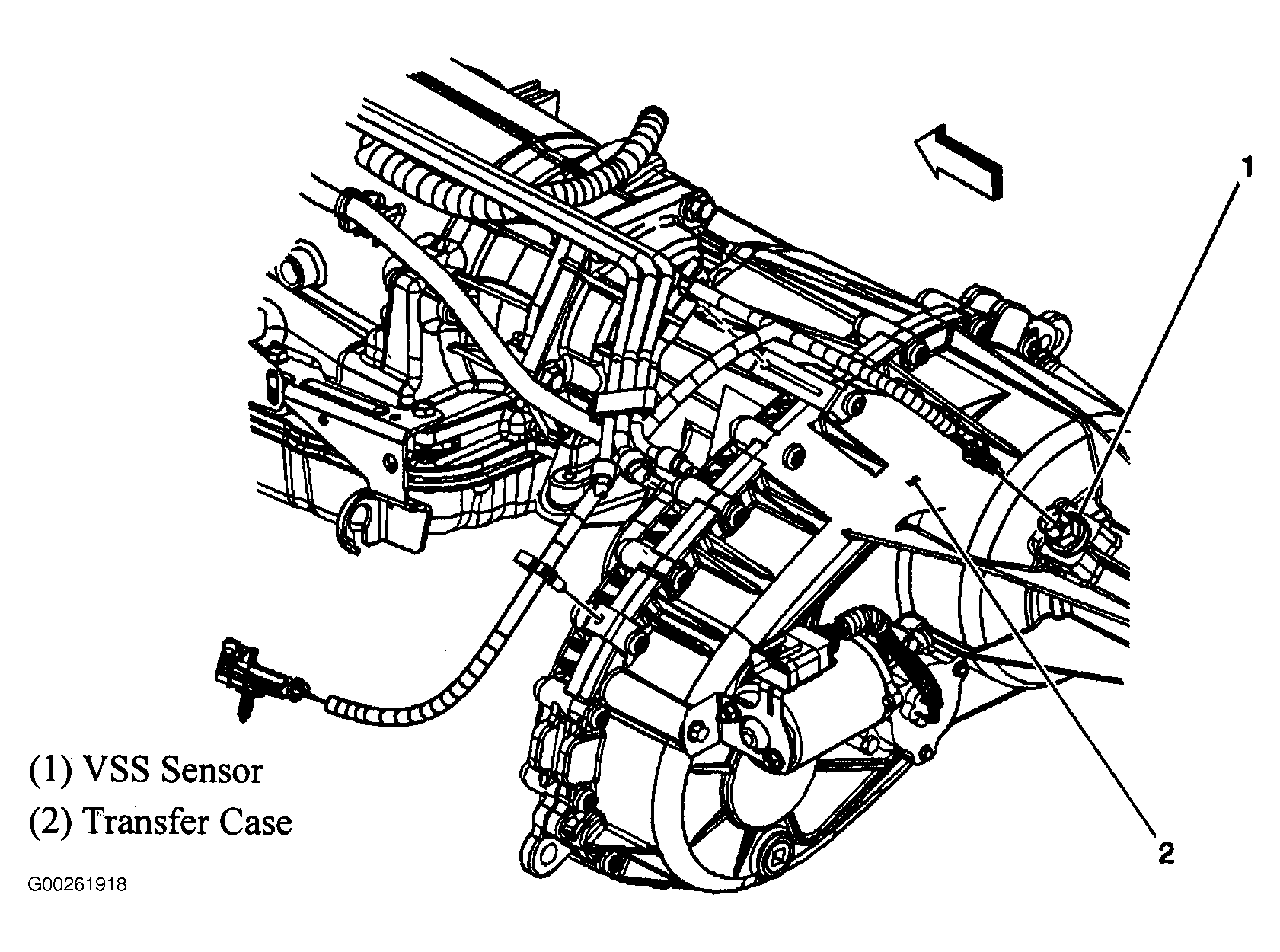

Fig 33: Transfer Case

G00261918

Courtesy of SAAB-SCANIA OF AMERICA, INC.

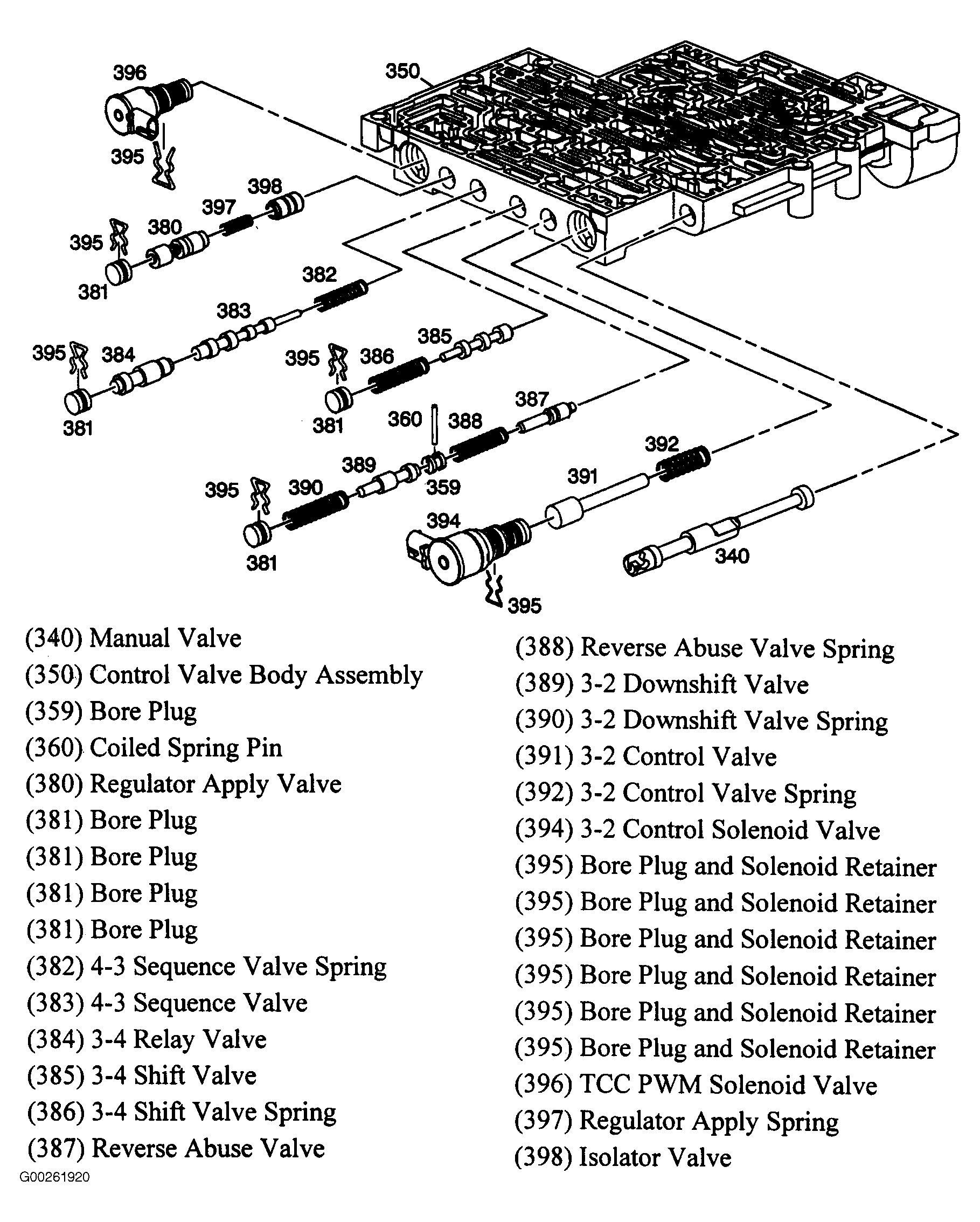

Fig 34: Valve Body Assembly

G00261920

Courtesy of SAAB-SCANIA OF AMERICA, INC.

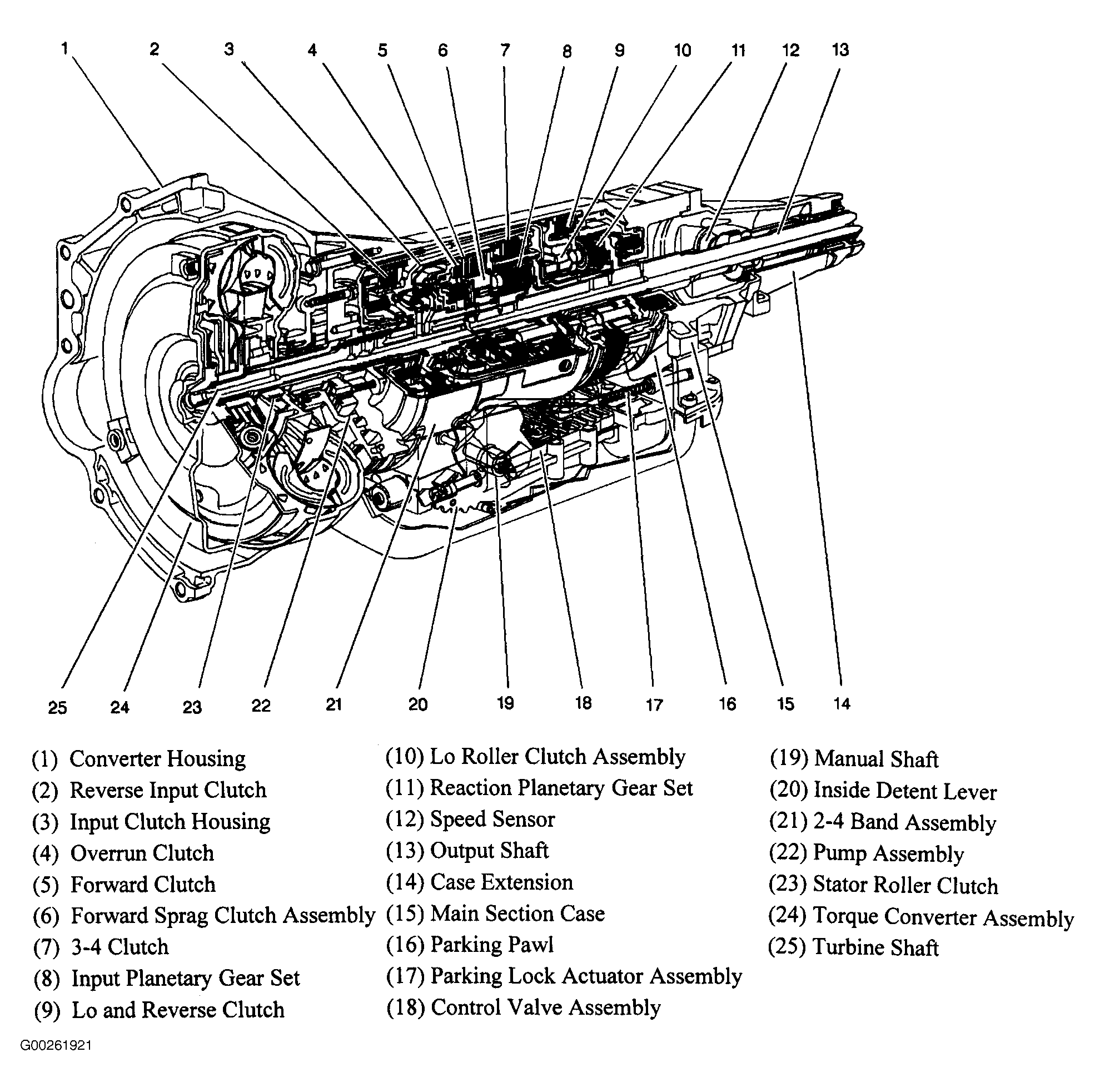

Fig 35: Automatic Transmission

G00261921

Courtesy of SAAB-SCANIA OF AMERICA, INC.

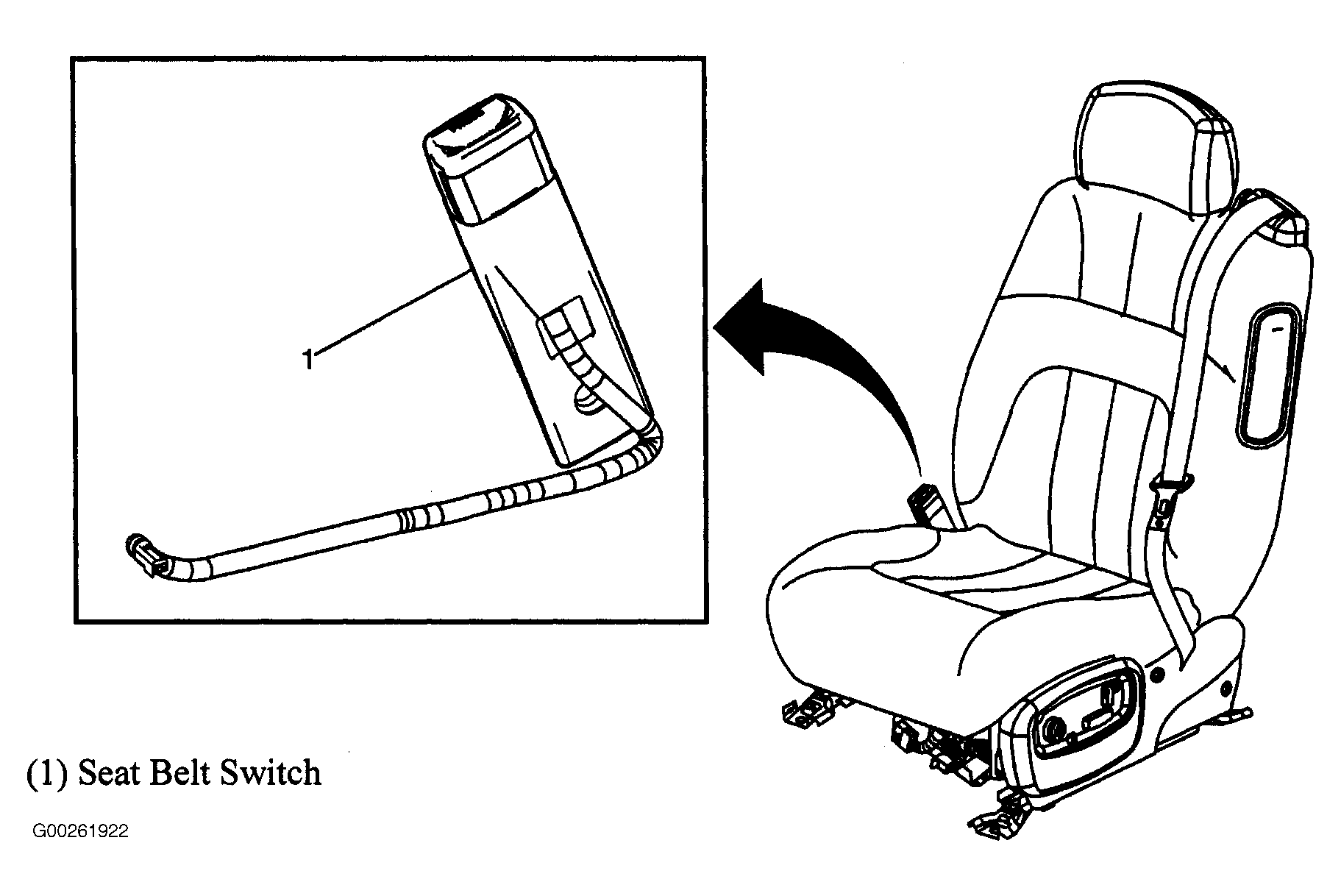

Fig 36: Left Front Seat Assembly

G00261922

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 37: Dash Assembly

G00261924

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 38: Steering Wheel Assembly

G00261925

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 39: Lower Console

G00261928

Courtesy of SAAB-SCANIA OF AMERICA, INC.

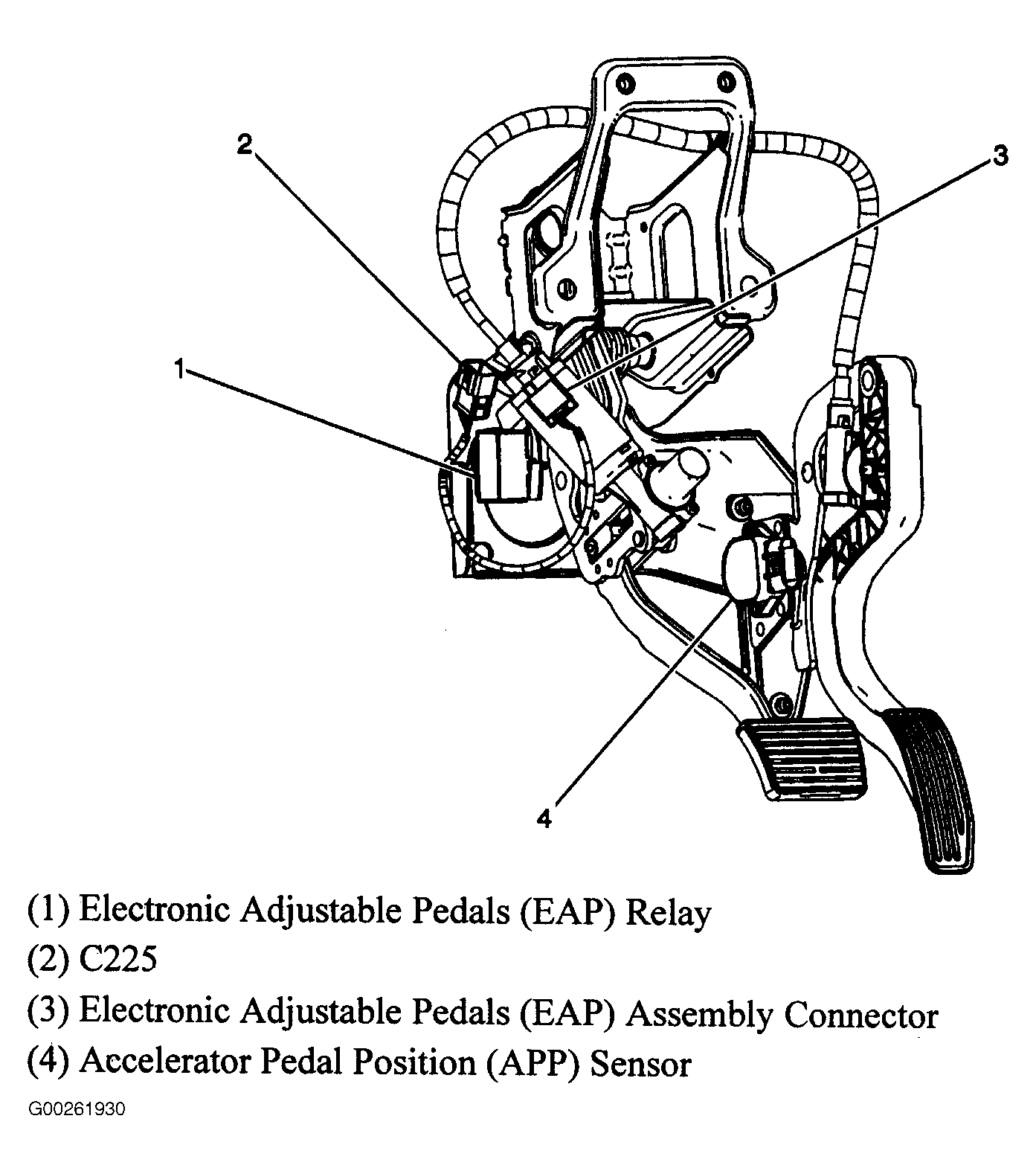

Fig 40: Lower Left Side Of Dash

G00261930

Courtesy of SAAB-SCANIA OF AMERICA, INC.

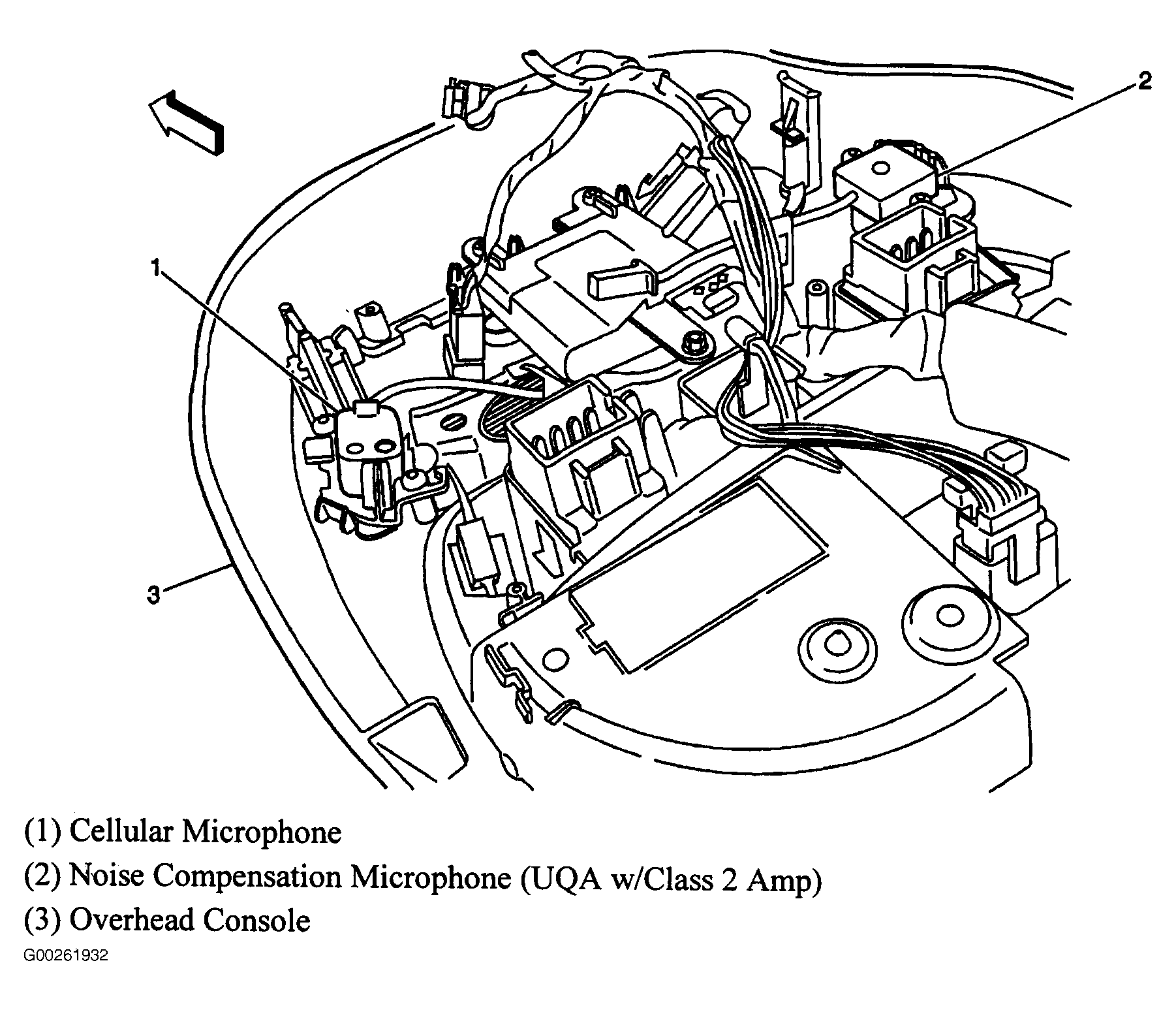

Fig 41: Overhead Console

G00261932

Courtesy of SAAB-SCANIA OF AMERICA, INC.

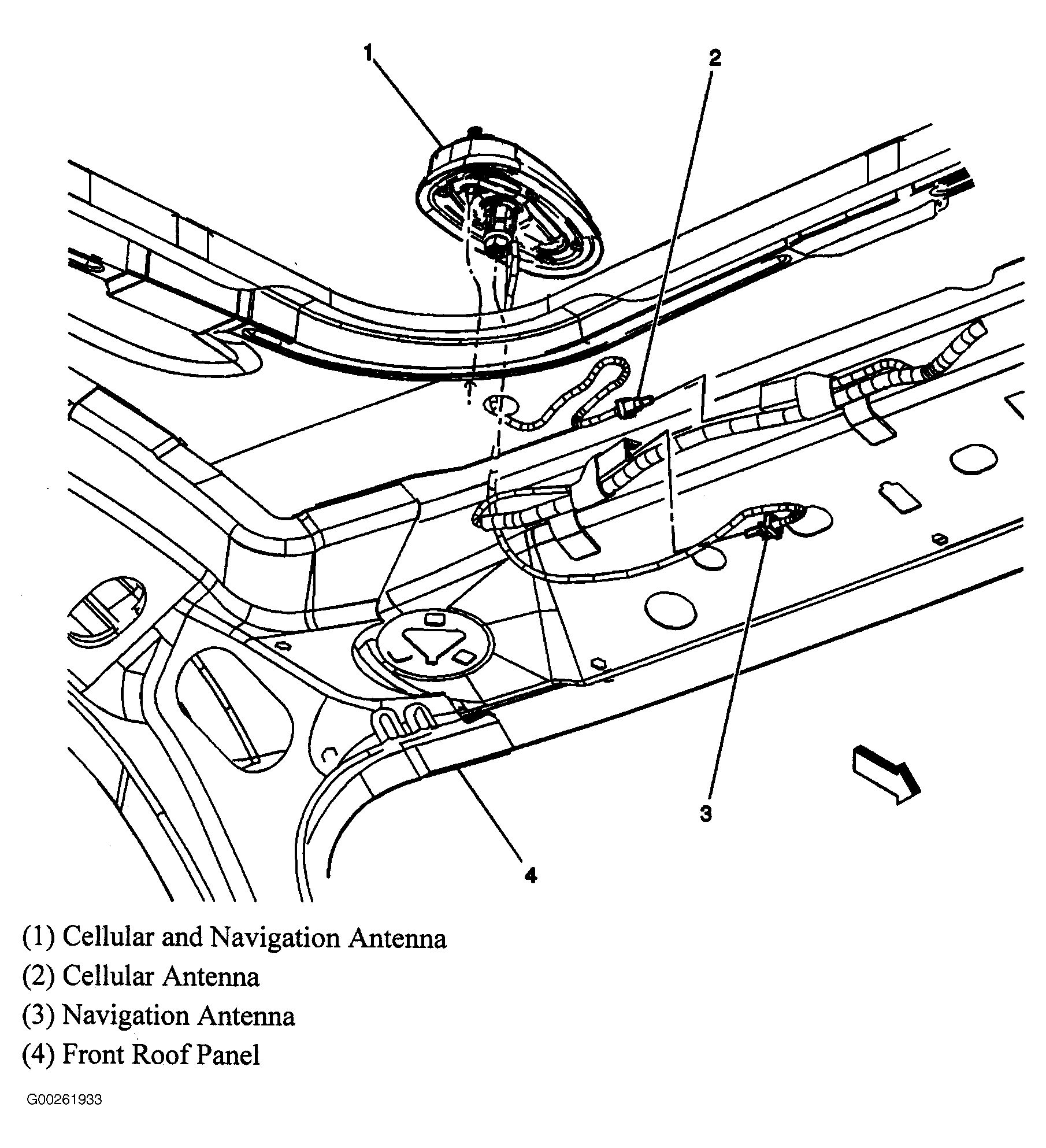

Fig 42: Front Roof Panel

G00261933

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 43: Rear Floor Panel

G00261934

Courtesy of SAAB-SCANIA OF AMERICA, INC.

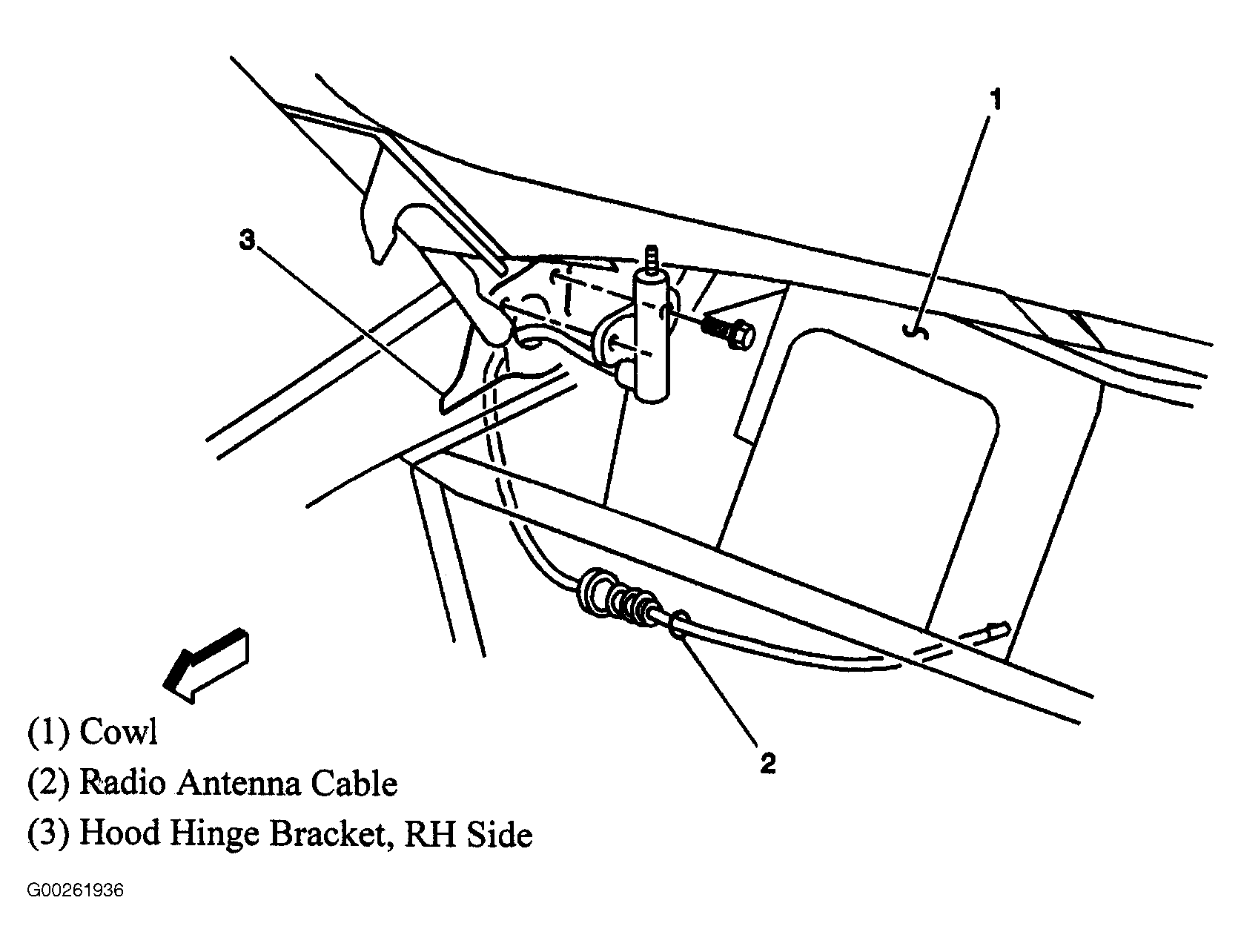

Fig 44: Right Side Of Engine Compartment

G00261936

Courtesy of SAAB-SCANIA OF AMERICA, INC.

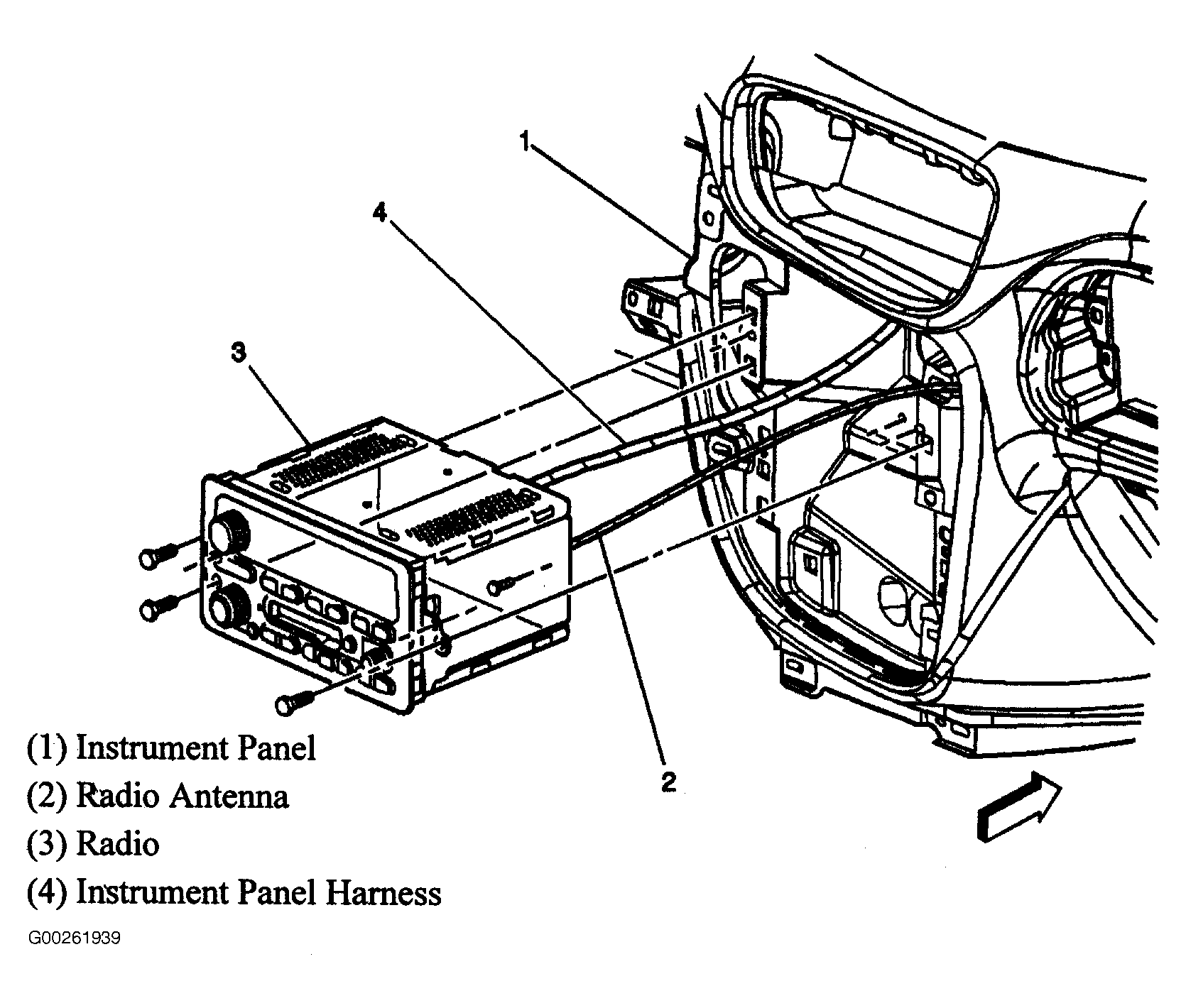

Fig 45: Center Of Dash

G00261939

Courtesy of SAAB-SCANIA OF AMERICA, INC.

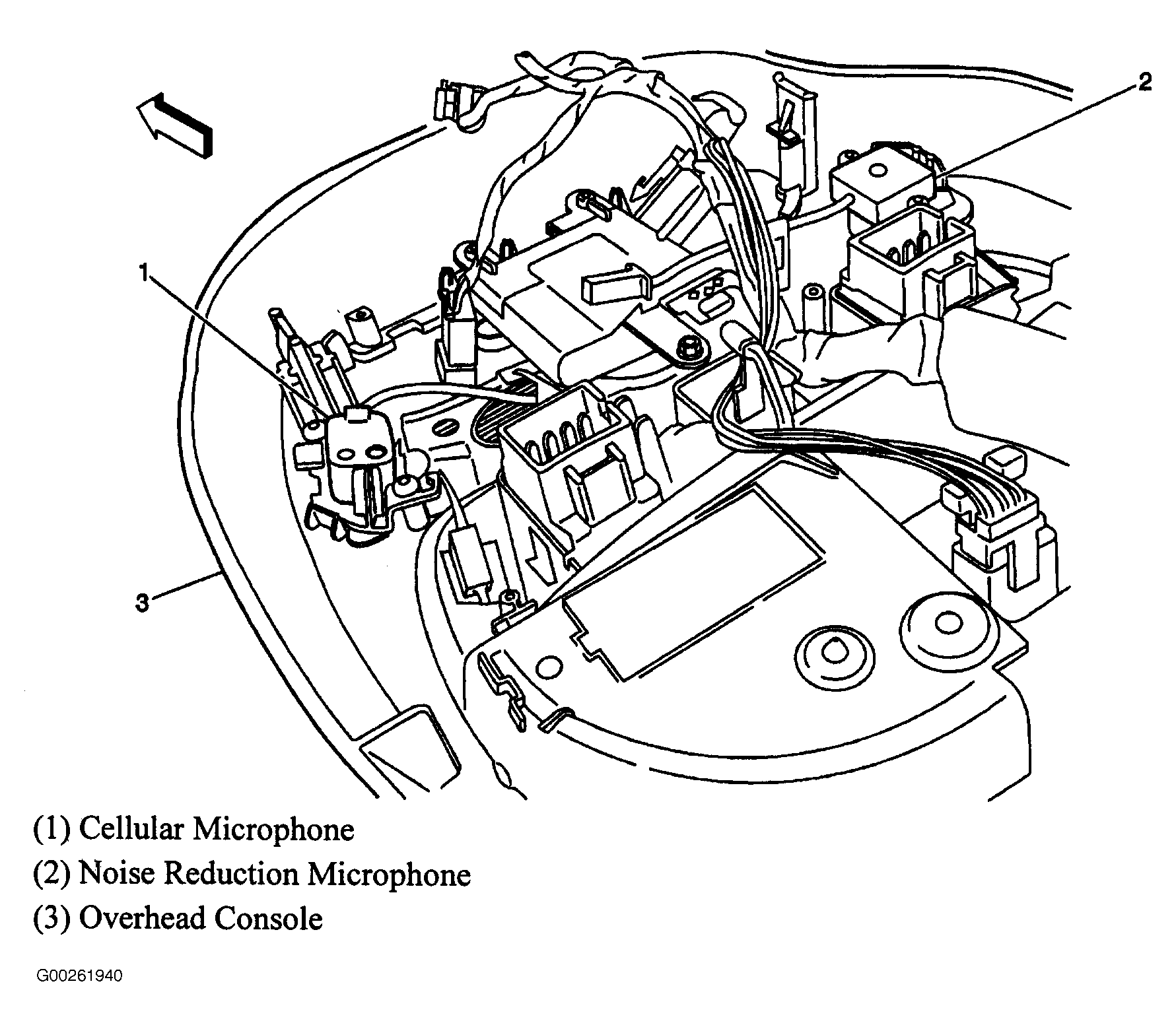

Fig 46: Overhead Console

G00261940

Courtesy of SAAB-SCANIA OF AMERICA, INC.

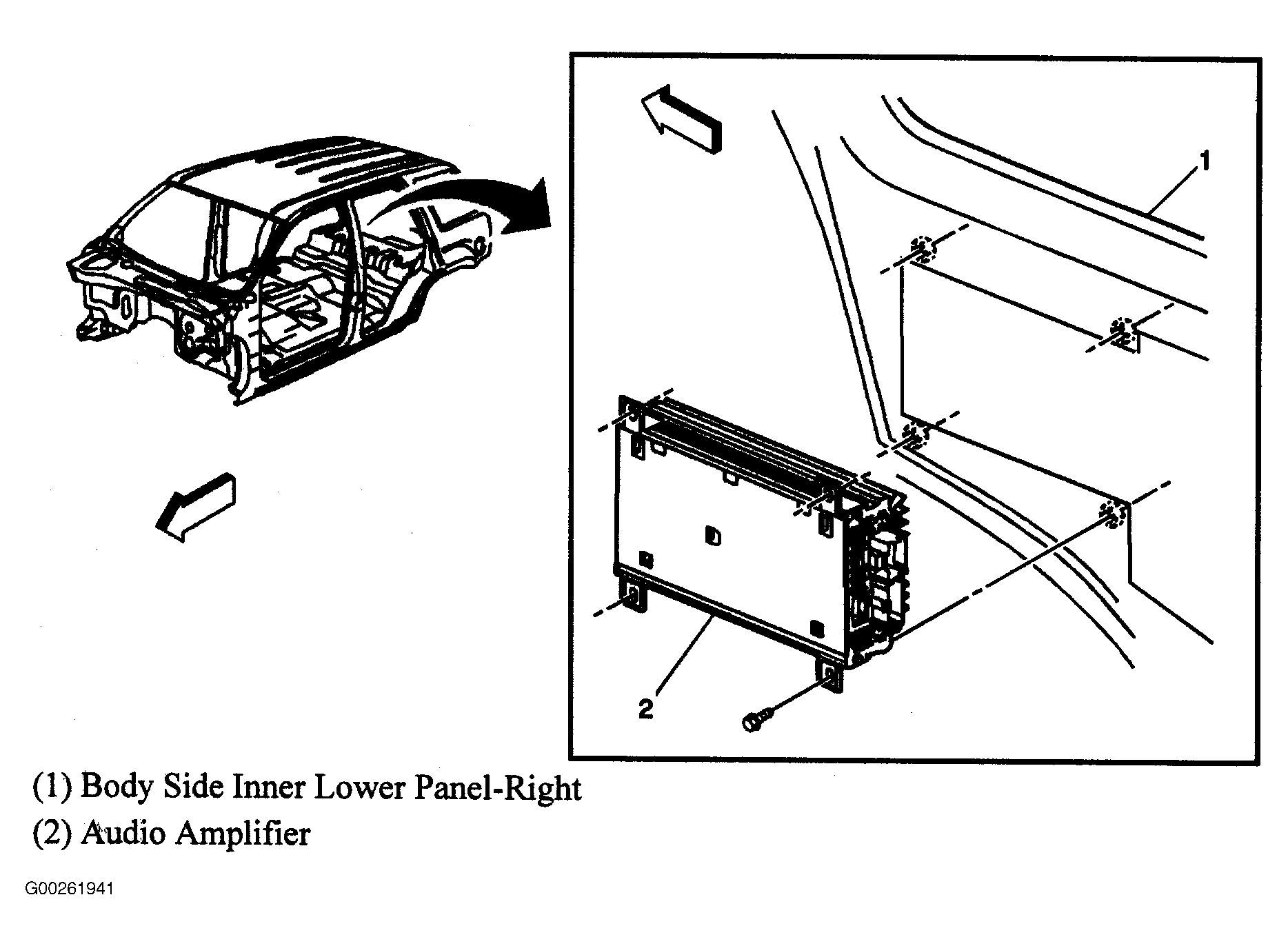

Fig 47: Right Body Side Inner Lower Panel

G00261941

Courtesy of SAAB-SCANIA OF AMERICA, INC.

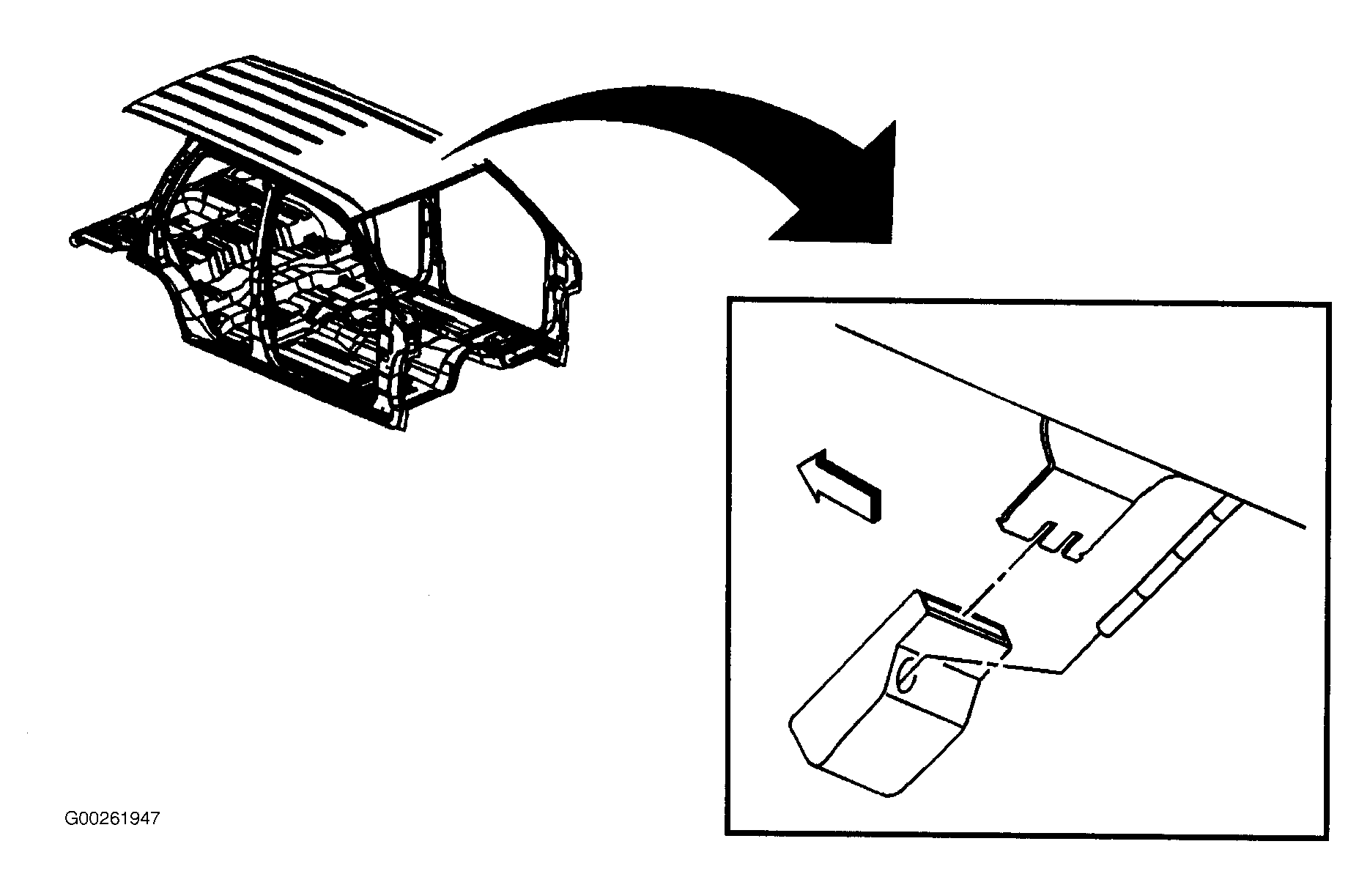

Fig 48: Front Center Of Roof

G00261947

Courtesy of SAAB-SCANIA OF AMERICA, INC.

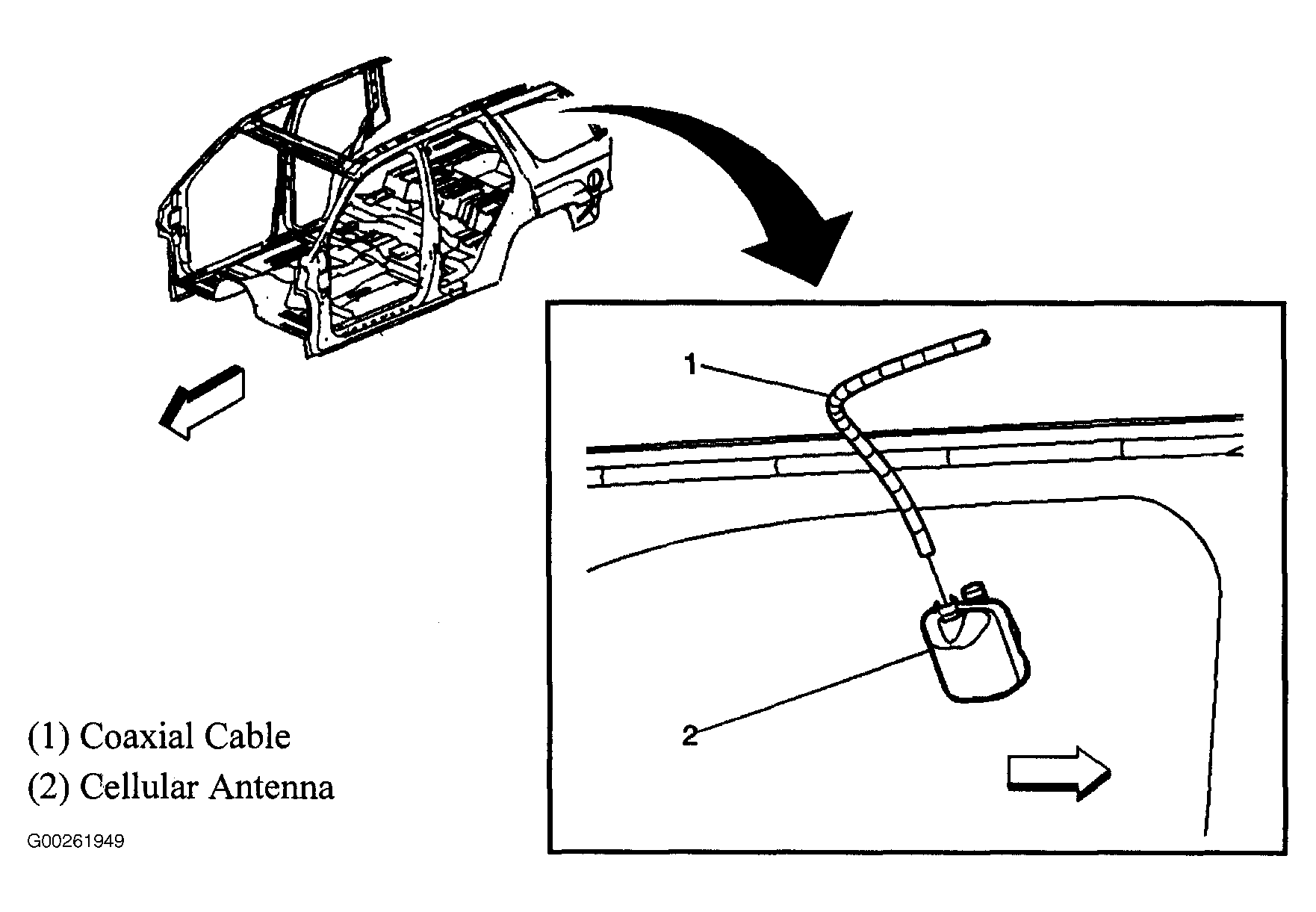

Fig 49: Right Rear Of Vehicle

G00261949

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 50: Floor Pan

G00363689

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 51: Liftgate

G00363659

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 52: Passenger Door Trim Panel

G00261962

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 53: Driver's Door Trim Panel

G00261963

Courtesy of SAAB-SCANIA OF AMERICA, INC.

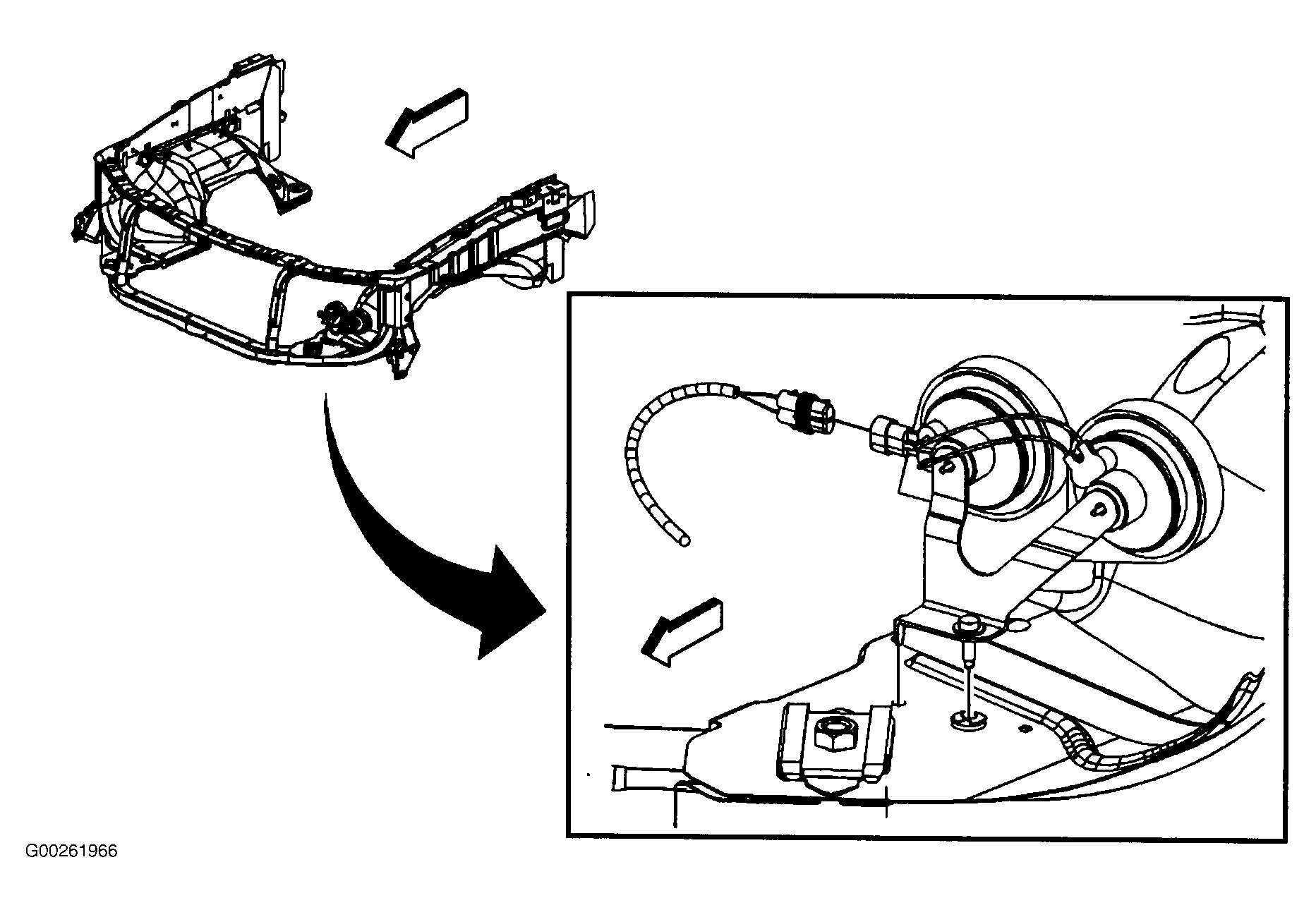

Fig 54: Front Frame Rail

G00261966

Courtesy of SAAB-SCANIA OF AMERICA, INC.

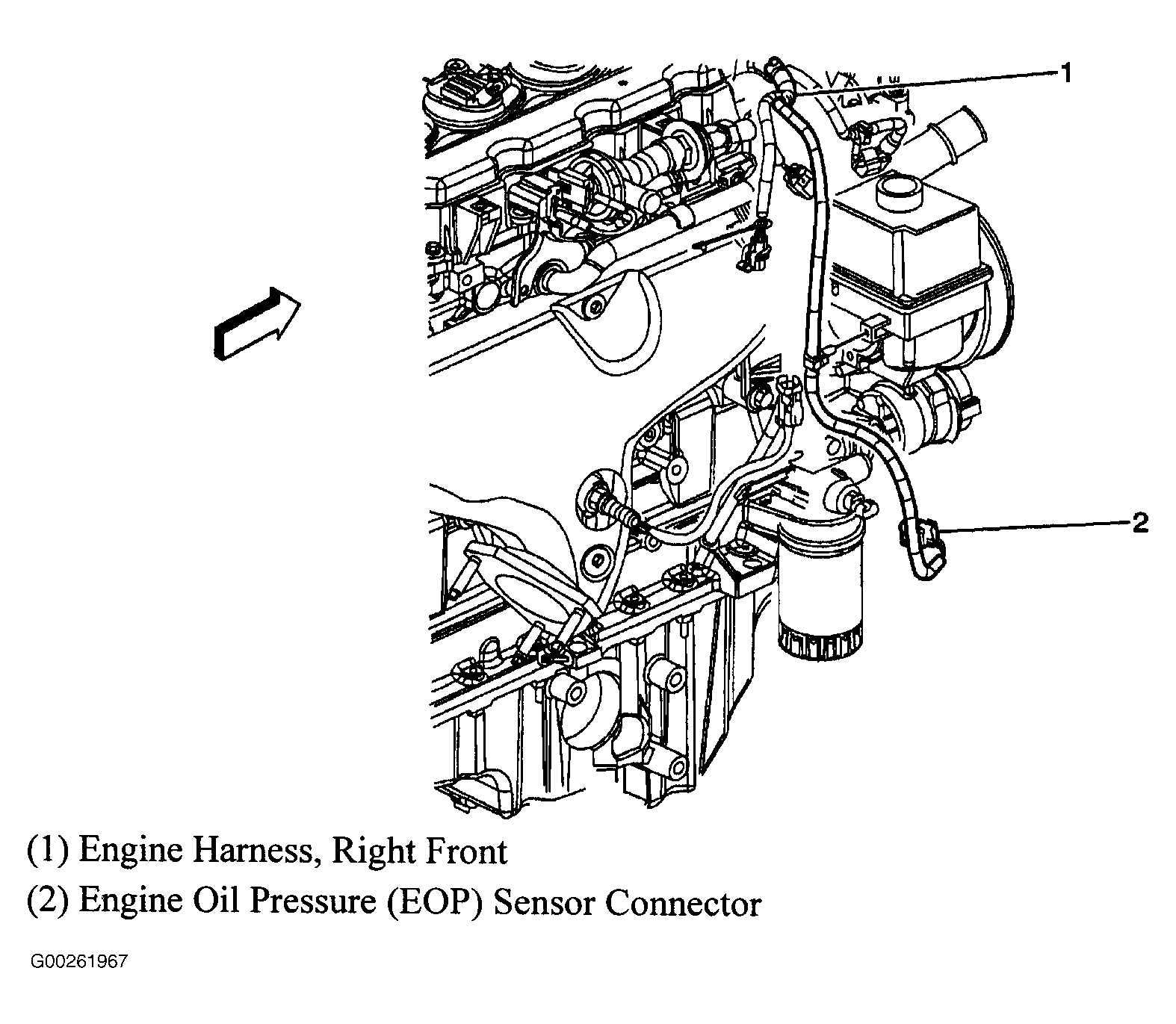

Fig 55: Right Front Of Engine (4.2L)

G00261967

Courtesy of SAAB-SCANIA OF AMERICA, INC.

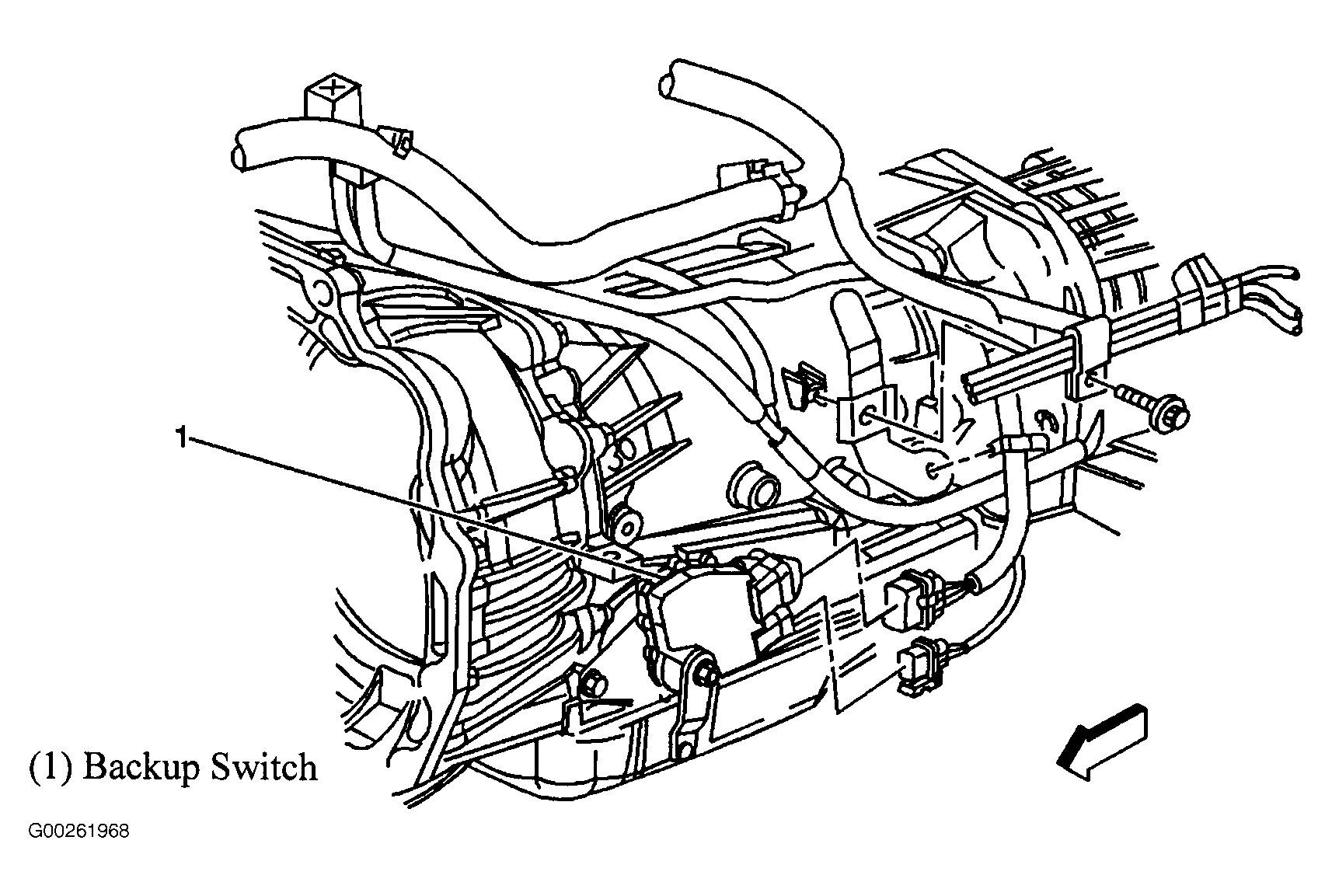

Fig 56: Left Side Of Automatic Transmission

G00261968

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 57: Left Side Of Dash

G00363660

Courtesy of SAAB-SCANIA OF AMERICA, INC.

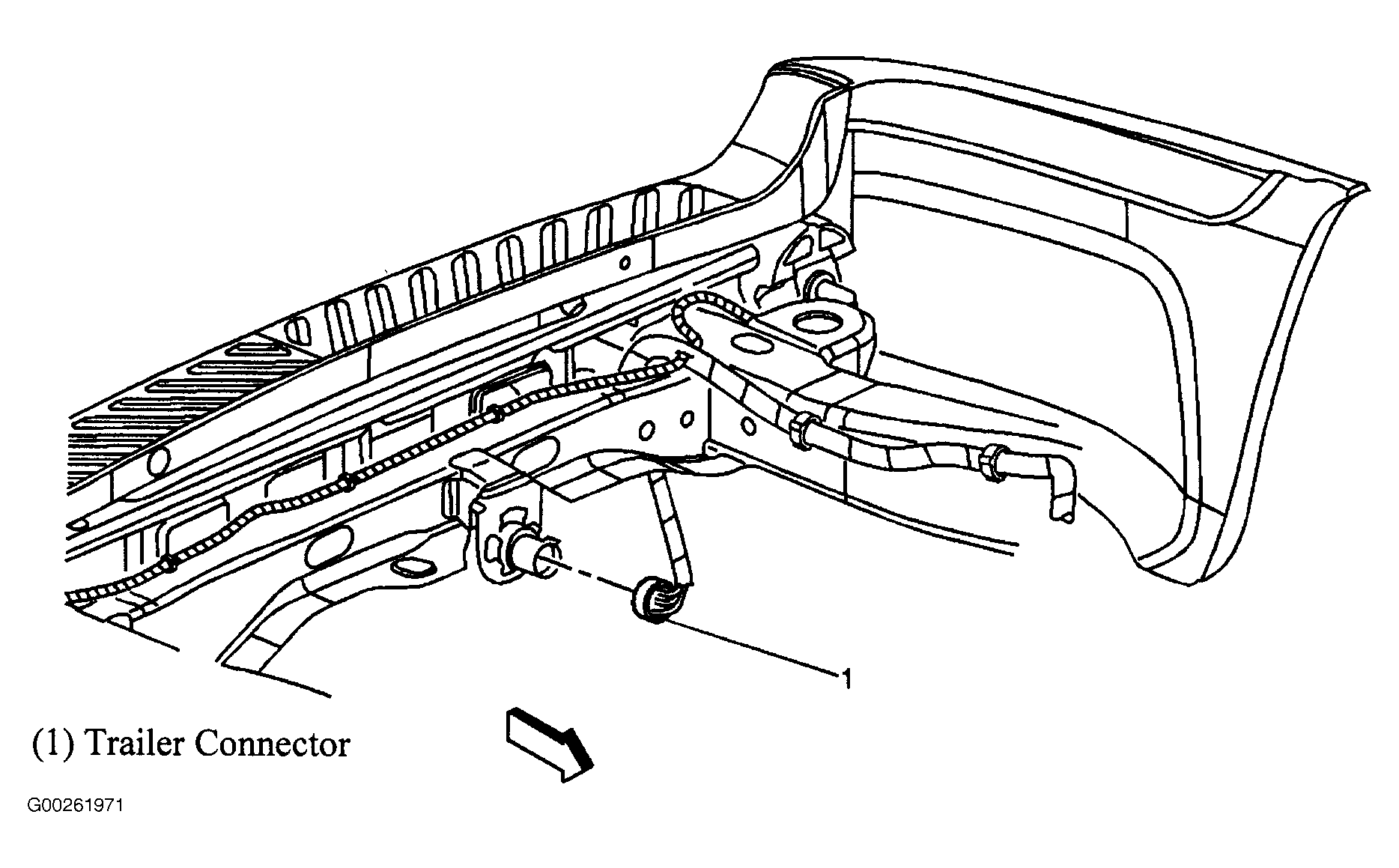

Fig 58: Rear Of Vehicle Frame

G00261971

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 59: Roof

G00261972

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 60: Under Driver's Seat

G00363691

Courtesy of SAAB-SCANIA OF AMERICA, INC.

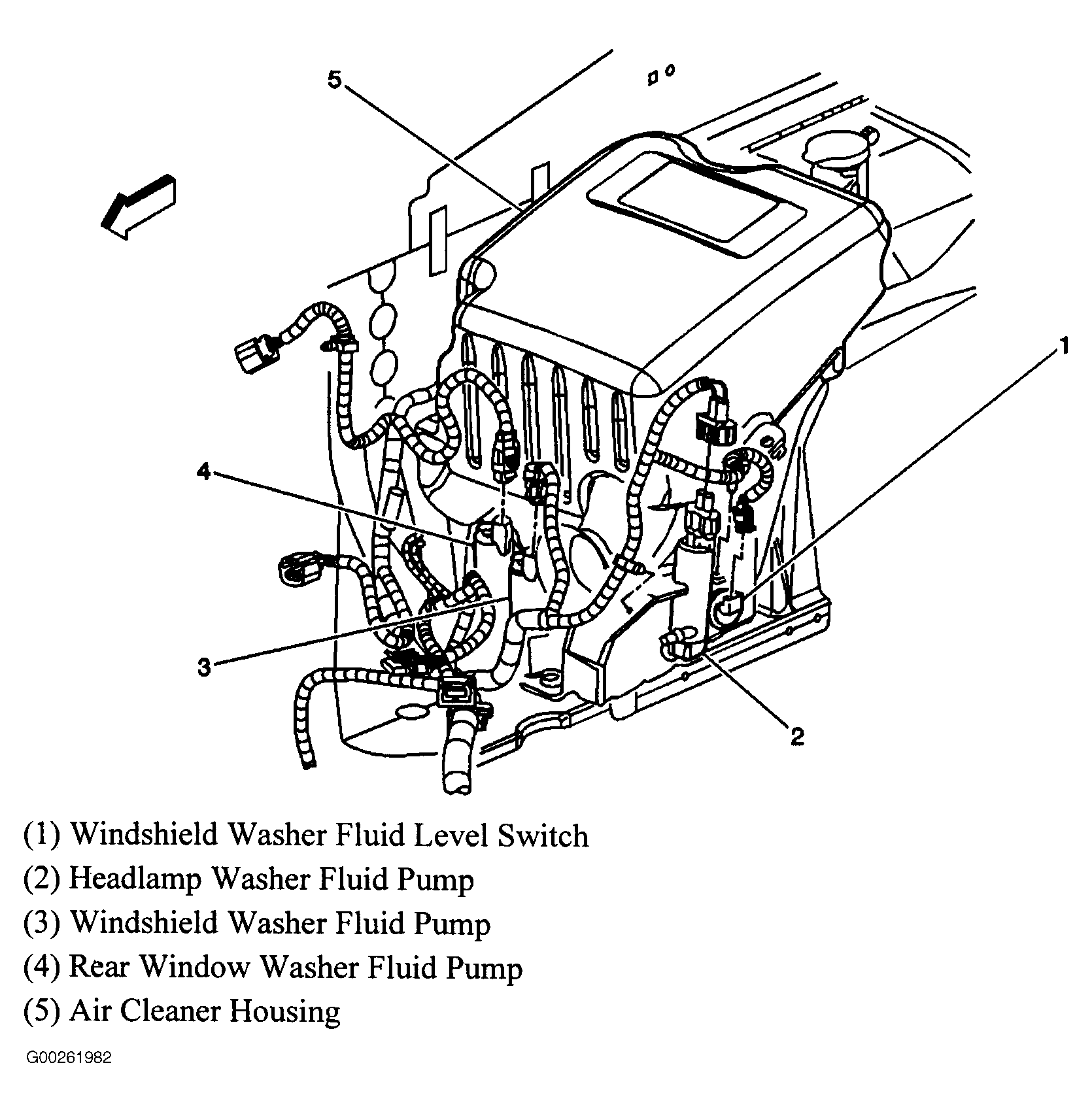

Fig 61: Right Front Of Engine Compartment

G00261982

Courtesy of SAAB-SCANIA OF AMERICA, INC.

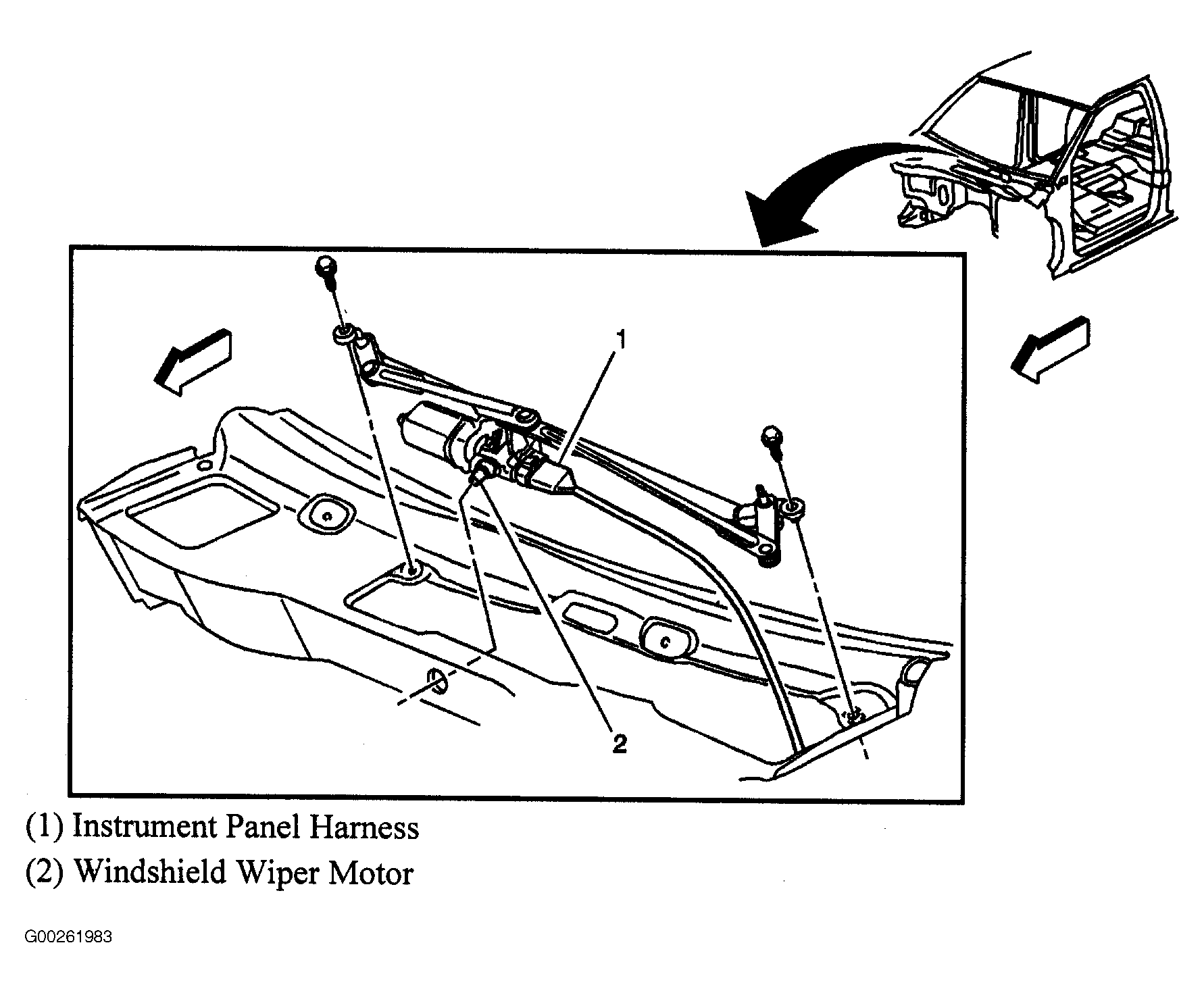

Fig 62: Center Rear Of Engine Compartment

G00261983

Courtesy of SAAB-SCANIA OF AMERICA, INC.

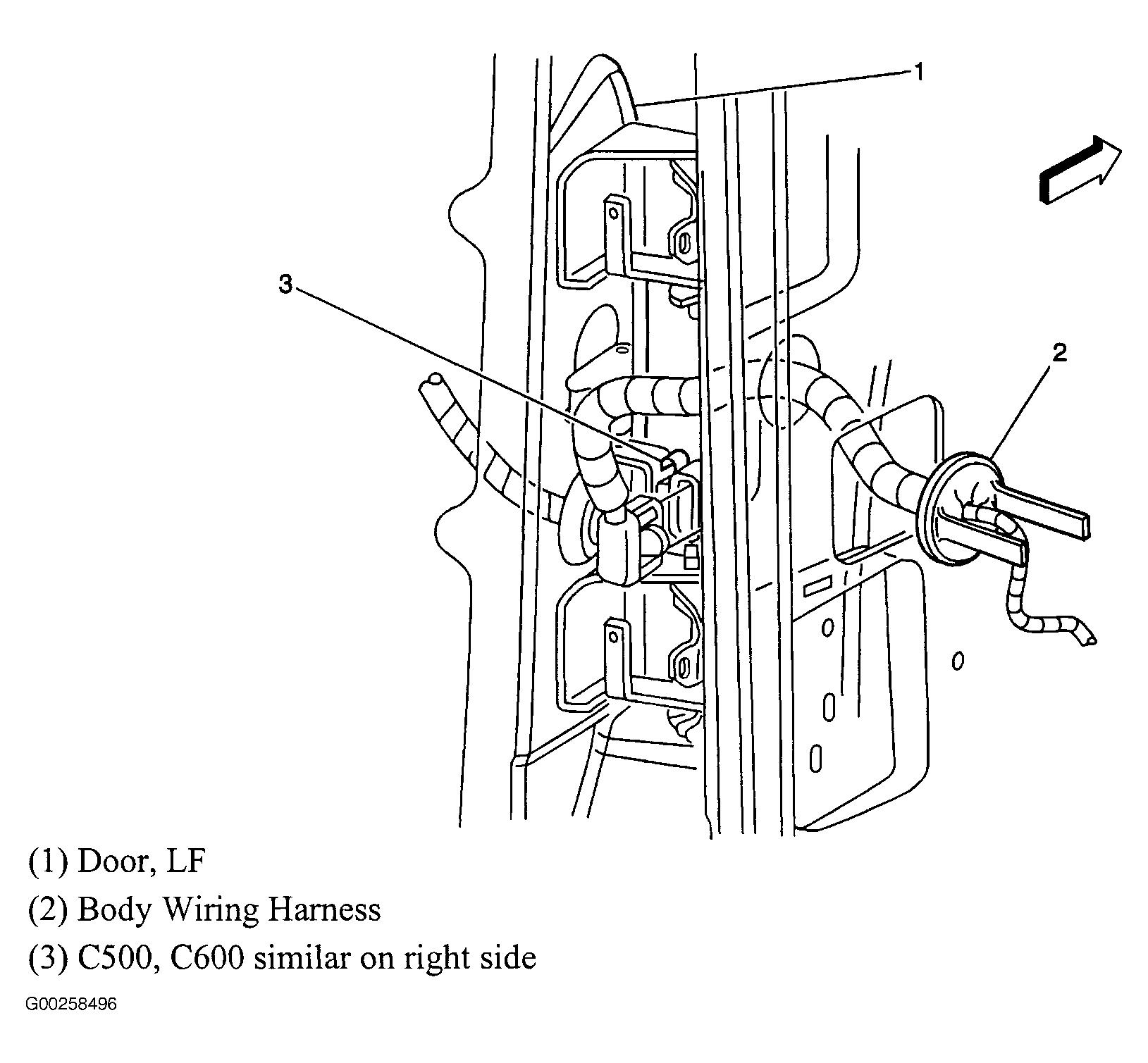

Fig 63: "B" Pillar

G00258496

Courtesy of SAAB-SCANIA OF AMERICA, INC.

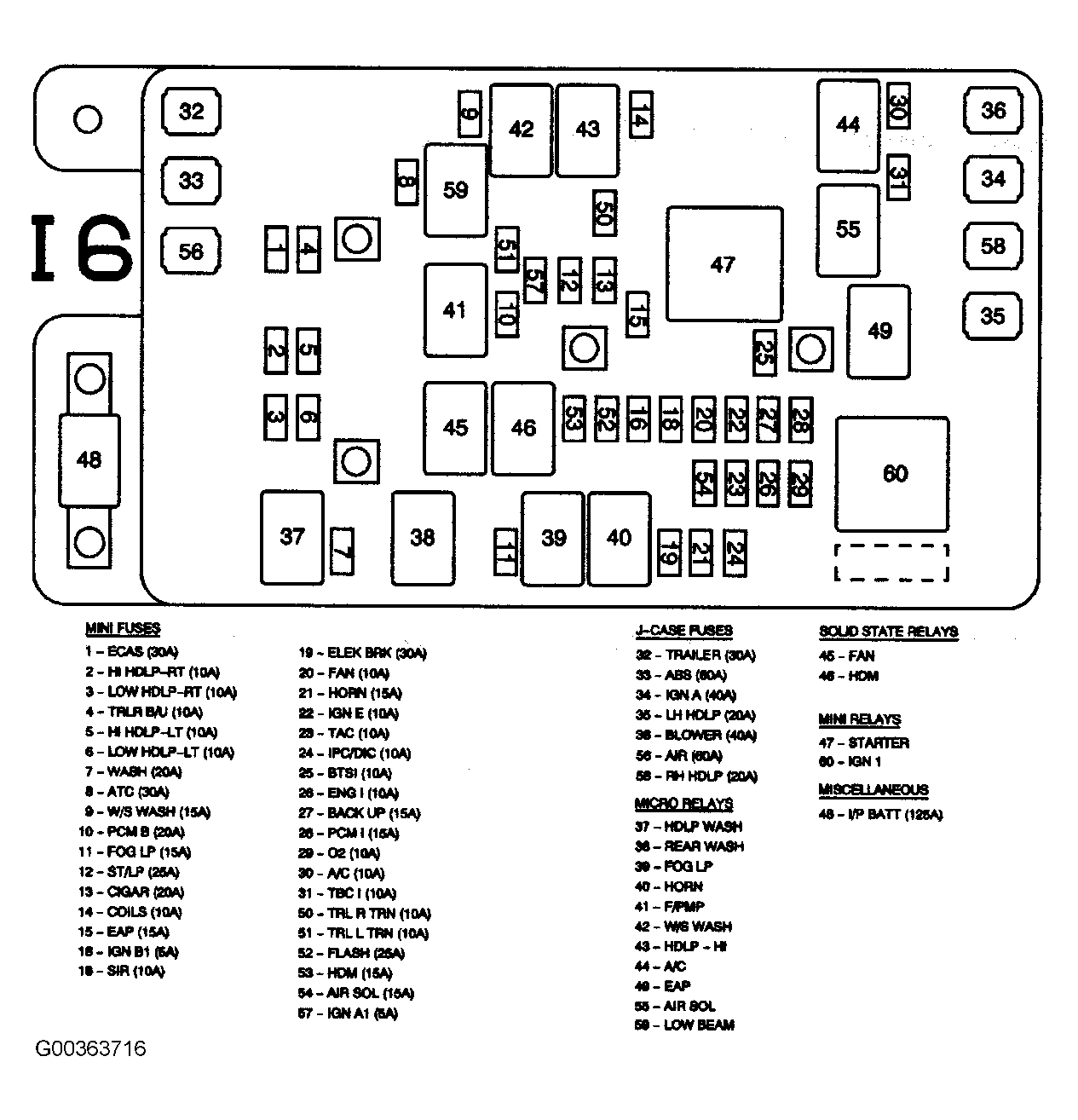

Fig 64: Fuse Block - Underhood (4.2L)

G00363716

Courtesy of SAAB-SCANIA OF AMERICA, INC.

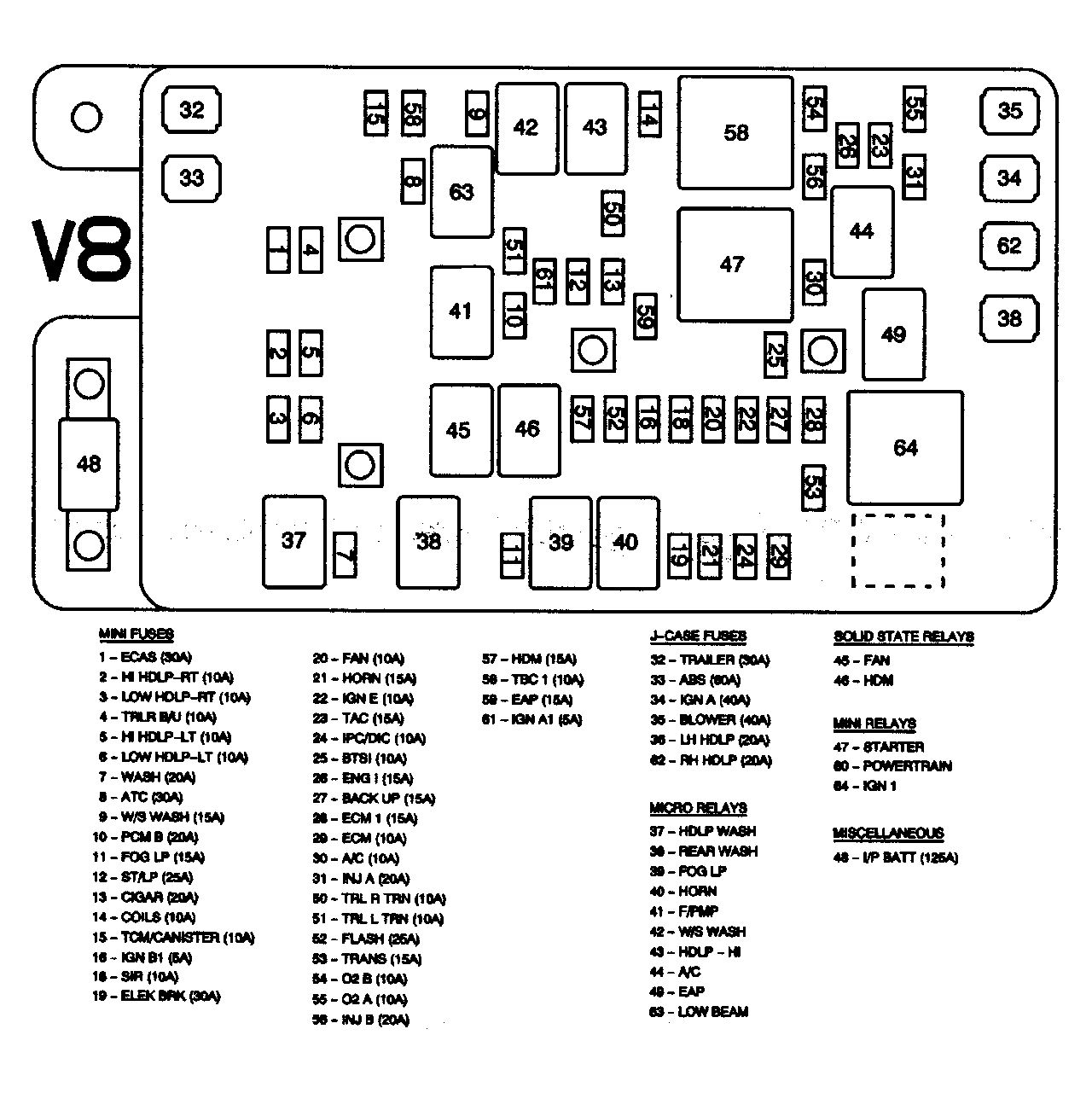

Fig 65: Fuse Block - Underhood (5.3L)

G00363717

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 66: Fuse Block - Rear

G00363718

Courtesy of SAAB-SCANIA OF AMERICA, INC.

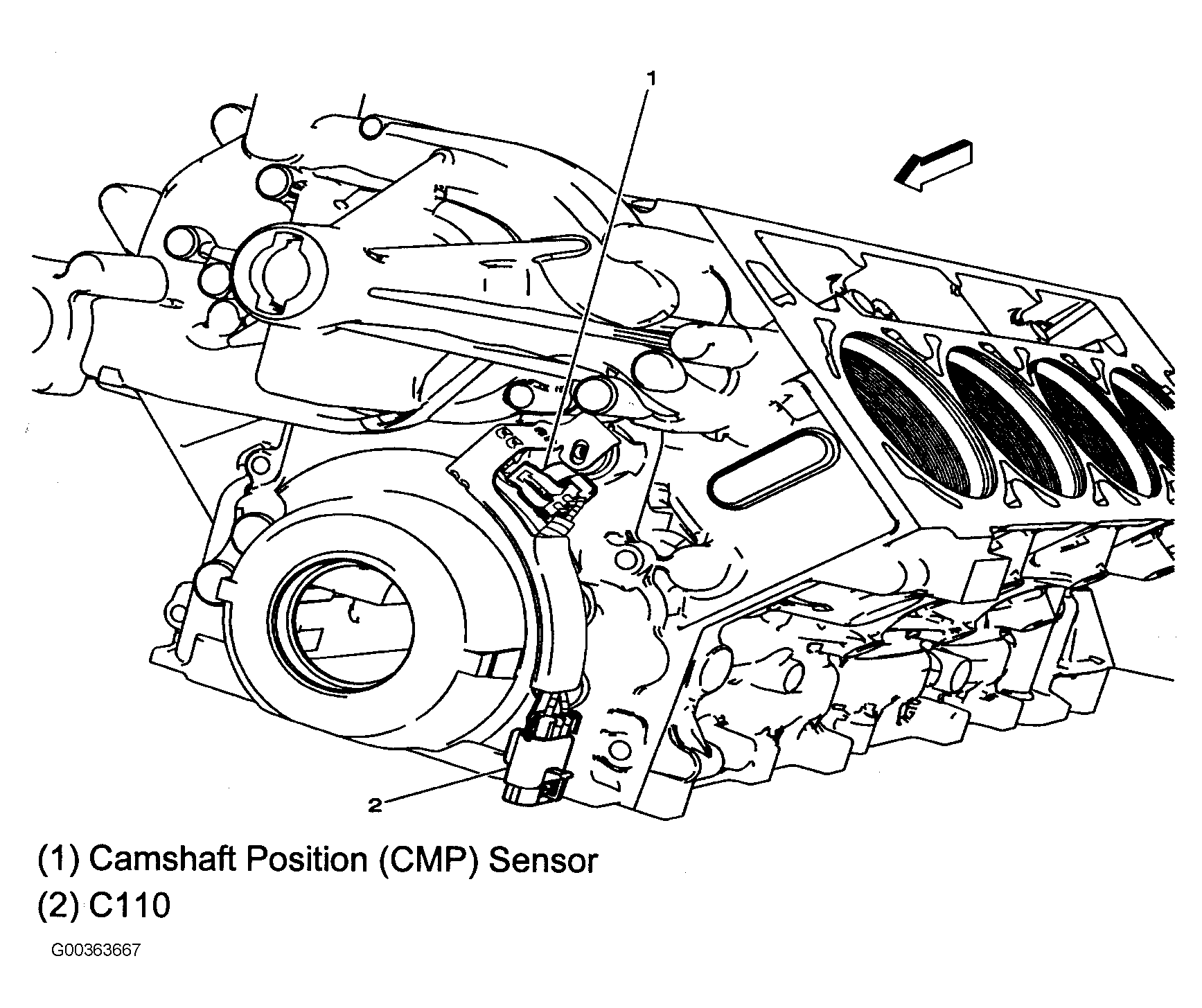

Fig 67: Front Of Engine (5.3L)

G00363667

Courtesy of SAAB-SCANIA OF AMERICA, INC.

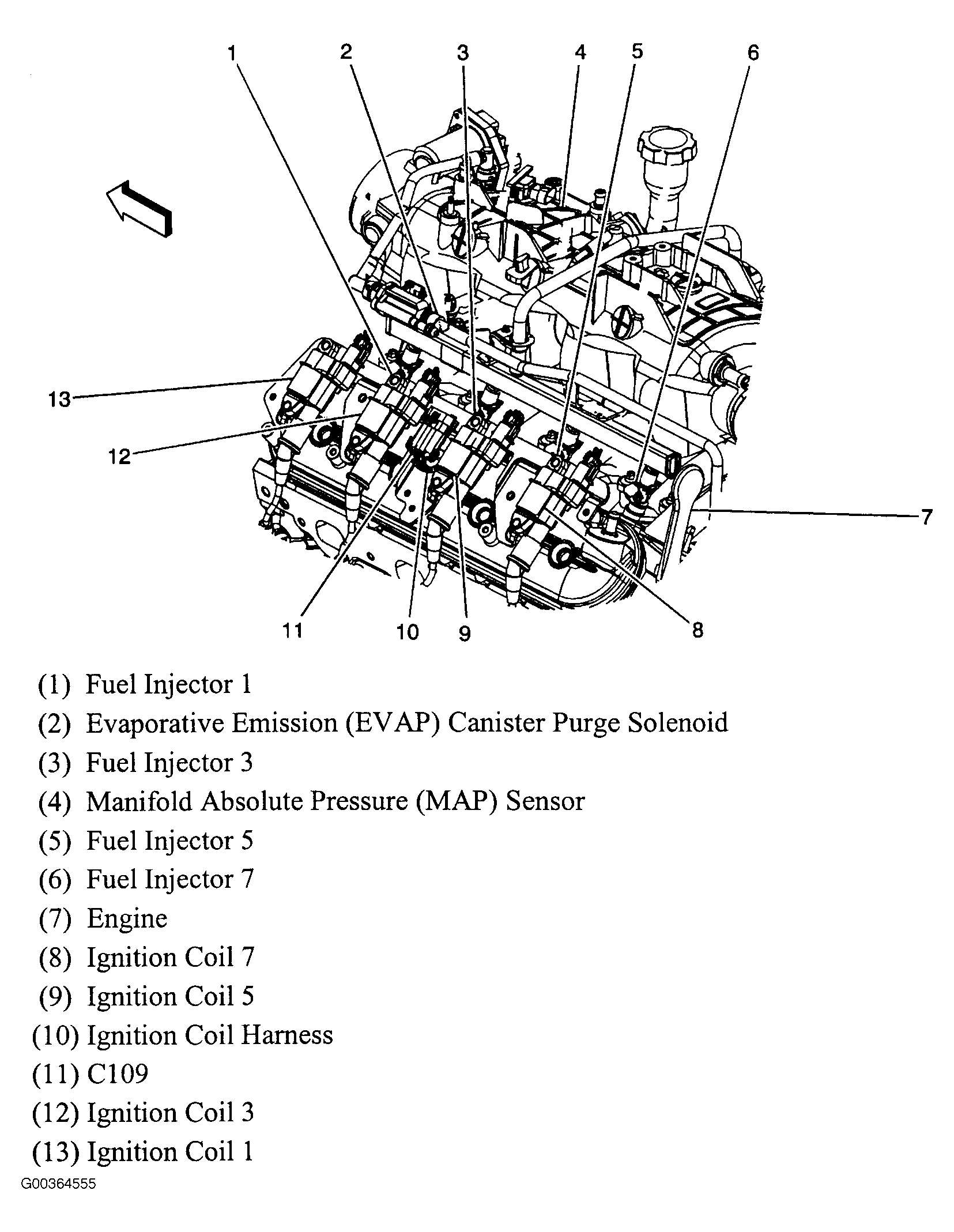

Fig 68: Upper Left Side Of Engine (5.3L)

G00364555

Courtesy of SAAB-SCANIA OF AMERICA, INC.

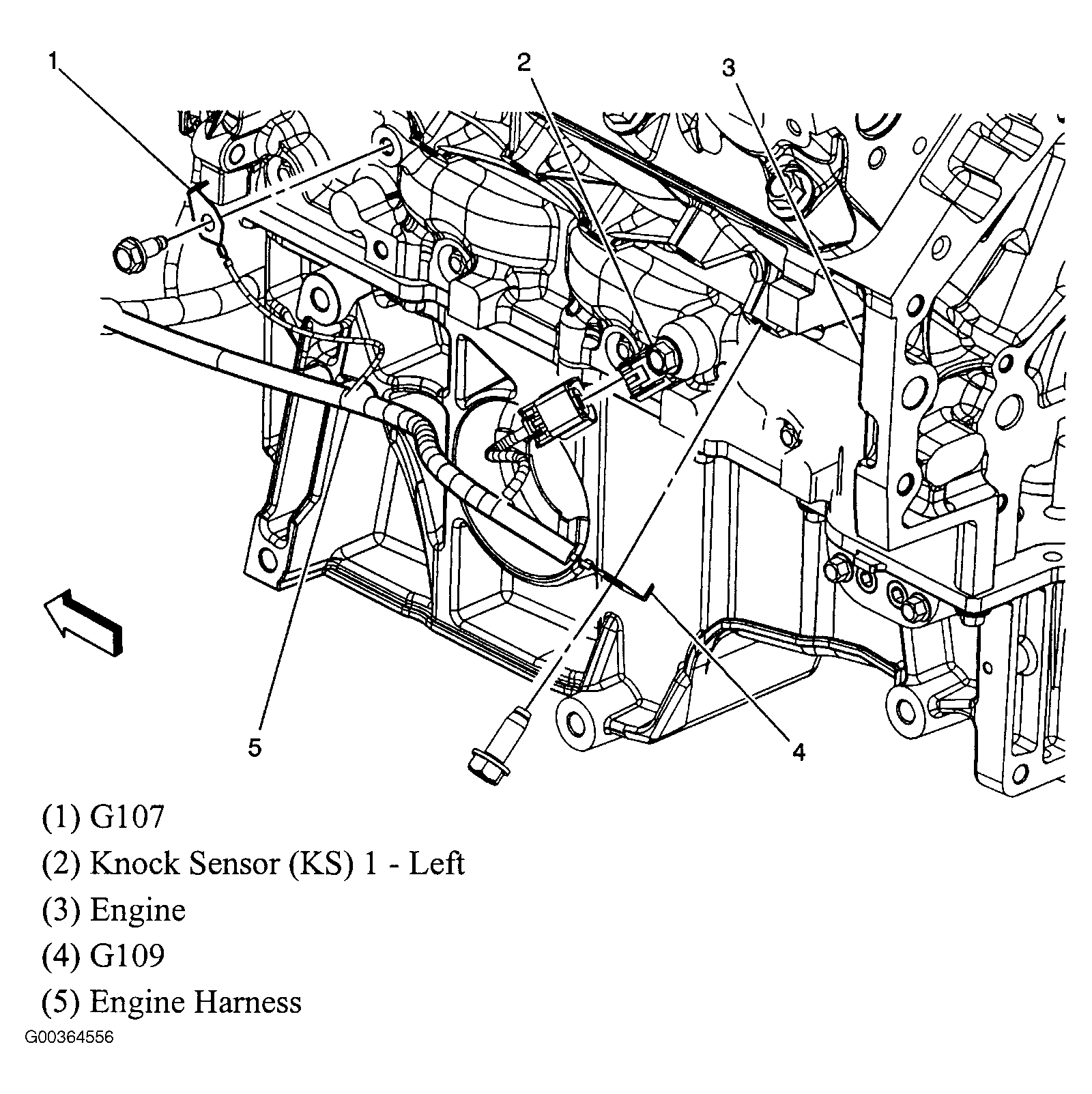

Fig 69: Rear Lower Left Side Of Engine (5.3L)

G00364556

Courtesy of SAAB-SCANIA OF AMERICA, INC.

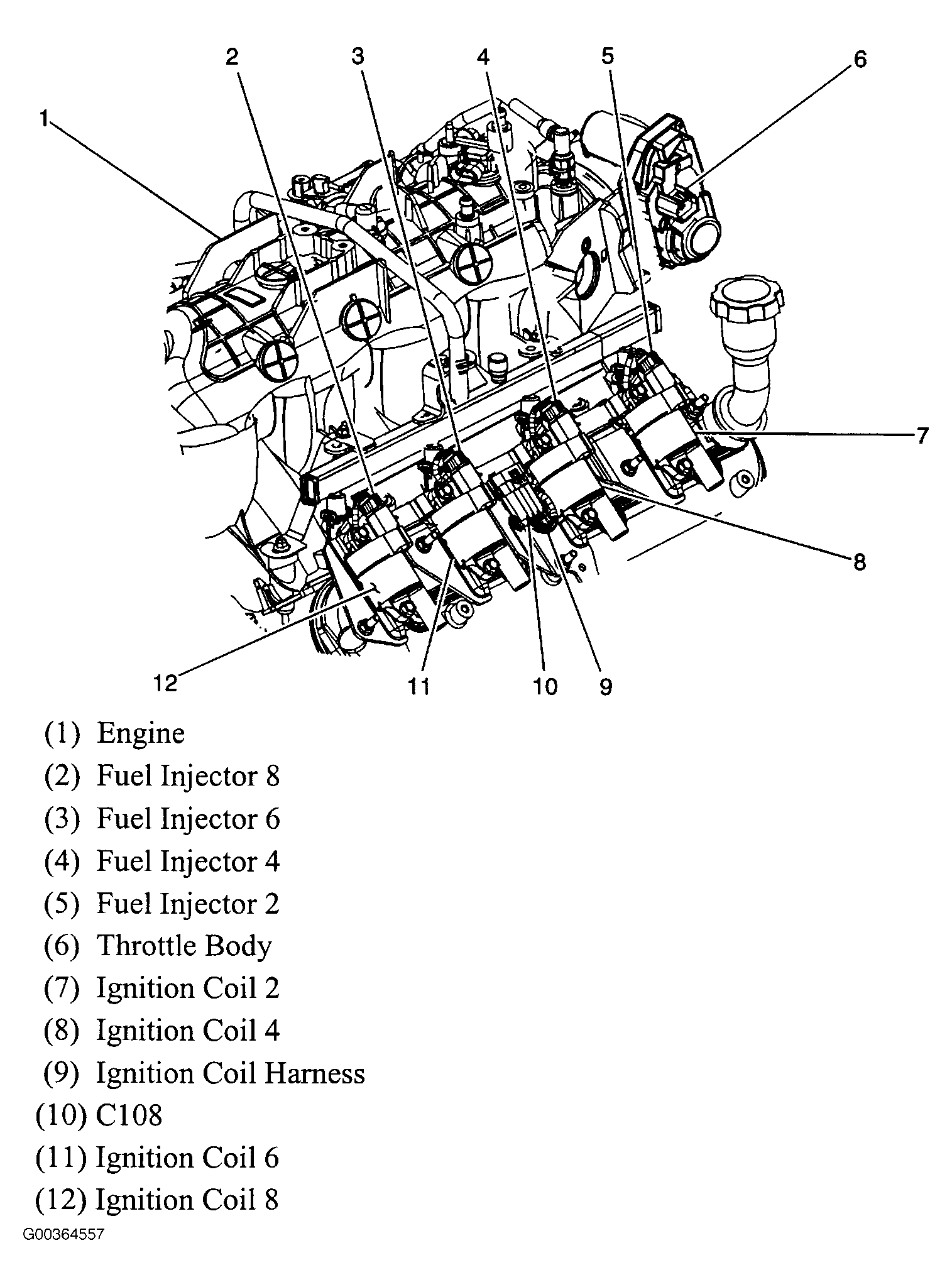

Fig 70: Upper Right Side Of Engine (5.3L)

G00364557

Courtesy of SAAB-SCANIA OF AMERICA, INC.

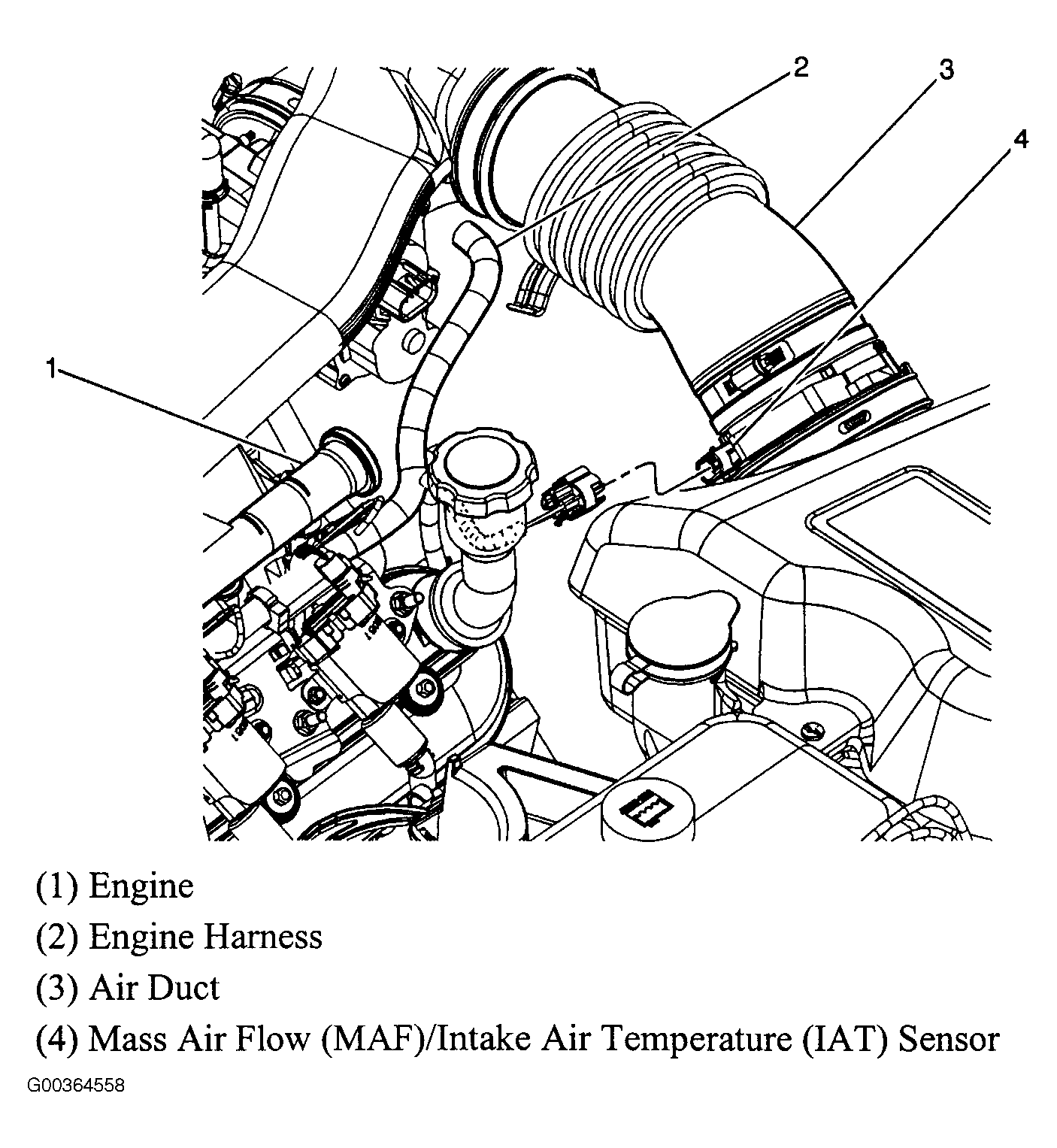

Fig 71: Upper Right Side Of Engine (5.3L)

G00364558

Courtesy of SAAB-SCANIA OF AMERICA, INC.

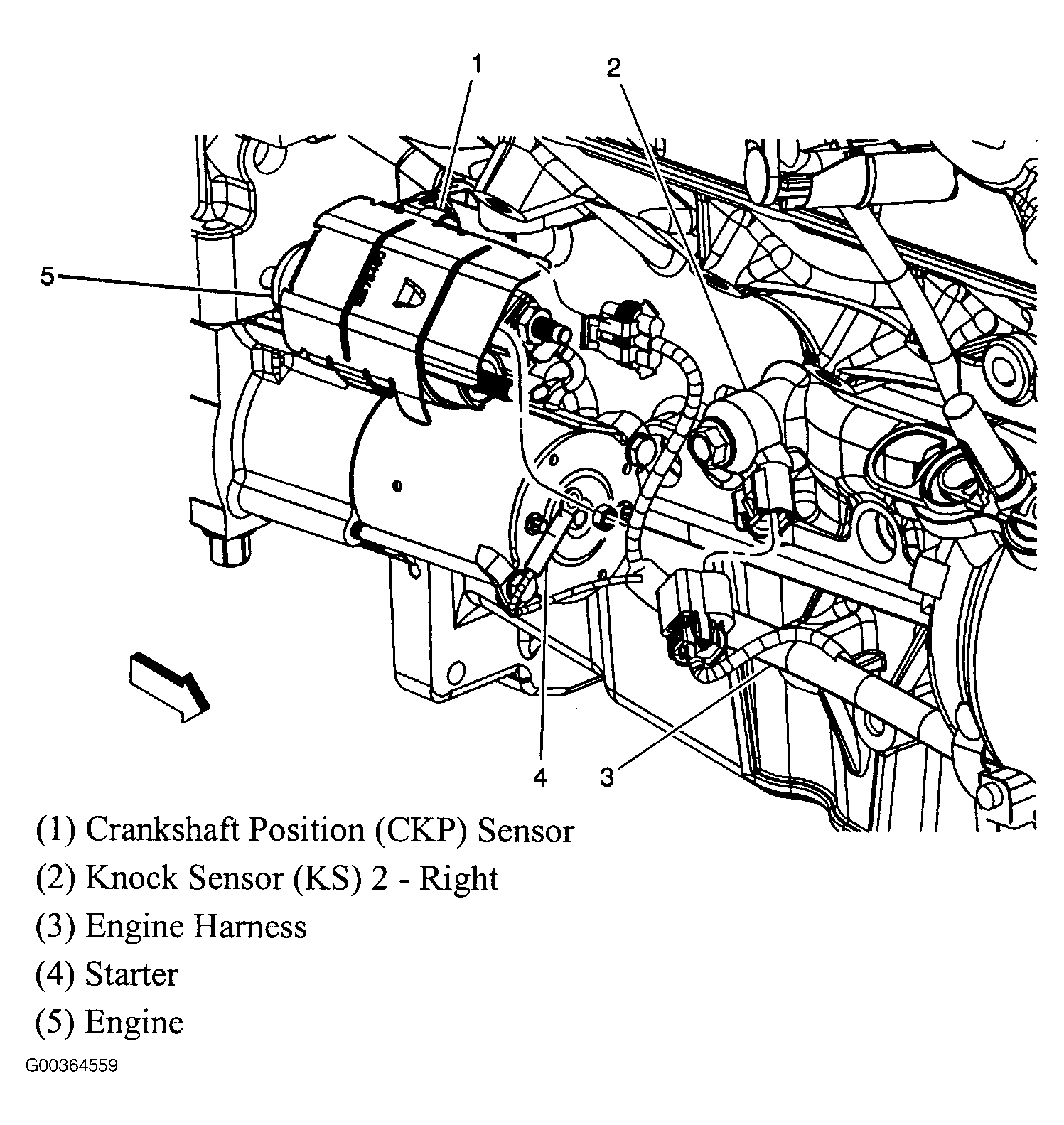

Fig 72: Lower Right Rear Of Engine (5.3L)

G00364559

Courtesy of SAAB-SCANIA OF AMERICA, INC.

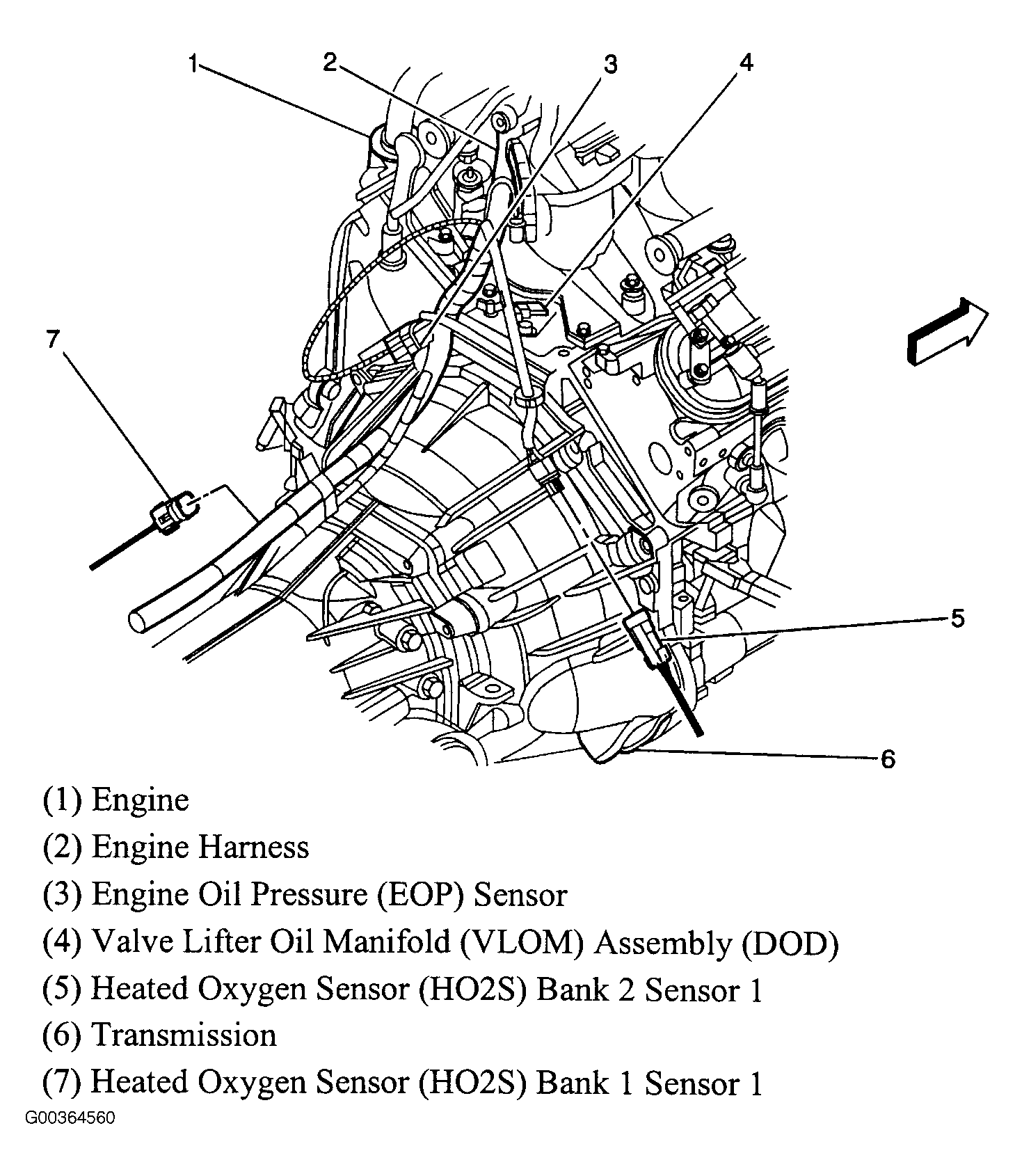

Fig 73: Rear Of Engine (5.3L)

G00364560

Courtesy of SAAB-SCANIA OF AMERICA, INC.

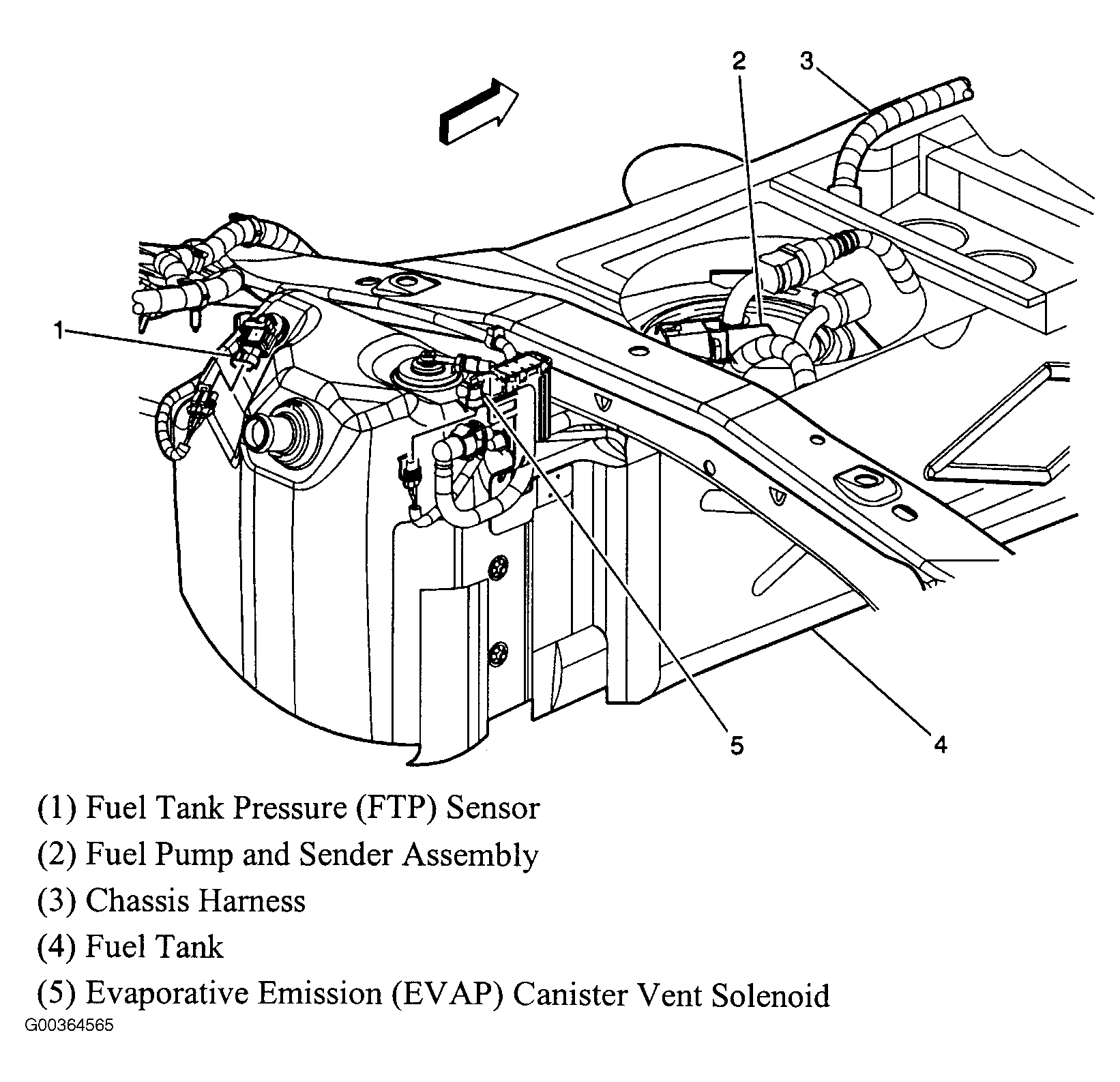

Fig 74: Fuel Tank

G00364565

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 75: Upper Left Side Of Engine (4.2L)

G00364567

Courtesy of SAAB-SCANIA OF AMERICA, INC.

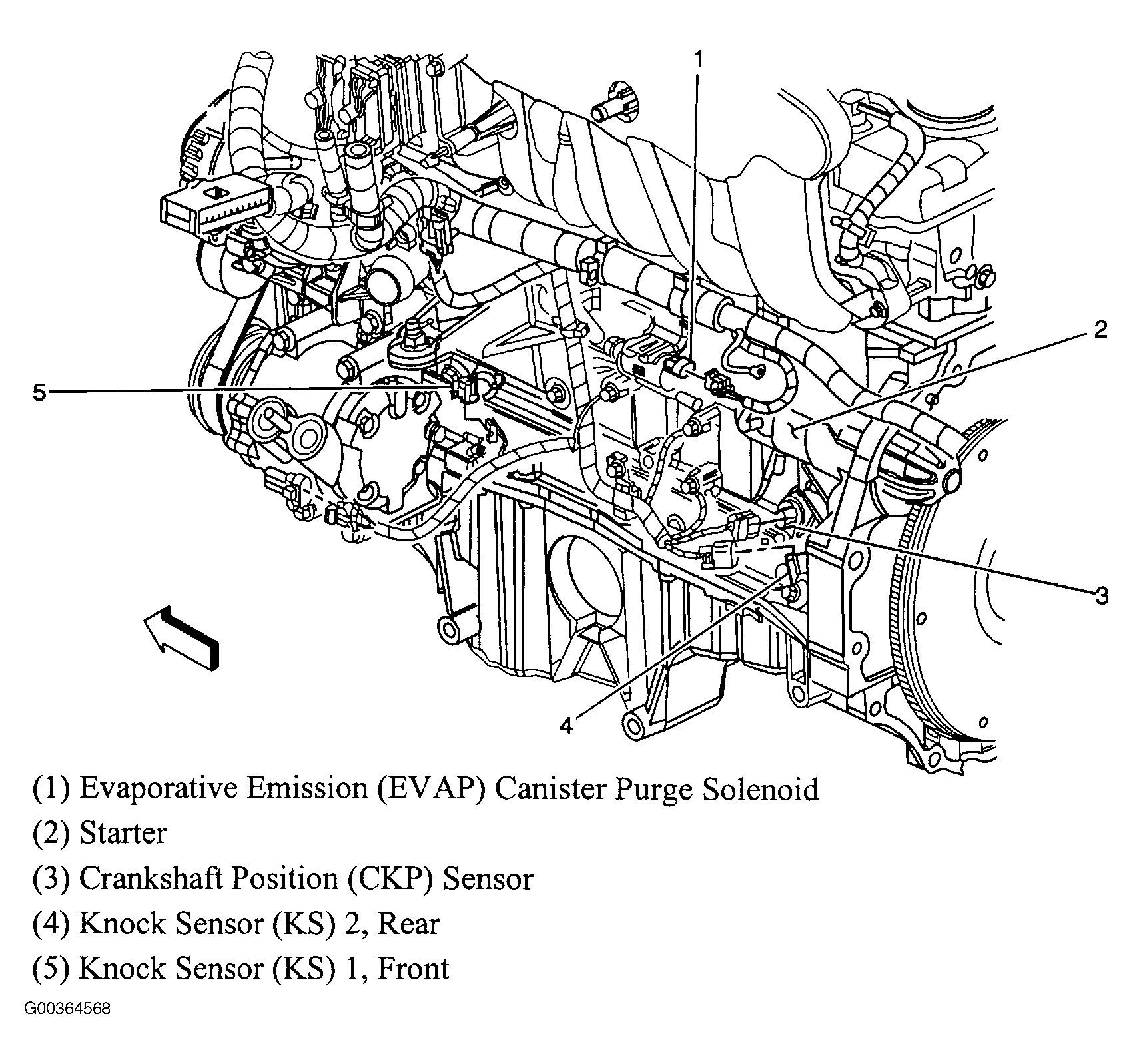

Fig 76: Lower Left Side Of Engine (4.2L)

G00364568

Courtesy of SAAB-SCANIA OF AMERICA, INC.

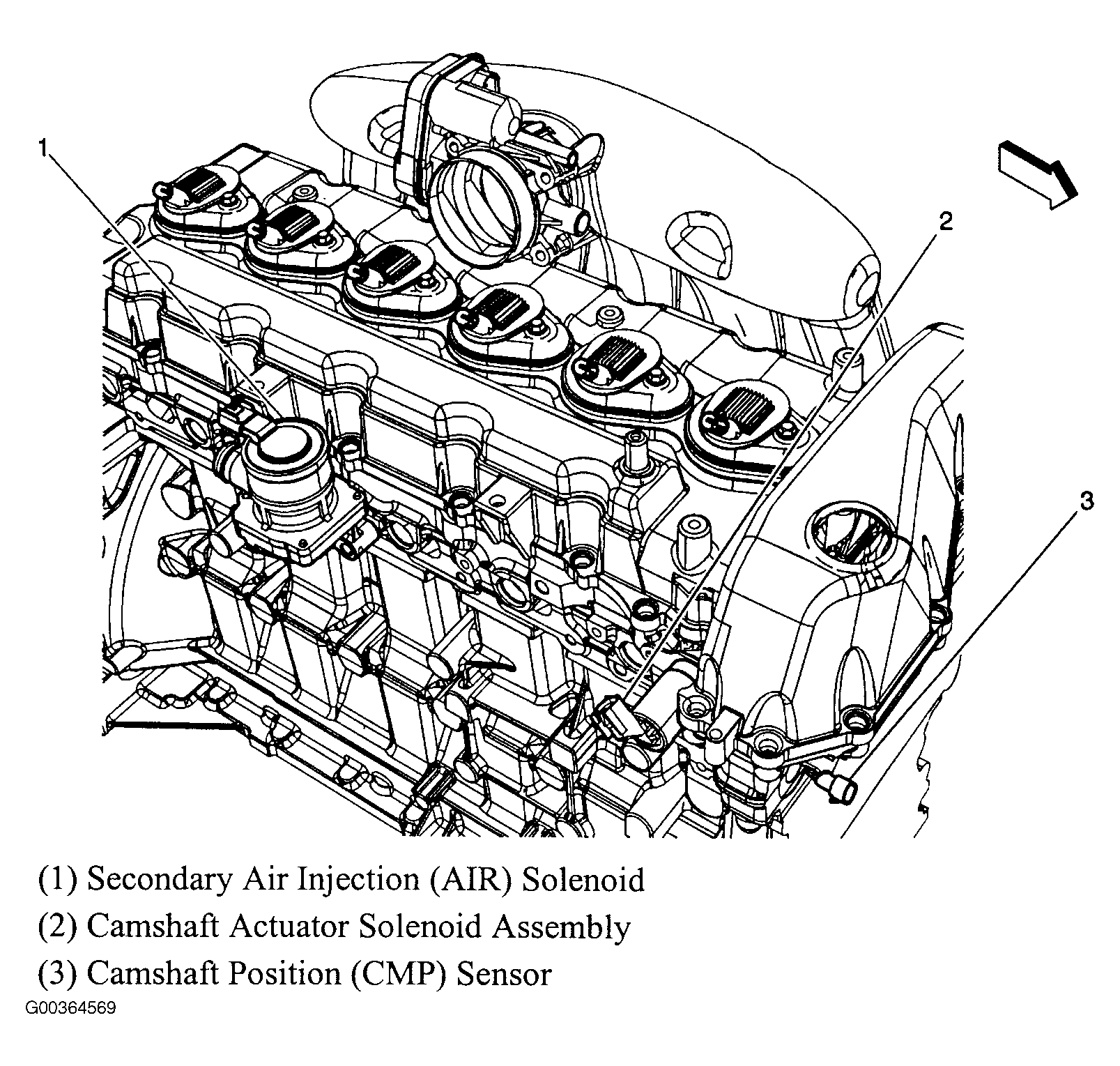

Fig 77: Upper Right Side Of Engine (4.2L)

G00364569

Courtesy of SAAB-SCANIA OF AMERICA, INC.

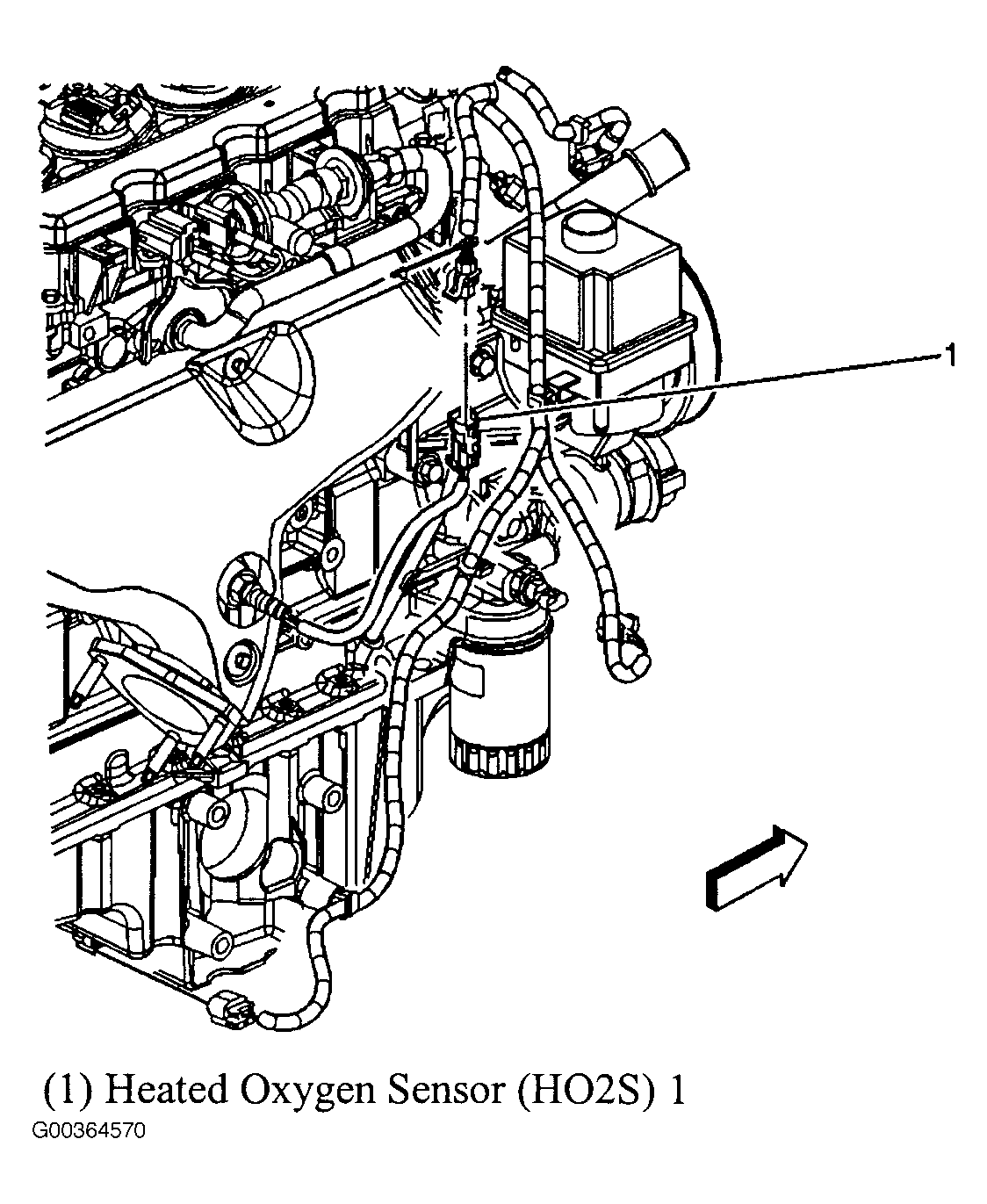

Fig 78: Lower Right Side Of Engine (4.2L)

G00364570

Courtesy of SAAB-SCANIA OF AMERICA, INC.

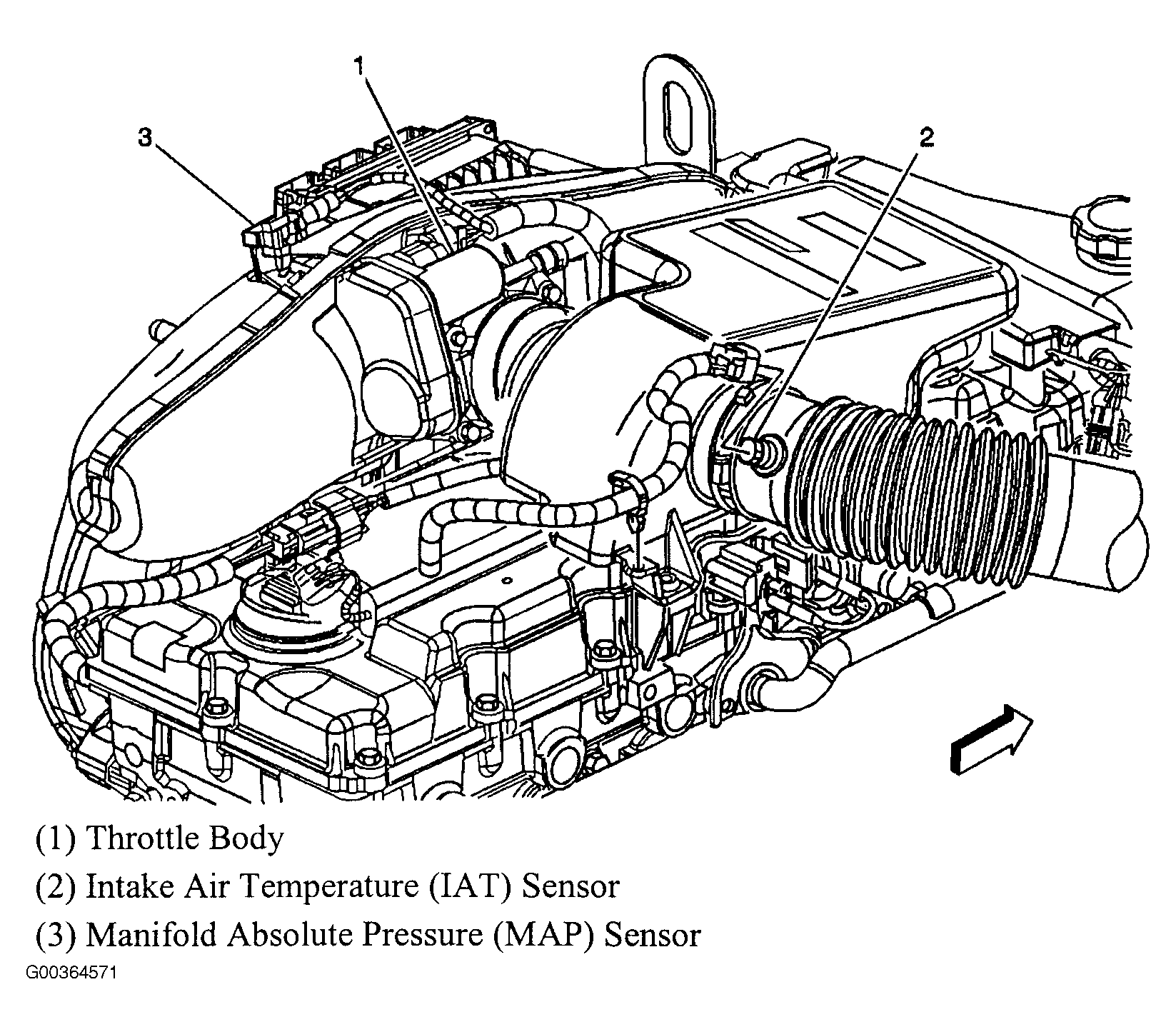

Fig 79: Upper Right Side Of Engine (4.2L)

G00364571

Courtesy of SAAB-SCANIA OF AMERICA, INC.

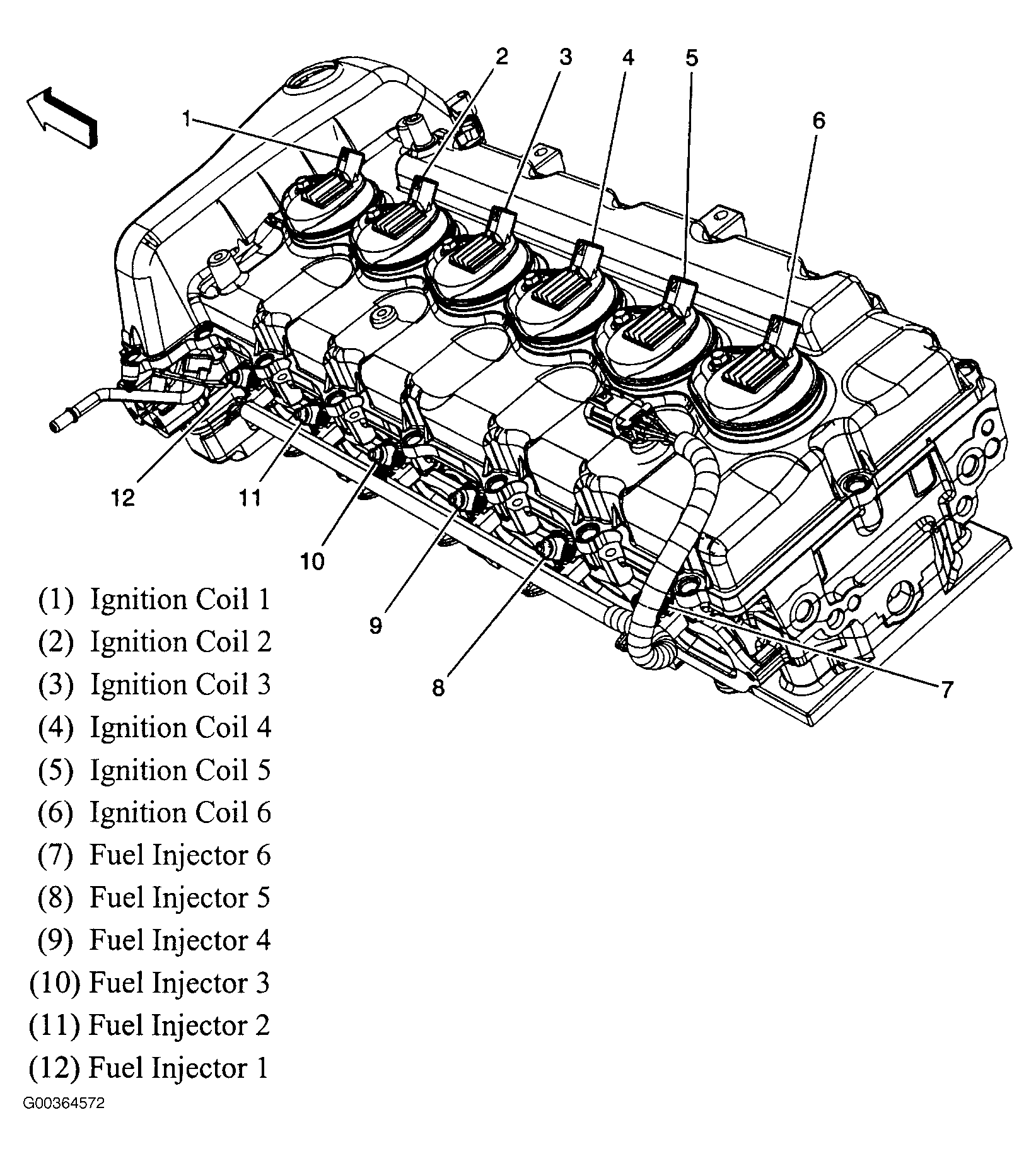

Fig 80: Top Of Engine (4.2L)

G00364572

Courtesy of SAAB-SCANIA OF AMERICA, INC.

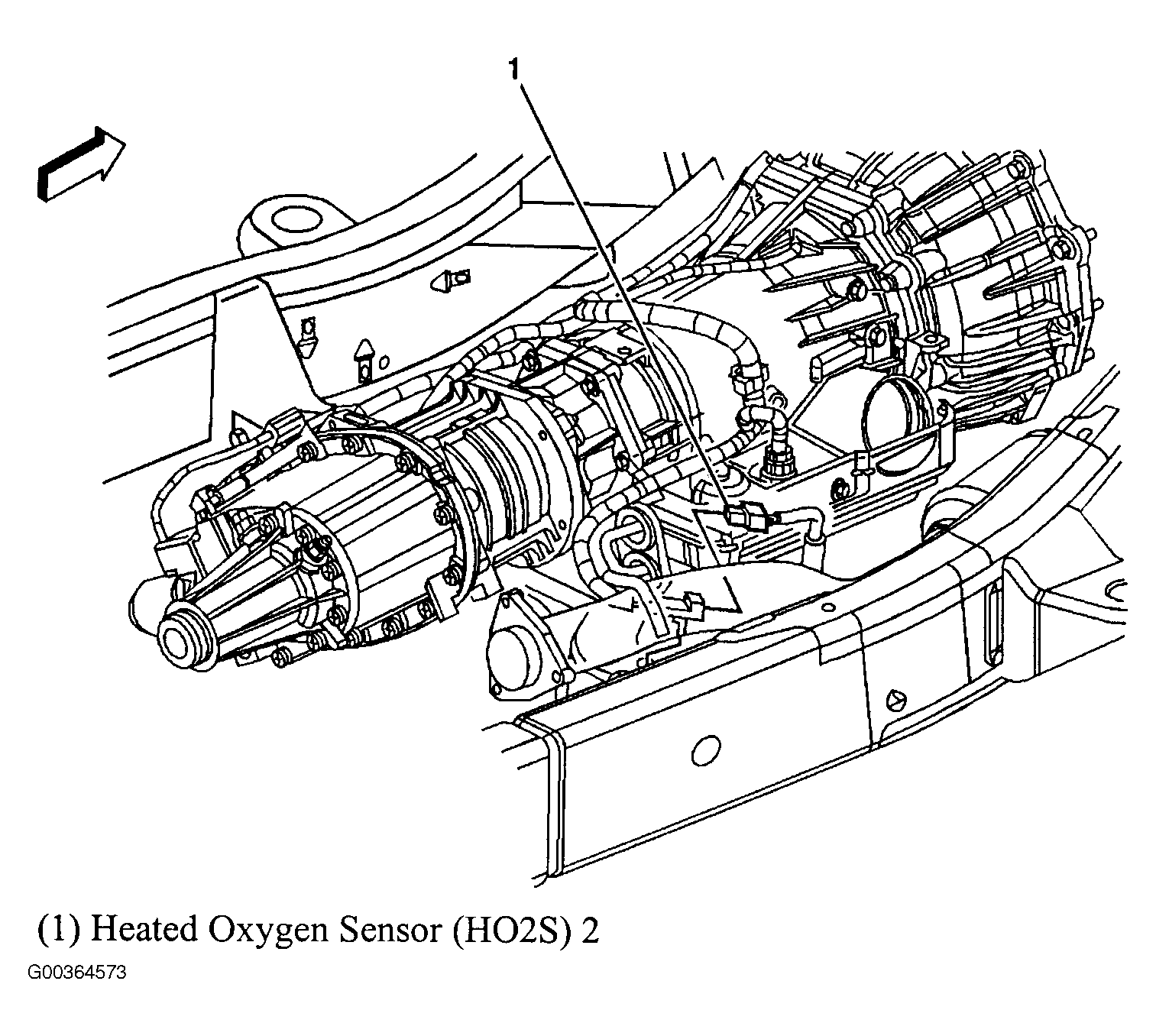

Fig 81: Right Side Of Transmission

G00364573

Courtesy of SAAB-SCANIA OF AMERICA, INC.

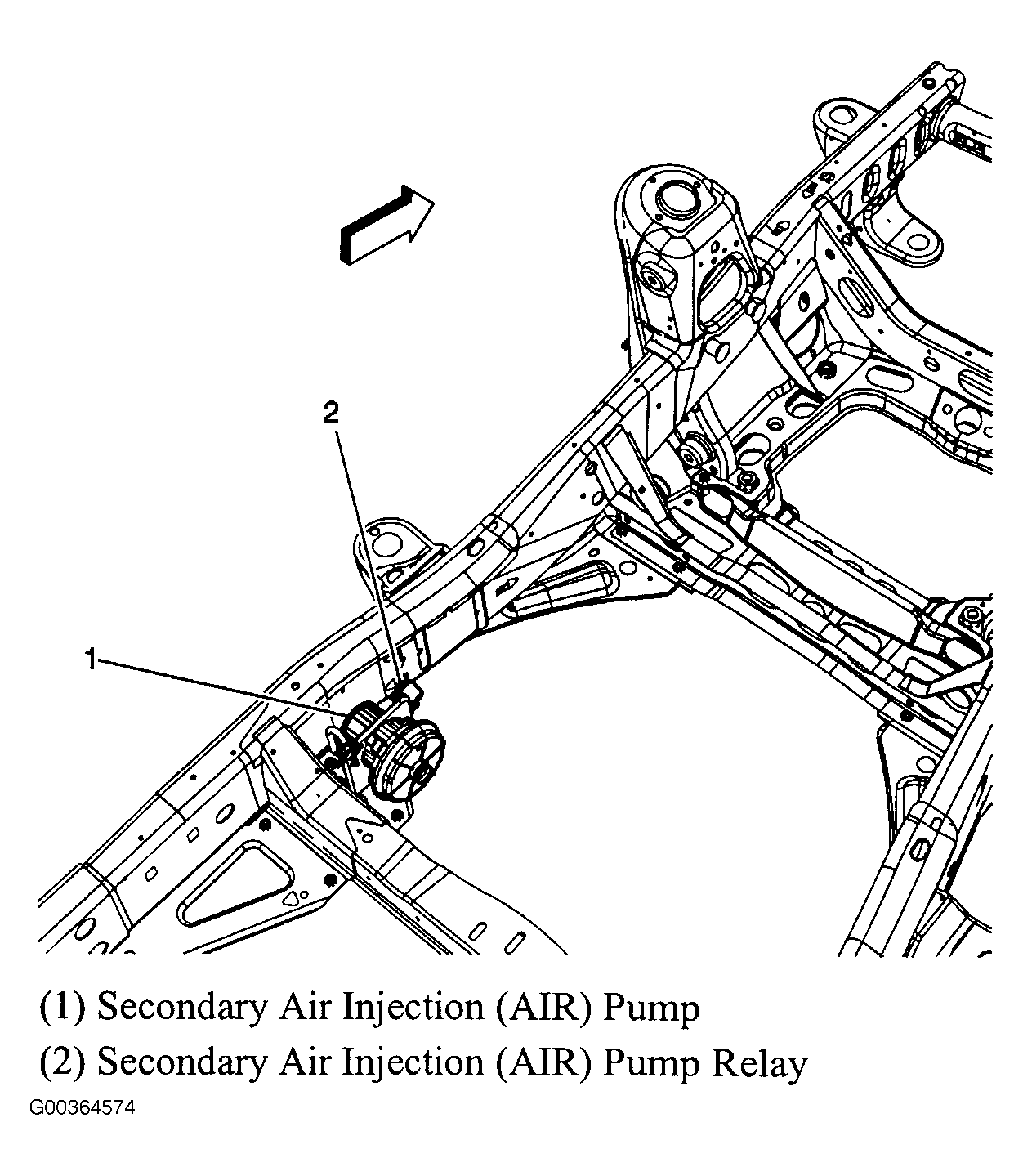

Fig 82: Left Front Of Chassis

G00364574

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 83: Front Left Frame Rail

G00363658

Courtesy of SAAB-SCANIA OF AMERICA, INC.

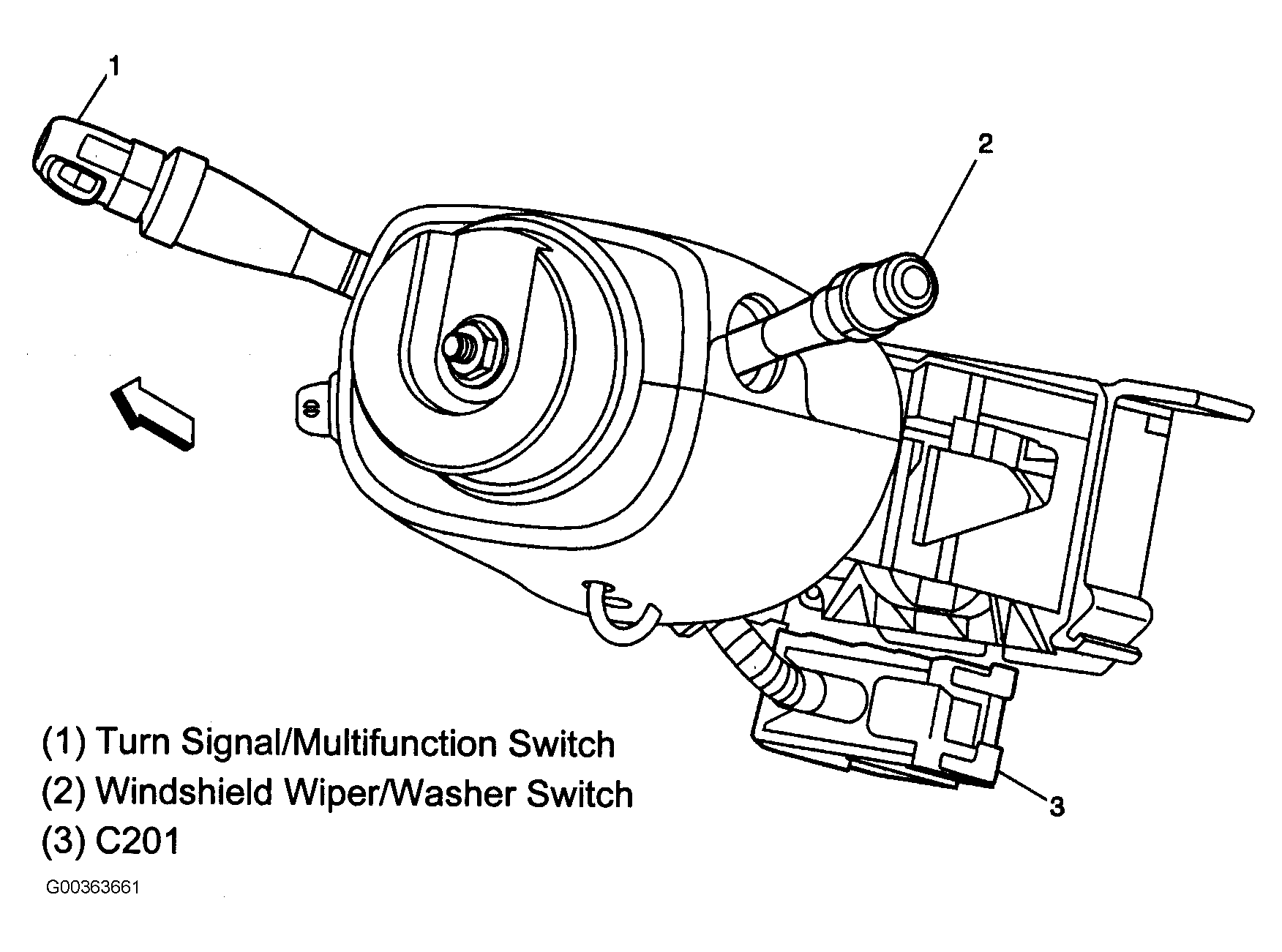

Fig 84: Steering Column

G00363661

Courtesy of SAAB-SCANIA OF AMERICA, INC.

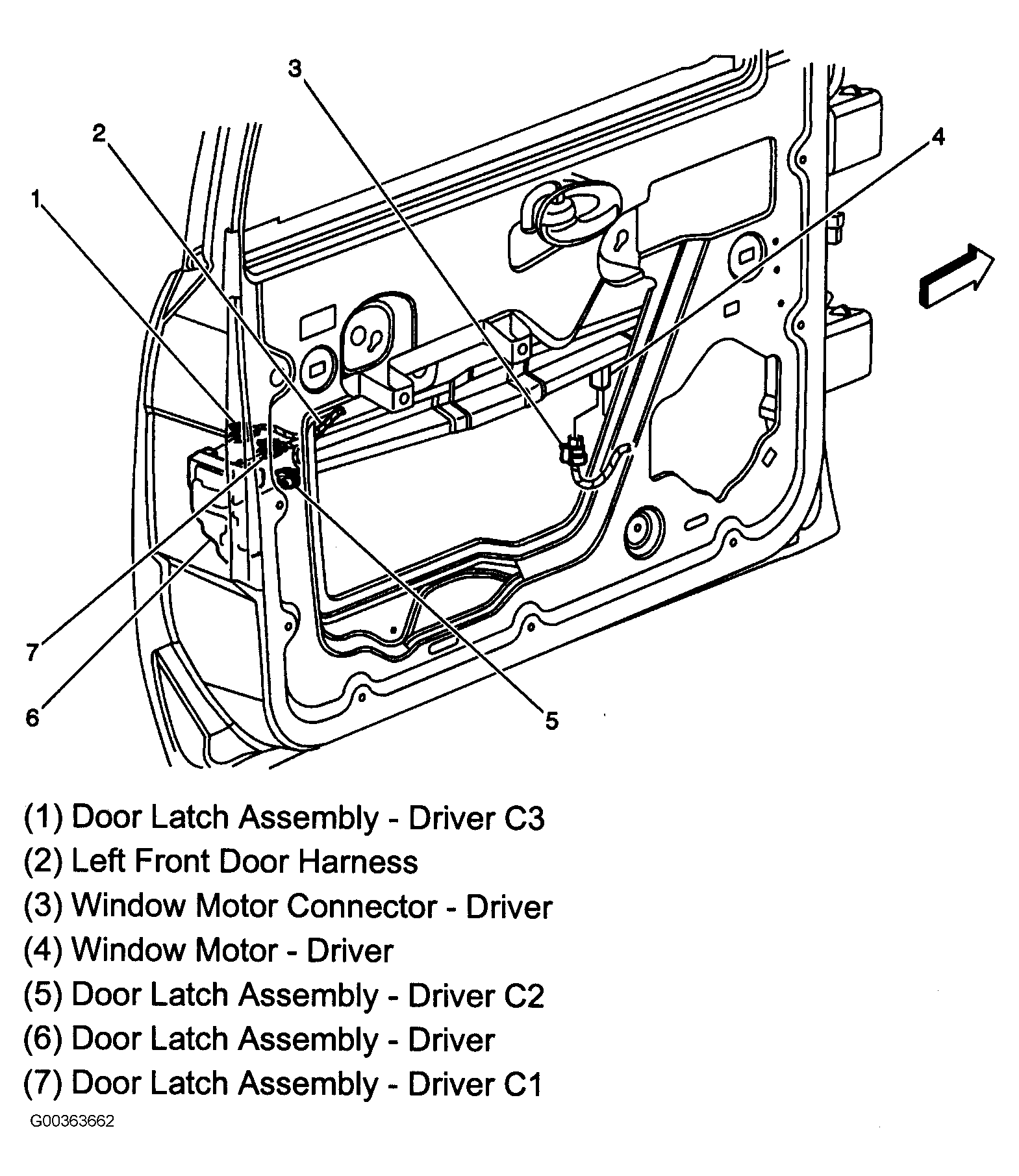

Fig 85: Driver's Door

G00363662

Courtesy of SAAB-SCANIA OF AMERICA, INC.

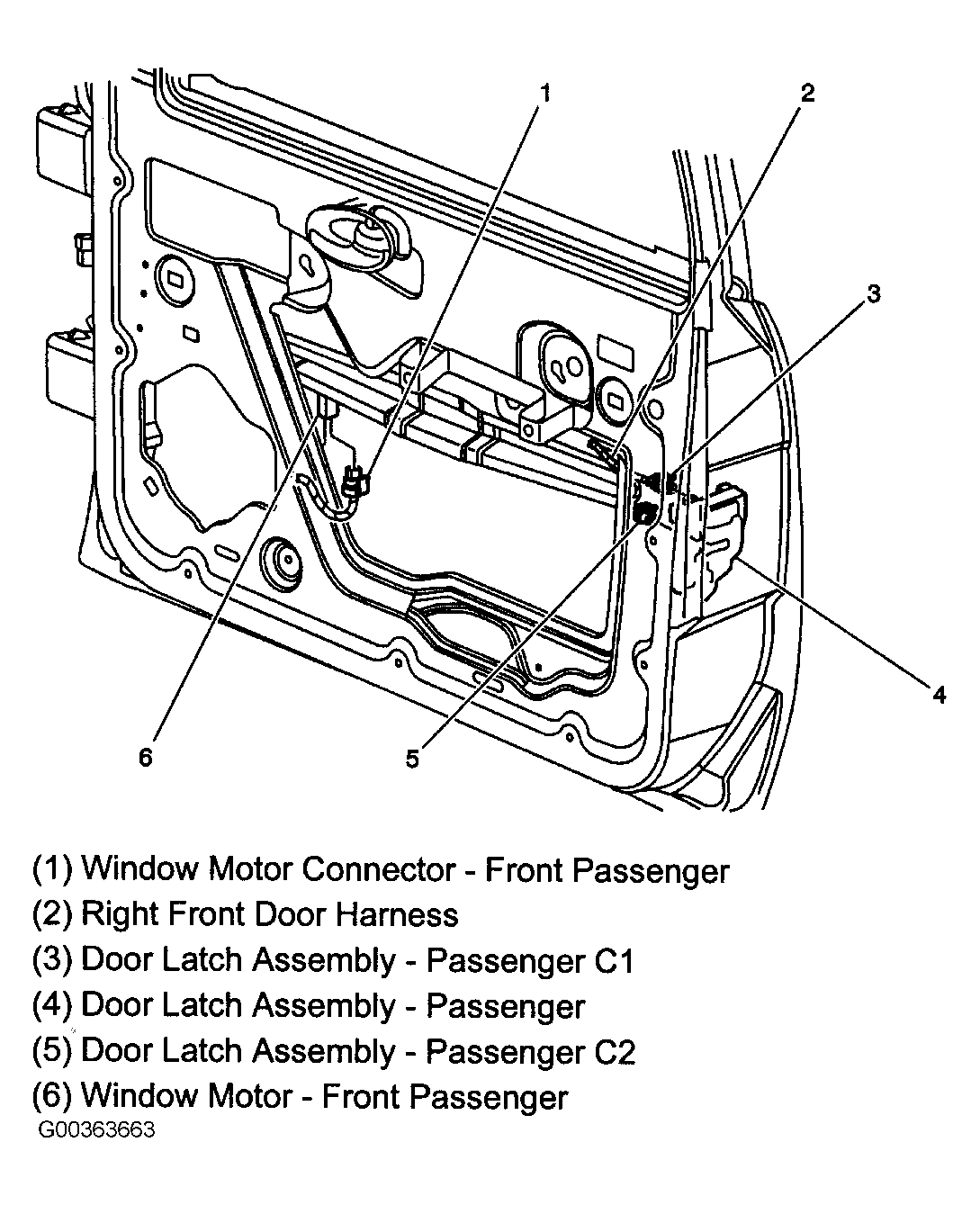

Fig 86: Front Passenger's Door

G00363663

Courtesy of SAAB-SCANIA OF AMERICA, INC.

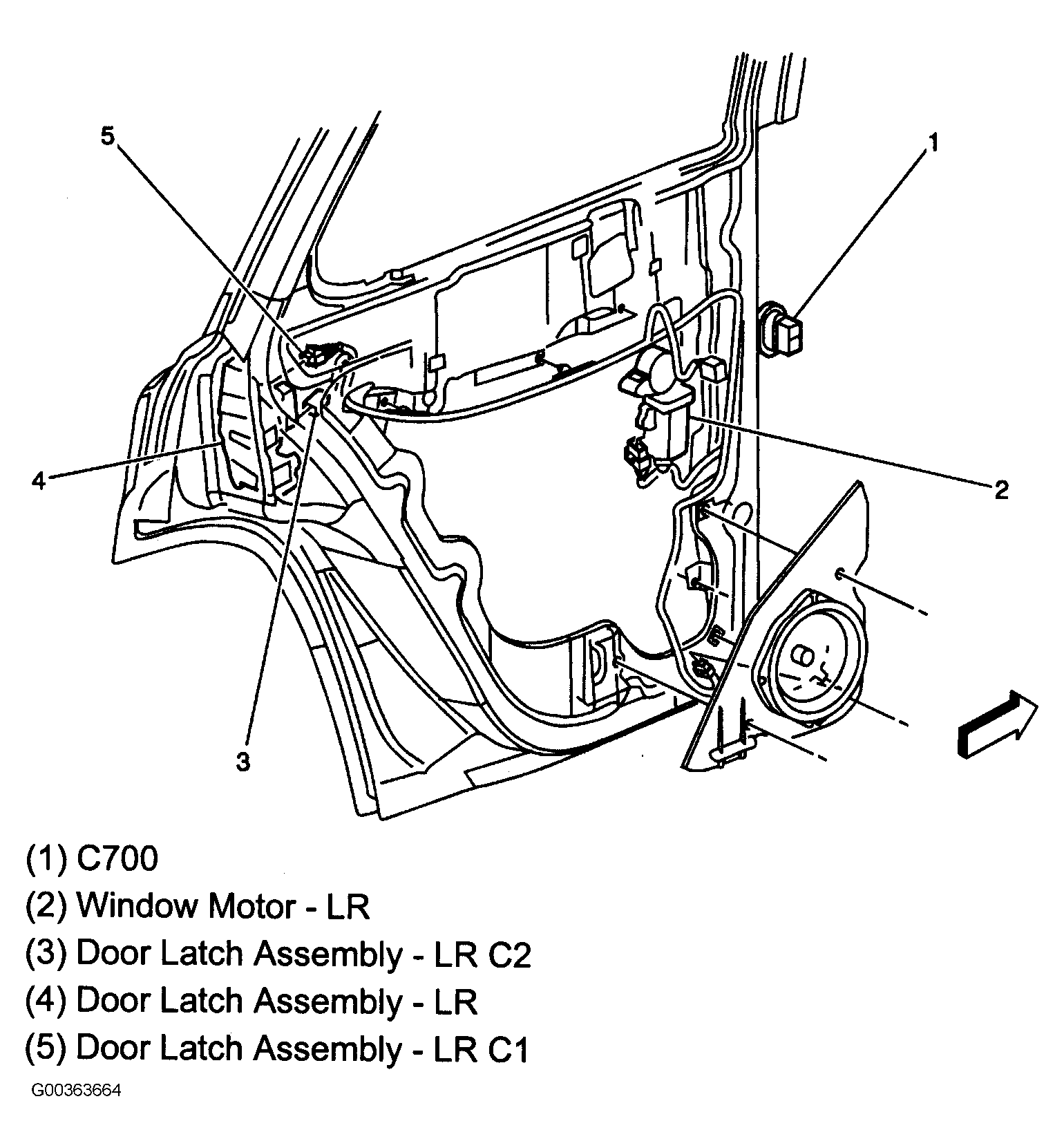

Fig 87: Left Rear Door

G00363664

Courtesy of SAAB-SCANIA OF AMERICA, INC.

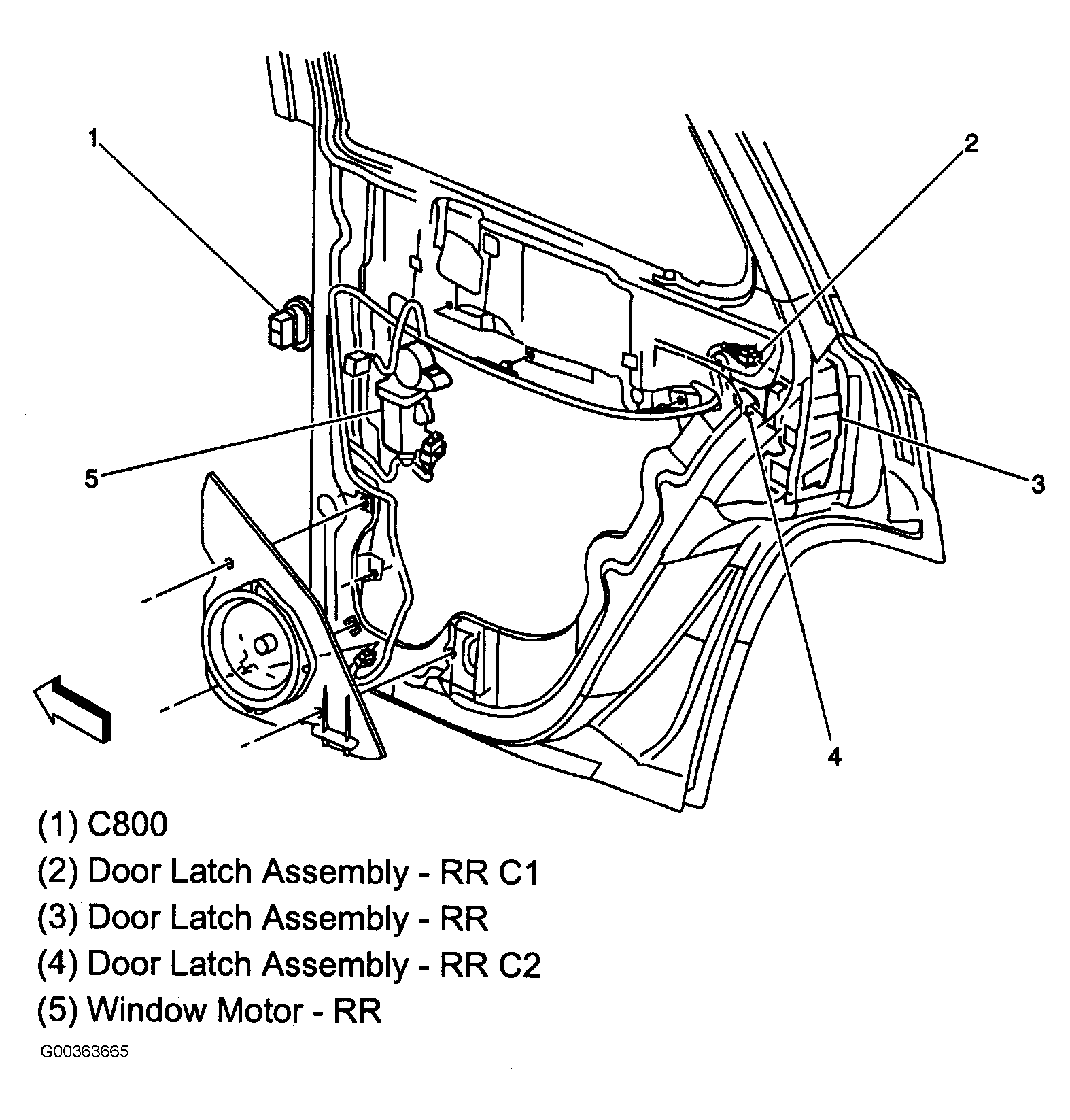

Fig 88: Right Rear Door

G00363665

Courtesy of SAAB-SCANIA OF AMERICA, INC.

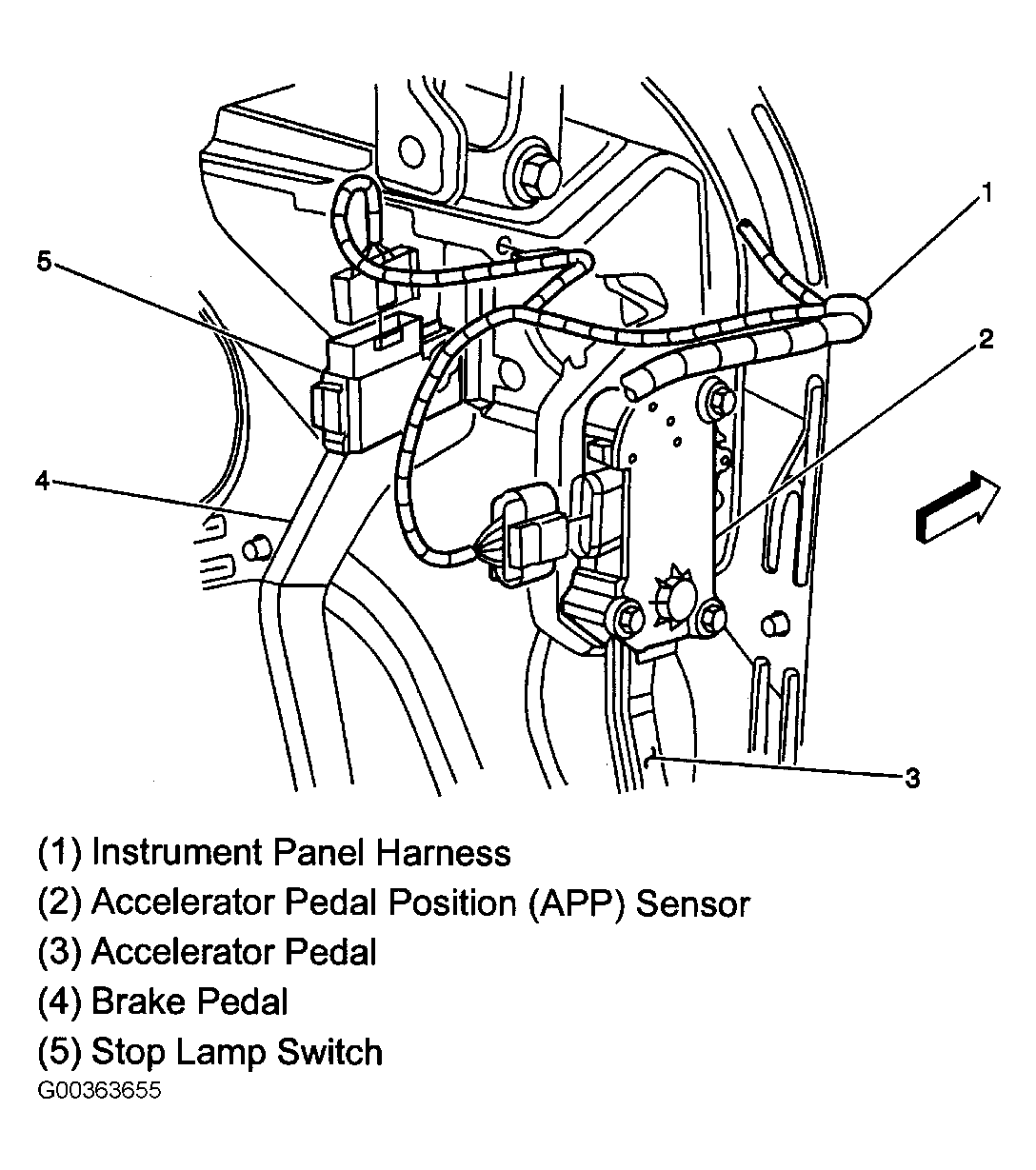

Fig 89: Under Left Side Of Dash

G00363655

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 90: Left Front Frame Rail

G00363666

Courtesy of SAAB-SCANIA OF AMERICA, INC.

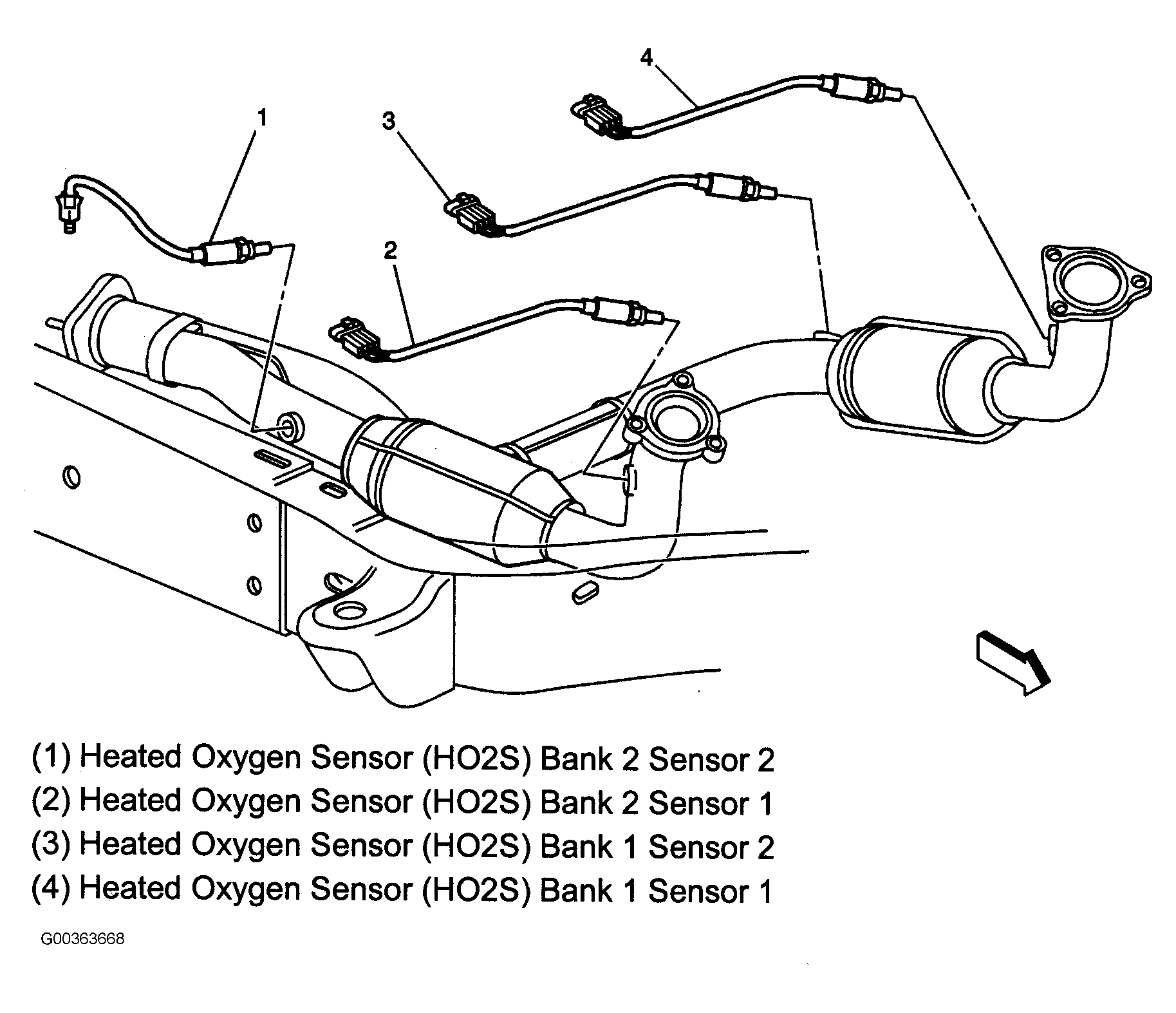

Fig 91: Below Rear Of Engine (5.3L)

G00363668

Courtesy of SAAB-SCANIA OF AMERICA, INC.

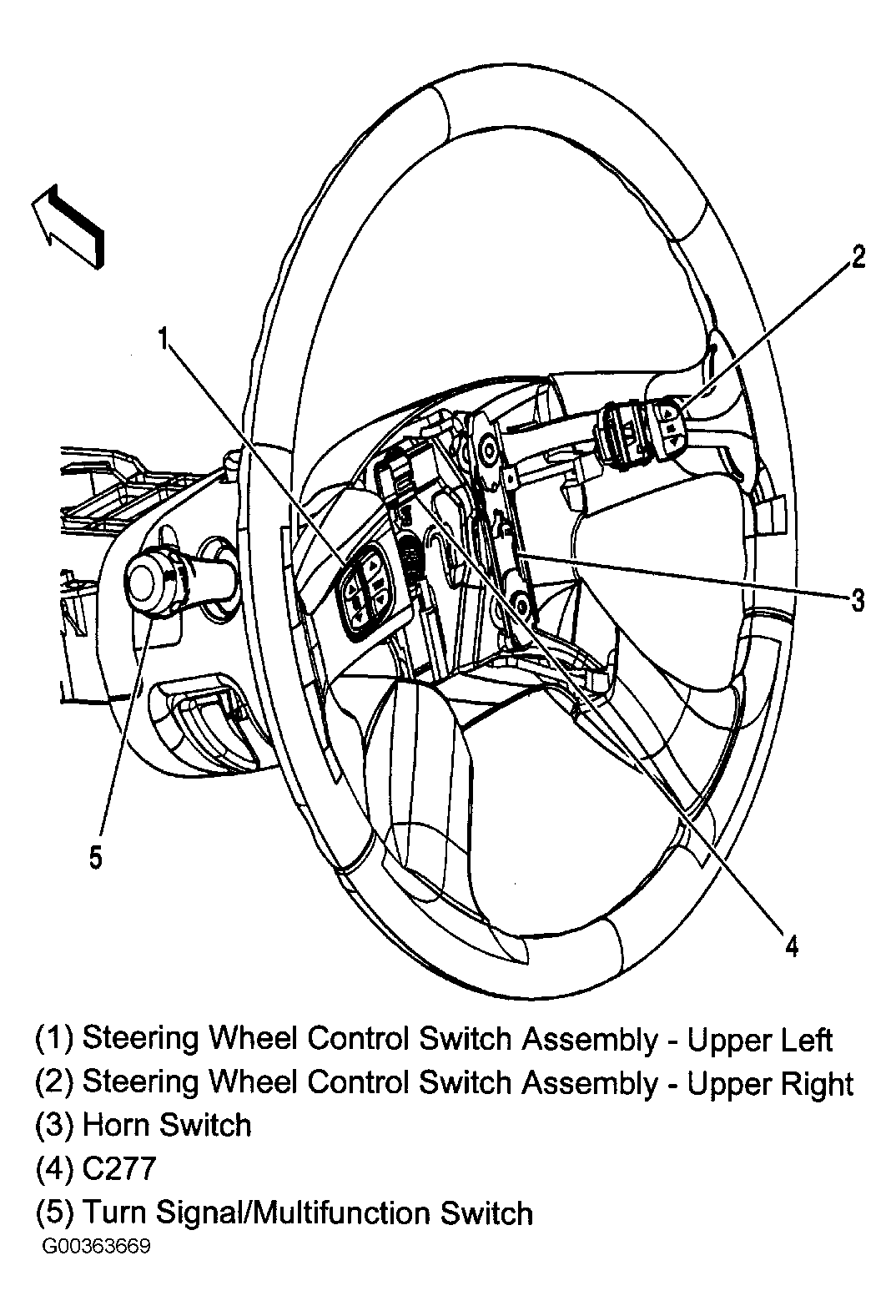

Fig 92: Steering Wheel

G00363669

Courtesy of SAAB-SCANIA OF AMERICA, INC.

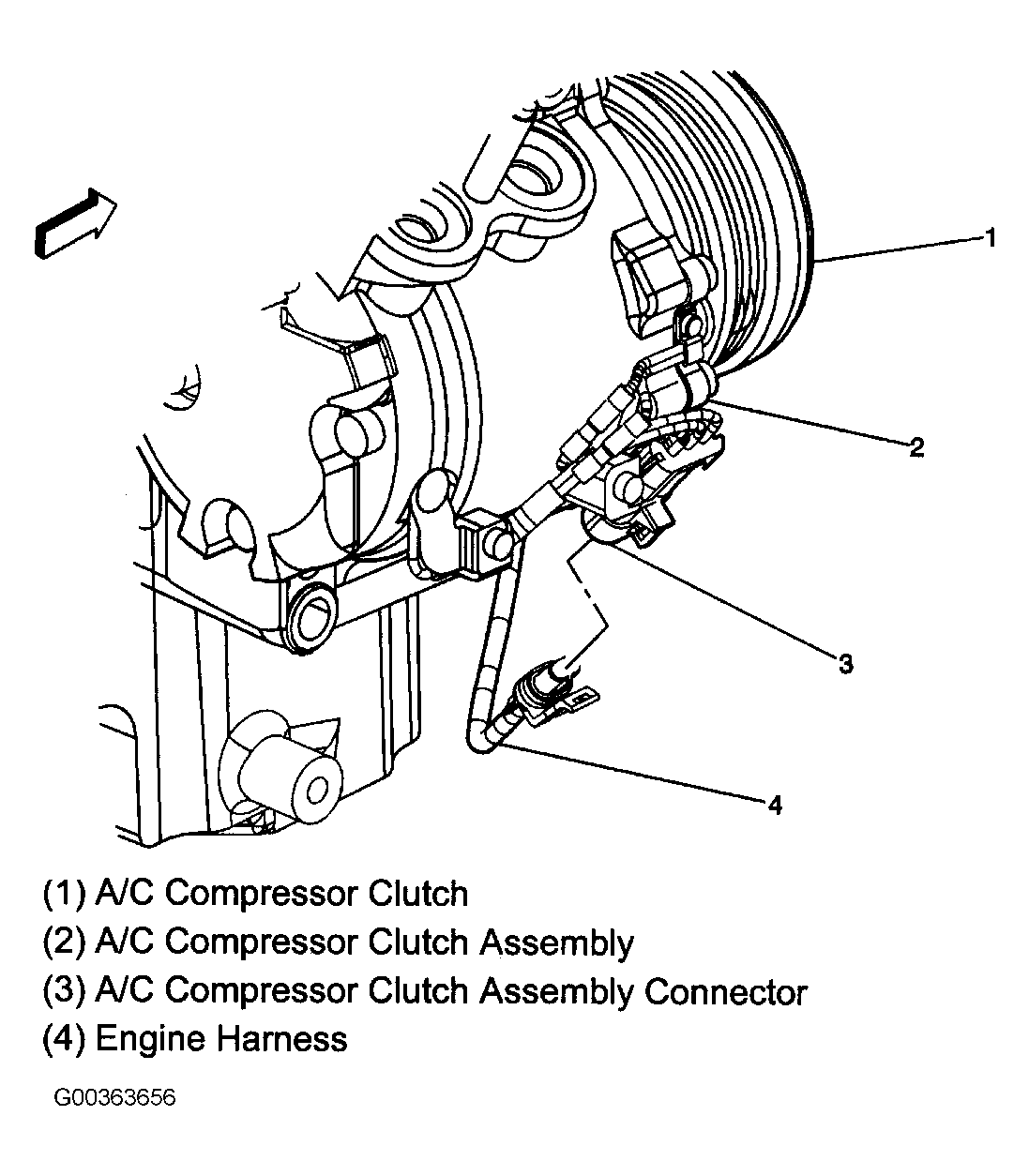

Fig 93: Lower Right Front Of Engine (5.3L)

G00363656

Courtesy of SAAB-SCANIA OF AMERICA, INC.

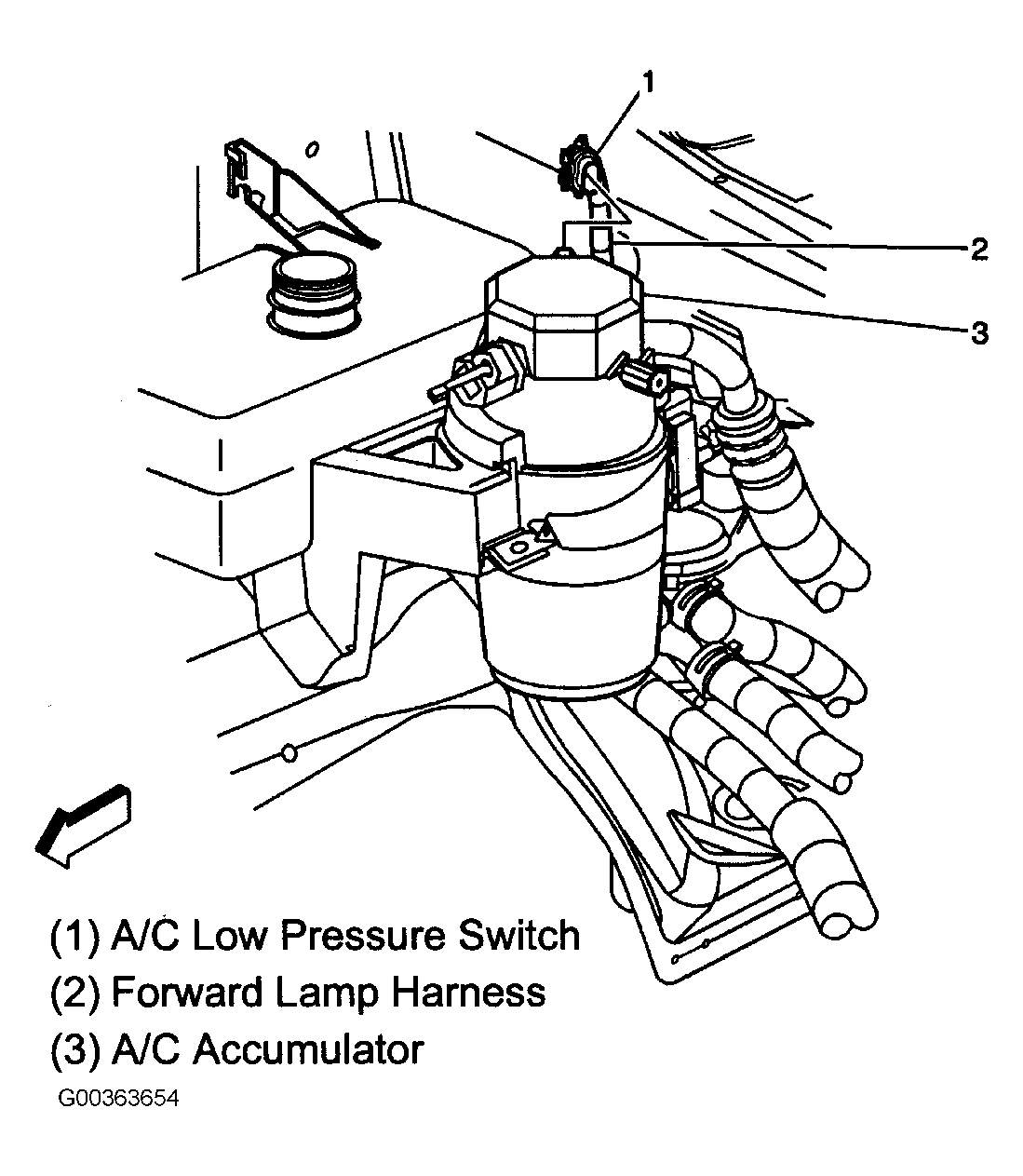

Fig 94: Rear Of Engine Compartment

G00363654

Courtesy of SAAB-SCANIA OF AMERICA, INC.

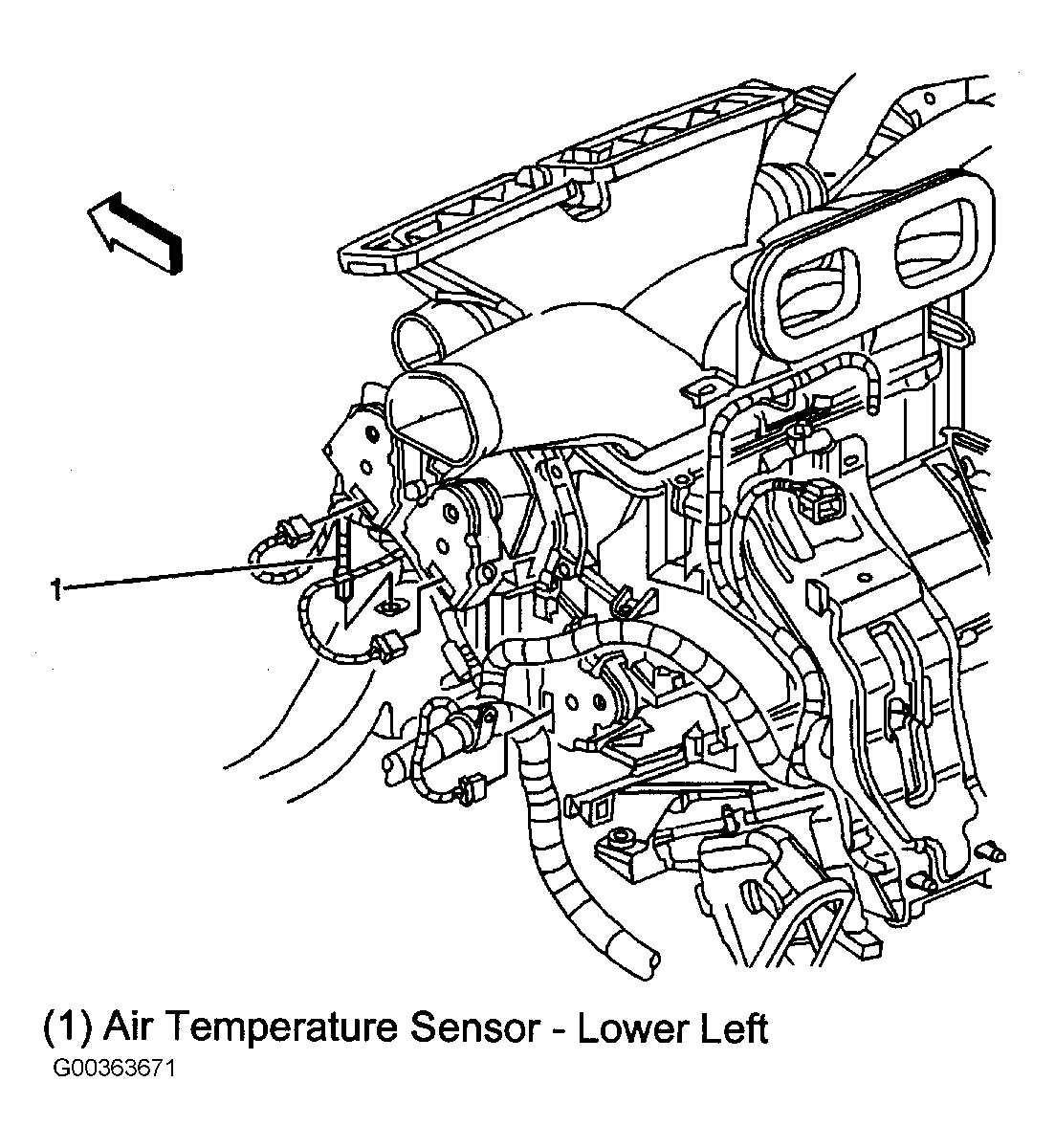

Fig 95: Behind Center Of Dash

G00363671

Courtesy of SAAB-SCANIA OF AMERICA, INC.

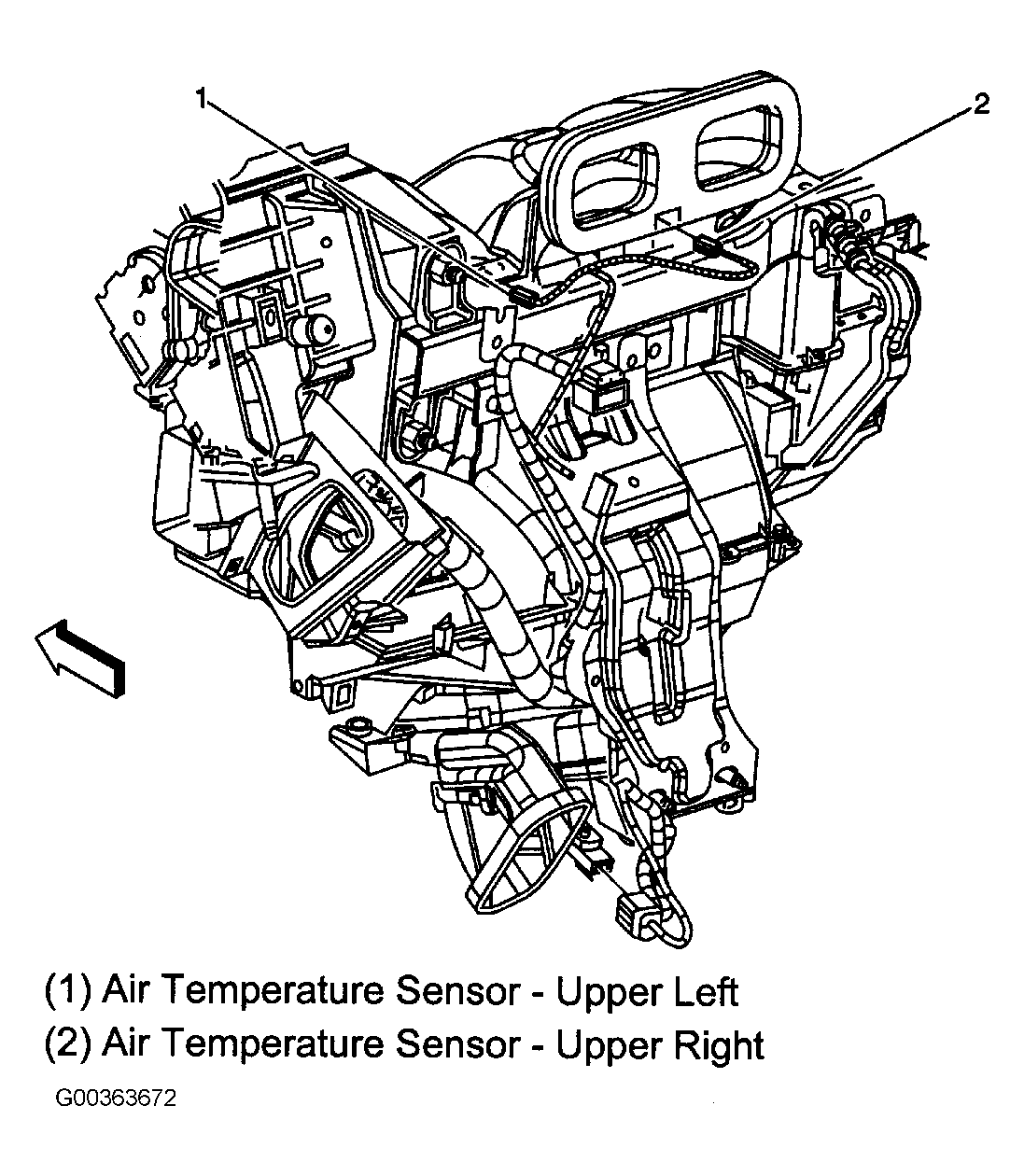

Fig 96: Behind Center Of Dash

G00363672

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 97: Below Right Side Of Dash

G00363673

Courtesy of SAAB-SCANIA OF AMERICA, INC.

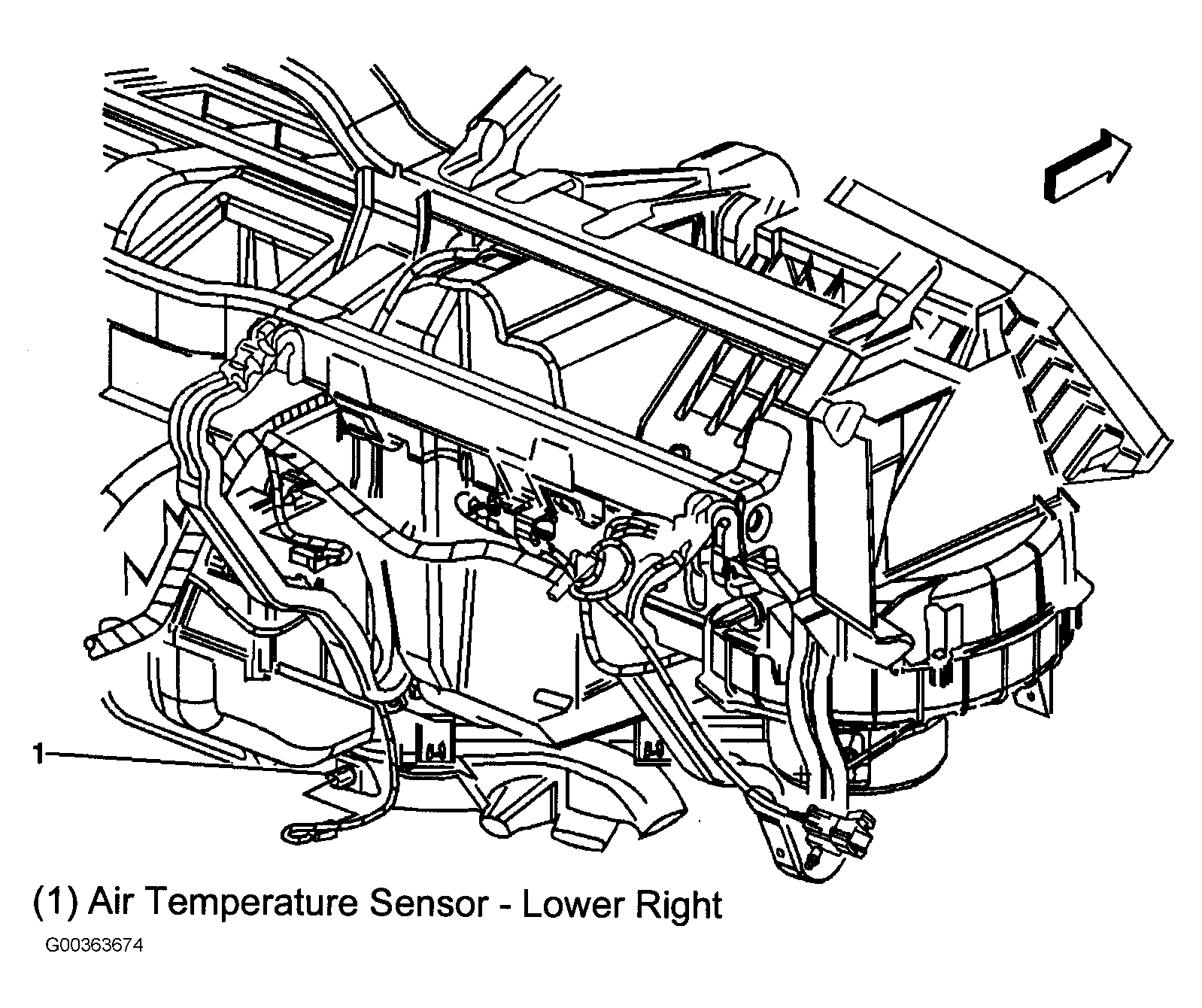

Fig 98: Behind Right Side Of Dash

G00363674

Courtesy of SAAB-SCANIA OF AMERICA, INC.

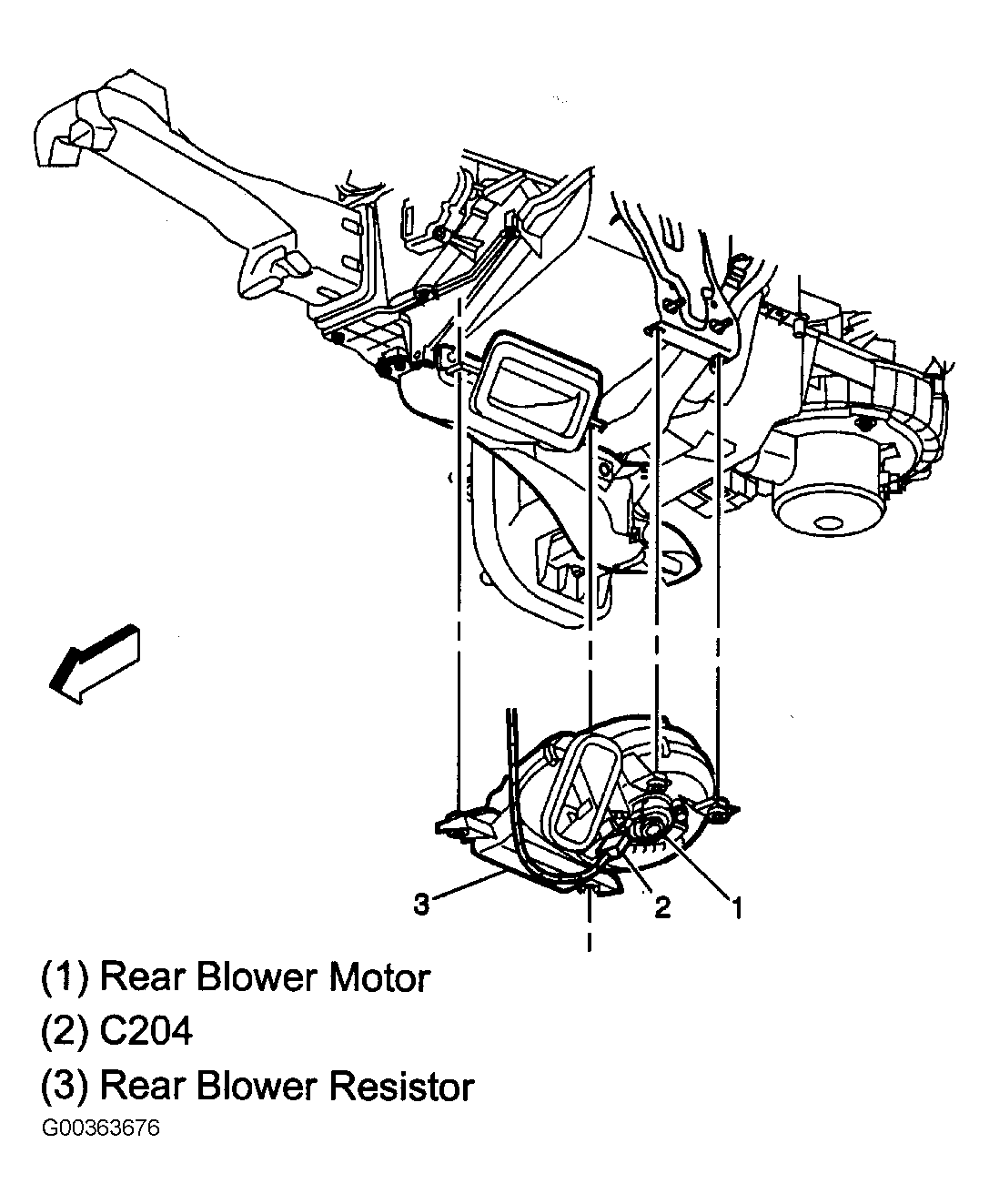

Fig 99: Below Center Of Dash

G00363676

Courtesy of SAAB-SCANIA OF AMERICA, INC.

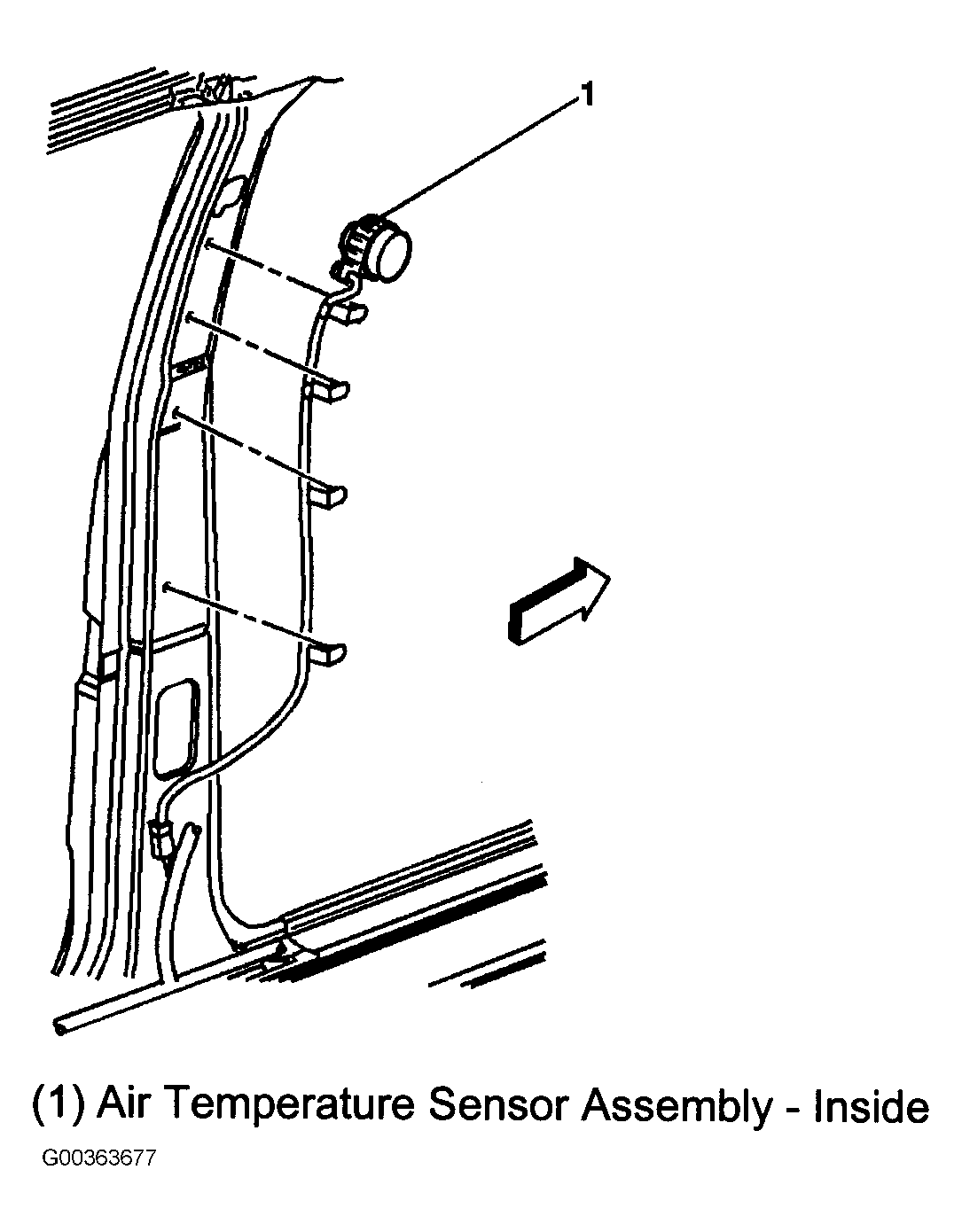

Fig 100: Left "B" Pillar

G00363677

Courtesy of SAAB-SCANIA OF AMERICA, INC.

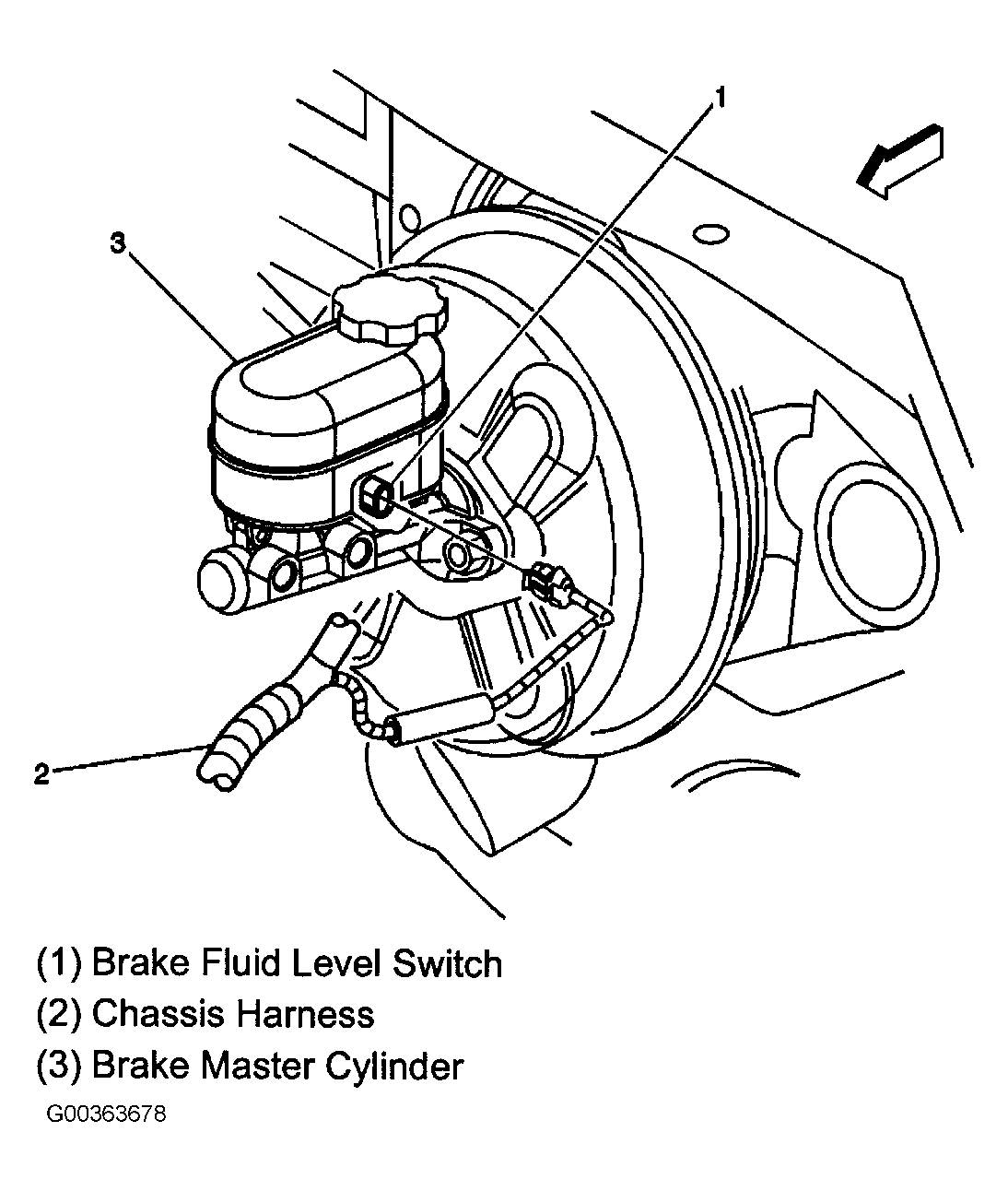

Fig 101: Left Rear Of Engine Compartment

G00363678

Courtesy of SAAB-SCANIA OF AMERICA, INC.

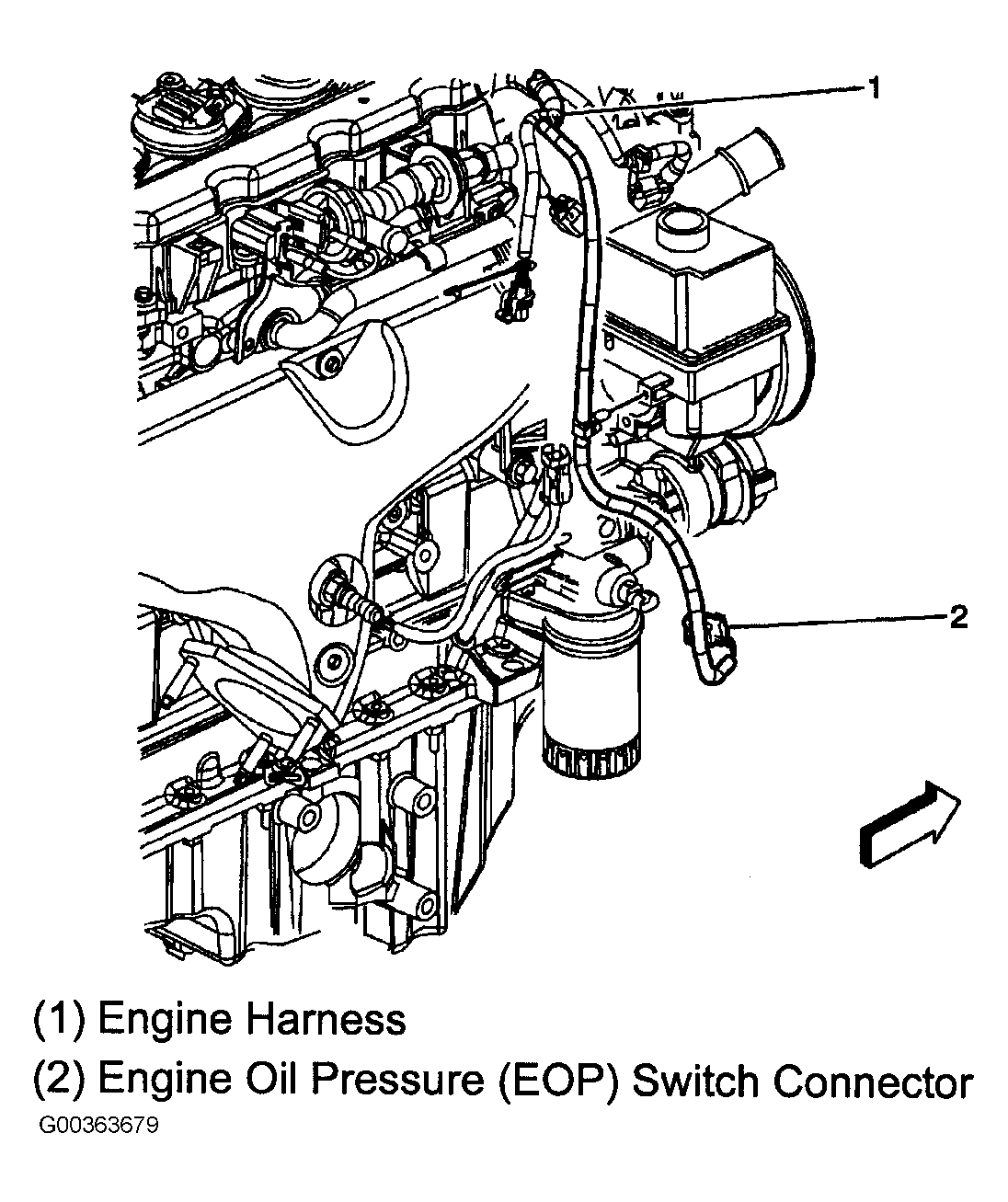

Fig 102: Lower Right Front Of Engine (4.2L)

G00363679

Courtesy of SAAB-SCANIA OF AMERICA, INC.

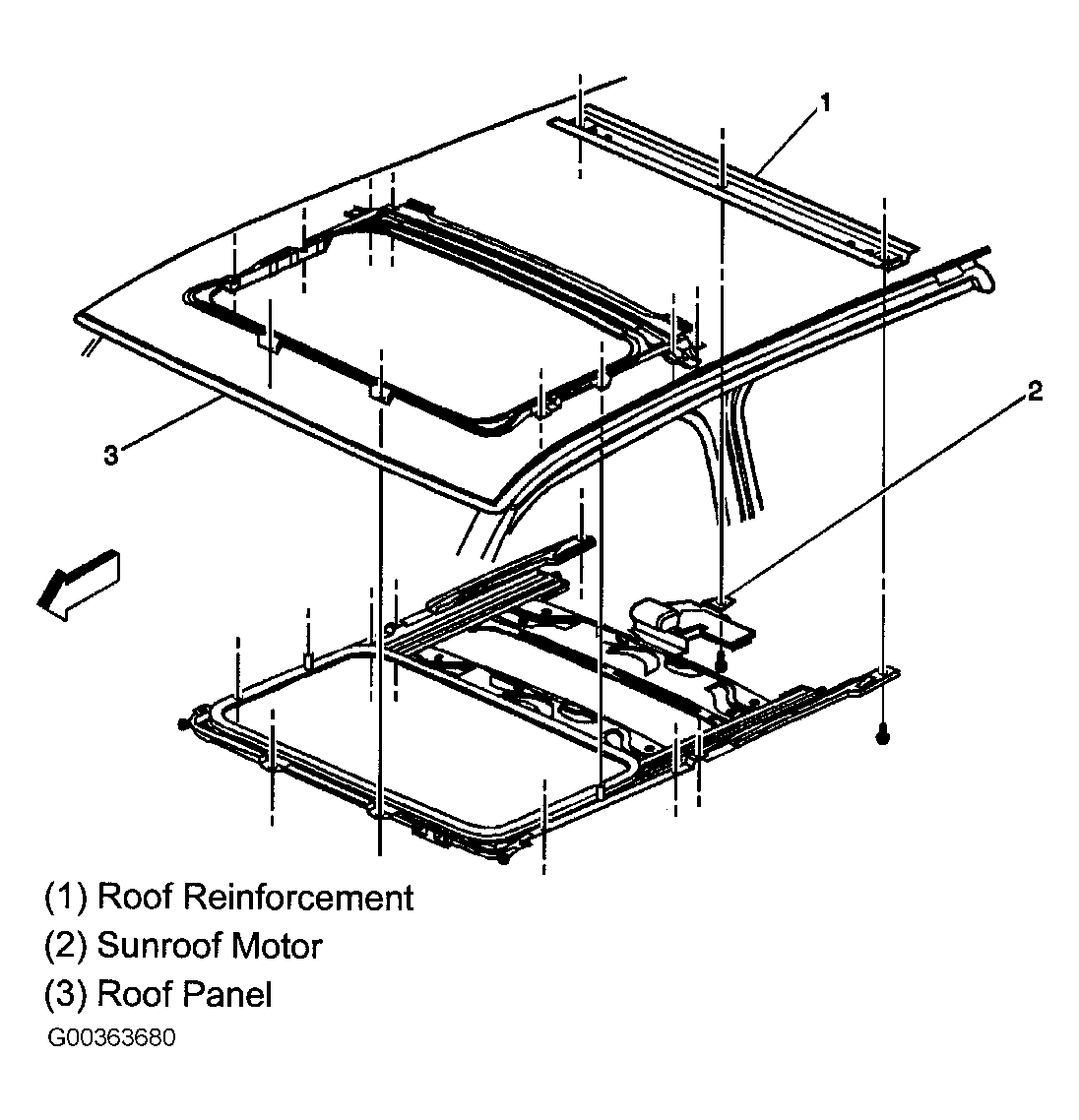

Fig 103: Roof

G00363680

Courtesy of SAAB-SCANIA OF AMERICA, INC.

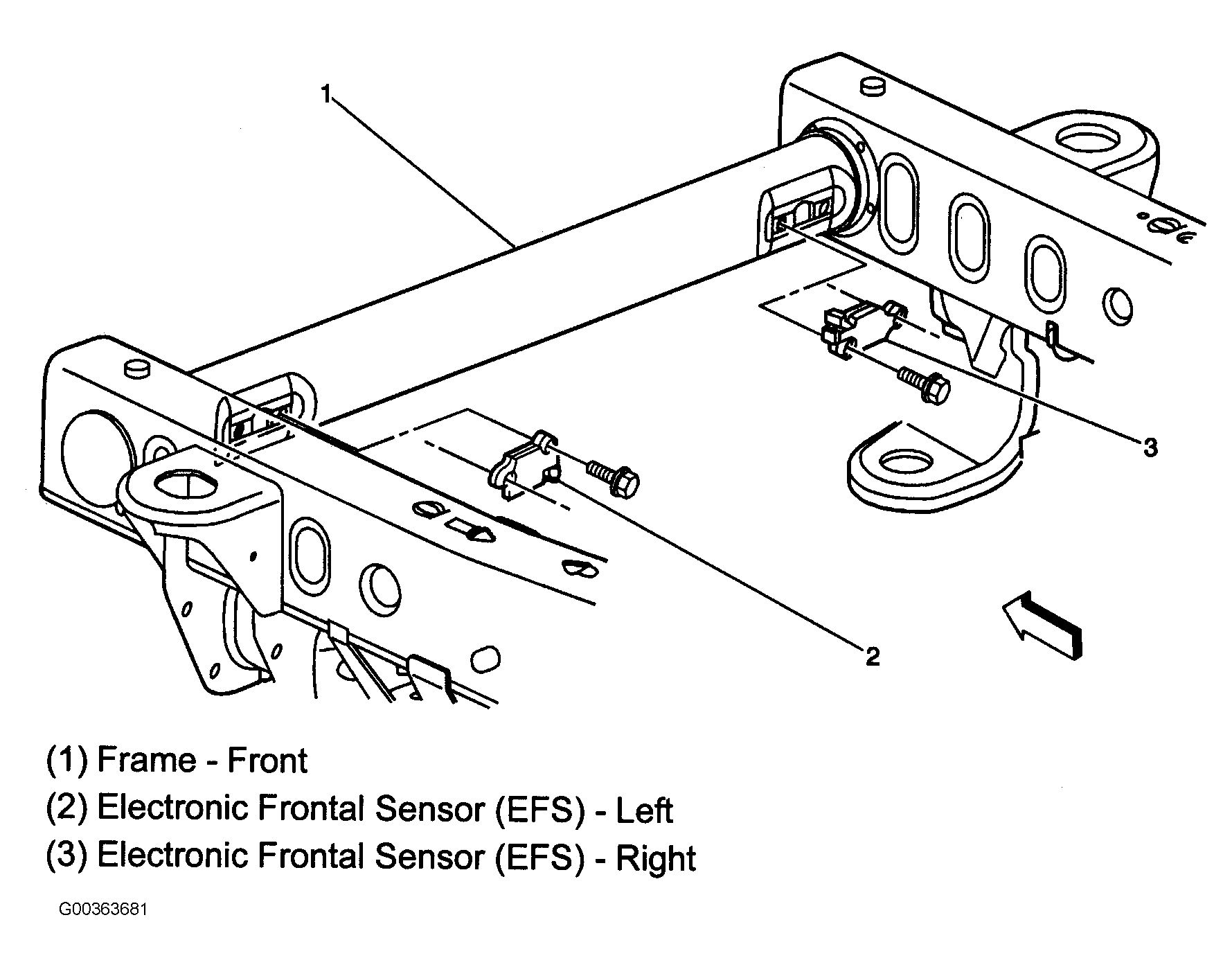

Fig 104: Front Of Frame

G00363681

Courtesy of SAAB-SCANIA OF AMERICA, INC.

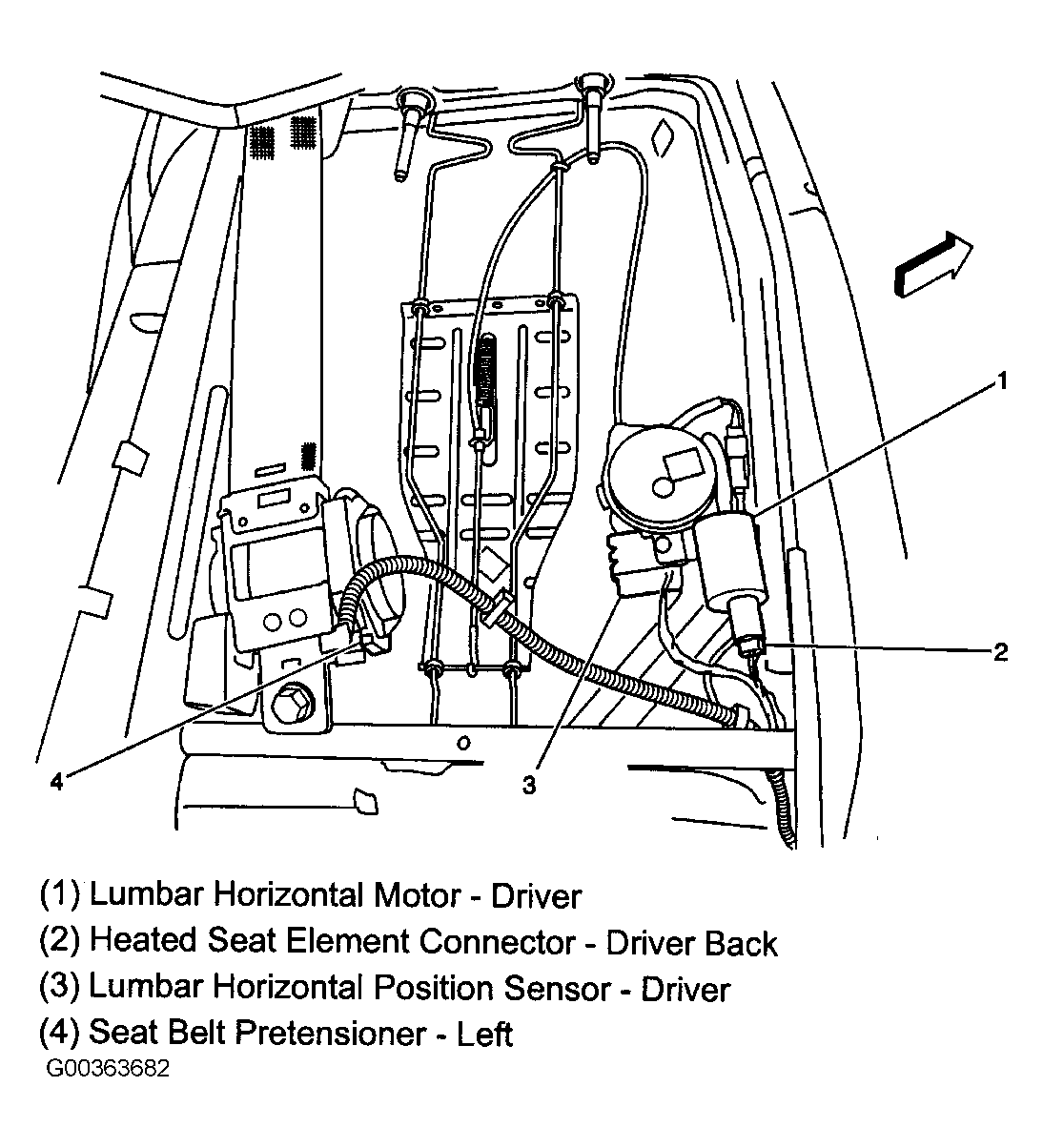

Fig 105: Driver's Seat Back

G00363682

Courtesy of SAAB-SCANIA OF AMERICA, INC.

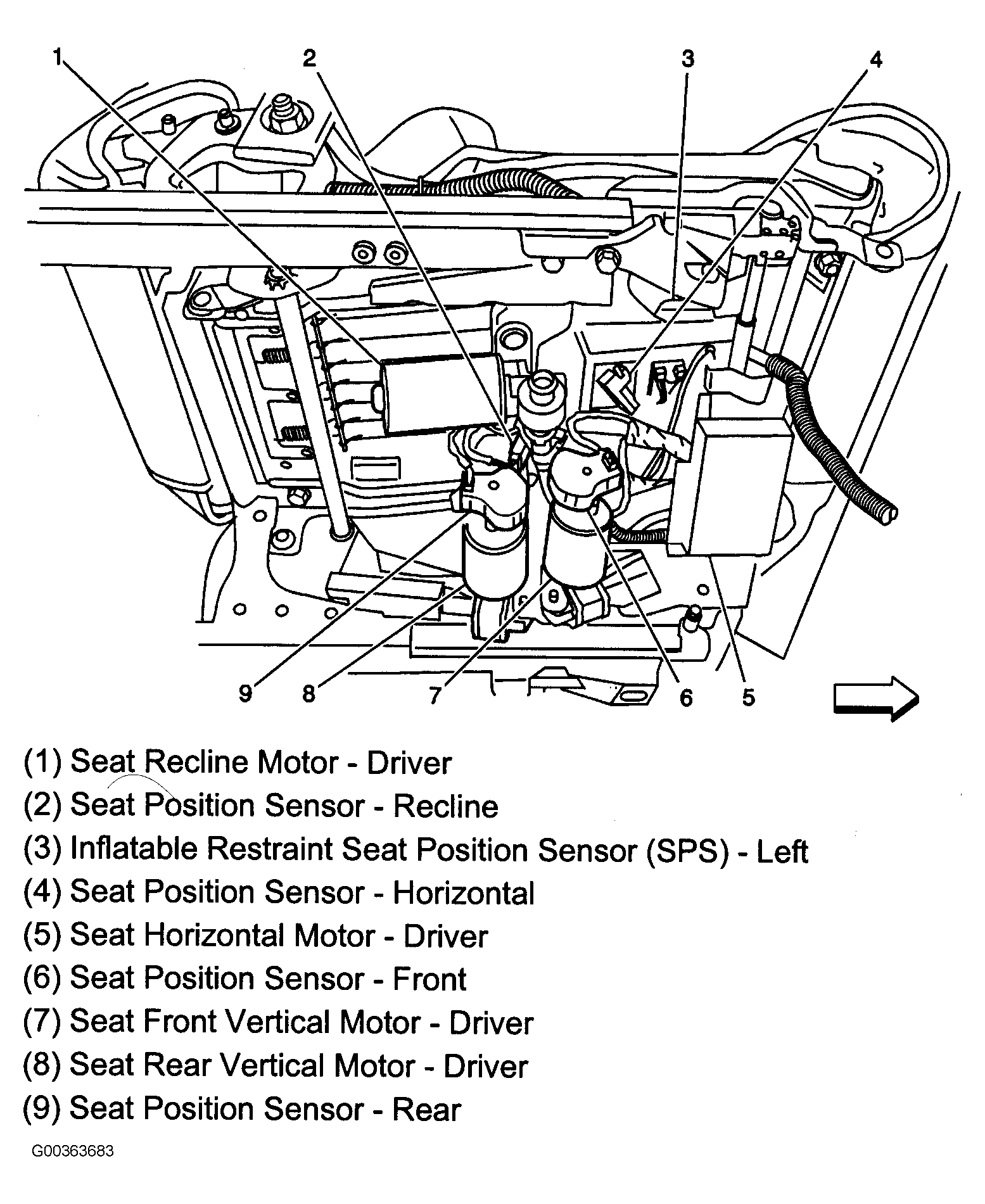

Fig 106: Under Driver's Seat

G00363683

Courtesy of SAAB-SCANIA OF AMERICA, INC.

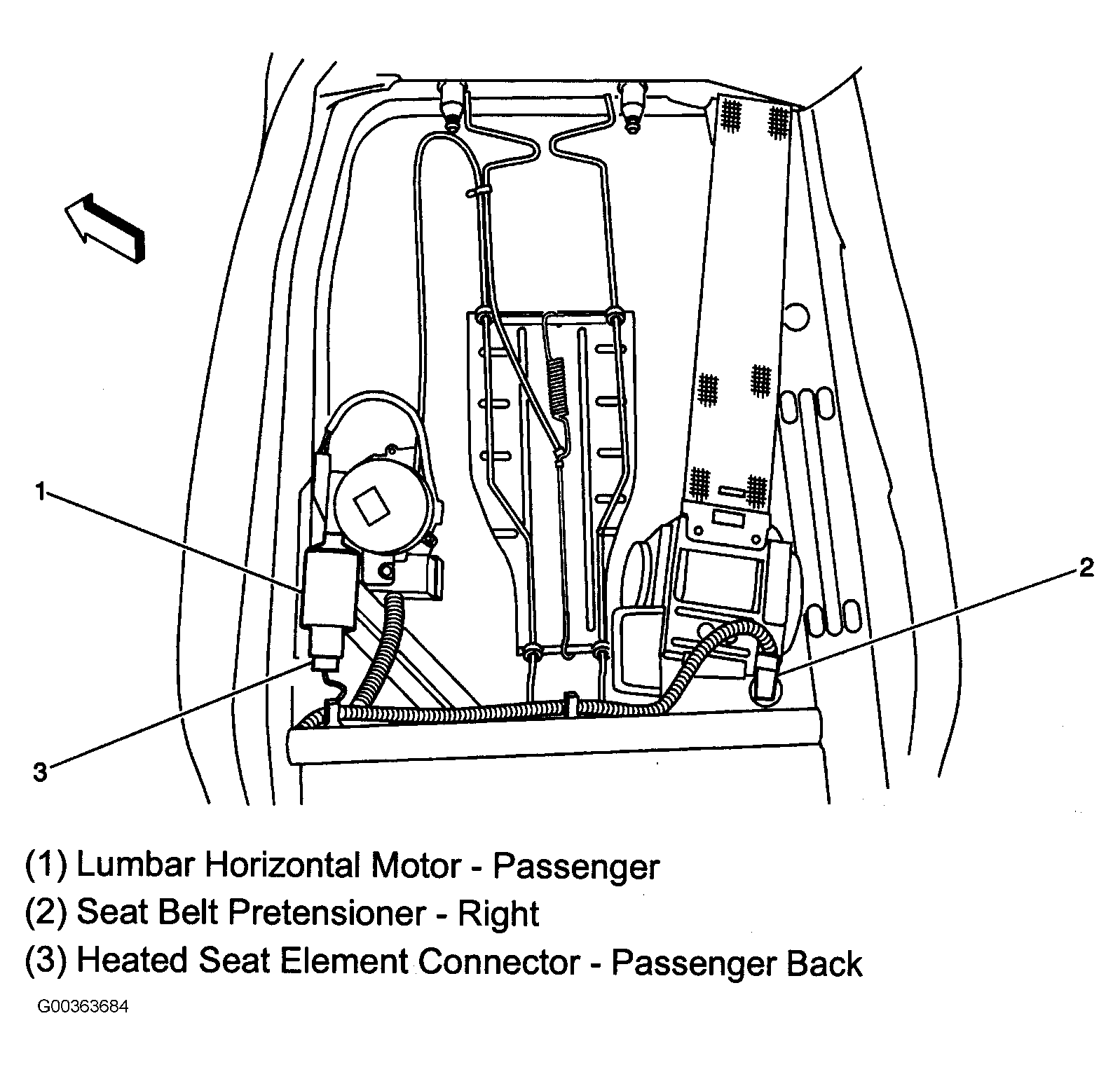

Fig 107: Front Passenger's Seat Back

G00363684

Courtesy of SAAB-SCANIA OF AMERICA, INC.

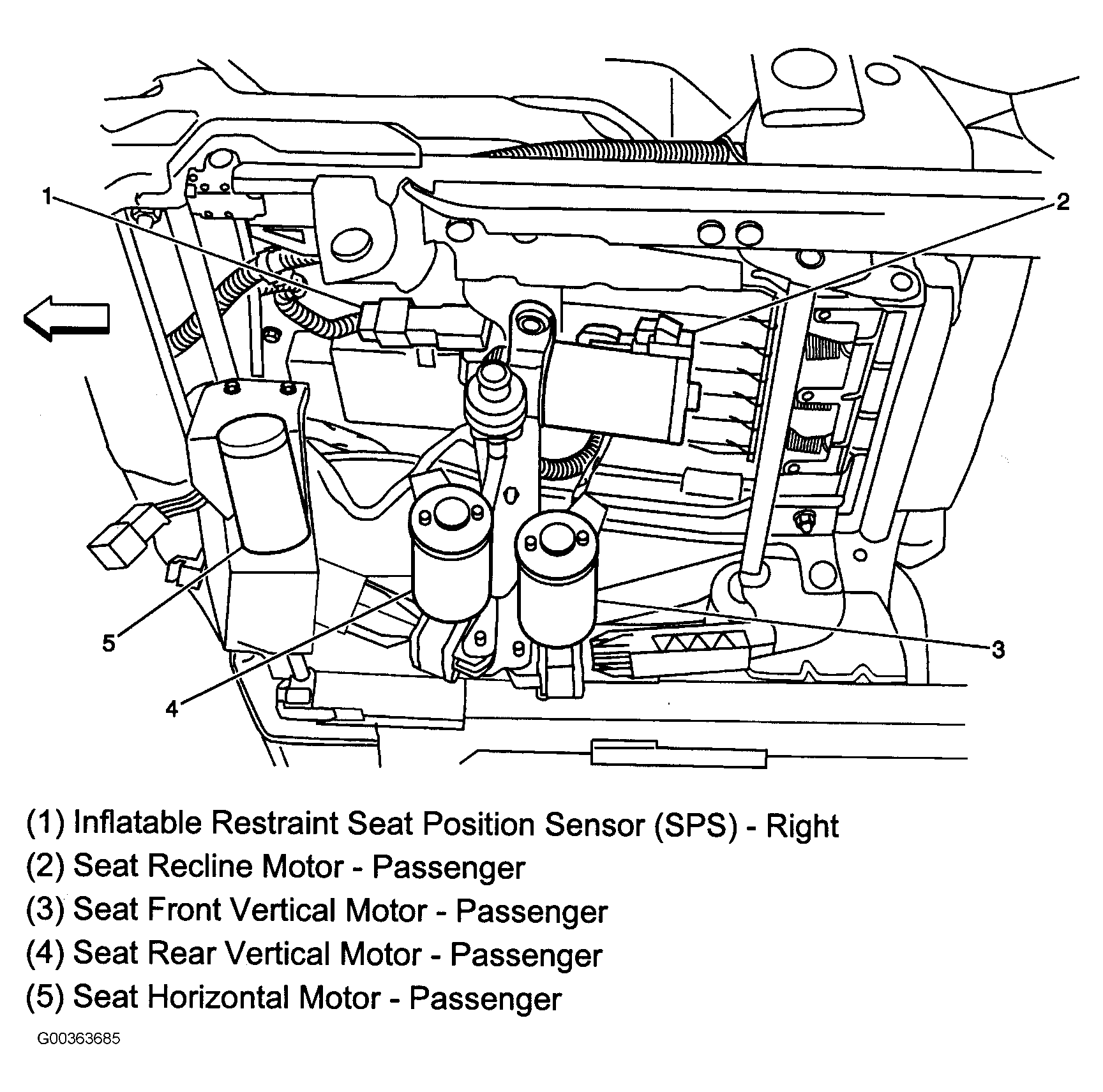

Fig 108: Under Front Passenger's Seat

G00363685

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 109: Under Front Passenger's Seat

G00363686

Courtesy of SAAB-SCANIA OF AMERICA, INC.

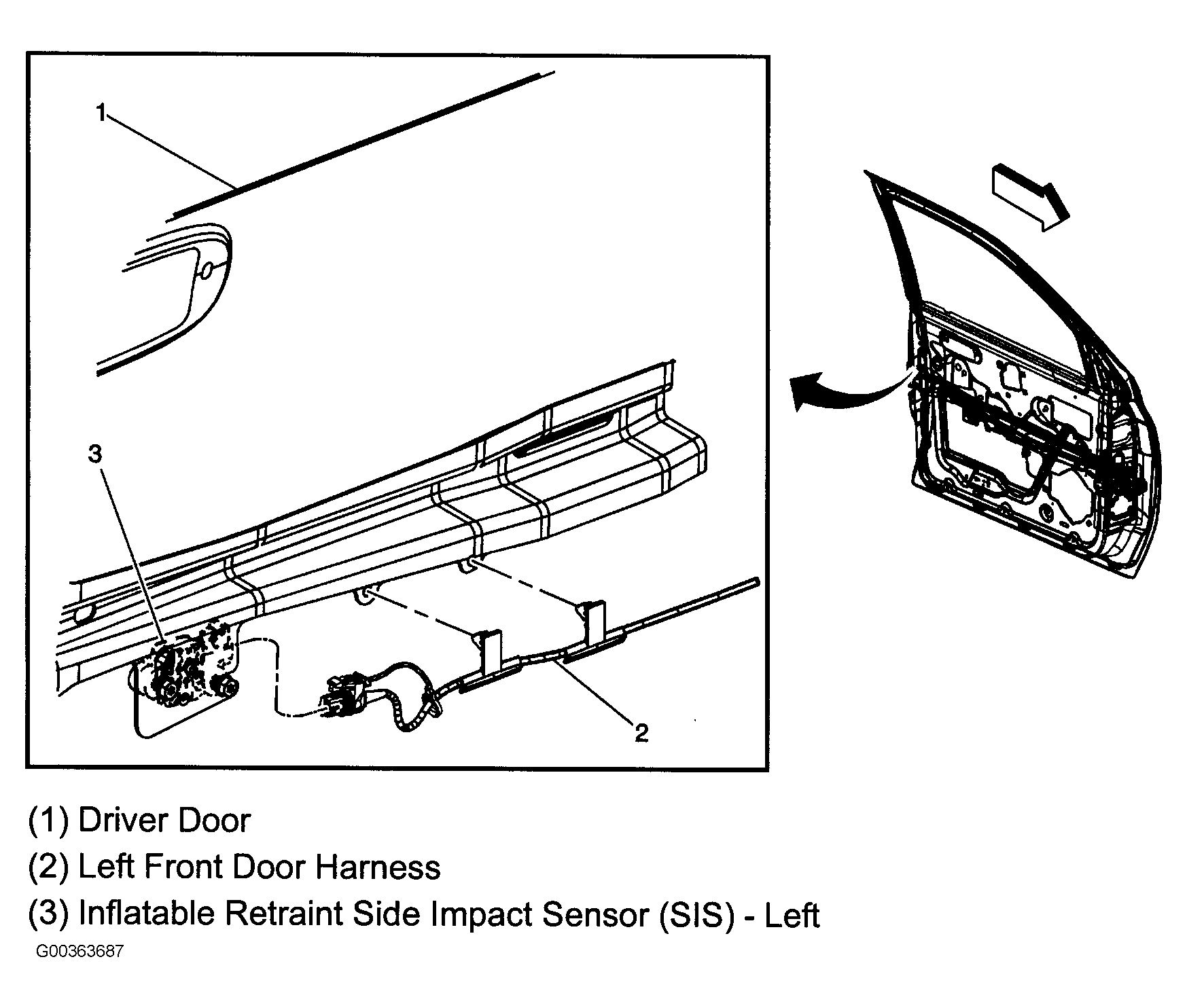

Fig 110: Driver's Door

G00363687

Courtesy of SAAB-SCANIA OF AMERICA, INC.

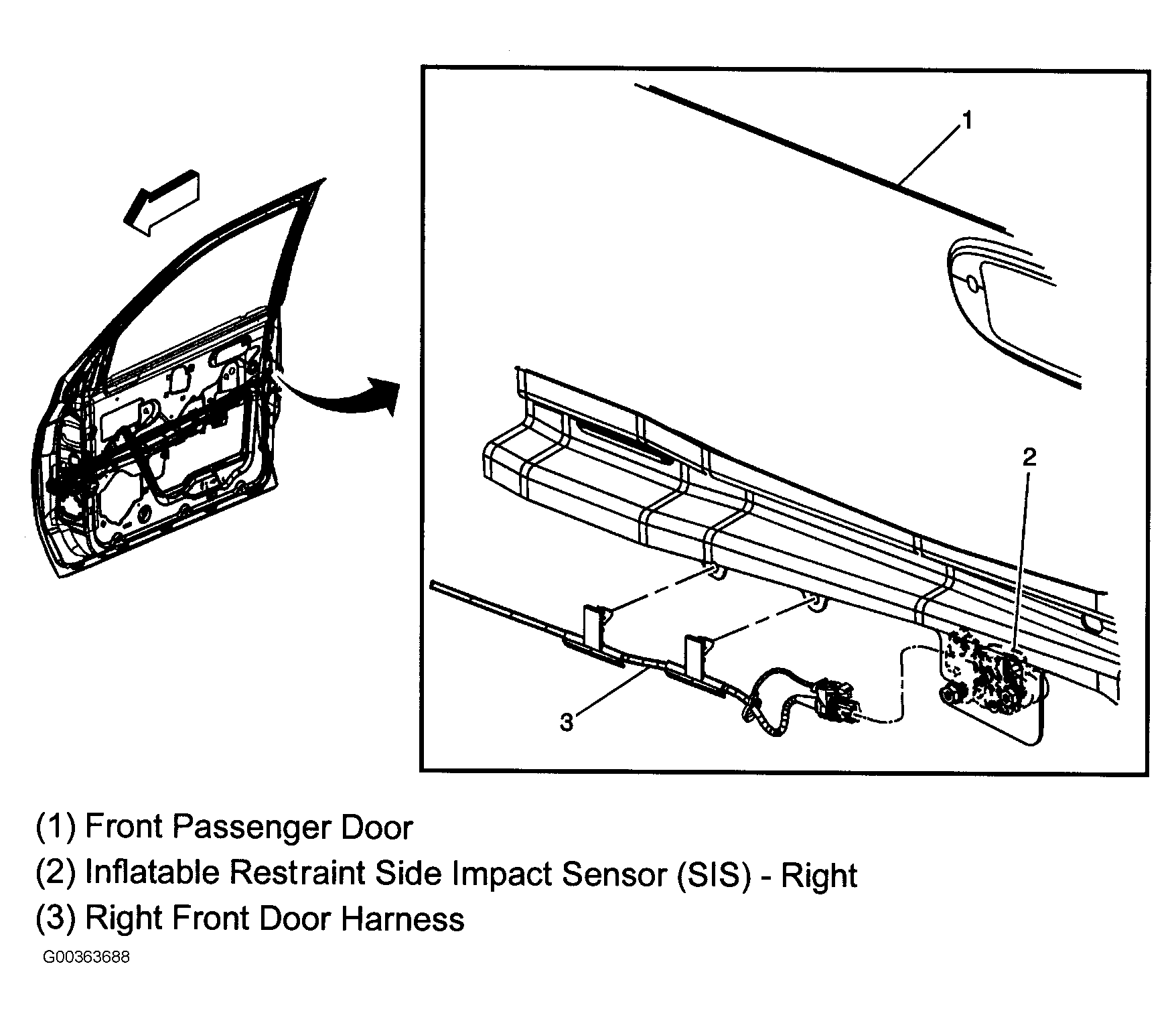

Fig 111: Front Passenger's Door

G00363688

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 112: Right Front Seat Assembly

G00363690

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 113: Under Floor Console

G00363692

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 114: Under Left Side Of Dash

G00363693

Courtesy of SAAB-SCANIA OF AMERICA, INC.

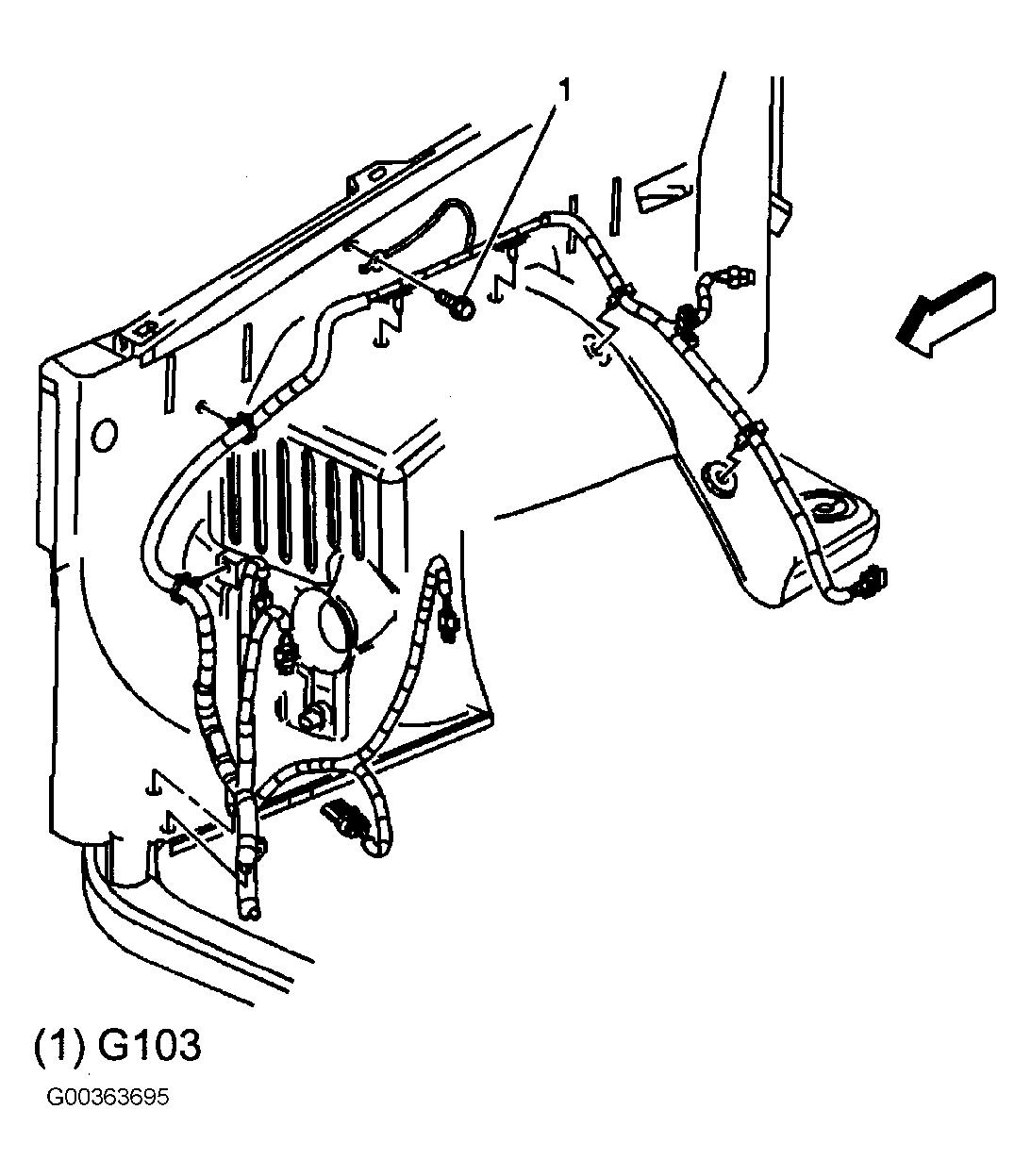

Fig 115: Right Front Fenderwell

G00363695

Courtesy of SAAB-SCANIA OF AMERICA, INC.

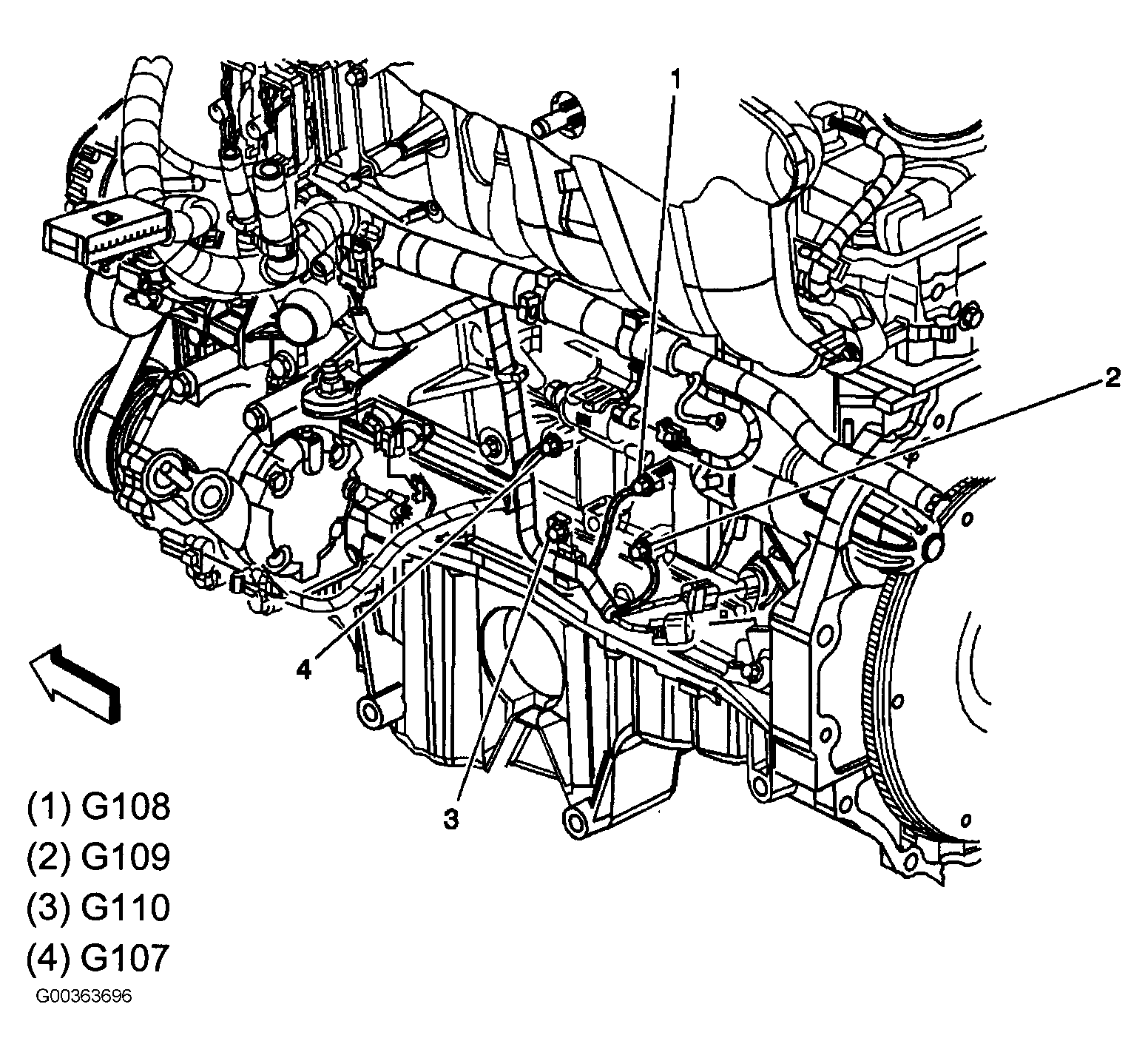

Fig 116: Left Side Of Engine (4.2L)

G00363696

Courtesy of SAAB-SCANIA OF AMERICA, INC.

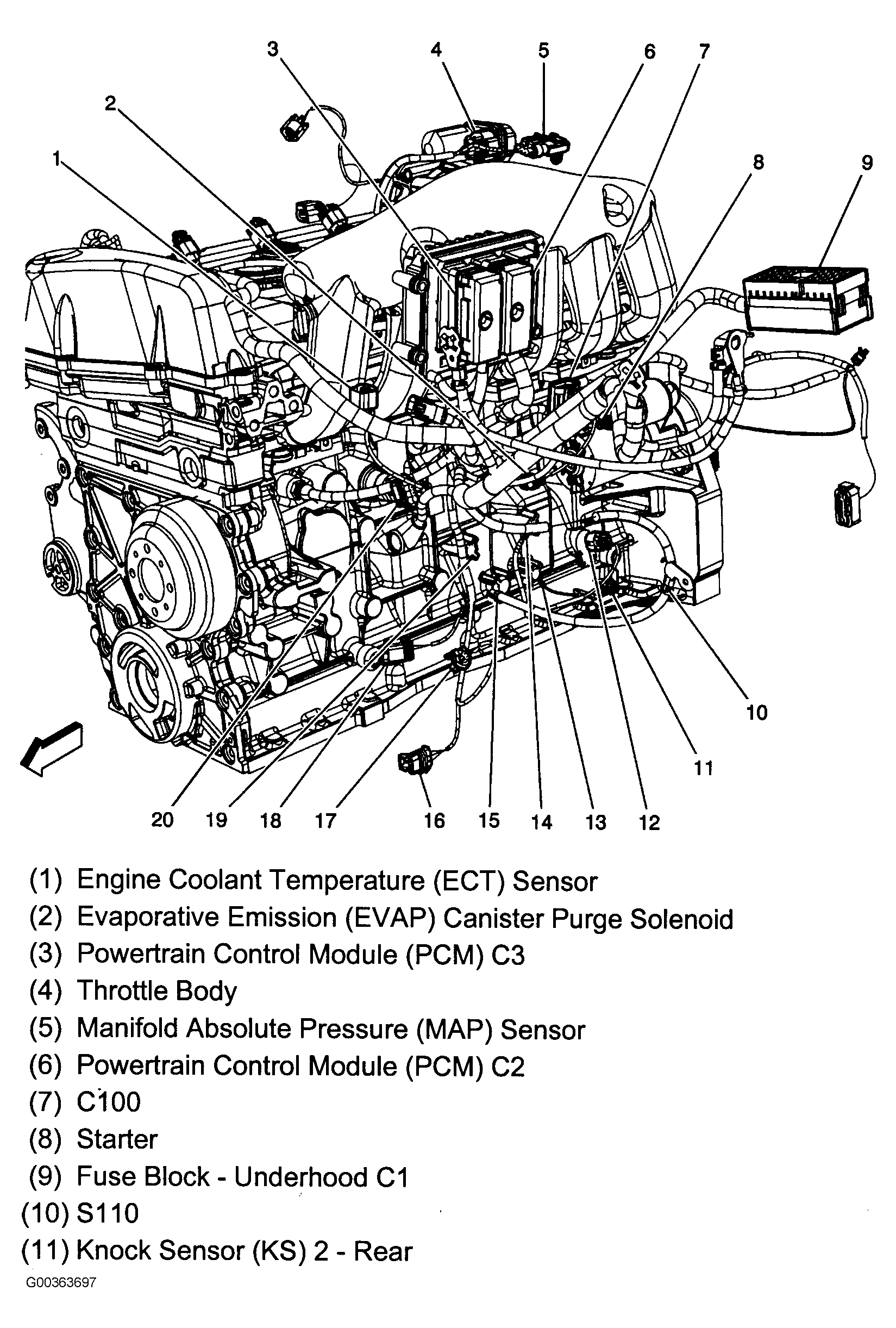

Fig 117: Left Side Of Engine (4.2L)

G00363697

Courtesy of SAAB-SCANIA OF AMERICA, INC.

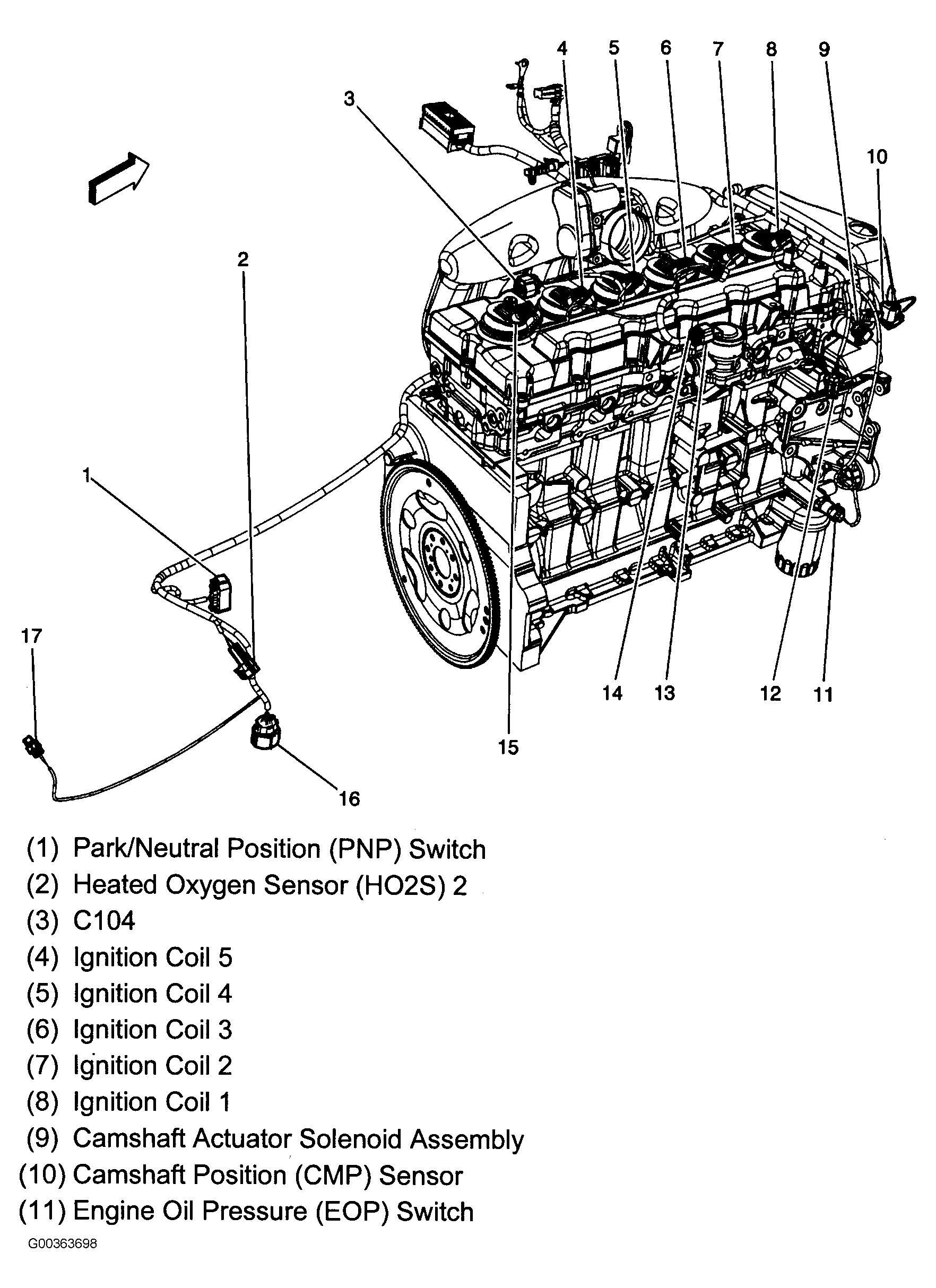

Fig 118: Right Rear Of Engine (4.2L)

G00363698

Courtesy of SAAB-SCANIA OF AMERICA, INC.

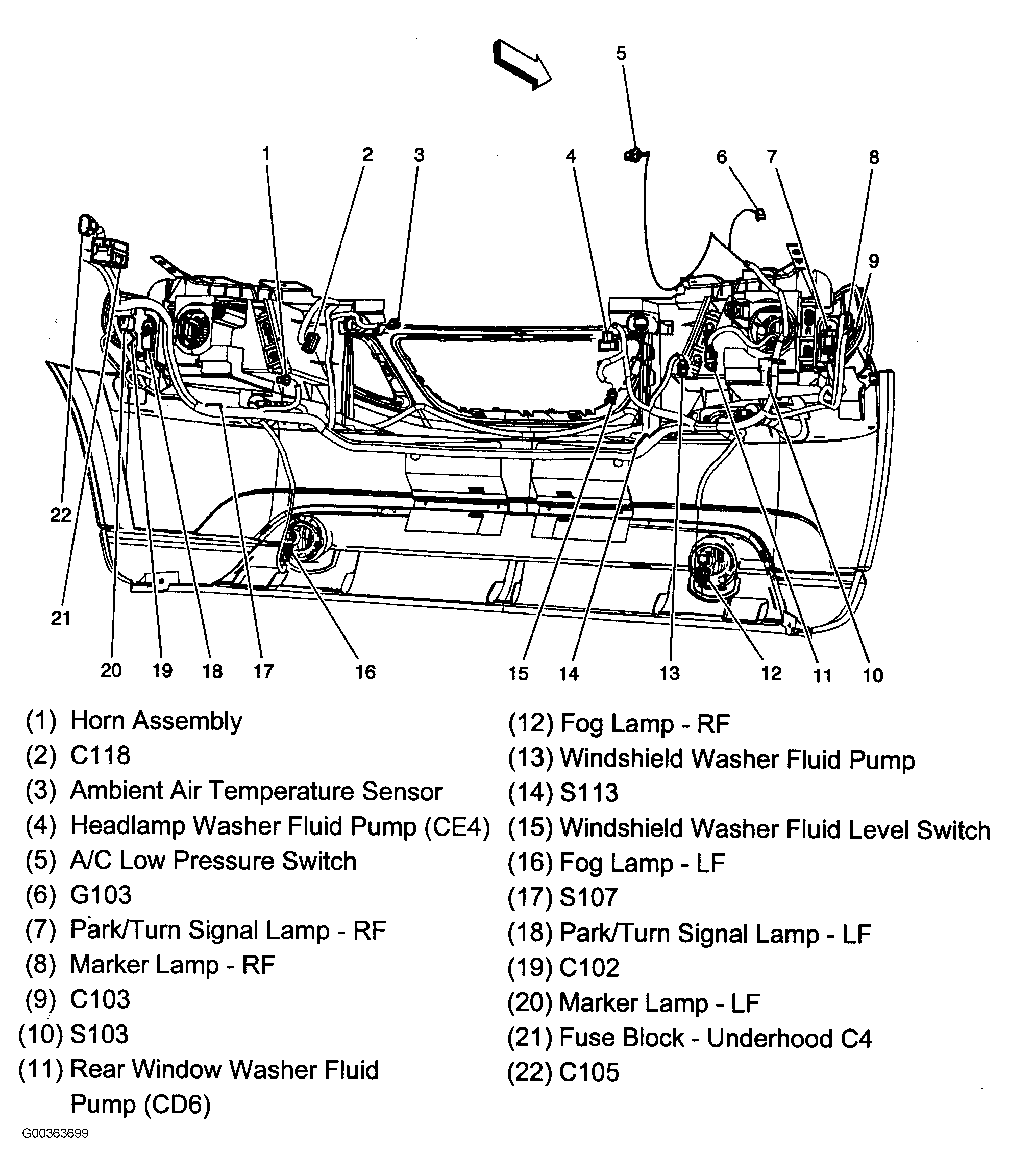

Fig 119: Front Bumper

G00363699

Courtesy of SAAB-SCANIA OF AMERICA, INC.

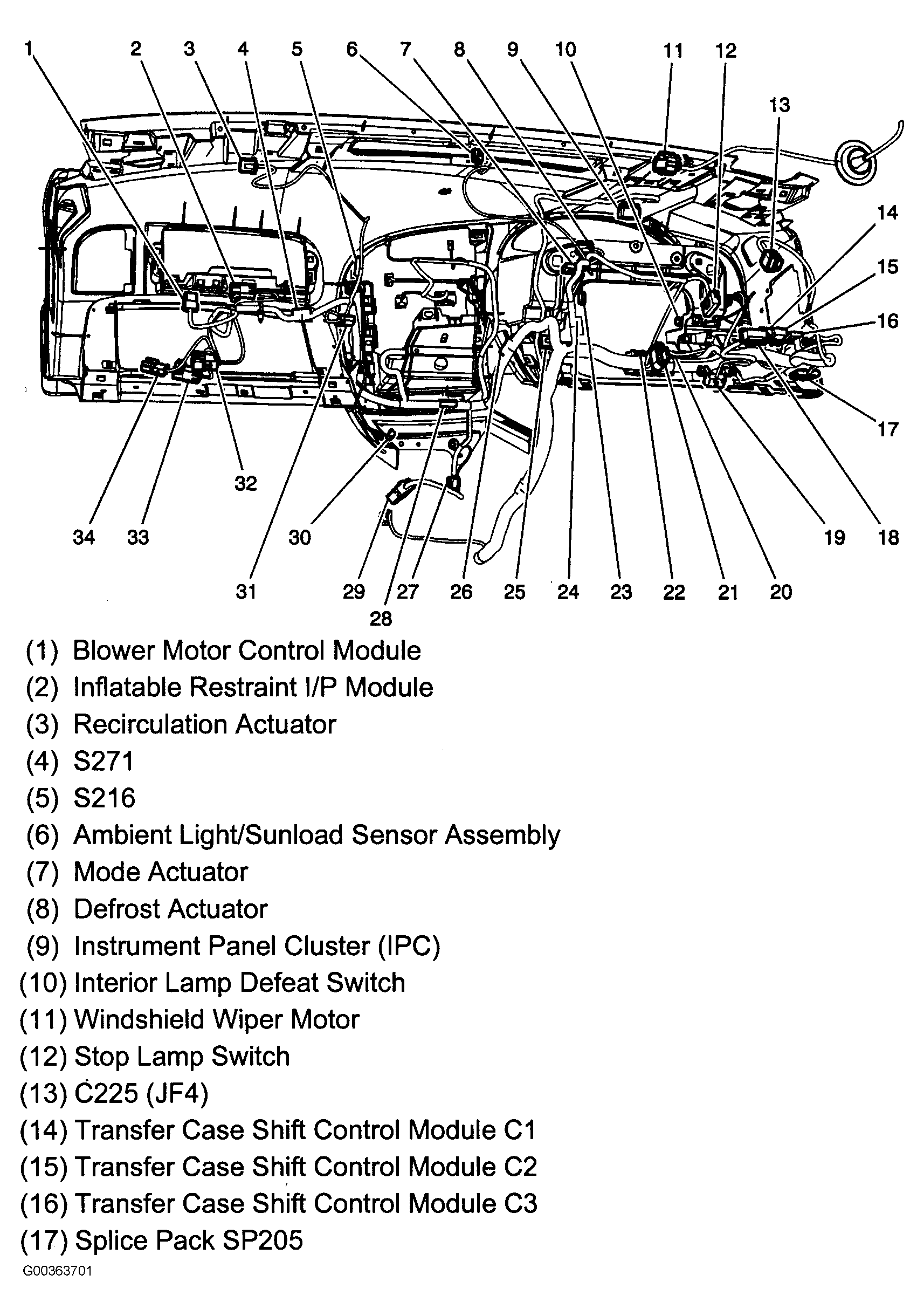

Fig 120: Rear Of Dash (1 Of 2)

G00363701

Courtesy of SAAB-SCANIA OF AMERICA, INC.

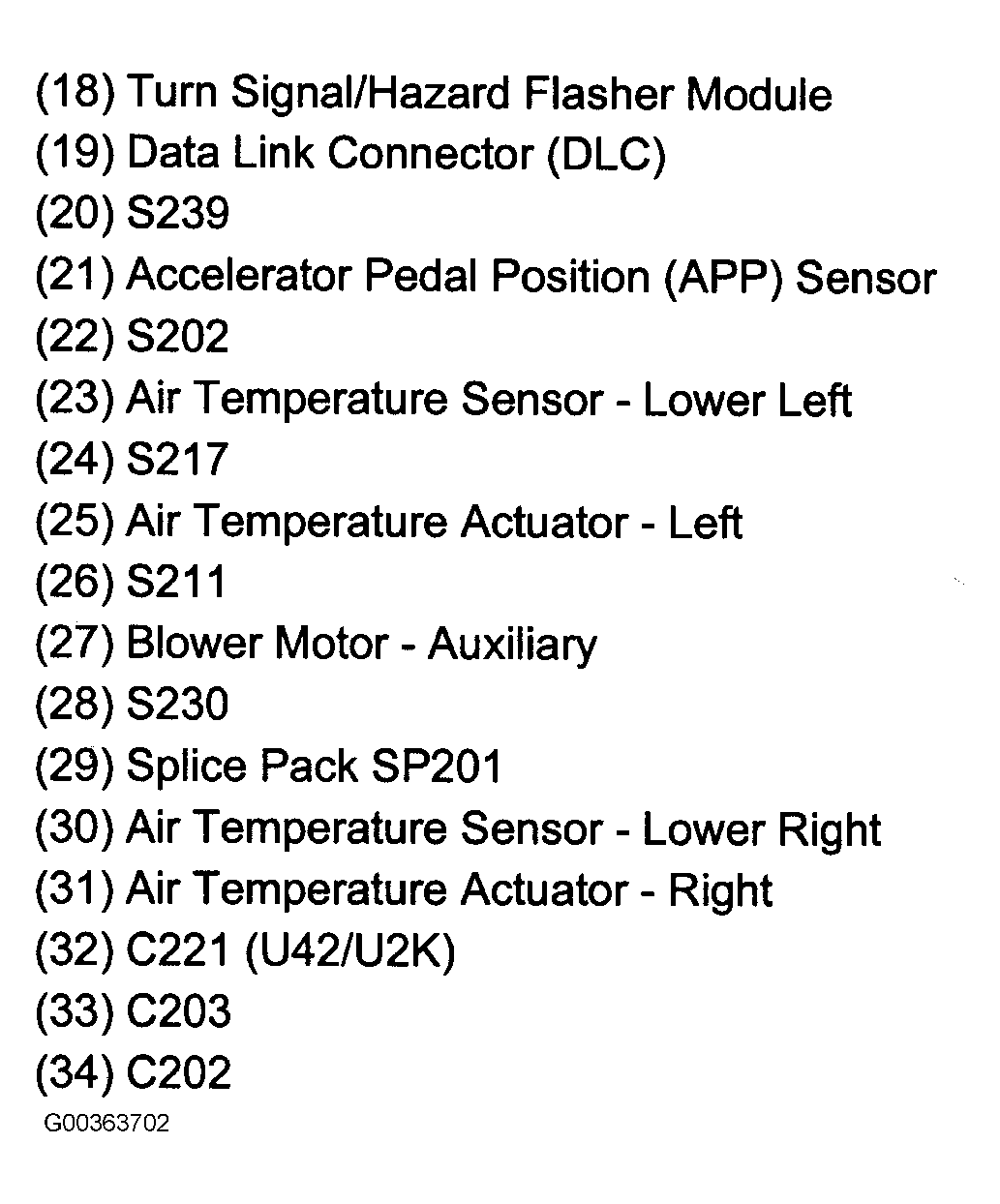

Fig 121: Rear Of Dash (2 Of 2)

G00363702

Courtesy of SAAB-SCANIA OF AMERICA, INC.

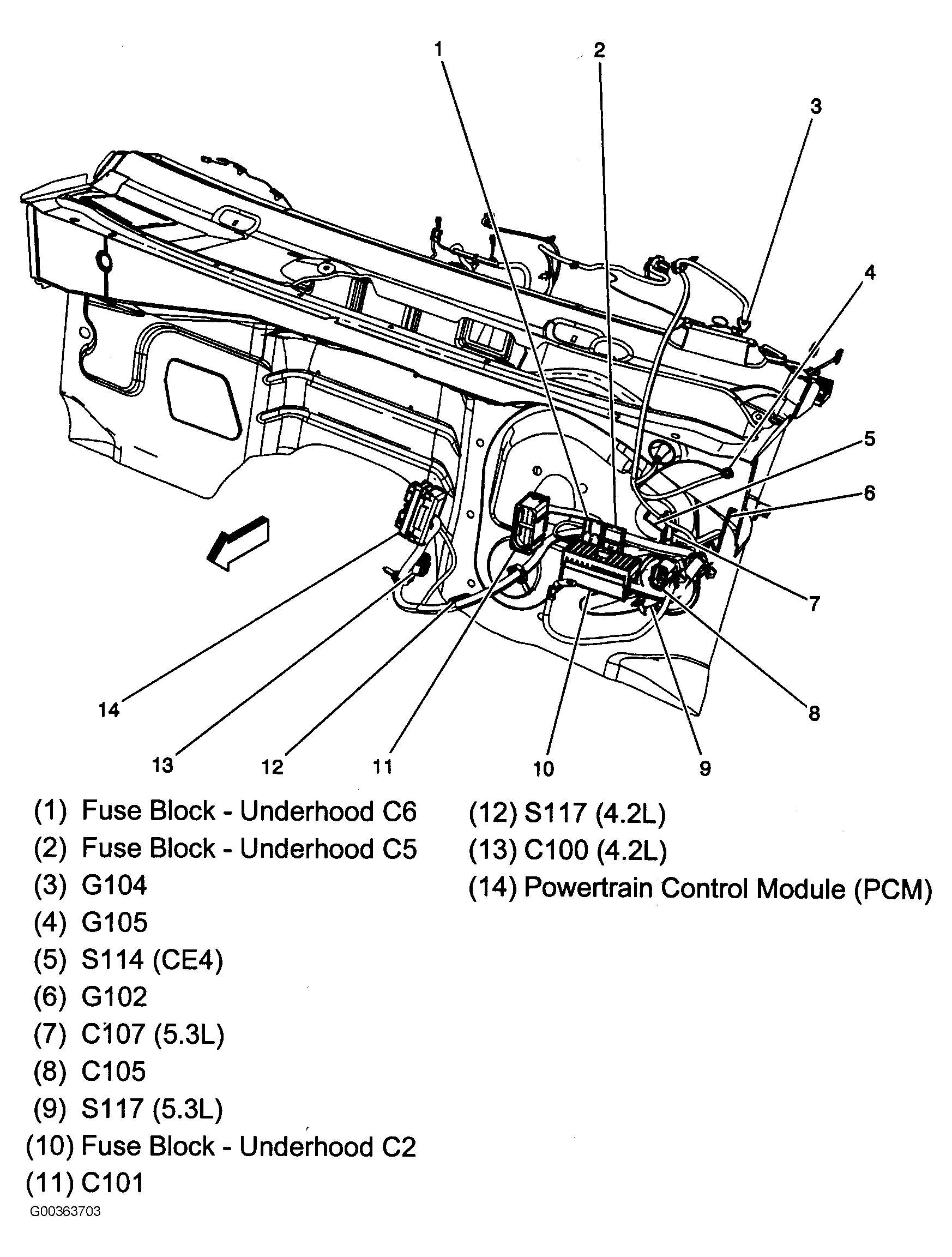

Fig 122: Rear Of Engine Compartment

G00363703

Courtesy of SAAB-SCANIA OF AMERICA, INC.

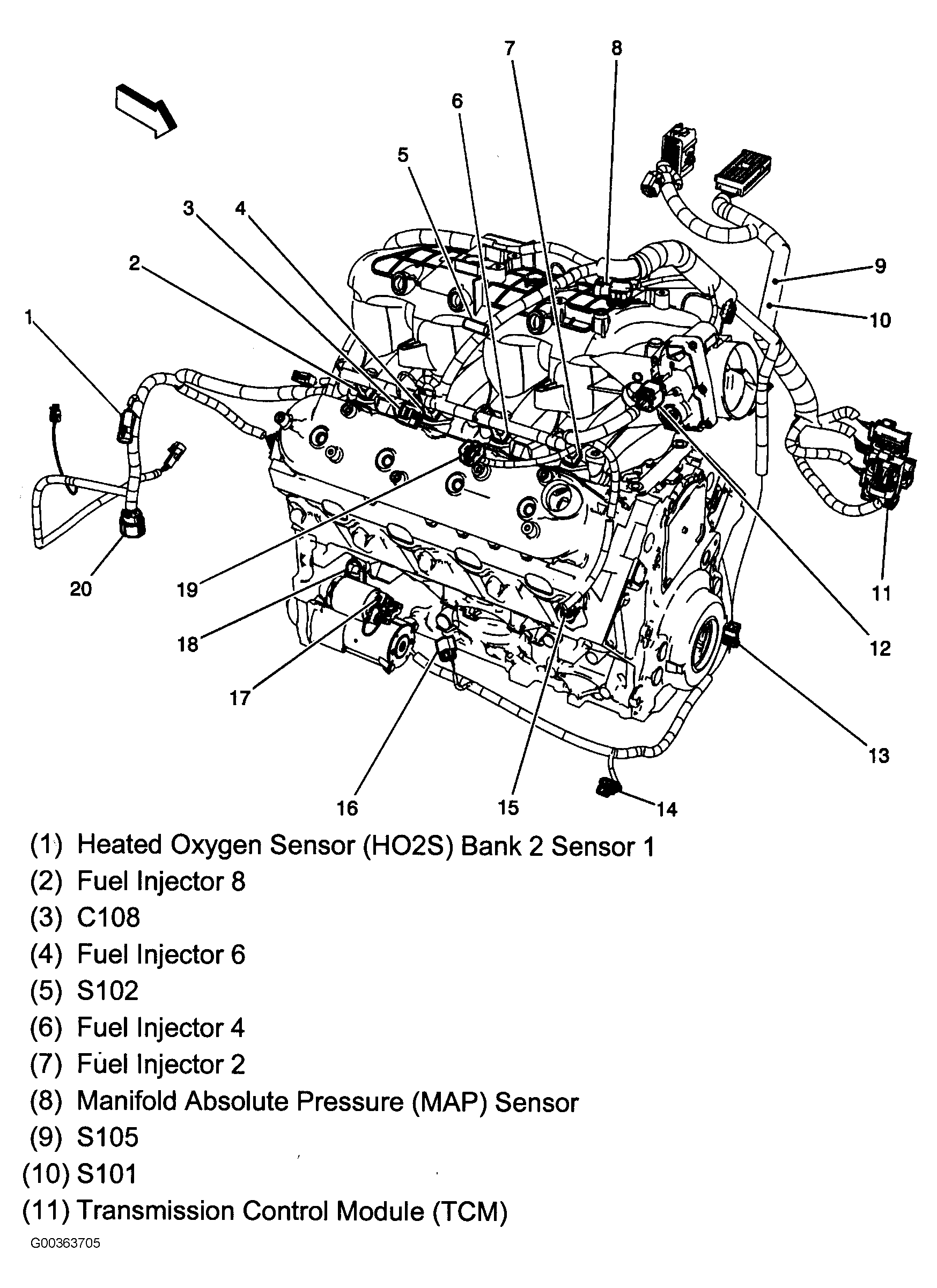

Fig 123: Right Front Of Engine (5.3L)

G00363705

Courtesy of SAAB-SCANIA OF AMERICA, INC.

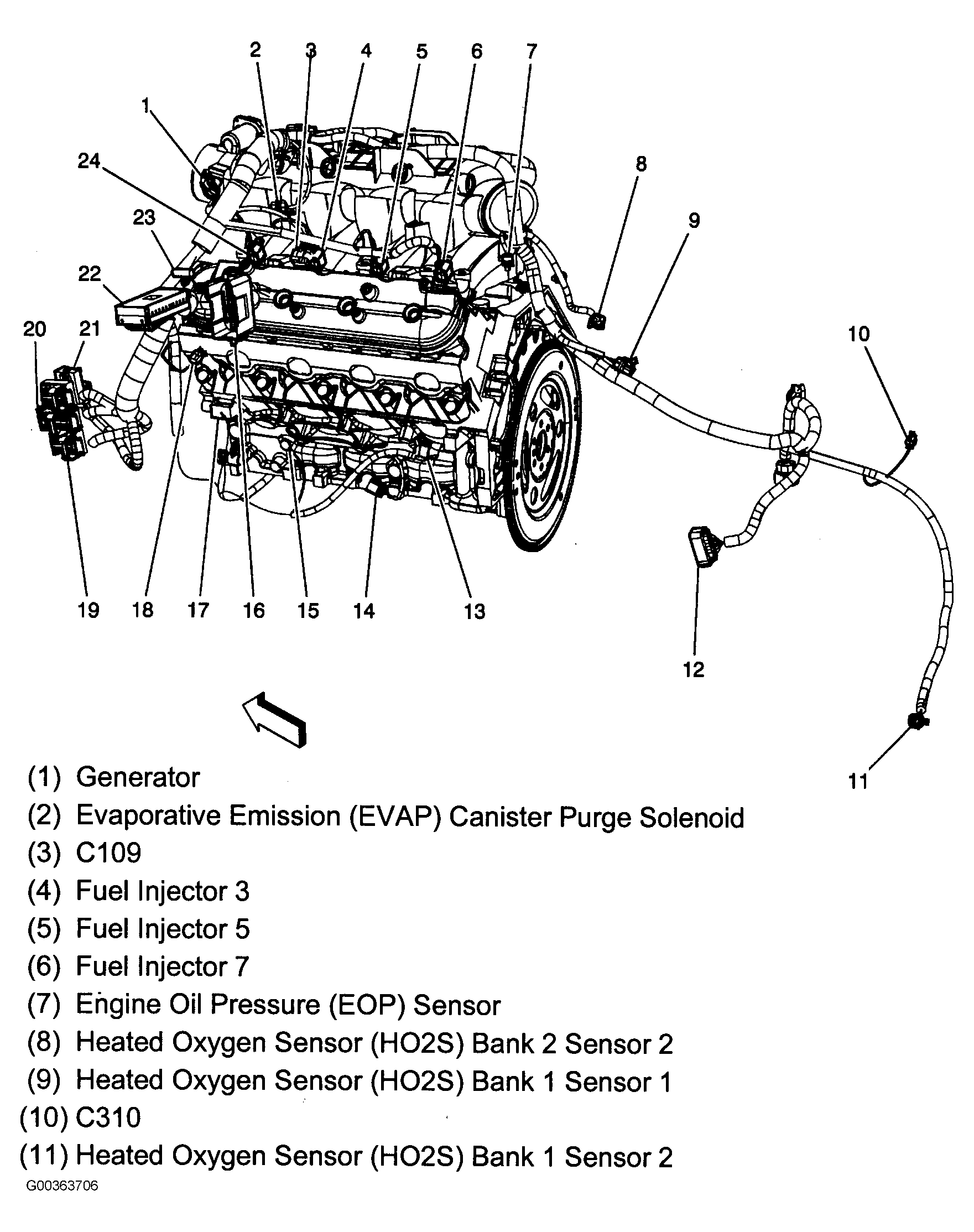

Fig 124: Left Rear Of Engine (5.3L) (1 Of 2)

G00363706

Courtesy of SAAB-SCANIA OF AMERICA, INC.

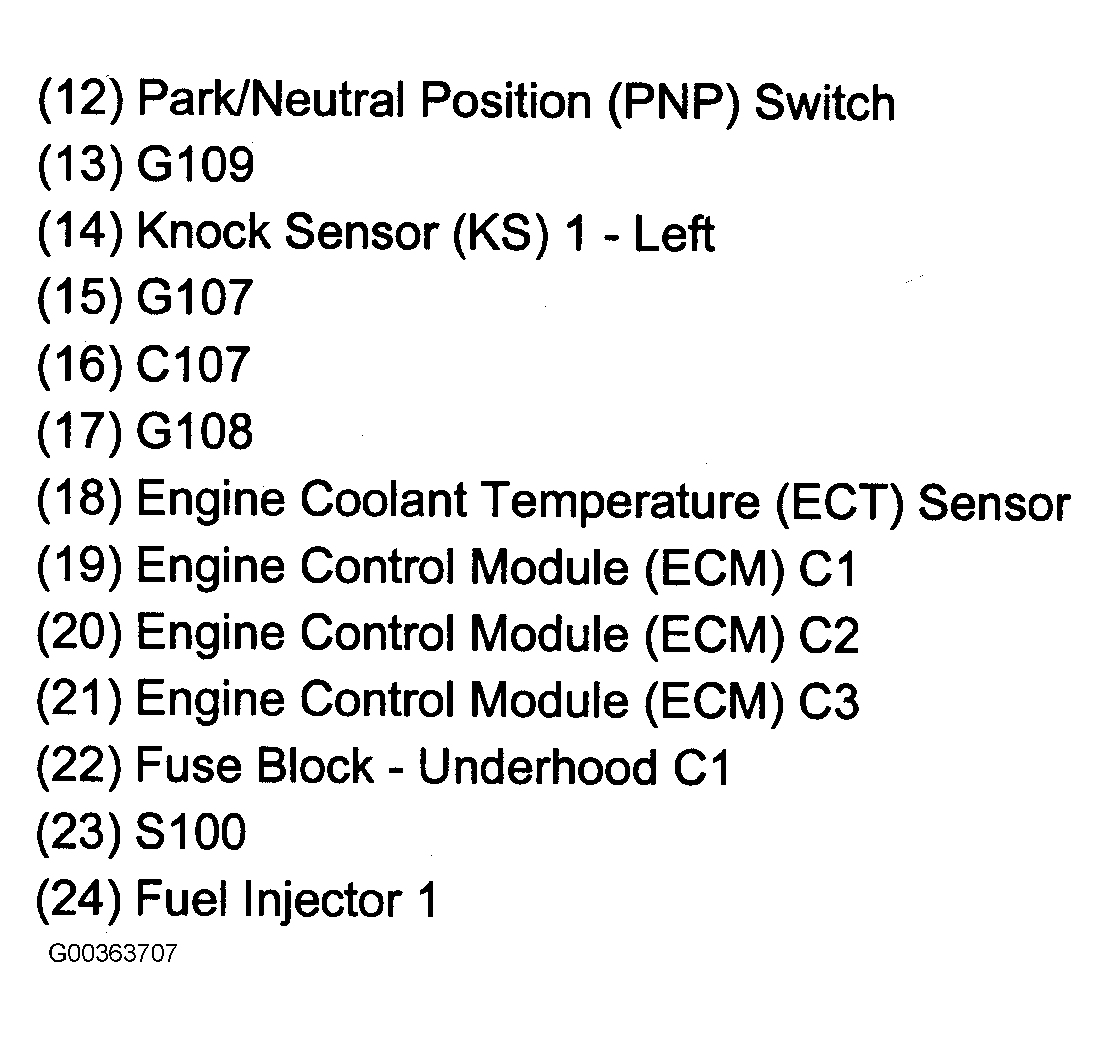

Fig 125: Left Rear Of Engine (5.3L) (2 Of 2)

G00363707

Courtesy of SAAB-SCANIA OF AMERICA, INC.

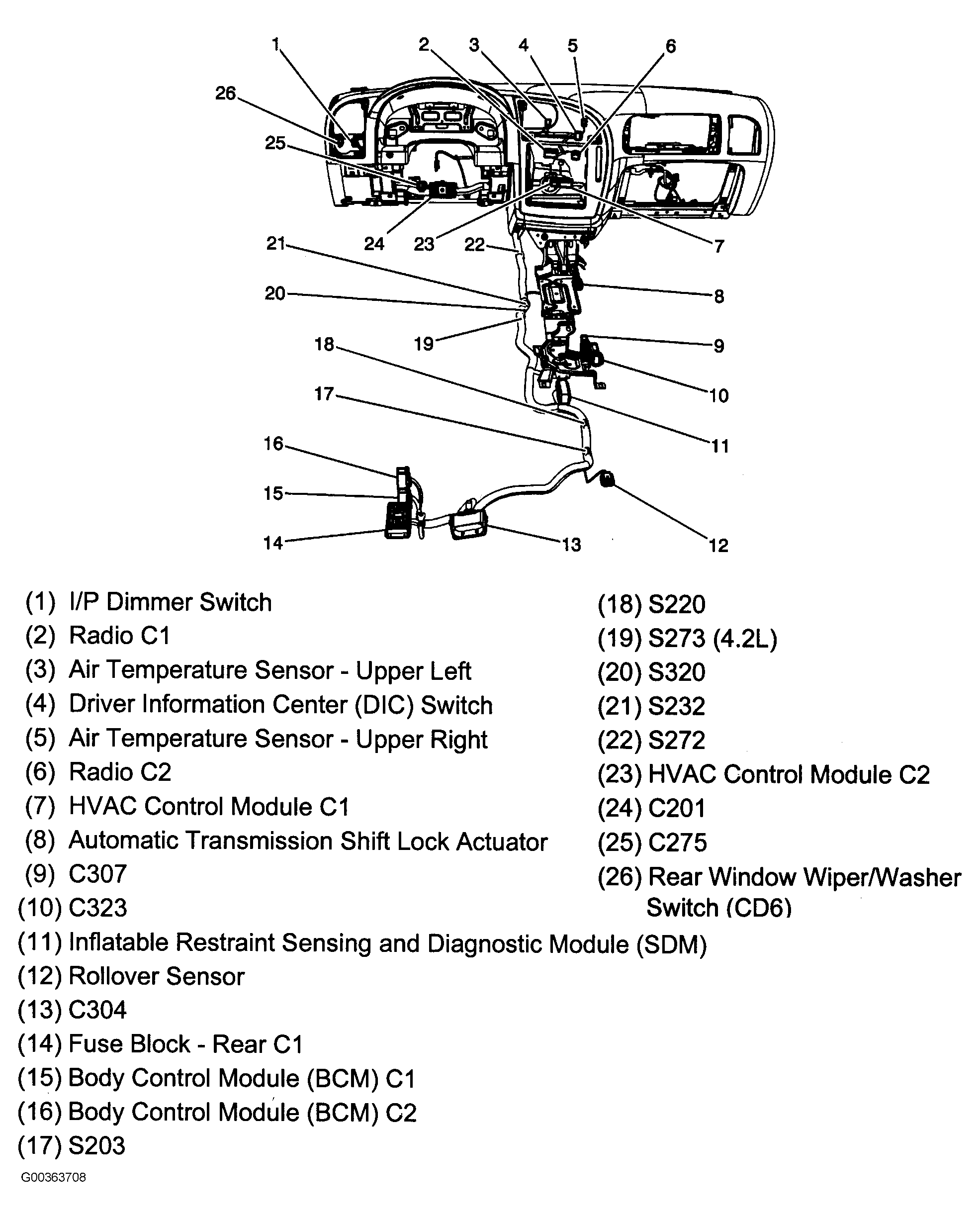

Fig 126: Front Of Dash

G00363708

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fig 127: Vehicle Floor (1 Of 2)

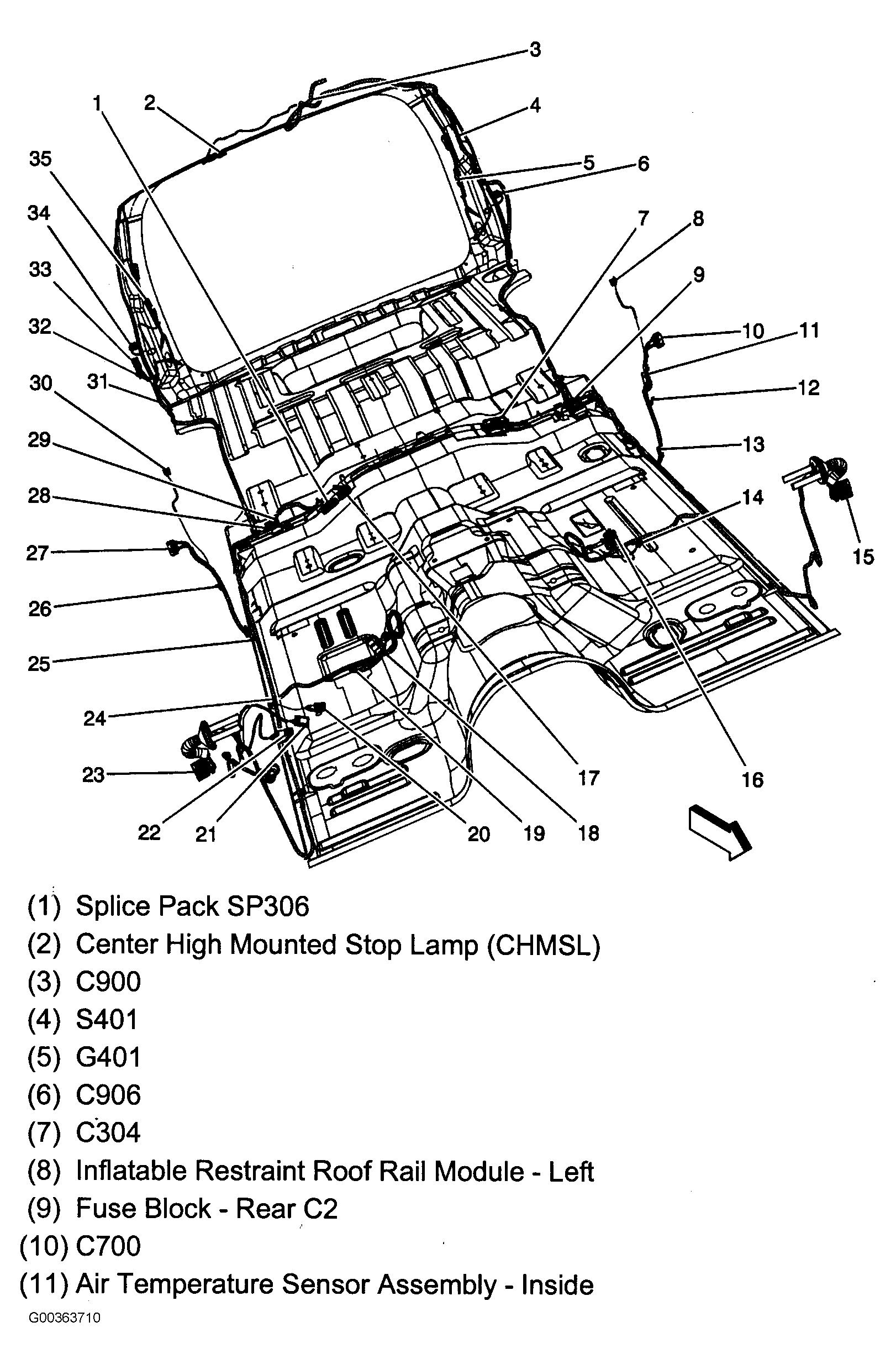

G00363710

Courtesy of SAAB-SCANIA OF AMERICA, INC.

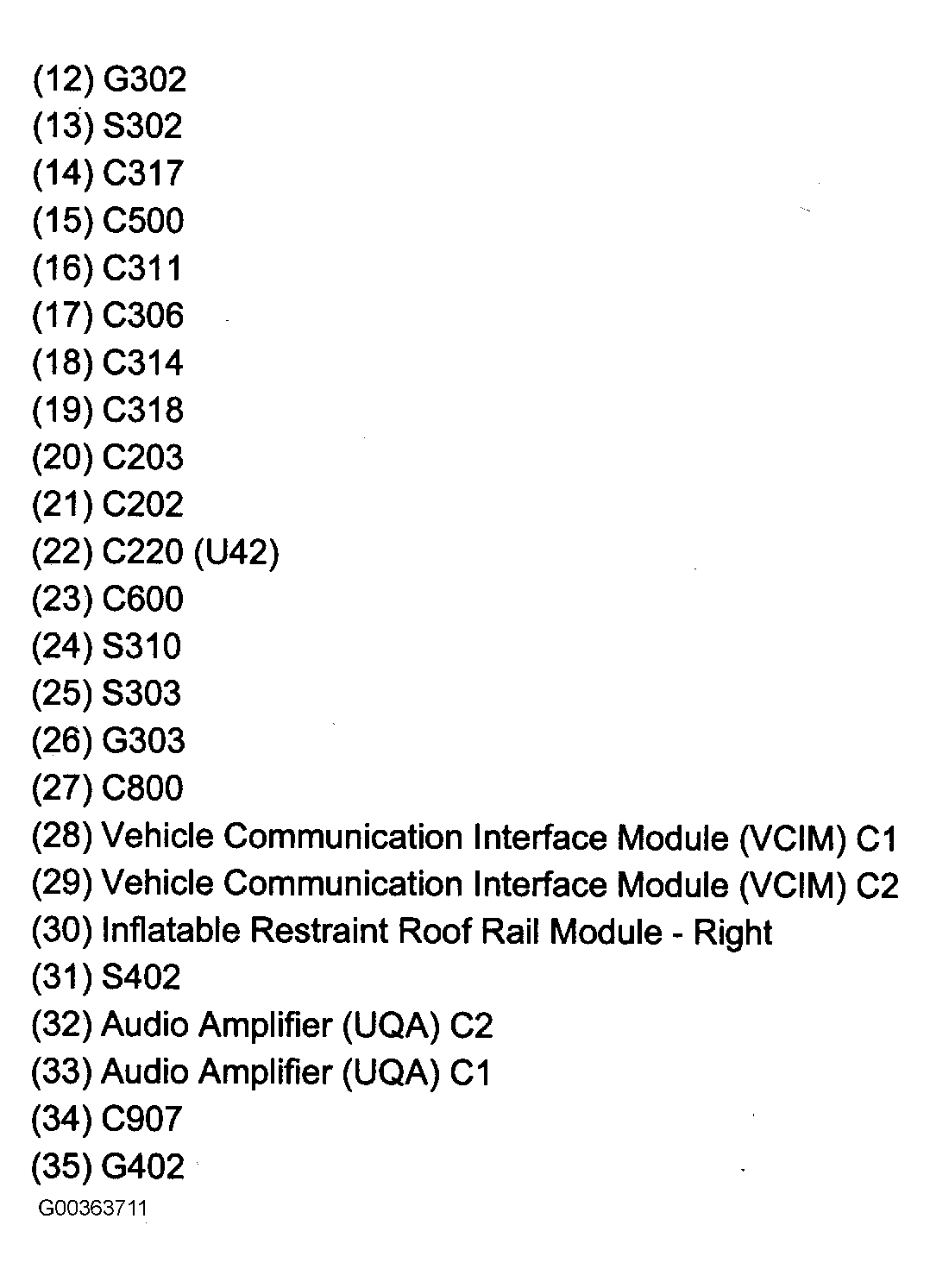

Fig 128: Vehicle Floor (2 Of 2)

G00363711

Courtesy of SAAB-SCANIA OF AMERICA, INC.

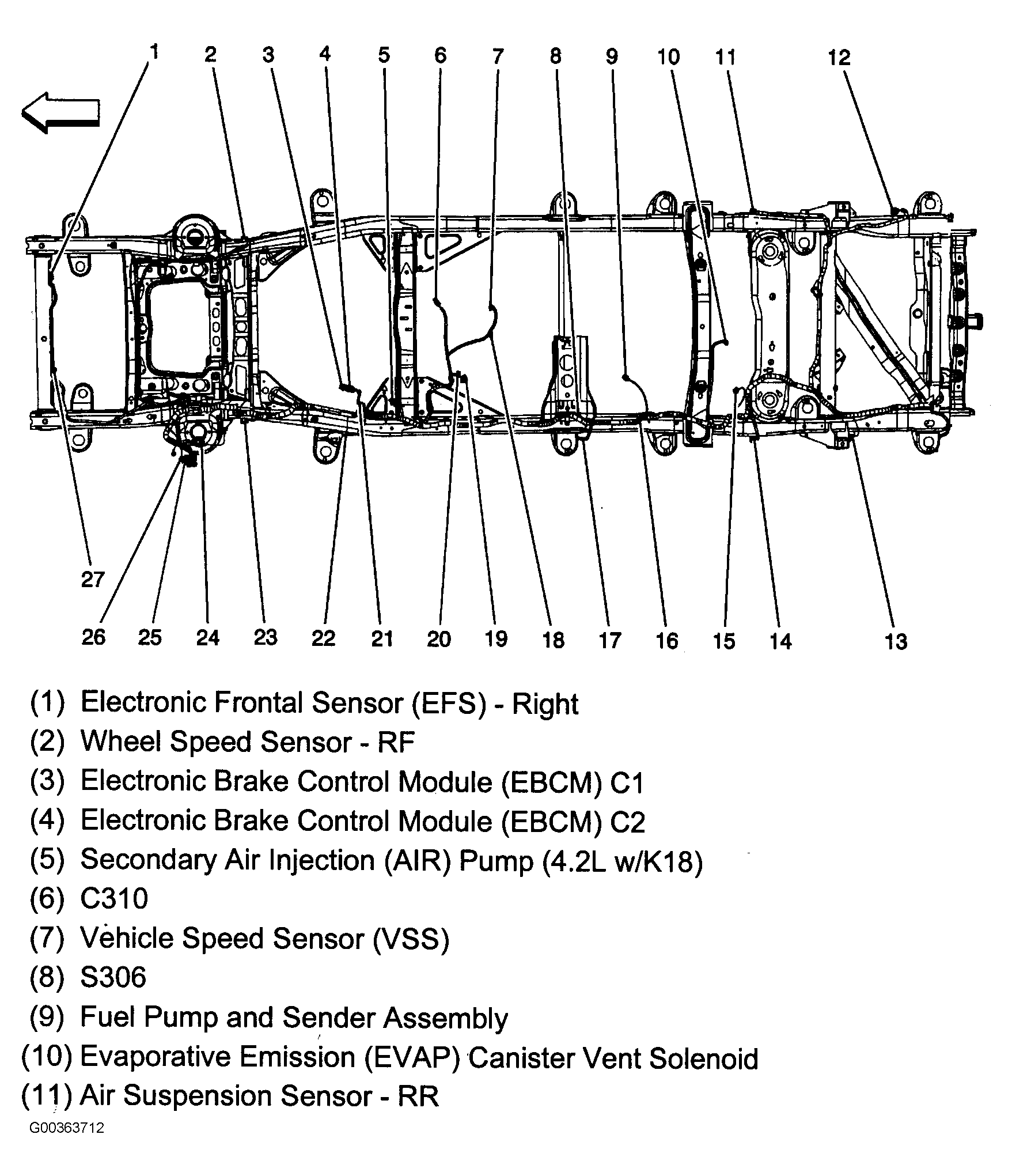

Fig 129: Chassis (1 Of 2)

G00363712

Courtesy of SAAB-SCANIA OF AMERICA, INC.

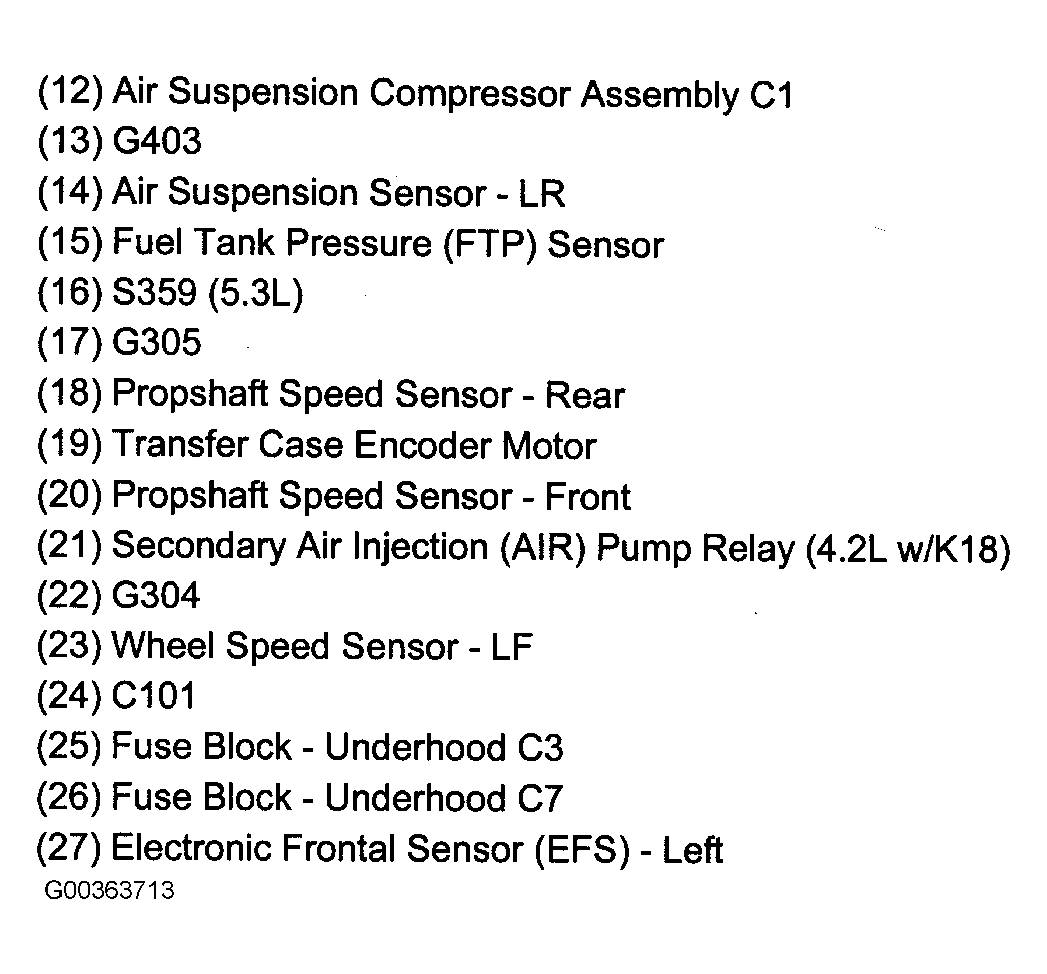

Fig 130: Chassis (2 Of 2)

G00363713

Courtesy of SAAB-SCANIA OF AMERICA, INC.

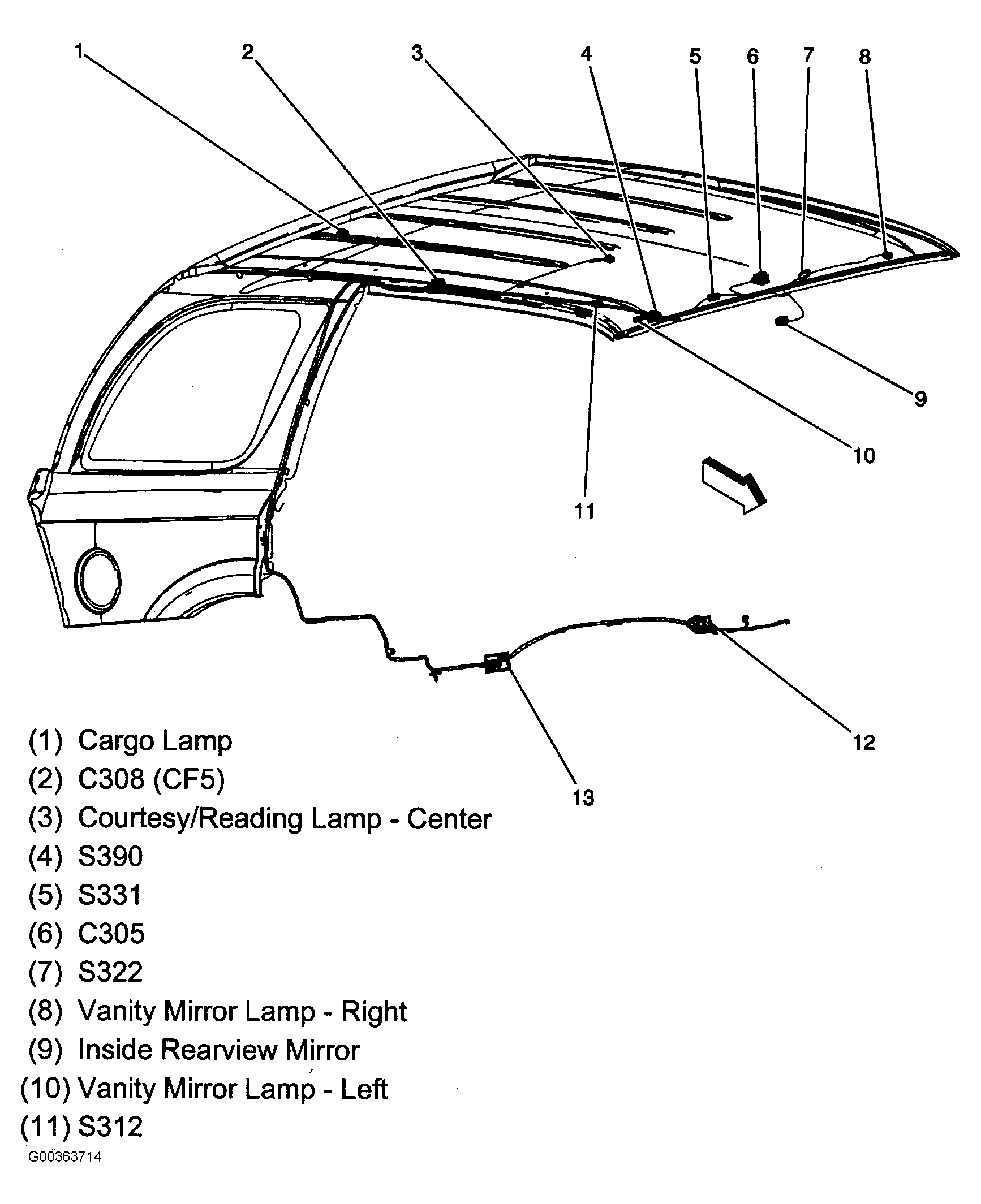

Fig 131: Roof

G00363714

Courtesy of SAAB-SCANIA OF AMERICA, INC.

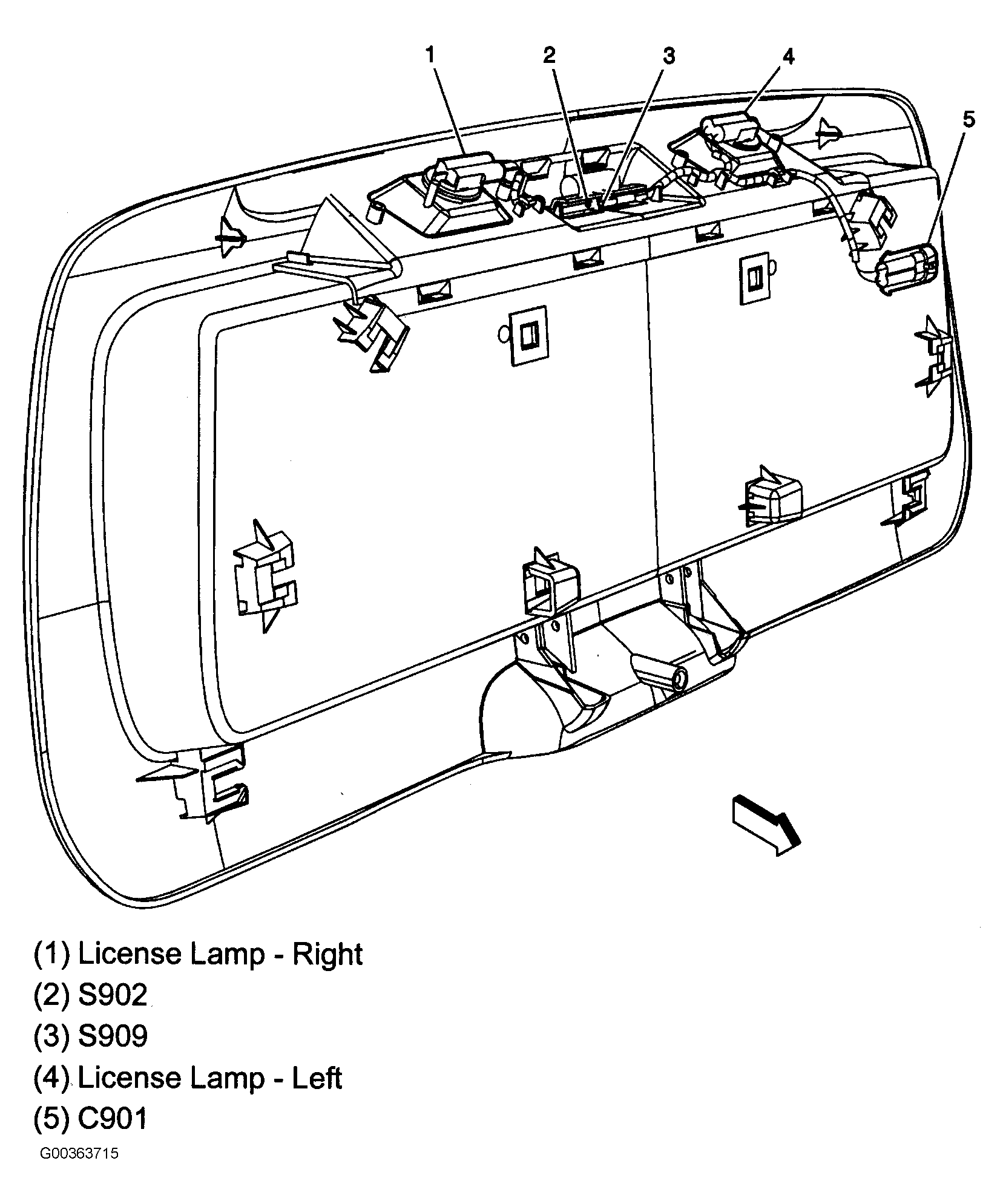

Fig 132: Liftgate

G00363715

Courtesy of SAAB-SCANIA OF AMERICA, INC.

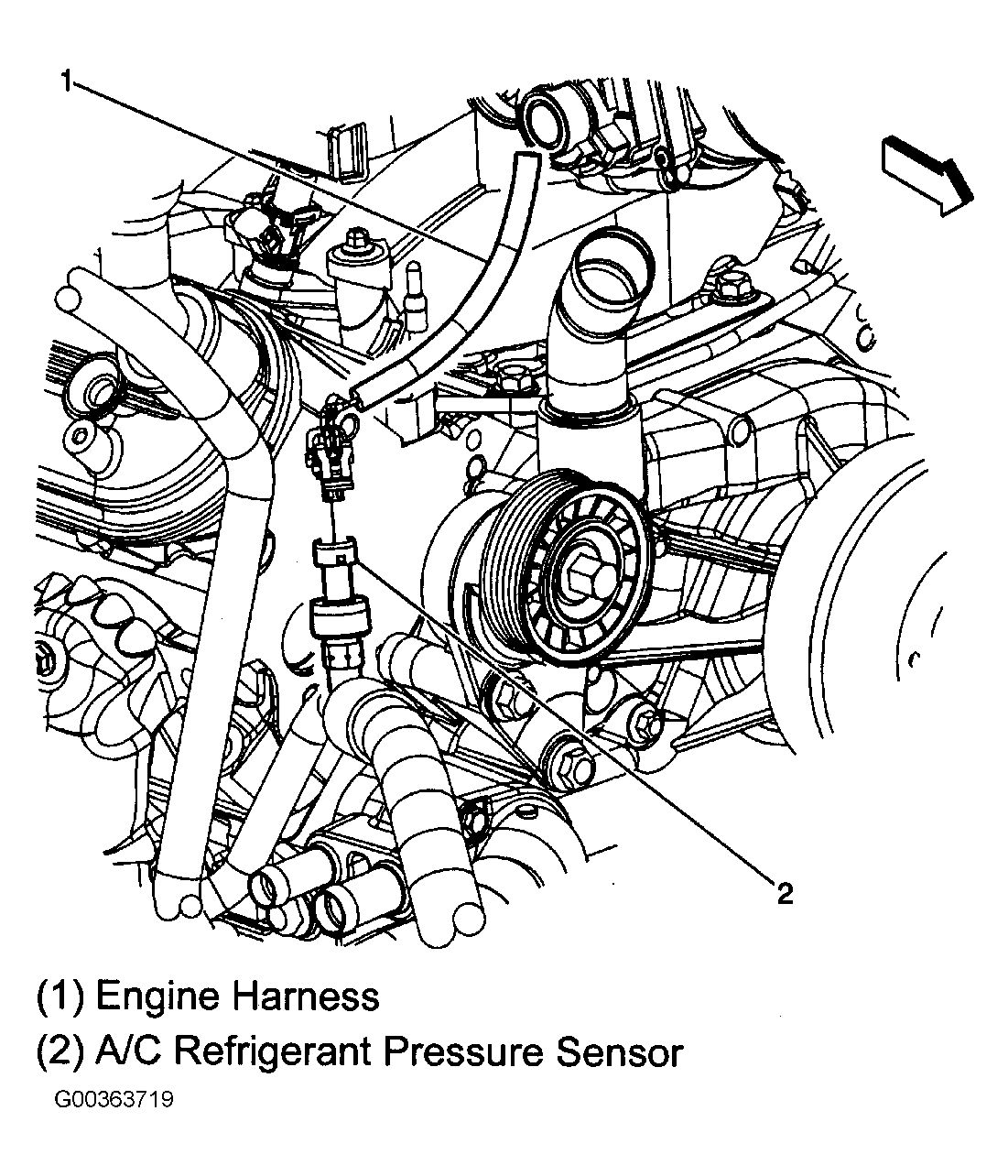

Fig 133: Upper Right Front Of Engine (5.3L)

G00363719

Courtesy of SAAB-SCANIA OF AMERICA, INC.

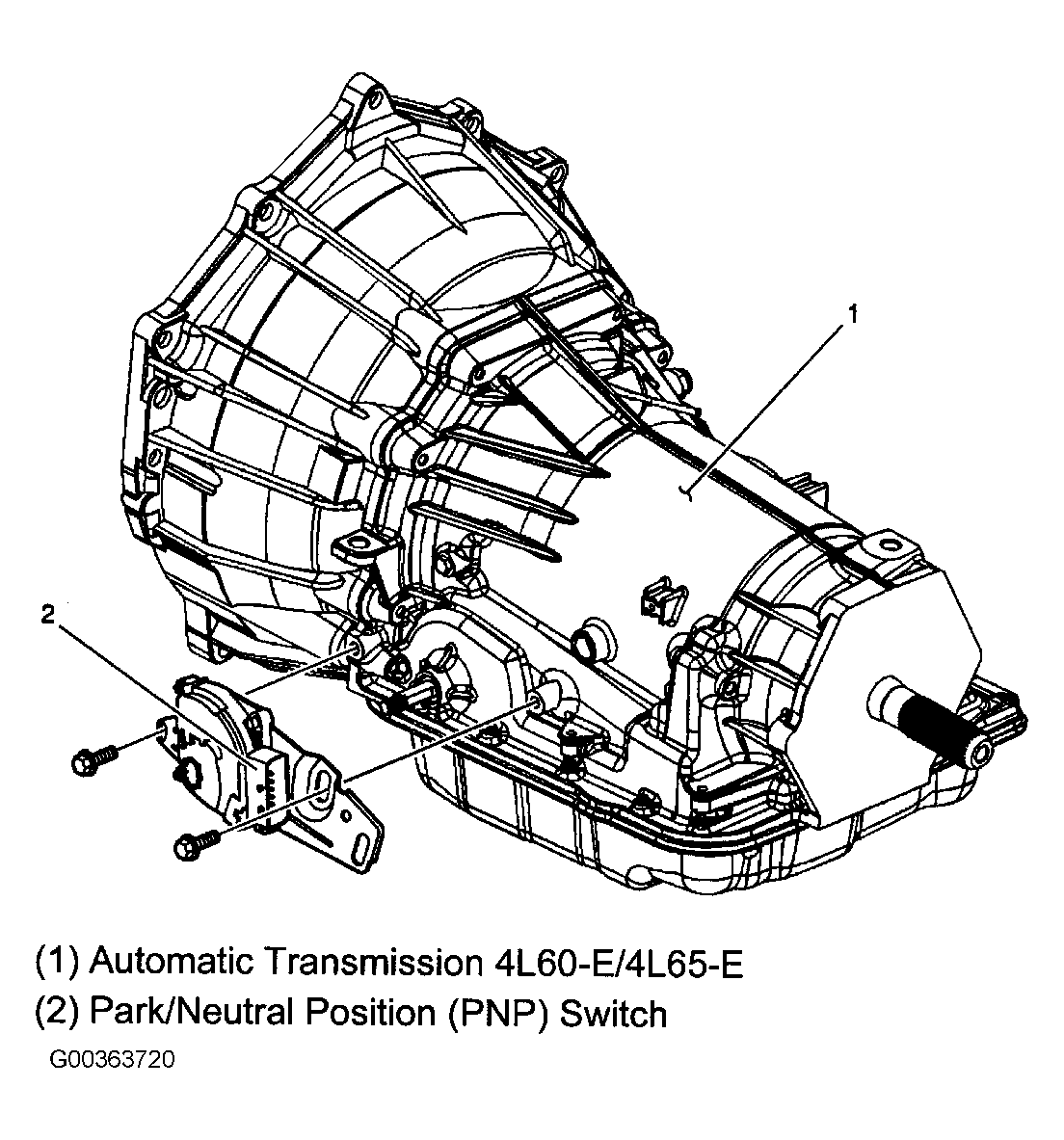

Fig 134: Transmission

G00363720

Courtesy of SAAB-SCANIA OF AMERICA, INC.
