Engine Controls Component Views

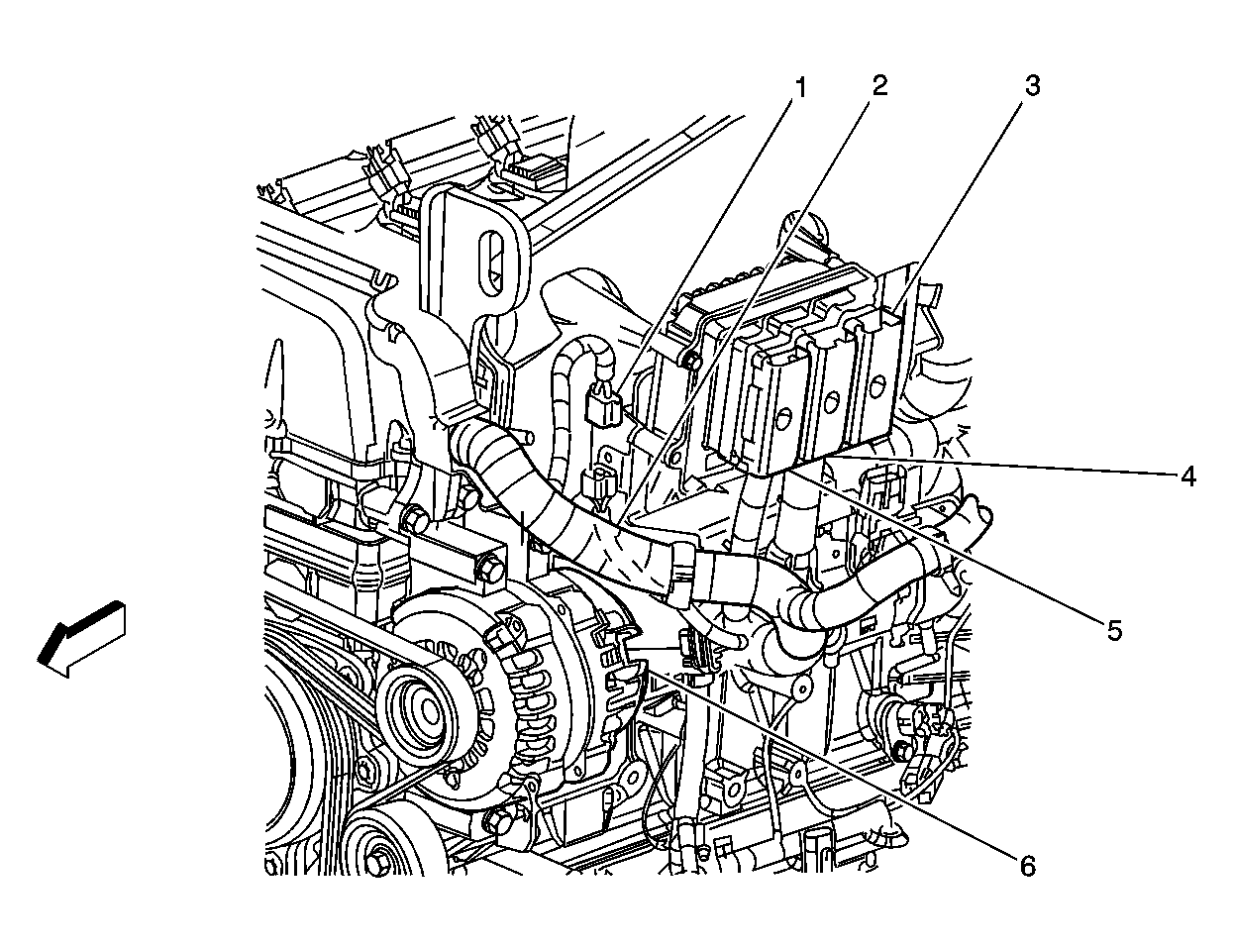

Fig 1: View Of Upper Left Side Of The Engine - Front
GM1492013Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Engine Harness
3 Powertrain Control Module (PCM) C1
4 Powertrain Control Module (PCM) C2
5 Powertrain Control Module (PCM) C3
6 Generator

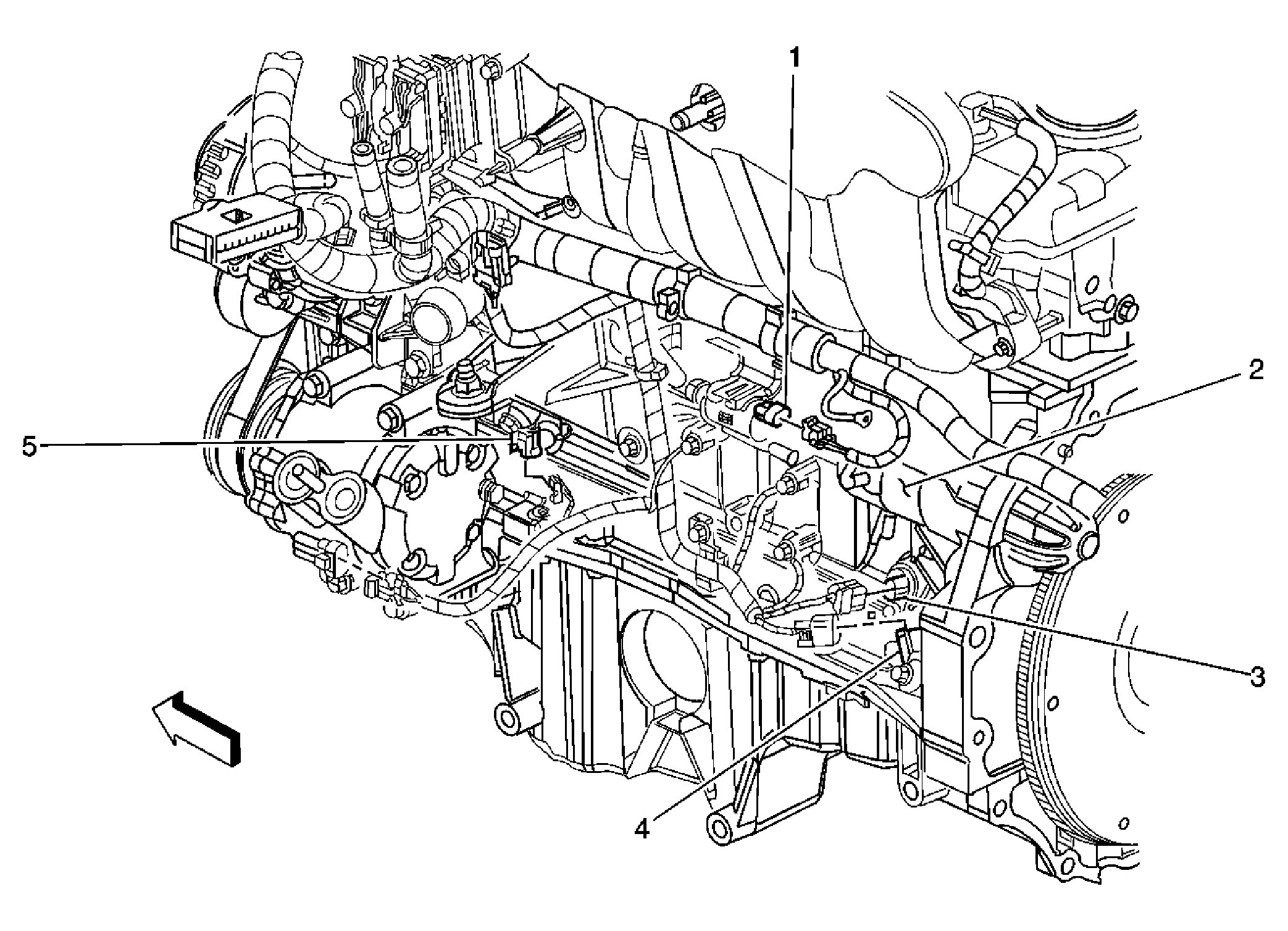

Fig 2: View Of Lower Left Side Of The Engine
GM1492075Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Evaporative Emission (EVAP) Canister Purge Solenoid
2 Starter
3 Crankshaft Position (CKP) Sensor
4 Knock Sensor (KS) 2, Rear
5 Knock Sensor (KS) 1, Front

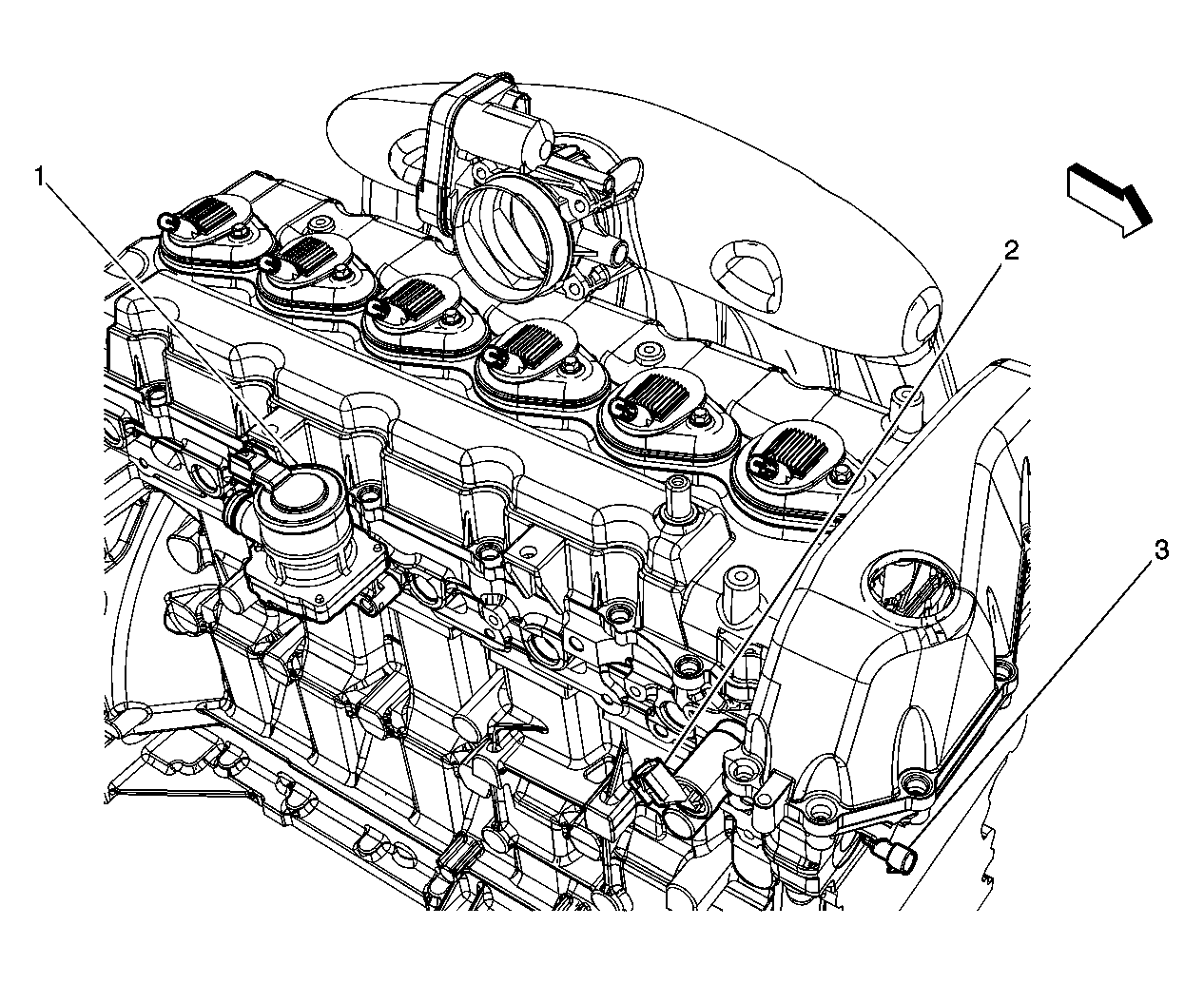

Fig 3: View Of Upper Right Side Of Engine - Front
GM1550801Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Secondary Air Injection (AIR) Solenoid (K18)
2 Camshaft Actuator Solenoid Assembly
3 Camshaft Position (CMP) Sensor

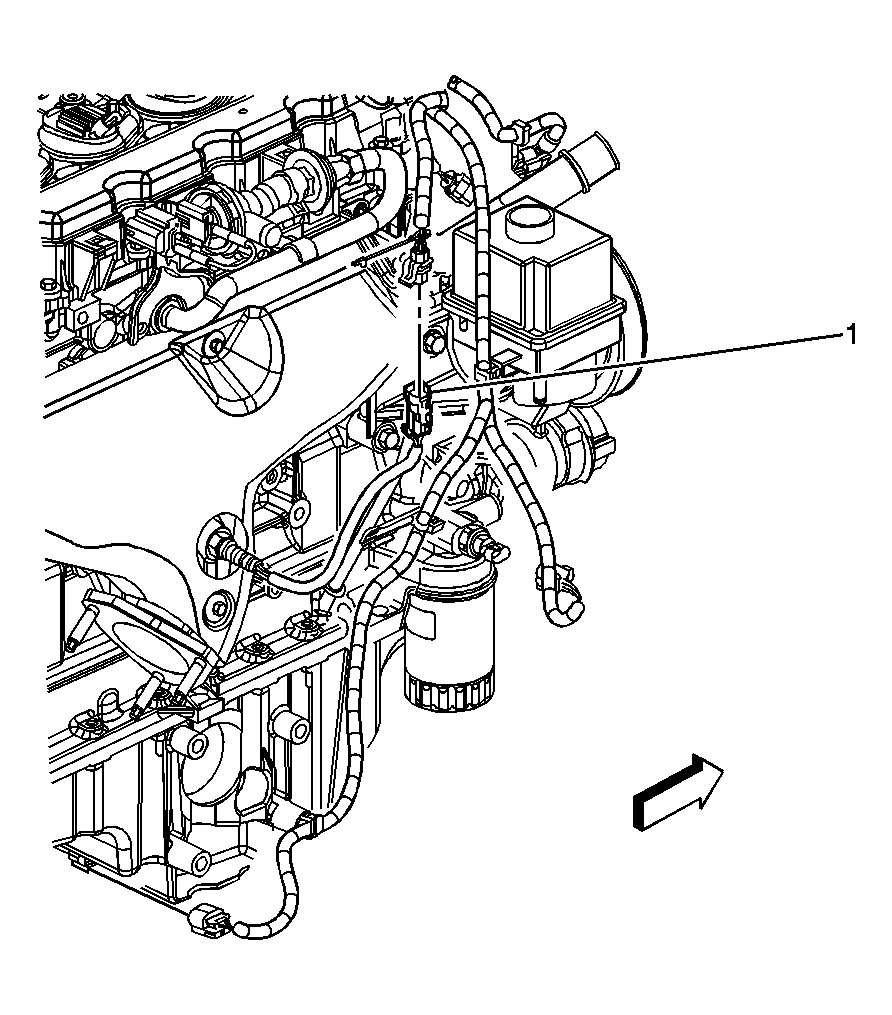

Fig 4: View Of Engine, Right Side
GM747452Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) 1

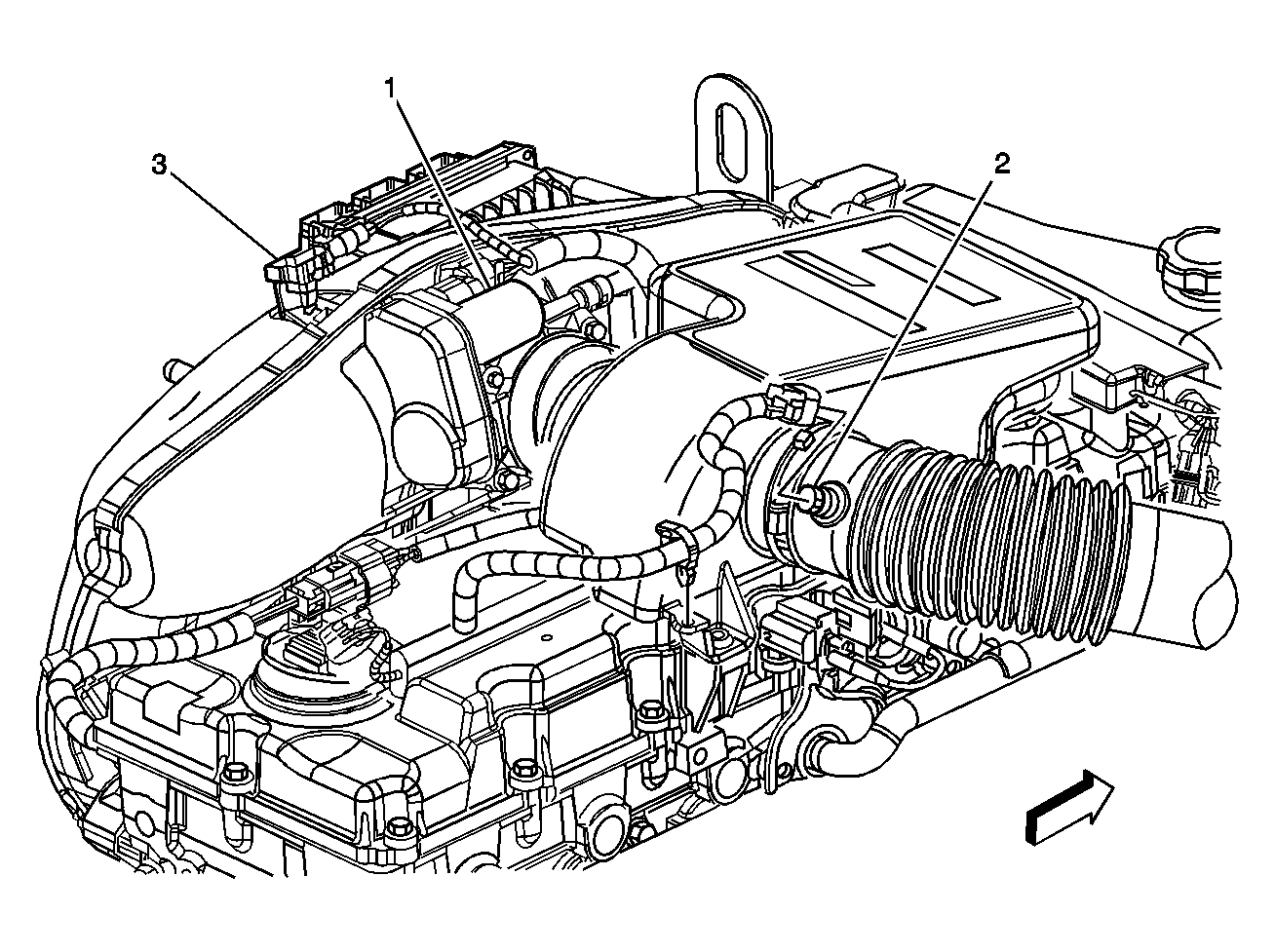

Fig 5: View Of Engine - Throttle Body
GM747443Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Throttle Body
2 Intake Air Temperature (IAT) Sensor
3 Manifold Absolute Pressure (MAP) Sensor

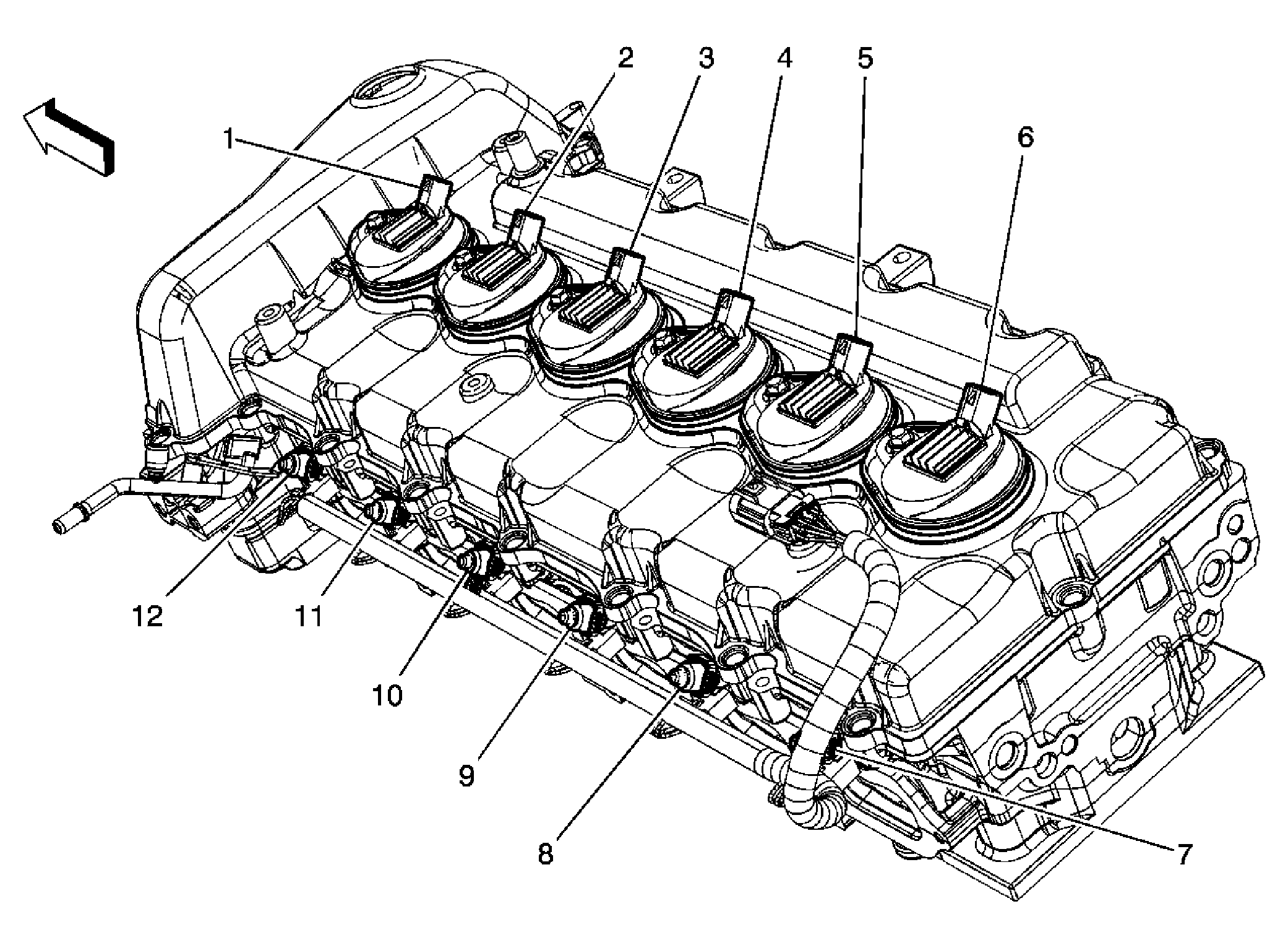

Fig 6: View Of Top Of Engine
GM1550688Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 1
2 Ignition Coil 2
3 Ignition Coil 3
4 Ignition Coil 4
5 Ignition Coil 5
6 Ignition Coil 6
7 Fuel Injector 6
8 Fuel Injector 5
9 Fuel Injector 4
10 Fuel Injector 3
11 Fuel Injector 2
12 Fuel Injector 1

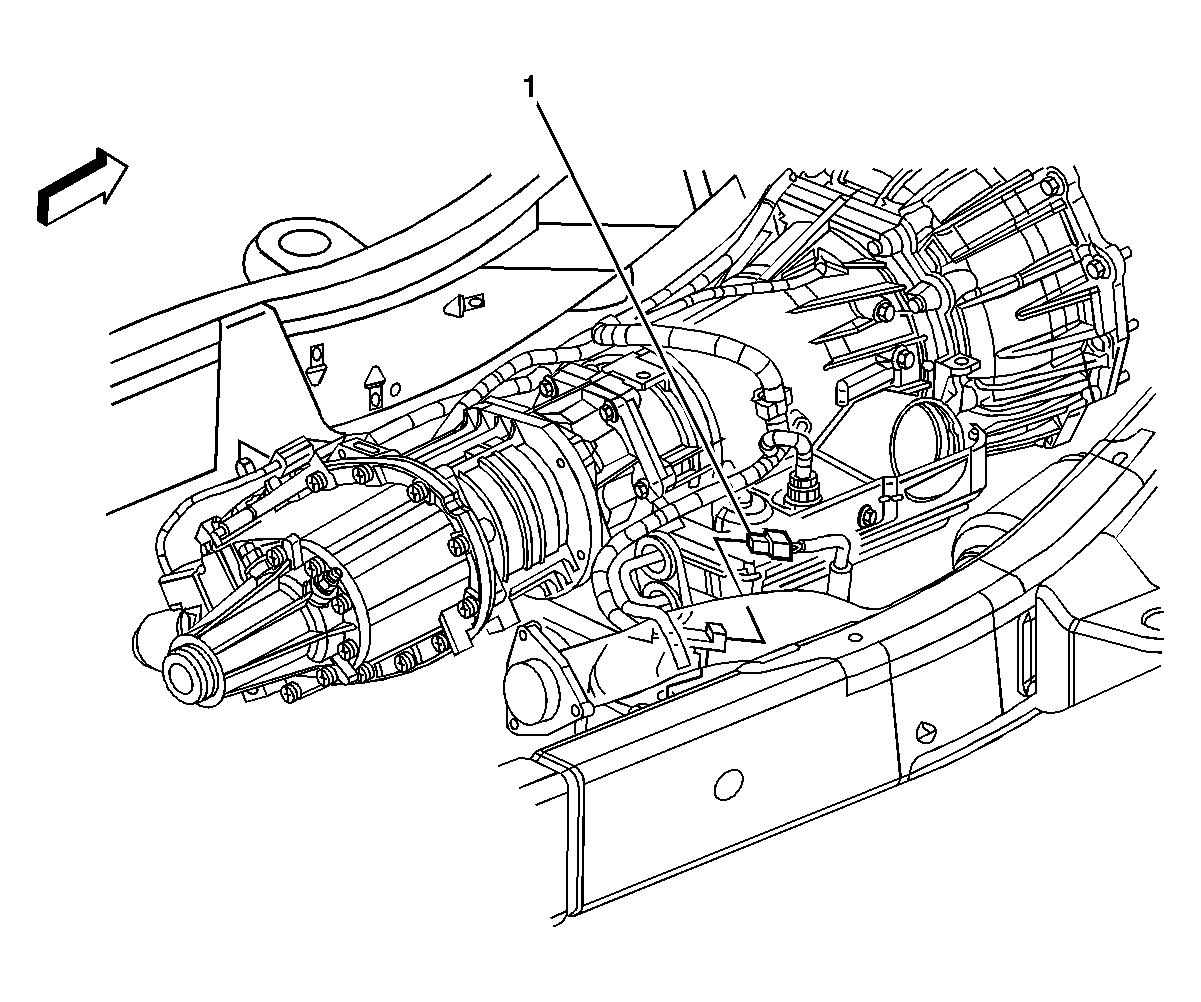

Fig 7: View Of Exhaust Pipe
GM747453Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) 2

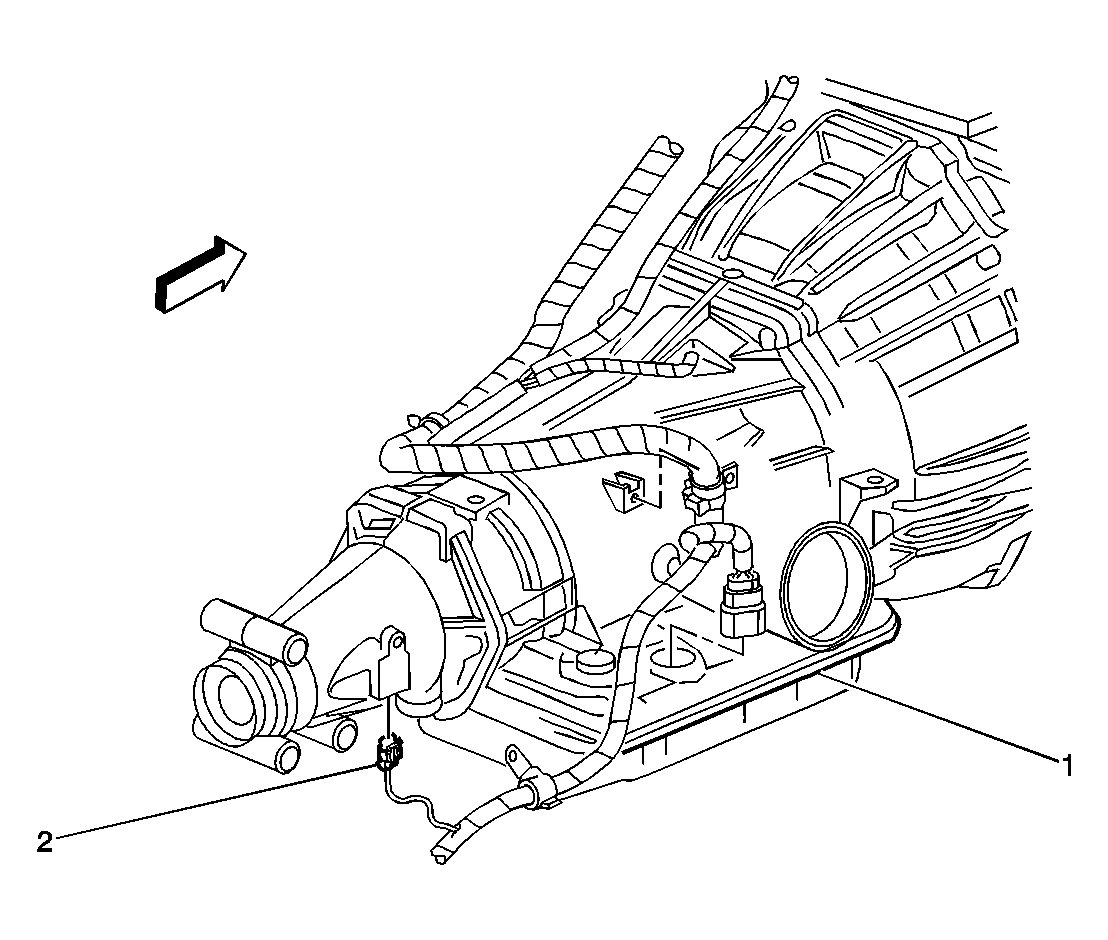

Fig 8: View Of Automatic Transmission
GM747454Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Automatic Transmission
2 Vehicle Speed Sensor (VSS)

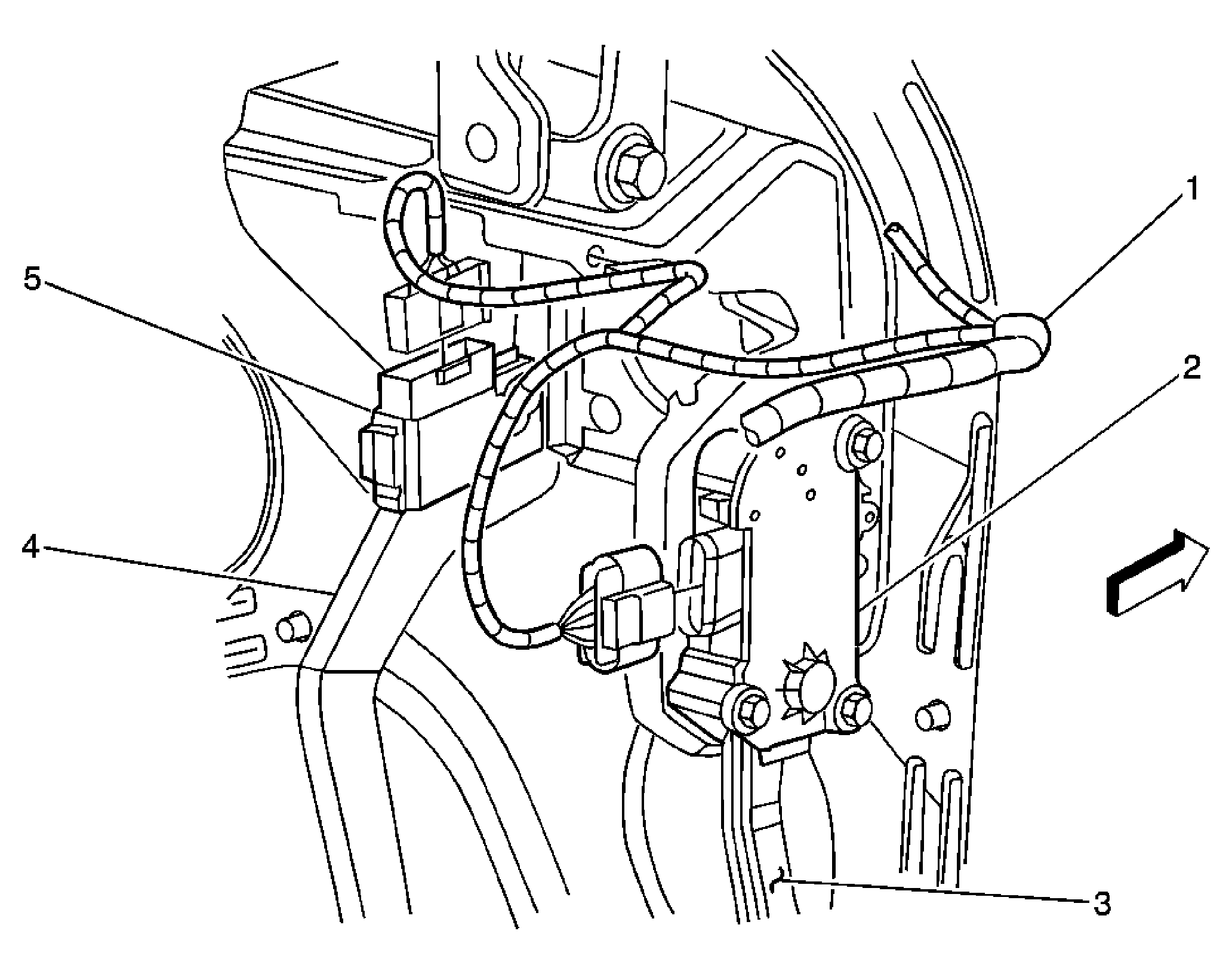

Fig 9: View Of Accelerator & Brake Pedals
GM1488336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Harness
2 Accelerator Pedal Position (APP) Sensor
3 Accelerator Pedal
4 Brake Pedal
5 Stop Lamp Switch

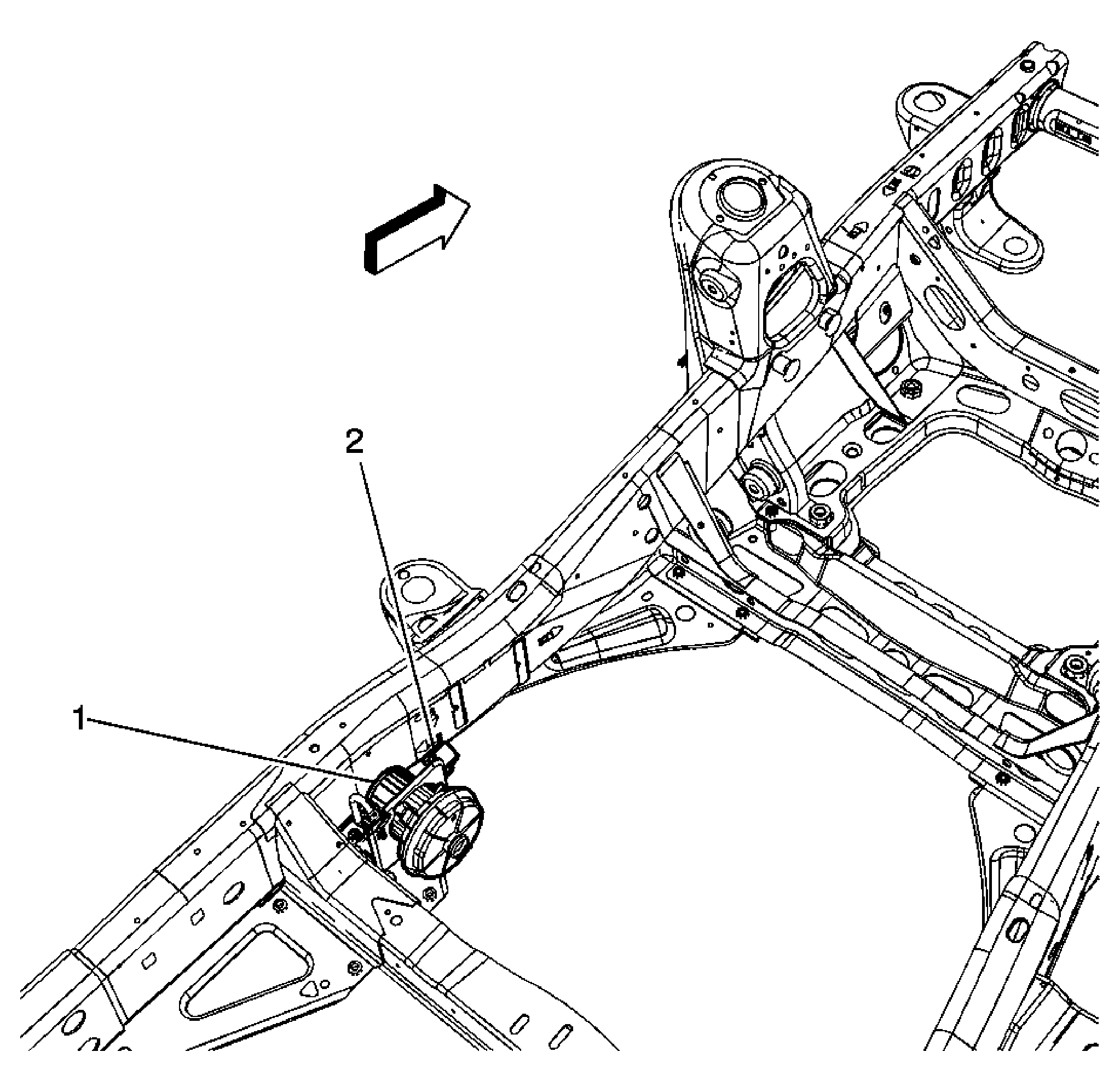

Fig 10: View Of Left Front Of Chassis (K18)
GM1550751Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Secondary Air Injection (AIR) Pump
2 Secondary Air Injection (AIR) Pump Relay

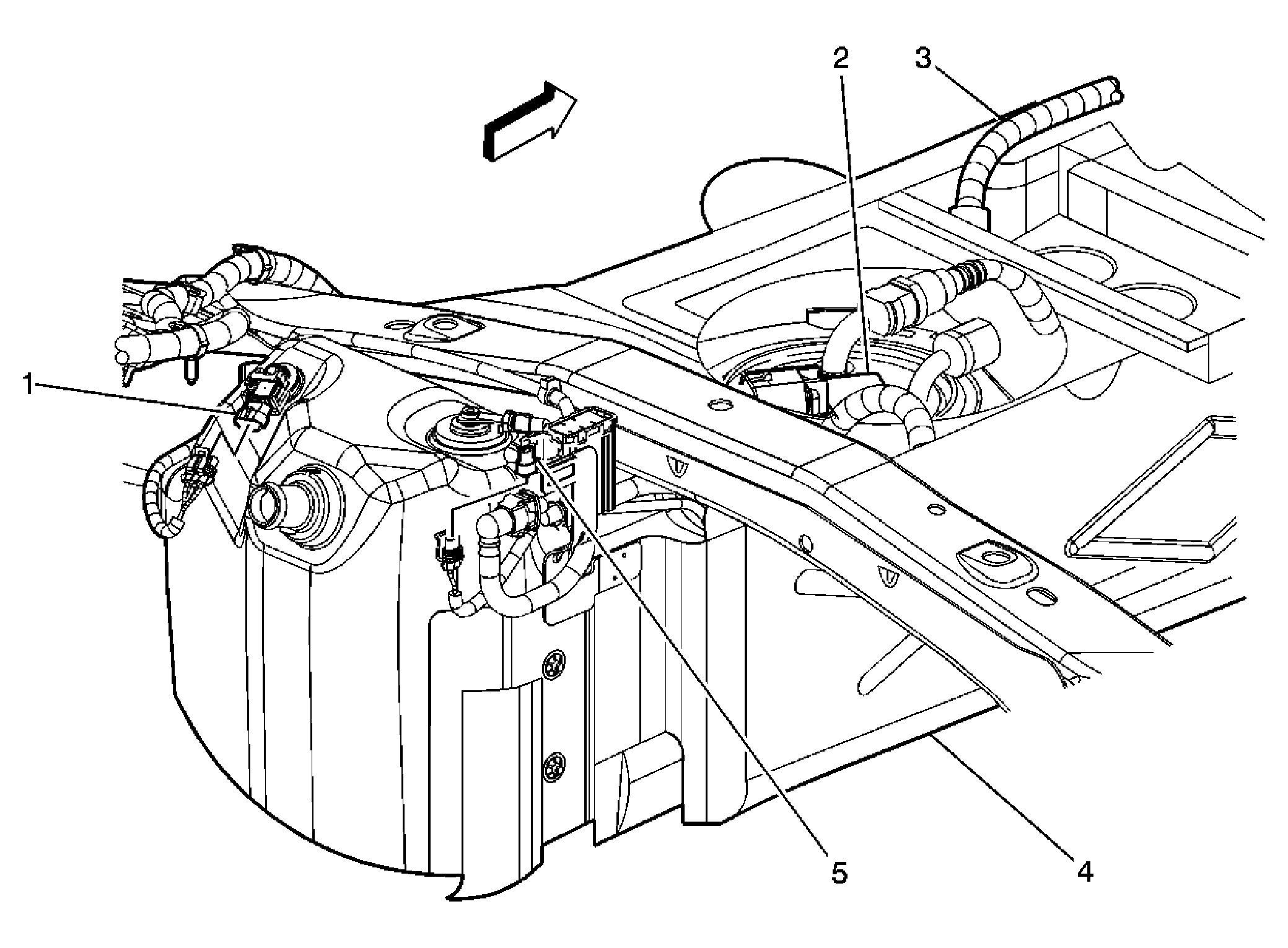

Fig 11: View Of Fuel Tank
GM1490767Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressure (FTP) Sensor
2 Fuel Pump and Sender Assembly
3 Chassis Harness
4 Fuel Tank
5 Evaporative Emission (EVAP) Canister Vent Solenoid
