Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor

GM886053Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326830
  • 6-Way F GT 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PU 1272 Low Reference
B L-BU 1162 APP Sensor 2 Signal
C TN 1274 5-Volt Reference
D BN 1271 Low Reference
E D-BU 1161 APP Sensor 1 Signal
F WH/BK 1164 5-Volt Reference

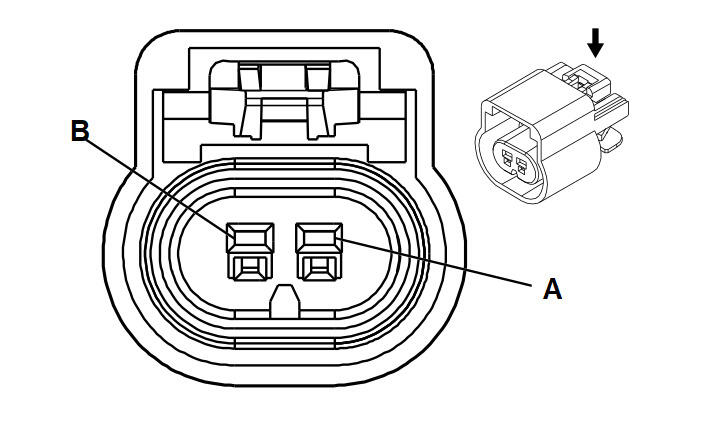

Camshaft Actuator Solenoid Assembly

GM523630Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326801
  • 2-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 2198 Camshaft Position Solenoid Actuator High Control
B BK 2199 Low Reference

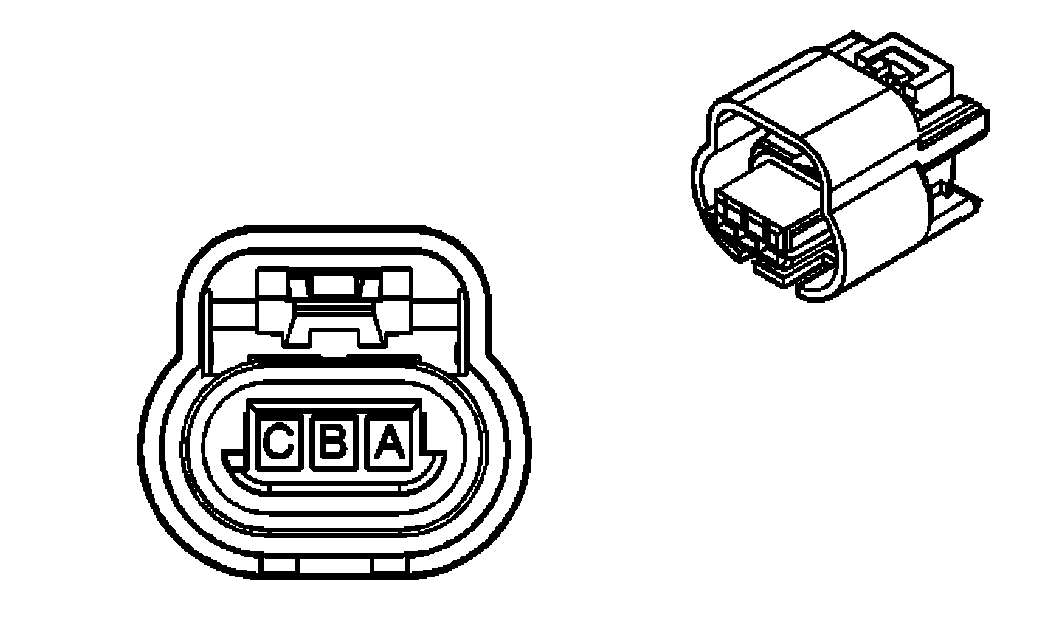

Camshaft Position (CMP) Sensor

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A RD 631 12-Volt Reference
B BN/WH 633 CMP Sensor Signal
C PK/BK 632 Low Reference
Crankshaft Position (CKP) Sensor

GM646406Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336004
  • 2-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PU 574 Low Reference
B YE 573 CKP Sensor Signal
Engine Coolant Temperature (ECT) Sensor

GM523630Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326801
  • 2-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A YE 410 ECT Sensor Signal
B BK 2761 Low Reference
Evaporative Emission (EVAP) Canister Purge Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A PK 239 Ignition 1 Voltage
B D-GN/WH 428 EVAP Canister Purge Solenoid Control
Evaporative Emission (EVAP) Canister Vent Solenoid

GM684795Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052643
  • 2-Way F Metri-Pack 150 Series Sealed (RD)
Pin Wire Color Circuit No. Function
A PK 239 Ignition 1 Voltage
B WH 1310 EVAP Canister Vent Solenoid Control
Fuel Injector 1

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F Micro-Pack 064 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B BK 1744 Fuel Injector 1 Control
Fuel Injector 2

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F Micro-Pack 064 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B L-GN/BK 1745 Fuel Injector 2 Control
Fuel Injector 3

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F Micro-Pack 064 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B PK/BK 1746 Fuel Injector 3 Control
Fuel Injector 4

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F Micro-Pack 064 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B L-BU/BK 844 Fuel Injector 4 Control
Fuel Injector 5

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F Micro-Pack 064 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B BK/WH 845 Fuel Injector 5 Control
Fuel Injector 6

GM366123Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326181
  • 2-Way F Micro-Pack 064 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B YE/BK 846 Fuel Injector 6 Control

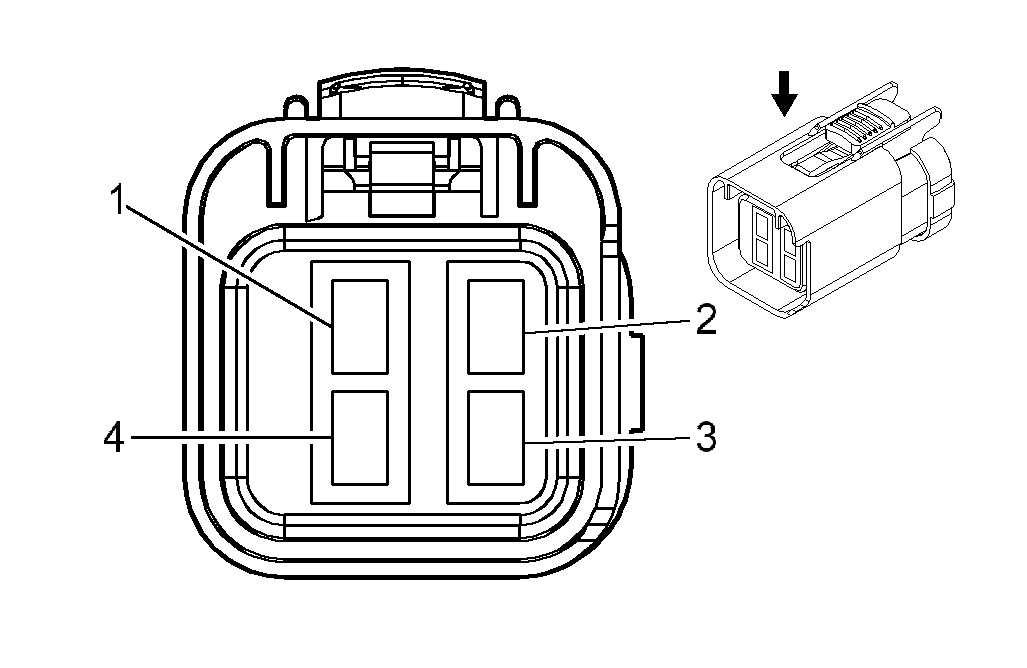

Fuel Pump and Sender Assembly

GM697003Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15324862
  • 4-Way F 2.8 Series Sealed (L-GY)
Pin Wire Color Circuit No. Function
1 BK 2450 Ground
2 PU 1589 Fuel Level Sensor Signal - Primary
3 OG/BK 510 Low Reference
4 GY 120 Fuel Pump Supply Voltage
Fuel Tank Pressure (FTP) Sensor

GM516611Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059595
  • 3-Way F Metri-Pack 150 Series Sealed (BK)
Pin Wire Color Circuit No. Function
A BK 2759 Low Reference
B D-GN 890 Fuel Tank Pressure Sensor Signal
C GY 2709 5-Volt Reference

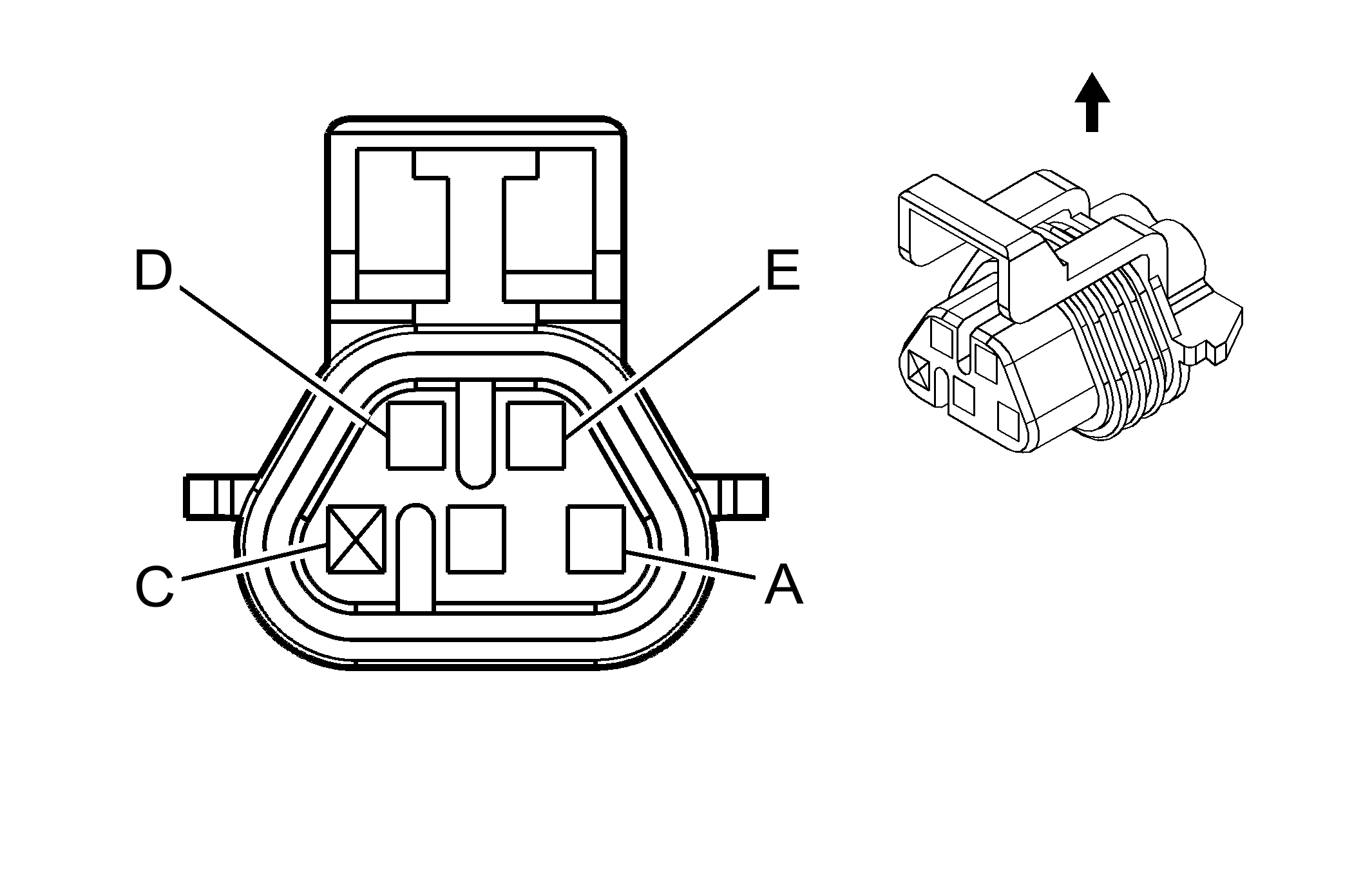

Heated Oxygen Sensor (HO2S) 1

GM655691Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12146046
  • 4-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A TN 1664 HO2S Low Signal - Bank 1 Sensor 1
B PU/WH 1665 HO2S High Signal - Bank 1 Sensor 1
D PK 539 Ignition 1 Voltage
E D-GN 676 HO2S Heater Low Control - Bank 1 Sensor 1
Heated Oxygen Sensor (HO2S) 2

GM280761Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12160825
  • 4-Way M Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A TN/WH 1669 HO2S Low Signal - Bank 1 Sensor 2
B PU/WH 1668 HO2S High Signal - Bank 1 Sensor 2
C BK/WH 1423 HO2S Heater Low Control - Bank 1 Sensor 2
D PK 539 Ignition 1 Voltage
Ignition Coil 1

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B PU 2121 IC 1 Control
C BK 550 Ground
Ignition Coil 2

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B RD/WH 2122 IC 2 Control
C BK 550 Ground
Ignition Coil 3

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B L-BU 2123 IC 3 Control
C BK 550 Ground
Ignition Coil 4

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B D-GN/WH 2124 IC 4 Control
C BK 550 Ground
Ignition Coil 5

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B D-GN 2125 IC 5 Control
C BK 550 Ground
Ignition Coil 6

GM726825Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15355370
  • 3-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A PK 439 Ignition 1 Voltage
B L-BU/WH 2126 IC 6 Control
C BK 550 Ground

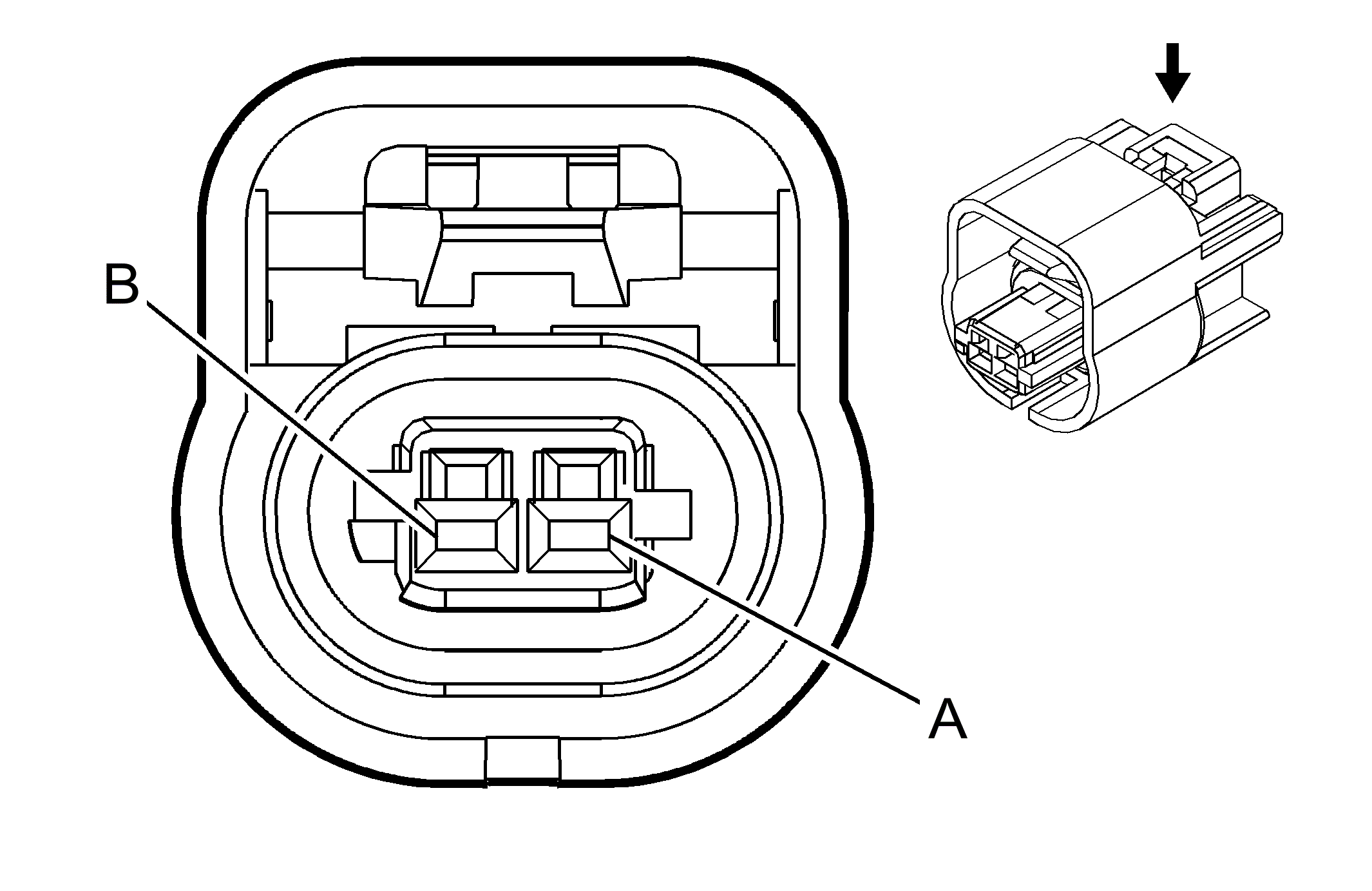

Intake Air Temperature (IAT) Sensor

GM646403Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15335987
  • 2-Way F GT 150 Series Sealed 3.2 X 4.0 (BK)
Pin Wire Color Circuit No. Function
A TN 472 IAT Sensor Signal
B BK 2760 Low Reference
Knock Sensor (KS) 1 Front

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT 150 Series Sealed (NA)
Pin Wire Color Circuit No. Function
A D-BU 496 KS 1 Signal
B GY 1716 Low Reference
Knock Sensor (KS) 2 Rear

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT 150 Series Sealed (NA)
Pin Wire Color Circuit No. Function
A L-BU 1876 Knock Sensor 2 Signal
B GY 2303 Low Reference
Manifold Absolute Pressure (MAP) Sensor

GM684840Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129946
  • 3-Way F Metri-Pack 150 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A OG/BK 469 Low Reference
B L-GN 432 MAP Sensor Signal
C GY 2704 5-Volt Reference
Secondary Air Injection (AIR) Pump (K18)

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12147067
  • 2-Way F DUCON 6.3 Series Sealed (GY)
Pin Wire Color Circuit No. Function
A RD 78 Air Pump Supply Voltage
B BK 2450 Ground
Secondary Air Injection (AIR) Pump Relay (K18)

GM603108Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15336745
  • 4-Way F GR 280 Series Metri-Pack 800 Sealed (GY)
Pin Wire Color Circuit No. Function
30 RD 1042 Battery Positive Voltage
85 BN 436 Air Pump Relay Control
86 PK 739 Ignition 1 Voltage
87 RD 78 Air Pump Supply Voltage
Secondary Air Injection (AIR) Solenoid (K18)

GM1232999Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15374222
  • 2-Way F GT 150 Series Sealed (WH)
Pin Wire Color Circuit No. Function
A PK/BK 415 Air Sol Fuse Supply Voltage
B BK 350 Ground
Throttle Body

GM646400Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326835
  • 8-Way F GT 150 Series Sealed 4.0 (BK)
Pin Wire Color Circuit No. Function
A D-GN 485 TP Sensor 1 Signal
B L-BU/BK 1688 5-Volt Reference
C BK 2752 Low Reference
D PU 486 TP Sensor 2 Signal
E YE 581 TAC Motor Control - 1
F BN 582 TAC Motor Control - 2
G GY 2701 5-Volt Reference
H BK/WH 1704 Low Reference
