Installation Procedure

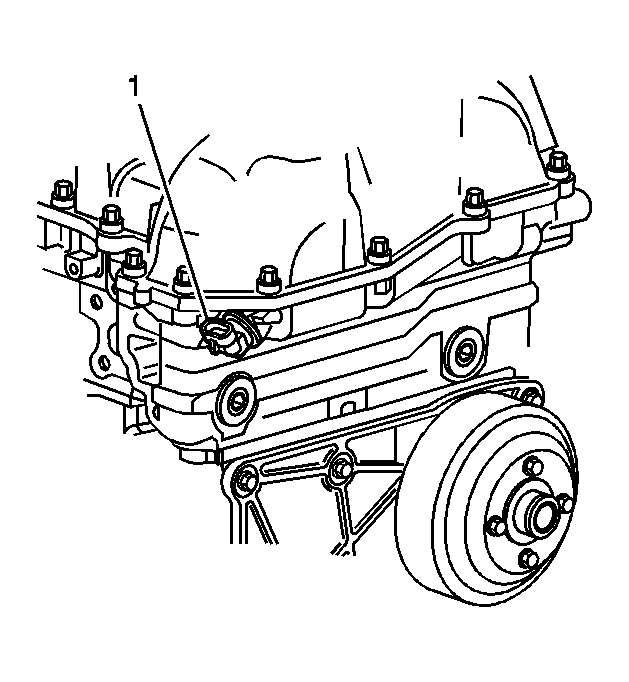

Fig 1: Locating Camshaft Position Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the camshaft position (CMP) sensor.
Tighten: Tighten the CMP sensor bolt to 10 N.m (89 lb in).
Install the CMP sensor electrical connector (1).
