Installation Procedure

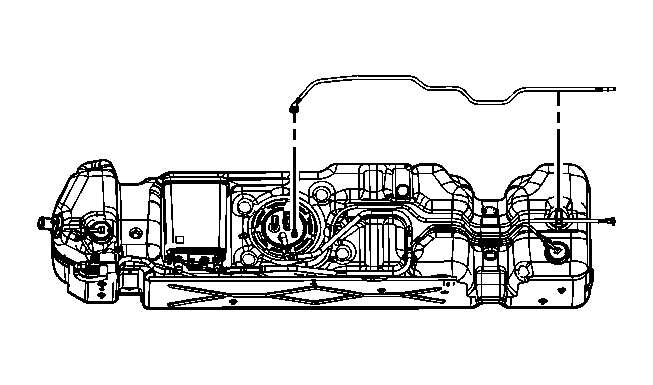

    Fig 1: Disconnecting/Reconnecting Fuel Feed Pipe
    GM1480083Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel feed pipe to the fuel tank.
  2. Connect the fuel feed pipe to the fuel pipe retainer.
  3. Connect the fuel feed pipe to the fuel sender. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
