Disassembly Procedure

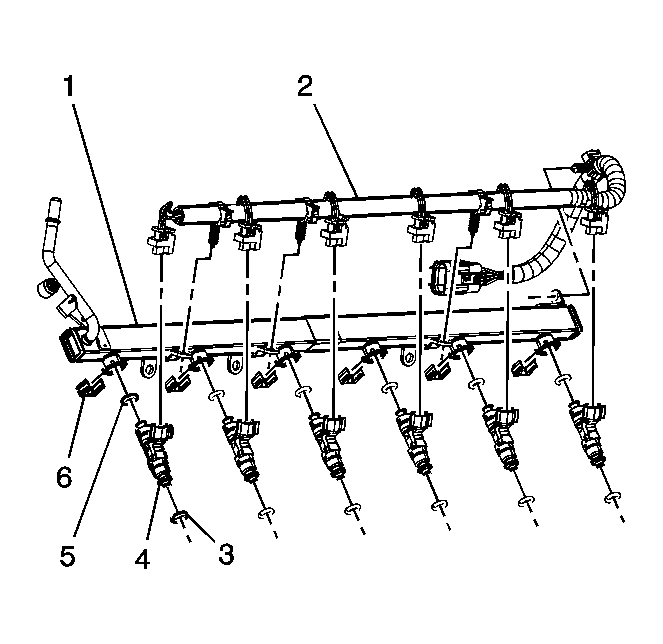

    Fig 1: Identifying Fuel Rail Assembly Components
    GM1482972Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel injector wire harness (2) from the fuel rail (1).
  2. Remove the fuel injectors (4) from the fuel rail (4). Refer to Fuel Injector Replacement .
