Installation Procedure

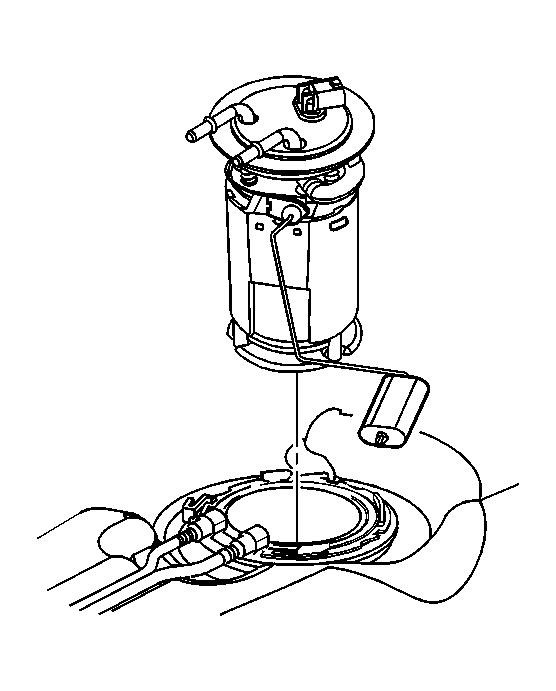

    Fig 1: View Of Fuel Sender Assembly
    GM734516Courtesy of GENERAL MOTORS CORP.
    CAUTION: In order to reduce the risk of fire and personal injury that may result from a fuel leak, always replace the fuel sender gasket when reinstalling the fuel sender assembly.
    IMPORTANT: The fuel pump strainer must be in a horizontal position when the fuel sender is installed in the tank. When installing the fuel sender assembly, assure that the fuel pump strainer does not block full travel of the float arm.
  1. Install the new seal on the fuel tank.
  2. Install the fuel sender assembly into the fuel tank.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Use the J 44402  to install the fuel sender assembly retaining ring. See Special Tools .
  4. Install the fuel tank. Refer to Fuel Tank Replacement .
